Ford Pinto Engine Weight Insights

Many classic car enthusiasts and mechanics often find themselves delving into the specifics of iconic engines, and the Ford Pinto powerplant is certainly one that sparks curiosity. When undertaking a restoration or a performance upgrade, understanding the weight of key components is crucial for planning, balancing, and even transportation. While a precise, universally quoted weight for *every* Ford Pinto engine variant can be elusive due to different configurations, ancillary equipment, and historical variations, we can certainly explore the weight of a popular and well-regarded reconditioned engine package. This article will focus on the details provided for a reconditioned 2.23L Ford Pinto engine kit, offering a valuable insight into its constituent parts and their approximate contributions to the overall mass.

Understanding Engine Weight: Why It Matters

The weight of an engine is a significant factor in several aspects of vehicle performance and design. For a start, it directly impacts the vehicle's overall kerb weight, which in turn affects acceleration, braking, and fuel efficiency. A lighter engine can lead to a more nimble and responsive driving experience. Furthermore, in performance applications, the distribution of weight is as important as the total weight. A well-balanced engine can improve handling and stability. When rebuilding or modifying an engine, understanding the weight of individual components allows for precise balancing, crucial for smooth operation and longevity. It also aids in calculating shipping costs and ensuring the vehicle's suspension and chassis can adequately support the load.

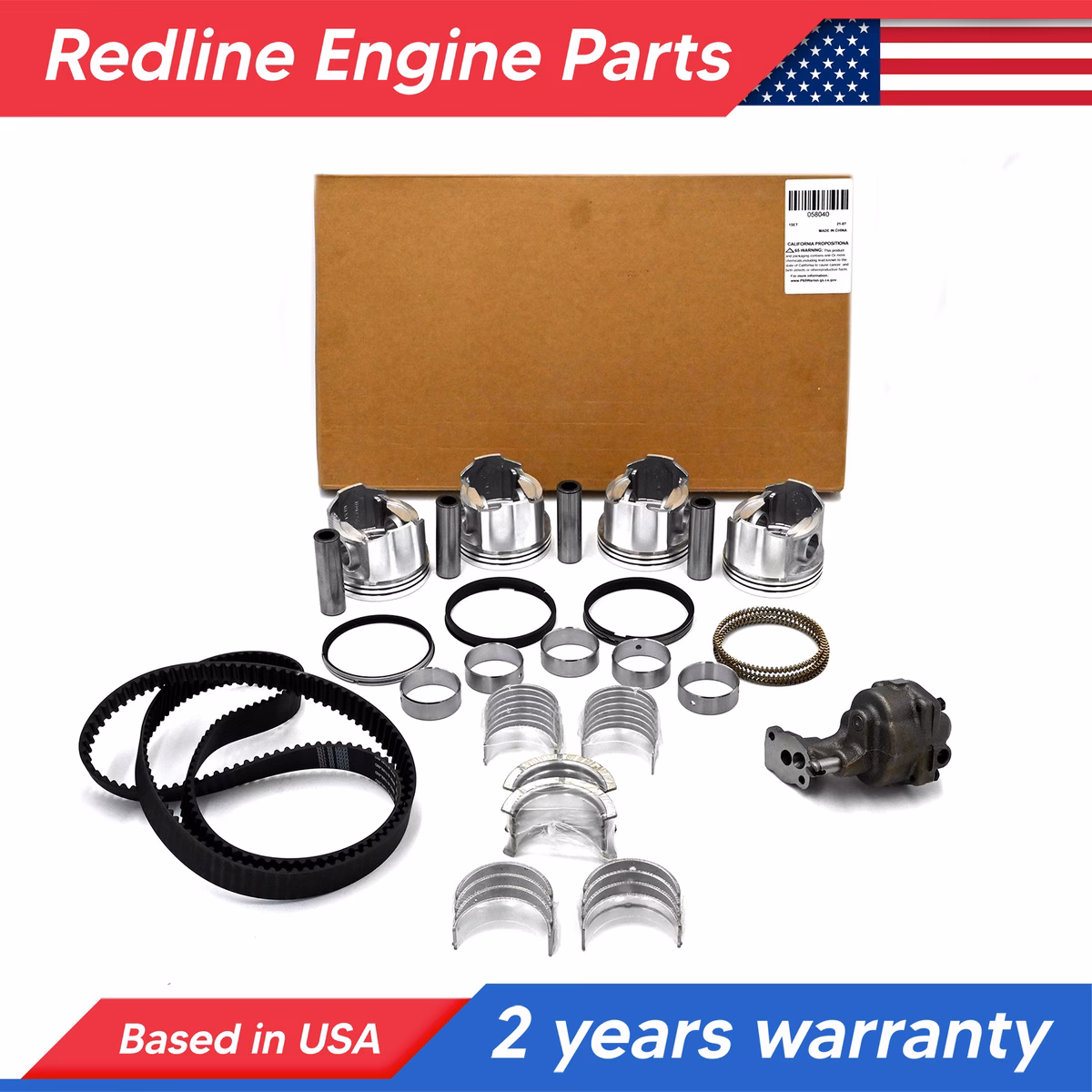

The Ford Pinto 2.23L Reconditioned Engine Kit: A Closer Look

The information provided details a specific reconditioned engine kit designed to increase the displacement of a standard Ford Pinto engine to 2.23 litres. This involves significant internal modifications, and the weight of the components used in this kit is a key consideration for anyone opting for such a build. Let's break down the components and their reported weights:

Crankshaft: The Heart of the Engine

The kit specifies a standard Ford crankshaft that undergoes a series of enhancements. These include stroking to 82mm, grinding the mains to the next suitable undersize, and preparing the front and rear seal areas. Crucially, the flywheel flange is also ground if required. A significant modification mentioned is the use of lightened big ends. This is a performance-oriented modification designed to reduce rotational mass, thereby increasing the counterweight effect. The reported weight for this modified crankshaft is approximately 11.8kg. This is a substantial component, and its precise machining and balancing are vital for the engine's performance and durability.

Connecting Rods: Strength and Precision

The kit utilises UK-manufactured I.K.Engineering EN24 steel "H" section conrods. EN24 steel is a high-strength alloy steel renowned for its durability and suitability for high-performance engine components. The "H" section design offers excellent strength-to-weight ratio. These conrods are supplied with APR 2000 bolts, which are also a high-specification, robust fastener suitable for demanding applications. While the individual weight of these conrods isn't explicitly stated, they are known to be robust components that contribute significantly to the engine's reciprocating mass. For comparison, a typical H-section steel conrod for a similar-sized engine might weigh between 400g and 600g each, depending on the specific design and length.

Pistons: Forged for Performance

The kit includes a forged 93mm piston kit. Forged pistons are generally stronger and more durable than cast pistons, making them ideal for performance engines or those intended for heavy use. They are supplied complete with piston rings, circlips, and pins. The weight of a single forged piston, including its pin and rings, can vary, but for a displacement of this size, a common weight might range from 350g to 450g. Given there are four cylinders in a typical Pinto engine, the total piston assembly weight would be a notable figure.

Bearings and Washers: Essential for Smoothness

The kit also includes main, big end, and thrust washers, all supplied in high-quality materials where available. While these are relatively small components, their quality is paramount for ensuring proper lubrication and reducing friction. Their individual weight is minimal, but their role in the engine's operation is substantial.

Core Charge and Exchange Requirements

An important aspect of this reconditioned engine kit is the requirement for a standard exchange crankshaft or an additional core charge of £300. This indicates that the kit is based on modifying an existing, usable crankshaft, or that a suitable donor crankshaft is needed to complete the build. This is common practice in engine reconditioning to manage costs and material sourcing.

Bore Sizes and Customisation

The flexibility offered by this kit is further highlighted by the availability of bore sizes to order, ranging from 92mm to 96mm. This allows for customisation based on the original block's condition and the desired final displacement. The larger bore sizes will naturally accommodate slightly heavier pistons and potentially larger cylinder liners, though the impact on overall engine weight would likely be marginal compared to the crankshaft and block itself.

Estimating the Total Engine Weight

It's challenging to provide an exact total weight for the complete Ford Pinto engine based solely on the information for this kit. The provided details focus on the modified rotating assembly. A complete Ford Pinto engine, depending on its configuration (e.g., with or without accessories like the alternator, starter motor, carburettor, exhaust manifold, flywheel, and clutch), can weigh anywhere from approximately 130kg to 170kg. The modified crankshaft at 11.8kg is a significant portion of the rotating assembly's weight. If we were to estimate the weight of the other major components (block, cylinder head, sump, pistons, conrods, crankshaft, camshaft, valves, etc.), we could infer that this reconditioned engine, with its performance-oriented internals, would likely fall within the mid-to-upper end of that typical range, especially if it includes a heavier flywheel for certain applications.

Component Weight Comparison (Illustrative)

Note: The weights for the engine block and cylinder head are estimates for typical cast-iron versions and can vary. Ancillary component weights are also estimations.

Frequently Asked Questions

Q1: What is the standard weight of a Ford Pinto engine?

A: A standard Ford Pinto engine, without ancillaries, typically weighs between 130kg and 170kg. The exact weight can depend on the specific engine variant and whether it's cast iron or an earlier alloy block (though most were iron).

Q2: Does the weight of the crankshaft significantly affect engine performance?

A: Yes, the crankshaft's weight, particularly the rotational mass at the crankpins (big ends) and counterweights, has a significant impact. Lightening these areas, as done in the described kit, reduces inertia, allowing the engine to rev more freely and respond quicker to throttle inputs. However, excessive lightening can sometimes lead to less smooth idling or require more careful balancing.

Q3: Are forged pistons heavier than cast pistons?

A: Generally, forged pistons can be slightly heavier than cast pistons for a given design due to the denser grain structure of forged aluminium. However, their increased strength allows them to be designed with thinner walls or different profiles, often resulting in comparable or even lighter weights in performance applications, while offering superior durability.

Q4: What is a 'core charge' when reconditioning an engine?

A: A core charge is a deposit added to the price of a reconditioned part (like an engine or crankshaft). This charge is refunded when you return the old, worn-out part (the "core") that is being replaced. It ensures that the rebuilder has a supply of old parts to recondition.

Conclusion

While a definitive single figure for the Ford Pinto engine's weight is difficult to pin down without specifying the exact configuration and included accessories, the details of the 2.23L reconditioned engine kit provide valuable insight. The modified crankshaft weighing approximately 11.8kg is a key component, highlighting the focus on performance enhancement through weight reduction and improved rotational dynamics. Understanding these weights is essential for any enthusiast undertaking a build, ensuring that the final product meets their performance goals and is correctly balanced for optimal operation. The Ford Pinto engine, whether in standard or modified form, remains a popular choice for classic car projects, and knowledge of its components' characteristics is key to a successful outcome.
