Fuel Injectors: Cleaner Rides, Greener Skies

In an era where environmental concerns are paramount, the internal combustion engine, despite its advancements, continues to be a focal point for emissions reduction. Surprisingly, the small engines found in scooters and motorcycles, often overlooked, contribute disproportionately to greenhouse gas emissions compared to their larger car and truck counterparts. This isn't just a minor issue; it's a significant contributor to urban smog and air quality degradation. The solution, already standard in most modern cars, lies in a sophisticated component known as the fuel injector. By replacing traditional carburetors with these precision devices, we can dramatically cut down on harmful pollutants, paving the way for cleaner, more efficient two-wheeled transport.

Understanding the Fuel Injector: Precision Delivery for Power

At its core, a fuel injector is an electronically controlled valve that atomises fuel and sprays it into the engine's intake manifold or directly into the combustion chamber. Unlike a carburetor, which relies on airflow and vacuum to mix fuel and air, an injector precisely meters the fuel, ensuring the optimal air-fuel ratio for combustion. This precision is crucial for both performance and environmental impact.

Imagine trying to bake a cake by simply pouring ingredients together without measuring them – the result would be inconsistent at best. A carburetor operates somewhat similarly, making broad adjustments based on engine vacuum. A fuel injector, however, is like a highly skilled pastry chef, measuring out exact quantities of fuel, ensuring every 'batch' of combustion is perfect. This meticulous control allows the engine's computer (Engine Control Unit or ECU) to make real-time adjustments based on various sensor inputs, such as engine temperature, oxygen levels in the exhaust, and throttle position.

Key Components of a Fuel Injection System

While the concept might seem simple, a fuel injection system is a complex network of components working in harmony:

• Fuel Pump: Delivers fuel from the tank to the injectors under pressure.
• Fuel Filter: Removes impurities from the fuel before it reaches the injectors, preventing blockages.
• Fuel Rail: A pipe that distributes the pressurised fuel to each injector.
• Fuel Injectors: The electromechanical devices that spray fuel.
• Pressure Regulator: Maintains a consistent fuel pressure within the system.
• Engine Control Unit (ECU): The 'brain' of the system, receiving data from sensors and calculating the precise amount of fuel and timing for injection.
• Sensors: Various sensors (e.g., oxygen, throttle position, manifold absolute pressure, coolant temperature) provide critical data to the ECU.

This intricate setup allows for dynamic adjustments, ensuring the engine runs efficiently under all conditions, from cold starts to high-speed cruising.

The Environmental and Performance Edge Over Carburetors

The primary reason for the widespread adoption of fuel injection in larger vehicles, and its imperative for smaller ones, lies in its significant advantages over carburetors, particularly concerning emissions and efficiency.

Reduced Emissions

Carburetors, by their nature, are less precise. They often deliver an overly rich fuel-air mixture during certain operating conditions, leading to incomplete combustion. This incomplete burning results in higher emissions of unburnt hydrocarbons (HC), carbon monoxide (CO), and nitrogen oxides (NOx) – all harmful pollutants. Fuel injectors, with their precise metering, ensure a much more complete combustion process, dramatically reducing these harmful emissions. In fact, studies have shown that fuel injectors can reduce emissions from small engines by more than half, a truly transformative impact on air quality.

Improved Fuel Efficiency

Because fuel injectors deliver only the necessary amount of fuel, they prevent wastage. Carburetors often waste fuel, especially during deceleration or sudden throttle changes. This precision means vehicles equipped with fuel injection typically achieve better fuel economy. For riders of scooters and motorcycles, this translates directly into lower running costs and fewer trips to the petrol station.

Enhanced Performance and Drivability

Beyond the environmental benefits, fuel injection offers tangible performance improvements. It provides crisper throttle response, smoother power delivery, and better cold-starting characteristics. Engines start more reliably in cold weather without the need for manual chokes, and they run more consistently across varying altitudes and temperatures because the ECU constantly adjusts the fuel mixture. This leads to a more enjoyable and reliable riding experience.

Reliability and Maintenance

While the initial cost of a fuel injection system might be higher, its long-term reliability often outweighs this. Carburetors can be sensitive to dirt and require frequent cleaning and tuning. Fuel injection systems, being electronic and sealed, are generally more robust and require less frequent maintenance, although injector cleaning can sometimes be necessary.

Let's compare the two systems:

The PicoSpray Innovation: Making Fuel Injection Accessible for Small Engines

Despite the clear advantages, the higher cost of traditional fuel injection systems has historically been a barrier for their widespread adoption in small, single-cylinder engines like those found in scooters and motorcycles. This is where innovation like the PicoSpray fuel injector comes into play, offering a groundbreaking solution to this economic hurdle.

The PicoSpray project, born out of an academic engineering challenge, aimed to simplify the fuel injection system specifically for single-cylinder applications. The brilliance of their design lies in its radical simplification. Traditional fuel injection systems typically require a separate fuel pump to pressurise the fuel, a pressure regulator to maintain consistent pressure, and the injector itself to spray the fuel. PicoSpray ingeniously combines two of these three components into a single unit.

As inventor Lihang Nong explains, "Our design doesn't require a separate fuel pump or a pressure regulator." This means the main unit of the PicoSpray system acts as a combined fuel pump, regulator, and injector. This integration significantly reduces the complexity, the number of parts, and consequently, the manufacturing cost. By focusing on the unique characteristics of single-cylinder engines – which typically have simpler fuel demands than multi-cylinder car engines – PicoSpray has managed to create a highly efficient and cost-effective solution.

How PicoSpray Works

The PicoSpray system streamlines the fuel delivery process:

1. The Main Unit (Cylinder on Top): This is the heart of the system. It's a marvel of integration, performing the functions of a fuel pump, a pressure regulator, and the injector itself. This single component is responsible for drawing fuel, pressurising it, and then delivering it with precision.
2. The Throttle Body: This component directs the atomised fuel spray directly into the engine's intake. Crucially, the far side of the throttle body connects to an air filter, ensuring that only clean air is mixed with the precisely measured fuel.
3. The Control Unit: This small, intelligent unit houses the necessary sensors and circuitry. It's the 'brain' that communicates with the main unit, telling it precisely when and how much fuel to deliver based on engine conditions and rider input.
4. The Spring Mechanism: A simple yet effective spring keeps the throttle closed until the rider engages it, ensuring smooth and controlled operation.

The results of this innovative approach are remarkable. When tested against conventional injectors, the PicoSpray model has demonstrated comparable gains in fuel efficiency and emissions control, but at a significantly reduced price point – as low as $25. This makes the transition to cleaner, more efficient small engines economically viable, offering a truly affordable path to environmental improvement.

Here's a comparison of traditional fuel injection vs. the PicoSpray approach:

Frequently Asked Questions About Fuel Injectors

Understanding fuel injectors can lead to many questions, especially for those accustomed to simpler engine designs.

Q: Can I convert my carbureted motorcycle or scooter to fuel injection?

A: Yes, it is technically possible to convert a carbureted engine to fuel injection, but it's often a complex and expensive undertaking. It typically involves replacing the carburetor with a throttle body, installing a high-pressure fuel pump, fuel lines, a fuel rail, the injectors themselves, an ECU, and various sensors. While kits exist, the cost and technical expertise required mean it's usually not a straightforward DIY project. However, innovations like PicoSpray are making such conversions more feasible and economical for small engines.

Q: How often do fuel injectors need cleaning or replacement?

A: Modern fuel injectors are designed to be quite durable. With regular use of quality fuel, they can last for many tens of thousands of miles. However, over time, deposits can build up, leading to clogging or reduced spray patterns. Symptoms of a clogged injector include rough idling, misfires, reduced fuel economy, and a loss of power. Many manufacturers recommend a fuel system cleaner every so often, or professional injector cleaning if issues arise. Replacement is typically only necessary if an injector is faulty or severely damaged, rather than as routine maintenance.

Q: What are the common signs of a bad fuel injector?

A: Several symptoms can point to a failing fuel injector:

• Engine Misfires: A common sign, as one cylinder isn't getting the correct fuel mixture.
• Rough Idling: The engine might shake or vibrate excessively when stationary.
• Reduced Fuel Economy: A faulty injector can lead to more fuel being used than necessary.
• Check Engine Light: The ECU will often detect a problem and illuminate the warning light.
• Fuel Odour: A leaking injector can cause a strong petrol smell.
• Engine Stalling: Particularly when cold or at low speeds.

If you experience any of these symptoms, it's best to have your vehicle inspected by a qualified mechanic.

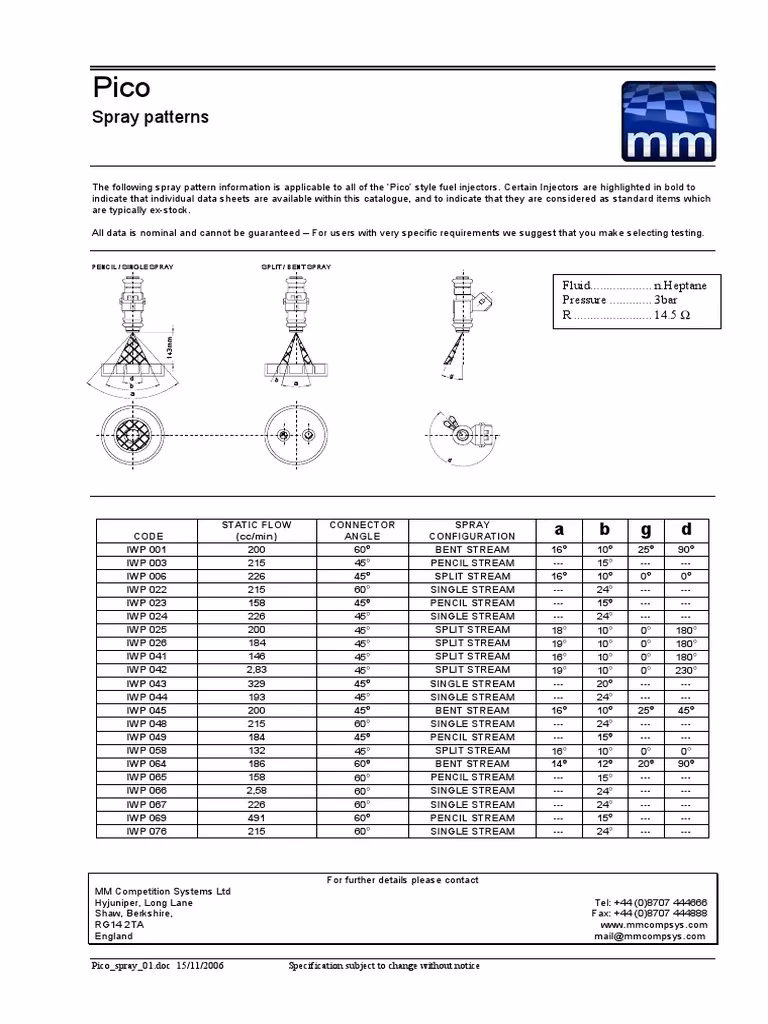

Q: Are all fuel injectors the same? What about specific models like Weber / Magneti Marelli iwp043 Pico?

A: No, fuel injectors are not all the same. They vary widely in design, flow rate, impedance, and spray pattern, tailored to specific engine requirements. Different manufacturers like Bosch, Delphi, Denso, and Magneti Marelli produce a vast array of injectors. A specific model like the Weber / Magneti Marelli IWP043 Pico fuel injector would be a particular design from that brand, engineered for certain applications. While the fundamental principle of atomising fuel remains, the specifics of their construction, nozzle design, and electronic characteristics differ significantly. The PicoSpray technology discussed here represents a novel, integrated design approach, distinct from standard individual injector units, aiming for cost efficiency and simplicity in small engines.

Q: Why are small engines so polluting in comparison to their size?

A: The disproportionate pollution from small engines often stems from several factors: many still use carburetors, which are less precise in fuel metering, leading to incomplete combustion and higher emissions of unburnt fuel and harmful gases. Additionally, some small engines, particularly older ones, are two-stroke designs, which burn a mixture of fuel and oil, releasing more particulate matter and hydrocarbons. They also often lack the sophisticated emissions control systems (like catalytic converters) found in modern cars, primarily due to cost and space constraints. The lower regulatory standards in some regions for these engines also play a role.

The Road Ahead: A Cleaner Future for Small Engines

The transition from carburetors to fuel injectors in small engines is not merely an incremental improvement; it's a fundamental shift towards a cleaner, more efficient, and more enjoyable riding experience. The environmental benefits, particularly the drastic reduction in greenhouse gas emissions and other pollutants, are undeniable and crucial for improving air quality in urban environments. Furthermore, the gains in fuel efficiency mean lower running costs for owners, making the technology appealing on multiple fronts.

Innovations like PicoSpray demonstrate that the barriers to widespread adoption – primarily cost – are being systematically addressed. By simplifying complex systems and focusing on the specific needs of small engines, engineers are paving the way for a future where even the smallest vehicles contribute positively to our shared environment. As technology continues to advance, we can expect even more refined and affordable fuel injection solutions, solidifying its place as a cornerstone of sustainable personal transportation. The future of small engines is undoubtedly cleaner, thanks to the precision of fuel injection.
