X9 Evolution 250 Engine Removal Guide

Mastering the X9 Evolution 250 Engine Removal

Embarking on the task of removing the engine from your Piaggio X9 Evolution 250 can seem like a daunting prospect, especially for those new to scooter mechanics. However, with a methodical approach and the right tools, this process is entirely achievable. This guide aims to provide a detailed, step-by-step walkthrough, ensuring you can successfully extract the heart of your X9 Evolution 250, whether for a major repair, a rebuild, or a planned upgrade. We'll cover the essential preparation, the actual removal process, and some crucial post-removal considerations. Remember, patience and attention to detail are your greatest allies here.

Preparation is Key: Gathering Your Tools and Supplies

Before you even think about touching a bolt, ensuring you have the necessary tools and a clear, organised workspace is paramount. A well-prepared mechanic is a safe and efficient mechanic. Here's a breakdown of what you'll likely need:

• Socket Set: A comprehensive set including metric sockets (8mm to 19mm are common for this scooter), with extensions and a ratchet.
• Wrench Set: Metric combination wrenches will also be necessary for various components.
• Screwdriver Set: Both Phillips head and flathead screwdrivers in various sizes.
• Pliers: Standard pliers, needle-nose pliers, and possibly some specialised hose clamp pliers.
• Torque Wrench: Essential for reassembly to ensure bolts are tightened to the correct specifications, preventing damage.
• Puncture Repair Kit/Tyre Levers: If you need to remove the rear wheel, which is often necessary.
• Engine Stand or Hoist: While not strictly mandatory, a secure way to support or lift the engine once it's free will make the process much safer and easier.
• Drain Pan: For capturing engine oil and coolant.
• Gloves and Eye Protection: Always prioritise safety.
• Zip Ties or Cable Ties: To temporarily secure disconnected cables and hoses.
• Marker Pen: For labelling components as you disconnect them.
• Cleaning Supplies: Rags, degreaser, and possibly a parts cleaner.
• The Official Piaggio X9 Evolution 250 Service Manual: This is your ultimate resource. While this guide offers detailed steps, the official manual will have precise torque settings and diagrams specific to your model.

Step-by-Step Engine Removal Process

Now that your workspace is organised and your tools are at the ready, we can begin the actual removal. It's crucial to work methodically and keep track of where everything goes. Disconnecting components in a logical order will prevent unnecessary complications.

1. Initial Disassembly and Access

You'll need to gain access to the engine, which means removing various body panels. Start with the larger panels, working your way towards the more intricate ones. Refer to your service manual for the exact sequence, but generally, this involves removing:

• Seat and under-seat panels.
• Rear tail section panels.
• Side panels that obstruct access to the engine and its ancillaries.

Keep all fasteners organised, perhaps in labelled containers or a magnetic tray, to avoid losing them.

2. Draining Essential Fluids

Before you disconnect any fluid lines, it's vital to drain the engine oil and coolant. This minimises mess and prevents spills when you start disconnecting hoses.

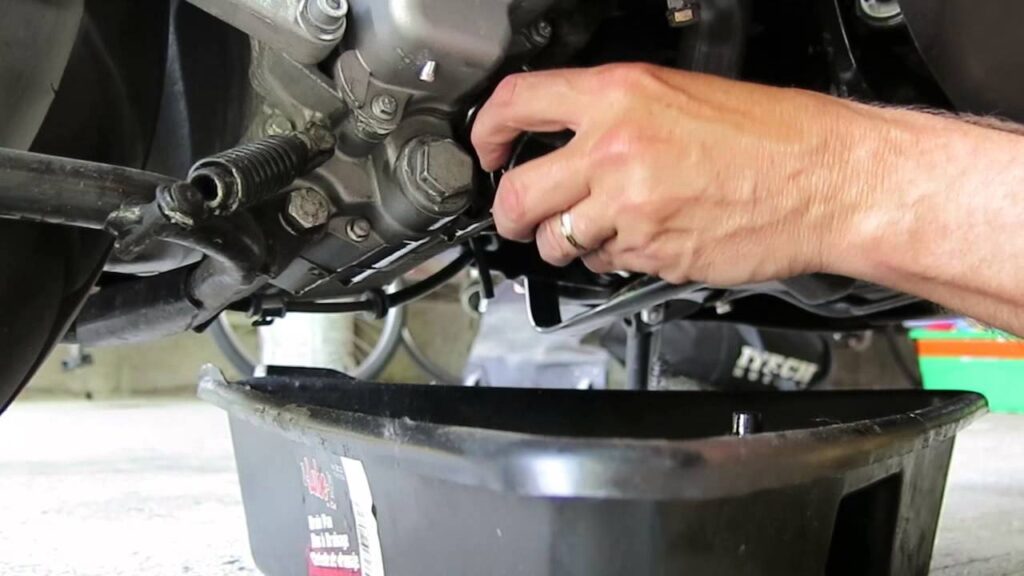

• Engine Oil: Locate the oil drain plug (usually at the bottom of the engine crankcase). Place your drain pan beneath it and carefully remove the plug using the appropriate socket. Allow the oil to drain completely. Once drained, reinsert and tighten the drain plug (remembering to use the correct torque setting on reassembly).
• Coolant: The X9 Evolution 250 is liquid-cooled. Locate the coolant reservoir and the radiator drain plug or the lowest coolant hose. Place your drain pan and carefully drain the coolant. This is a good opportunity to inspect the condition of your coolant.

3. Disconnecting Electrical Connections

The engine is connected to the scooter's electrical system via several wiring harnesses. It's crucial to disconnect these carefully.

• Identify all electrical connectors leading to the engine. This will include connections for the alternator, starter motor, ignition coil, sensors (like throttle position sensor, temperature sensor), and potentially fuel injection components.
• Carefully unplug each connector. Some may have locking tabs that need to be pressed or squeezed. Avoid pulling on the wires themselves; grip the connector body.
• As you disconnect each harness, consider labelling it with a marker pen and ziptie to indicate its corresponding engine component. This will be a lifesaver during reassembly.

4. Disconnecting Fuel and Vacuum Lines

The fuel system and vacuum lines also need to be disconnected.

• Fuel Lines: Locate the fuel line(s) running from the fuel tank or fuel pump to the engine. You may need to clamp these lines with pliers or a dedicated fuel line clamp before disconnecting to prevent fuel spillage. Carefully disconnect the fuel line.
• Vacuum Lines: Identify any vacuum hoses connected to the engine (e.g., for the fuel tank or other systems). Disconnect these carefully.

5. Disconnecting Throttle and Brake Cables (if applicable)

Depending on your specific X9 Evolution 250 model and its setup, you might have throttle cables or even brake cables routed through the engine area that need disconnecting.

• Throttle Cable: Usually, the throttle cable connects to the throttle body or carburetor. You'll typically need to loosen a locking nut or clip to release the cable end.
• Brake Cables: In some configurations, brake cables might be routed in a way that requires disconnection.

6. Exhaust System Removal

The exhaust system is attached to the engine and will need to be removed.

• Locate the exhaust header pipe where it connects to the cylinder head. There will be nuts or bolts holding it in place.
• You may also need to disconnect the exhaust from the frame or any mounting brackets.
• Carefully manoeuvre the exhaust system away from the engine and scooter. It might be easier to remove the entire exhaust assembly as one unit.

7. Drivetrain Disconnection

This is a critical step, as the engine is connected to the rear wheel via the transmission and drive belt/chain.

• Rear Wheel Removal: You will almost certainly need to remove the rear wheel. This usually involves loosening the axle nut and sliding the wheel out. You might need to disconnect the brake caliper from the disc to allow the wheel to be removed.
• Drive System: Once the rear wheel is out of the way, you'll need to disconnect the engine from the drive system. For a scooter like the X9 Evolution 250, this typically involves a CVT (Continuously Variable Transmission) system. You'll need to remove the CVT cover to access the drive belt and pulleys. The engine can then be separated from the transmission casing.

8. Engine Mounting Bolts

The engine is secured to the scooter's frame by several mounting bolts. These are usually the last connections to be undone.

• Identify all the bolts that attach the engine to the frame. They are typically located at various points around the engine casing.
• Before loosening these bolts, it's a good idea to support the engine's weight with an engine stand or a block of wood on a jack. This will prevent the engine from dropping suddenly once the last bolt is removed.
• Loosen and remove these mounting bolts systematically. Keep track of which bolts go where, as they might be different lengths.

9. Engine Extraction

With all fluids drained, electrical connections severed, fuel and vacuum lines disconnected, exhaust removed, and mounting bolts out, the engine should now be free from the chassis.

• Carefully lift or manoeuvre the engine out of the scooter frame. If you're using a jack, slowly lower the scooter chassis away from the engine, or vice-versa, ensuring it remains stable.
• Take care not to snag any remaining wires or hoses on the frame as you extract the engine.

Important Considerations and Tips

Throughout this process, a few key tips can make your life much easier:

• Take Pictures: Before and during each step, take clear photos. These visual aids are invaluable for remembering how things were connected.
• Label Everything: As mentioned, labelling wires, hoses, and even bolts with masking tape and a marker pen will save you immense frustration during reassembly.
• Organise Components: Keep removed parts organised. Grouping similar items together and storing them in labelled bags or containers is highly recommended.
• Clean as You Go: Cleaning components as you remove them makes the entire process more pleasant and helps identify any issues or wear.
• Seek Assistance: If the engine is particularly heavy or if you're struggling with a particular step, don't hesitate to ask a friend for help.
• Safety First: Always wear appropriate safety gear. Ensure the scooter is stable before starting any work, and if using a jack, ensure it's rated for the load and placed on a firm, level surface.

Frequently Asked Questions

Q1: How much engine oil does the X9 Evolution 250 typically hold?
A1: The exact capacity can vary slightly, but it's generally around 1.5 to 1.7 litres. Always check your service manual for the precise figure and the correct oil specification.

Q2: Do I need to remove the rear wheel to get the engine out?
A2: Yes, in most cases, the rear wheel and the CVT assembly must be removed to allow the engine to be separated from the drivetrain and then extracted from the frame.

Q3: What are the most common pitfalls when removing the X9 engine?
A3: Forgetting to drain fluids, not labelling electrical connectors, forcing connections that are stuck, and not adequately supporting the engine before removing the final mounting bolts are common mistakes.

Q4: Can I perform this job without a service manual?
A4: While this guide provides a comprehensive overview, a service manual is highly recommended for specific torque values, detailed diagrams, and model-specific procedures. It's an investment that can save you from costly mistakes.

Removing the engine from your Piaggio X9 Evolution 250 is a significant undertaking, but by following these detailed steps and prioritising preparation and safety, you can accomplish this task effectively. Remember, precision and patience are key to a successful engine removal and, subsequently, a smooth reassembly.
