Peugeot RCZ Clutch Failure: Causes and Solutions

It can be a deeply frustrating experience when a key component like the clutch in your Peugeot RCZ suddenly fails, especially when the vehicle is relatively new and the repair bill is substantial. Kevin's situation, where his year-old RCZ's clutch collapsed, leading to a diagnosis of "driver abuse" and a bill exceeding $3500, highlights a common, albeit distressing, scenario for manual transmission vehicle owners. This article aims to delve into the potential reasons behind such a premature clutch failure, examining the symptoms, the mechanics of clutch operation, and the factors that can lead to catastrophic damage, even in vehicles with low mileage and seemingly careful ownership.

Understanding the Peugeot RCZ Clutch System

The Peugeot RCZ, known for its sporty design and engaging driving dynamics, typically features a robust manual transmission system. A clutch is a mechanical device that engages and disengages power transmission, primarily between the engine and the gearbox. In a manual car, it's operated by the driver via the clutch pedal. The core components of a clutch system include:

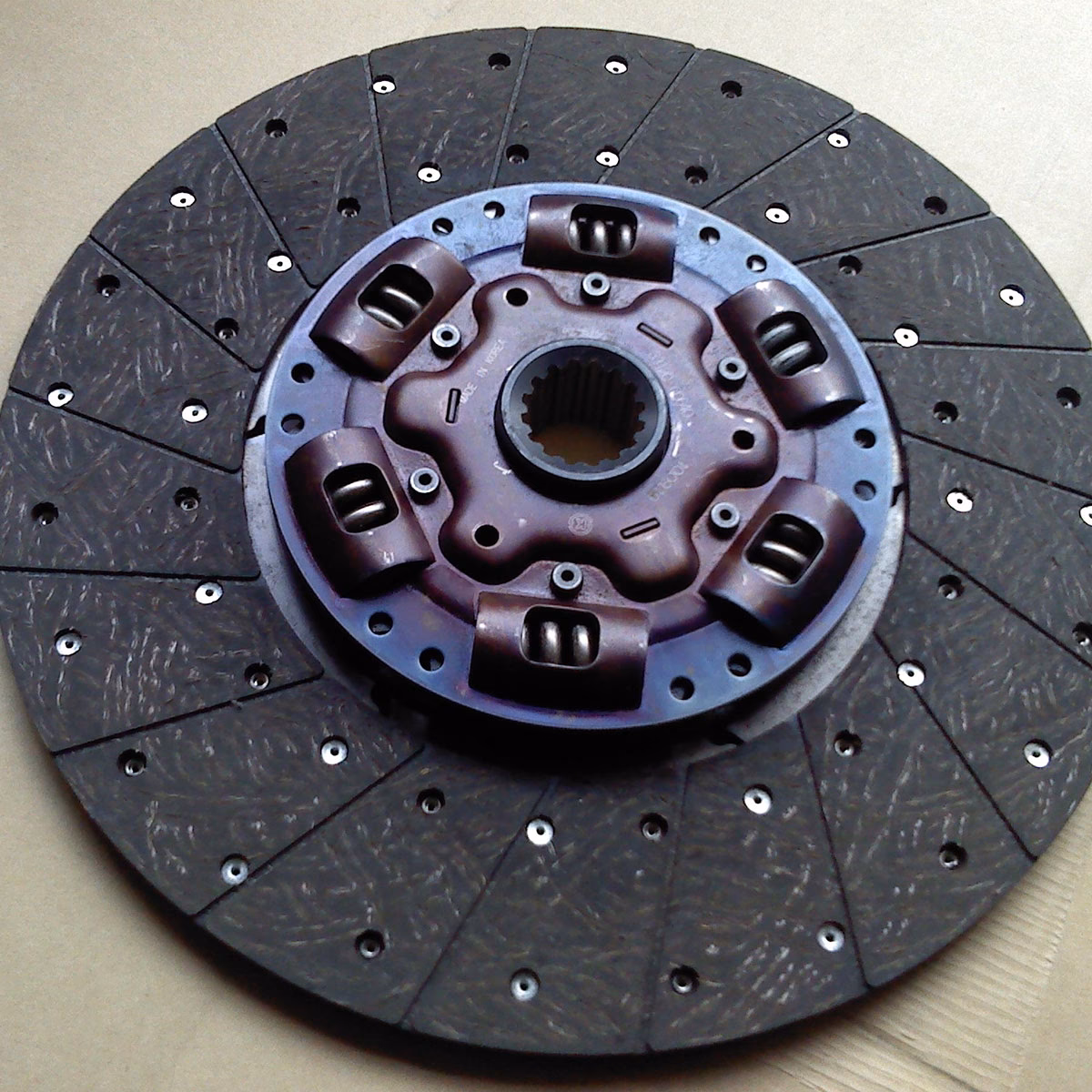

• Clutch Plate (Friction Disc): This is the part that wears out over time. It's a disc with friction material that sits between the flywheel and the pressure plate.
• Pressure Plate: This component provides the clamping force to press the clutch plate against the flywheel.
• Flywheel: A heavy rotating disc attached to the engine's crankshaft, which stores rotational energy.
• Dual-Mass Flywheel (DMF): Many modern cars, including performance models like the RCZ, use a DMF. This is a more complex system designed to absorb engine vibrations and reduce drivetrain shock, improving driving comfort. It consists of two masses connected by springs and dampers.
• Release Bearing (Throw-out Bearing): This bearing disengages the clutch when the pedal is pressed.
• Clutch Master Cylinder and Slave Cylinder: These hydraulic components operate the clutch release mechanism. The master cylinder is connected to the pedal, and the slave cylinder, usually located near the gearbox, actuates the release fork.

Common Causes of Clutch Failure

While wear and tear are natural for a clutch, premature failure can stem from various issues. Based on the description of Kevin's RCZ, several possibilities arise:

1. Driver Abuse and Misuse

This is the diagnosis given by the garage. While Kevin disputes this, it's a common cause of clutch damage. Specific actions that can severely damage a clutch include:

• "Dropping" the Clutch: Releasing the clutch pedal too quickly, especially at high engine RPMs, causes extreme friction and heat. This can literally rip the friction material from the clutch plate, as described in the email.
• Riding the Clutch: Resting your foot on the clutch pedal while driving keeps the clutch partially engaged. This causes constant friction and overheating, leading to premature wear of the friction material and the pressure plate.
• Excessive Slipping: Holding the car on a hill using the clutch instead of the handbrake or brakes forces the clutch to slip unnecessarily, generating heat and wear.
• Aggressive Driving and Frequent Hard Acceleration: While the RCZ is a performance car, repeated aggressive acceleration without proper clutch engagement can lead to rapid wear and overheating.
• Towing or Carrying Heavy Loads: If the vehicle is used for purposes beyond its design, such as towing heavy trailers, it can put excessive strain on the clutch.

2. Hydraulic System Failure

The email mentions a "collapsed clutch hydraulic system" and damage to the master and slave cylinders. A failure in the hydraulic system can prevent the clutch from disengaging or engaging properly, leading to drivability issues and, in some cases, contributing to further mechanical damage if the clutch remains partially engaged.

• Leaking Seals: Seals within the master or slave cylinders can degrade, leading to fluid loss and a spongy or inoperative pedal.
• Air in the System: If the hydraulic system is not properly bled after maintenance or if there's a leak, air can enter, causing inconsistent operation.
• Contaminated Fluid: Old or contaminated clutch fluid can degrade seals and impede the system's operation.

It's crucial to note that a hydraulic failure can sometimes be a *consequence* of other issues, such as a damaged clutch fork or release bearing, rather than the primary cause of the clutch plate disintegration.

3. Dual-Mass Flywheel (DMF) Issues

The diagnosis also points to a damaged flywheel. DMFs are designed to absorb torsional vibrations. However, they have a limited lifespan and can fail, especially if subjected to abuse or if the clutch system is stressed.

• Worn Springs and Dampers: The internal springs and dampers within the DMF can weaken or break over time, leading to excessive vibration, rattling noises, and difficulty engaging gears.
• Overheating: Excessive slipping or abuse can cause the DMF to overheat, leading to discoloration (as noted by the blackened friction surfaces) and potential warping.

A failing DMF can put additional stress on the clutch plate and pressure plate, potentially accelerating their wear or contributing to a complete failure.

4. Manufacturing Defect

While less common, especially after a year of ownership, a manufacturing defect in any of the clutch components or the hydraulic system cannot be entirely ruled out, although garages are often reluctant to attribute failure to this without strong evidence.

Symptoms of a Failing Clutch

Kevin's description of his RCZ's issues aligns with common clutch problems:

• Difficulty Changing Gears: The clutch may not be fully disengaging, making it hard to shift into or out of gear.
• Clutch Pedal Feels Different: It might feel unusually light, heavy, spongy, or it might sink to the floor.
• Slipping Clutch: The engine RPMs increase, but the car doesn't accelerate proportionally. This is often accompanied by a burning smell.
• Grinding Noises: Especially when trying to engage a gear or when the clutch pedal is pressed.
• Burning Smell: A distinct acrid smell often indicates overheating friction material.
• Juddering or Shuddering: When engaging the clutch, particularly from a standstill.

The Garage's Diagnosis vs. Owner's Experience

The garage's assessment that the clutch plate was "ripped away from the clutch centre plate rivets due to driver / operator abuse" and linked to "dropping the clutch at high RPM under extreme pressure" is a specific and severe form of damage. The blackened friction surfaces on the pressure plate and flywheel are clear indicators of severe overheating, which is typically caused by prolonged slipping or rapid, high-force engagement.

Kevin's experience, however, is that he doesn't drive hard and has owned other manual cars without such issues. This discrepancy is where disputes often arise. While it's possible for even a careful driver to inadvertently cause damage (e.g., a momentary lapse in concentration), the severity of the described damage leans towards significant misuse. However, without witnessing the driving, it's hard to definitively prove or disprove the garage's claim solely based on the parts' condition.

One crucial point is the sequence of events. If the hydraulic system failed first, it might have prevented the clutch from disengaging properly, leading to excessive slipping and overheating, even if the driver was trying to drive normally. This could be a case where a component failure (hydraulic) led to secondary damage (clutch plate, flywheel) due to the inability to disengage.

Cost Breakdown and Parts Availability

The detailed cost breakdown provided by the garage is valuable:

The total cost reflects not just the clutch itself but also the associated components that often need replacement when a clutch fails catastrophically, especially the dual-mass flywheel and the hydraulic actuation system. The information that parts are not in stock in Australia and need to be sourced from France explains the extended waiting time (10-12 working days) and adds to the overall inconvenience.

What Can Kevin Do?

Given the significant cost and the dispute over the cause, Kevin has a few options:

1. Seek a Second Opinion: It might be worth getting an independent mechanic to inspect the failed components. They might offer a different perspective on the cause of failure or identify any potential manufacturing defects.
2. Review Warranty Terms: Carefully re-read the vehicle's warranty documentation. While "driver abuse" typically voids clutch warranties, understanding the exact clauses is important.
3. Contact Peugeot Customer Care: If the vehicle is just over a year old, it might still be within a grace period or Peugeot might offer some goodwill contribution towards the repair, especially if there's a history of similar issues with the model or if the initial diagnosis was indeed warranty-related.
4. Document Everything: Keep all communication records, emails, and invoices. Take photos of the damaged parts if possible.
5. Negotiate with the Dealership: Present a calm and reasoned argument, perhaps referencing the low mileage and previous ownership history.

Preventative Maintenance and Care

To avoid similar issues in the future, regardless of the cause:

• Proper Clutch Engagement: Always fully disengage the clutch when changing gears and avoid resting your foot on the pedal.
• Use the Handbrake on Hills: Instead of using the clutch to hold the car on an incline, use the handbrake.
• Smooth Gear Changes: Avoid jerky or overly aggressive gear changes.
• Regular Checks: Ensure the clutch fluid is at the correct level and the system is free from leaks. While clutches are largely sealed units, maintaining the hydraulic system is vital.
• Listen to Your Car: Pay attention to any unusual noises, changes in pedal feel, or difficulties with gear changes. Addressing minor issues early can prevent major failures.

Conclusion

A clutch failure, especially one resulting in a bill of this magnitude, is undoubtedly stressful. While the garage's diagnosis points to driver abuse, the owner's experience and the relatively low mileage warrant a thorough investigation. Understanding the components, potential failure modes, and the specific symptoms can empower owners like Kevin to have more informed conversations with their service providers and potentially find a resolution that doesn't solely rest on their shoulders. The Peugeot RCZ is a driver's car, and its manual transmission should be capable of handling spirited driving, but like any component, it requires correct operation and can be susceptible to damage from extreme or improper use, or potentially, from component failure within the system itself.

Frequently Asked Questions

Q1: Is it possible for a clutch to fail this badly on a car with only 23,000 km?

A1: Yes, it is possible, although not typical for normal driving. Severe driver abuse, such as repeatedly dropping the clutch at high RPMs, can cause catastrophic failure even at low mileage. Alternatively, a failure in the hydraulic system or a manufacturing defect in a critical component could also lead to such damage.

Q2: How can I prove that I haven't abused the clutch if the garage says I have?

A2: Proving a negative is difficult. However, you can gather evidence such as consistent service history, testimonials from people who have driven the car with you (if applicable), and potentially obtain a second opinion from an independent mechanic who can assess the damage and offer their professional assessment on the likely cause.

Q3: If the hydraulic system failed first, would that void the warranty on the clutch components?

A3: This depends on the warranty terms. If the hydraulic failure is deemed a manufacturing defect, the clutch components damaged as a *result* of that failure might still be covered. However, if the hydraulic failure was caused by external factors or misuse, it could also lead to warranty denial for the entire assembly.

Q4: What is the difference between a single-mass and a dual-mass flywheel?

A4: A single-mass flywheel is a solid, heavy disc. A dual-mass flywheel (DMF) is a more complex system with two masses connected by springs and dampers. DMFs are designed to reduce vibrations and improve refinement, but they are more expensive and can be more prone to failure from abuse or wear than simpler single-mass flywheels.

Q5: How long should a clutch typically last?

A5: Under normal driving conditions, a clutch can last anywhere from 50,000 to 150,000 miles (80,000 to 240,000 km), depending on driving style, vehicle type, and the quality of the clutch components. Premature failure before 50,000 miles often suggests an issue beyond normal wear and tear.
