Peugeot 206 CC Oil Change Guide

A Comprehensive Guide to Changing Your Peugeot 206 CC's Engine Oil

Keeping your Peugeot 206 CC's engine in prime condition is paramount for its longevity and performance. One of the most fundamental aspects of vehicle maintenance is regular engine oil changes. This guide will walk you through the process, focusing specifically on the Peugeot 206 CC 2D model, ensuring you have the knowledge to keep your beloved convertible running smoothly.

Why Regular Oil Changes Matter

Engine oil is the lifeblood of your car. It performs several critical functions:

• Lubrication: It reduces friction between moving engine parts, preventing wear and tear.
• Cooling: Oil absorbs heat generated by combustion and friction, helping to regulate engine temperature.
• Cleaning: It carries away contaminants, such as dirt, carbon deposits, and metal particles, to the oil filter.
• Sealing: It helps to seal the gaps between the piston rings and cylinder walls, improving compression.
• Corrosion Protection: It forms a protective layer on metal surfaces, preventing rust and corrosion.

Over time, engine oil degrades. It loses its viscosity, becomes contaminated, and its additives are depleted. Driving with old, dirty oil can lead to increased engine wear, reduced fuel efficiency, and ultimately, costly repairs. Therefore, adhering to a regular oil change schedule is one of the most effective ways to protect your investment.

What You'll Need: Essential Tools and Supplies

Before you begin, gather all the necessary items to make the process efficient and safe:

• New Engine Oil: The Peugeot 206 CC 2D requires approximately 4.25 litres of engine oil. It is crucial to use the oil recommended by the manufacturer. Consult your owner's manual for the specific grade and specification (e.g., 5W-40, synthetic or semi-synthetic).
• New Oil Filter: A new oil filter is essential to trap contaminants. Ensure you have the correct filter for your Peugeot 206 CC 2D model.
• Wrench for Drain Plug: You'll need a wrench of the appropriate size to remove the oil drain plug.
• Oil Filter Wrench: This tool helps to loosen and tighten the oil filter.
• Drain Pan: A container large enough to hold at least 5 litres of old engine oil.
• Funnel: To pour the new oil into the engine cleanly.
• Rags or Paper Towels: For cleaning up spills.
• Gloves: To protect your hands from oil and grime.
• Safety Glasses: To protect your eyes.
• Jack and Jack Stands (if necessary): If you need to lift the vehicle for better access to the drain plug and filter. Ensure you use them on a level surface and follow the correct jacking points.

Step-by-Step Oil Change Procedure

Here's how to perform an oil change on your Peugeot 206 CC 2D:

1. Prepare the Vehicle

Warm up the engine for a few minutes. This helps the oil flow more easily. However, ensure the engine is not too hot to avoid burns. If you need to lift the car, use a jack and secure it with jack stands on a level surface. Never work under a vehicle supported only by a jack.

2. Locate the Drain Plug and Oil Filter

You'll typically find the oil drain plug at the lowest point of the oil sump, underneath the engine. The oil filter is usually a cylindrical metal canister screwed onto the engine block. Refer to your owner's manual if you have trouble locating them.

3. Drain the Old Oil

Position the drain pan directly beneath the drain plug. Carefully loosen the drain plug with your wrench. Once loose, unscrew it by hand, being mindful of the hot oil that will start to flow out. Allow the oil to drain completely, which may take several minutes. Once the oil has stopped dripping, clean the drain plug and its threads, and then screw it back into the sump. Tighten it securely, but do not overtighten, as this can damage the threads.

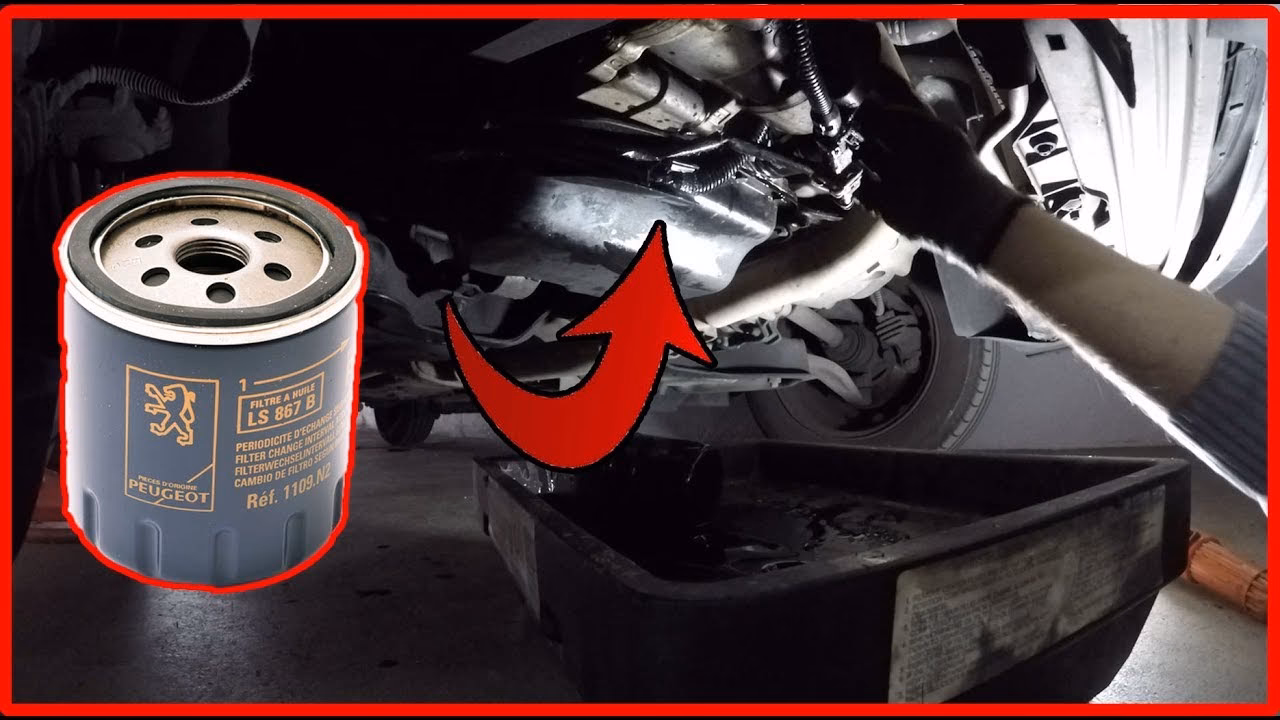

4. Remove the Old Oil Filter

Place the drain pan under the oil filter, as some residual oil will likely spill out. Use the oil filter wrench to loosen the old filter. Once it's loose, unscrew it by hand. Be prepared for a small amount of oil to drip out. Ensure the old filter's rubber gasket has come off with the filter and isn't stuck to the engine block.

5. Prepare and Install the New Oil Filter

Before installing the new filter, take a small amount of new engine oil and lubricate the rubber gasket on the new filter. This helps to create a good seal and makes future removal easier. Screw the new oil filter onto the engine block by hand until the gasket makes contact. Then, tighten it an additional three-quarters of a turn, or as per the manufacturer's instructions on the filter itself. Hand-tightening is usually sufficient.

6. Add New Engine Oil

Locate the engine oil filler cap on top of the engine. Remove the cap and insert the funnel. Carefully pour in the recommended amount of new engine oil, which is approximately 4.25 litres for the Peugeot 206 CC 2D. It's a good idea to start with slightly less than the full amount, perhaps 4 litres, and then check the level.

7. Check the Oil Level

Replace the oil filler cap. Start the engine and let it run for a minute or two. This allows the new oil to circulate through the engine and fill the new oil filter. Turn off the engine and wait for a few minutes for the oil to settle back into the sump. Locate the engine oil dipstick (usually brightly coloured and marked with an oil can symbol). Pull out the dipstick, wipe it clean with a rag, reinsert it fully, and then pull it out again. Check the oil level. It should be between the 'MIN' and 'MAX' marks on the dipstick. If it's too low, add a small amount of oil at a time, rechecking the level after each addition, until it reaches the correct level. Do not overfill.

8. Final Checks and Clean-up

Once you're satisfied with the oil level, ensure the oil filler cap and dipstick are properly seated. Check under the car for any leaks around the drain plug and oil filter. If everything looks good, lower the vehicle if it was raised. Dispose of the old engine oil and filter responsibly at a local recycling centre or auto parts store.

Choosing the Right Oil for Your Peugeot 206 CC 2D

The manufacturer's recommendation is always the best starting point. For the Peugeot 206 CC 2D, common recommendations include:

Always refer to your Peugeot owner's manual for the most accurate and up-to-date information regarding the correct oil specification for your specific model year and engine. Using the wrong type of oil can lead to poor performance and potential engine damage.

Frequently Asked Questions (FAQs)

Q1: How often should I change the oil in my Peugeot 206 CC?

A1: The general recommendation is every 10,000 miles or annually, whichever comes first. However, it's best to consult your owner's manual for Peugeot's specific service intervals, which may vary based on driving conditions.

Q2: Can I use a different brand of oil than the one recommended by Peugeot?

A2: Yes, as long as the new oil meets or exceeds the specifications (viscosity grade and performance standards) recommended by Peugeot in your owner's manual. Using an oil that doesn't meet the required standards can void your warranty and damage your engine.

Q3: Is it important to change the oil filter every time I change the oil?

A3: Absolutely. The oil filter removes impurities from the oil. If you don't replace it, the new oil will quickly become contaminated by the old filter, negating the benefits of the oil change. It's a crucial part of the maintenance process.

Q4: What happens if I don't change my engine oil regularly?

A4: Neglecting oil changes leads to increased engine wear, reduced lubrication, overheating, poor fuel economy, and can eventually cause catastrophic engine failure. It's one of the most common reasons for premature engine damage.

Q5: How do I dispose of old engine oil?

A5: Never pour old engine oil down drains or into the environment. It is toxic. Take it to a local auto parts store, recycling centre, or a garage that accepts used motor oil for proper disposal and recycling.

By following these steps and understanding the importance of regular oil changes, you can ensure your Peugeot 206 CC 2D remains a reliable and enjoyable vehicle for years to come. Proper maintenance is key to a long-lasting engine.
