Understanding the Heart of Your Diesel Engine: The Injection Pump
The diesel engine, renowned for its robustness and fuel efficiency, relies on a critical component to deliver its promise: the injection pump. This marvel of engineering is responsible for precisely metering and delivering fuel under immense pressure to the engine's cylinders at exactly the right moment. Without a functioning injection pump, a diesel engine simply won't run. While the specific designs can vary, most diesel injection pumps share a common set of fundamental components that work in harmony to achieve their vital task. This article will dissect these components, shedding light on their roles and importance within the fuel delivery system.
The Core Components of a Diesel Injection Pump
At its heart, a diesel injection pump is a sophisticated piece of machinery designed to handle high pressures and precise timing. Let's break down the essential parts:
1. The Pump Housing (Body)
This is the external casing that encloses and protects all the internal mechanisms of the injection pump. It's typically made from robust cast iron or aluminium alloys to withstand the operating pressures and environmental conditions. The housing also serves as a reservoir for lubricating oil, which is crucial for the longevity of the pump's moving parts. It often incorporates mounting points for attachment to the engine and drive mechanisms.
2. The Plunger and Barrel Assembly
This is arguably the most critical part of the injection pump. It's a precisely matched pair of components where the plunger, a tightly fitting cylindrical piston, moves within a barrel, a cylindrical sleeve with a corresponding bore. The plunger's movement within the barrel is what generates the high-pressure fuel. As the plunger moves upwards, it reduces the volume within the barrel, forcing the fuel out at high pressure. The precision of this fit is paramount; even microscopic imperfections can lead to significant loss of pressure and performance.
3. The Delivery Valve and Seat
Once the fuel is pressurised by the plunger, it needs to be directed towards the injector. This is where the delivery valve comes into play. Typically, a spring-loaded valve, it opens to allow the pressurised fuel to flow to the injector. Crucially, it also closes rapidly after the pressure drops slightly at the end of the pumping stroke. This rapid closing action creates a slight vacuum, which helps to prevent fuel from dribbling out of the injector nozzle between injection events, ensuring cleaner combustion and preventing post-injection dribble.
4. The Governor
The governor is the 'brain' of the injection pump, controlling the engine's speed and output. It senses the engine's speed and adjusts the amount of fuel injected accordingly.
- Mechanical Governors: These typically use centrifugal weights. As engine speed increases, the weights fly outwards, acting on a lever mechanism that reduces the fuel delivered by the pump. Conversely, as speed decreases, the weights move inwards, increasing fuel delivery.
- Electronic Governors (Common in modern diesels): These use sensors to monitor engine speed, load, and other parameters, and an electronic control unit (ECU) to precisely regulate fuel delivery via actuators.
The governor ensures the engine operates within its desired speed range and responds appropriately to changes in load.
5. The Timing Device
Accurate fuel injection timing is essential for efficient combustion and optimal engine performance. The injection pump is driven by the engine, usually via a timing belt, chain, or gears, and its rotation is synchronised with the engine's crankshaft. The pump's internal mechanisms are designed so that injection begins at a specific point in the piston's stroke. This timing can often be adjusted during installation or maintenance to fine-tune engine performance and emissions.
6. The Fuel Inlet and Return Lines
The injection pump receives fuel from the fuel tank via the fuel inlet line, usually after passing through filters to remove contaminants. A fuel return line is also present to allow excess fuel, which is often used for cooling and lubrication within the pump, to flow back to the tank or a secondary filter. The efficiency of these lines and the filtration system directly impacts the longevity and performance of the injection pump.
7. The Spill Port (Transfer Port)
This is a small opening in the barrel that is uncovered by the plunger at a specific point in its stroke. When the spill port is uncovered, the remaining fuel in the barrel can escape, thus terminating the fuel delivery to the injector. The point at which the spill port is uncovered determines the duration and volume of fuel injected. The design and position of the spill port, along with the control of the plunger's rotation (which effectively changes when the port is uncovered), are key to regulating the amount of fuel being injected.
8. The Drive Mechanism
The injection pump is driven by the engine's crankshaft, typically through a timing gear or chain. The ratio of the drive mechanism ensures that the pump operates at the correct speed relative to the engine. Understanding this drive mechanism is crucial for correct timing and installation.
Types of Diesel Injection Pumps
While the fundamental components remain similar, the arrangement and specific design can lead to different types of injection pumps:
Inline Injection Pumps

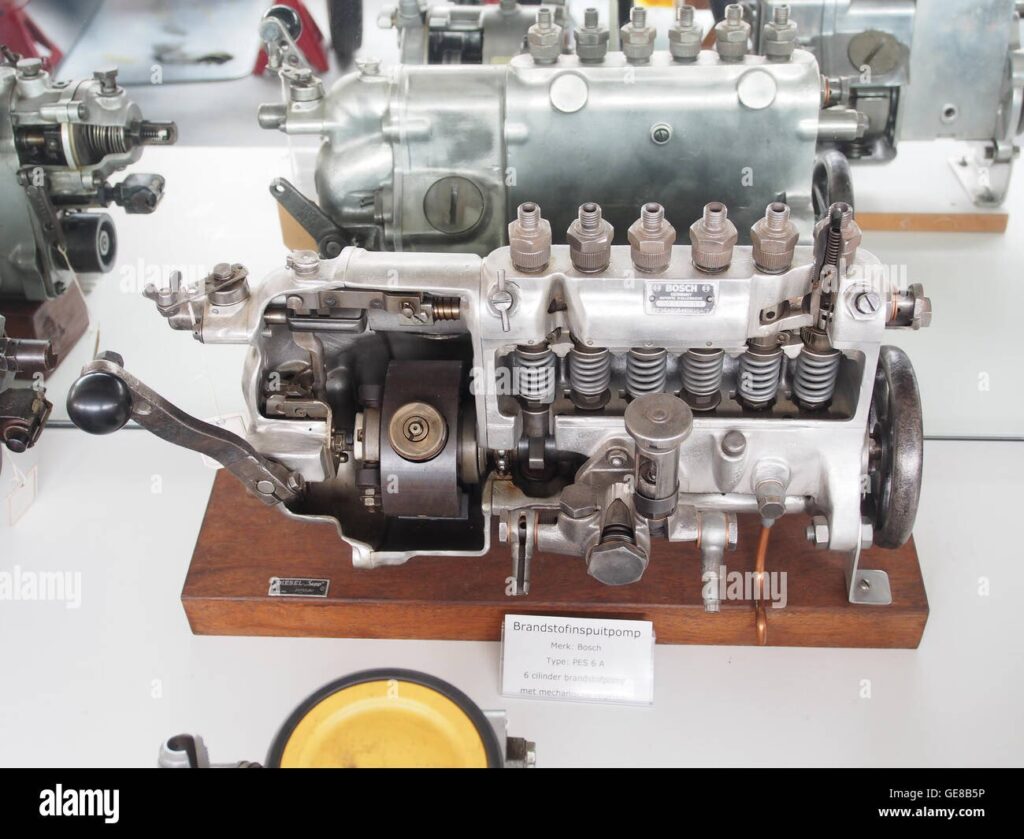

These pumps feature a series of plungers and barrels, one for each cylinder of the engine, arranged in a line. Each plunger-barrel assembly is dedicated to a specific cylinder. They are known for their robust construction and ability to deliver high pressures. The Bosch PE (Plunger-Element) series, as seen in your examples (e.g., PE6R, PE6P), are classic examples of inline pumps, often found in heavy-duty diesel engines.
Distributor Injection Pumps
In these pumps, a single, high-precision pumping element distributes fuel to each cylinder in sequence. This design is generally more compact and lighter than inline pumps, making them suitable for smaller diesel engines. There are two main types of distributor pumps:
- Rotary Distributor Pumps: These use a rotating distributor disc that aligns with outlets leading to each injector at the correct time.
- Distributor Pumps with Axial Piston: These use an axially moving piston to both pressurise and distribute the fuel.
The Importance of Maintenance and Precision
The diesel injection pump operates under extreme conditions, with fuel pressures often exceeding 20,000 psi. This necessitates a high degree of precision in its manufacturing and a commitment to regular maintenance.
Key maintenance considerations include:
- Fuel Filtration: Using high-quality fuel filters and replacing them at recommended intervals is paramount. Contaminants in the fuel can quickly wear down the finely toleranced internal components, leading to reduced performance and eventual failure.
- Fuel Quality: Using clean, high-quality diesel fuel is essential. Water and other impurities can cause corrosion and damage.
- Regular Servicing: While often considered 'fit and forget' components, injection pumps can benefit from periodic checks and calibration, especially on older vehicles.
Troubleshooting Common Injection Pump Issues
When a diesel injection pump begins to fail, the symptoms can be varied:
- Difficulty starting: Insufficient fuel pressure can make it hard to start the engine, especially when cold.
- Rough idling: Inconsistent fuel delivery to one or more cylinders can cause the engine to run unevenly.
- Loss of power: Reduced fuel delivery or incorrect timing will lead to a noticeable drop in engine power.
- Excessive smoke: Incorrect fuel atomisation or timing can result in black smoke (unburnt fuel) or white smoke (unburnt fuel due to timing issues or low compression).
- Fuel leaks: Worn seals or damaged components can cause fuel to leak externally.
Table: Common Diesel Injection Pump Faults and Symptoms
| Symptom | Potential Cause (Injection Pump Related) |
|---|---|
| Engine won't start | No fuel delivery, internal pump failure, governor issue |
| Rough idle/misfire | Worn plunger/barrel, faulty delivery valve, incorrect timing |
| Loss of power | Worn plungers, governor malfunction, blocked spill ports |
| Excessive black smoke | Over-fuelling due to governor issue, incorrect timing |
| Excessive white smoke | Incorrect injection timing, poor fuel atomisation (injector issue, but pump can contribute) |
| Fuel leaks | Worn seals, cracked housing, loose fittings |
Frequently Asked Questions (FAQs)
Q1: Can a diesel injection pump be repaired?
A1: Yes, many diesel injection pumps can be repaired by specialist technicians. However, due to the extreme precision required, it's often a complex and costly process. In many cases, especially with older mechanical pumps, replacement with a reconditioned or new unit might be more cost-effective.
Q2: How long does a diesel injection pump typically last?
A2: The lifespan of a diesel injection pump can vary significantly depending on the quality of fuel, maintenance practices, and operating conditions. However, with proper care, they can last for hundreds of thousands of miles. Neglect and poor fuel quality are the primary causes of premature failure.
Q3: What is the difference between a mechanical and electronic injection pump?
A3: Mechanical pumps rely on physical linkages and centrifugal force (governors) to control fuel delivery and timing. Electronic pumps use sensors and an ECU to manage these functions with much greater precision, leading to improved efficiency, emissions, and performance.
Q4: What does the 'PE6' or 'PES6' designation mean in Bosch pump numbers?
A4: These designations typically refer to the pump type and the number of cylinders it serves. 'PE' often indicates a plunger-type inline pump, and the number following (e.g., '6') signifies the number of cylinders it is designed for. 'PES' might indicate a different configuration, such as a distributor pump.
Conclusion
The diesel injection pump is a testament to precision engineering, working tirelessly to ensure your diesel engine performs optimally. Understanding its core components – the plunger and barrel, delivery valve, governor, and timing mechanisms – highlights the intricate nature of fuel delivery in diesel engines. Regular maintenance, particularly focusing on fuel filtration, is crucial for prolonging the life and maintaining the performance of this vital component. By appreciating the function of each part, you can better understand the needs of your diesel vehicle and ensure it continues to run reliably for years to come.
