Ensuring the roadworthiness of Heavy Goods Vehicles (HGVs) and trailers is paramount for safety on UK roads, and brake performance sits at the very heart of this. With the Driver and Vehicle Standards Agency (DVSA) introducing mandatory laden brake testing for goods vehicles and trailers from January 2023, understanding the intricacies of brake testing, particularly the often-misunderstood concept of brake imbalance, has never been more critical for operators. This guide, drawing insights from technology provider BPW and DVSA regulations, aims to demystify the testing process and equip you with the knowledge to maintain peak brake performance and compliance.
What Exactly is Brake Imbalance?
When you apply your vehicle's brakes, the expectation is that each brake on an axle engages with a consistent level of force, allowing the vehicle to decelerate smoothly and in a straight line. A brake imbalance occurs when there's a significant disparity in the braking power generated by each brake on a single axle. This uneven application of force can cause the vehicle to pull dangerously to one side during braking, compromising control and safety. BPW highlights that imbalance across an axle is determined by comparing the maximum brake efforts at each wheel, measured in kilograms, and then expressed as a percentage. A vehicle will fail its brake test if this imbalance exceeds 30 per cent. However, it's important to note that this rule doesn't apply if one tyre locks and requires less braking force, or if both wheels lock simultaneously.
Several issues can contribute to a brake imbalance, including:
- Uneven wear on brake pads or shoes.
- Worn or damaged discs or drums.
- A damaged piston within the brake caliper.
- Damage or seizure to the brake caliper itself.
- Seized camshafts on drum brakes or worn guide pins on calipers.
The Imperative of Laden Brake Testing

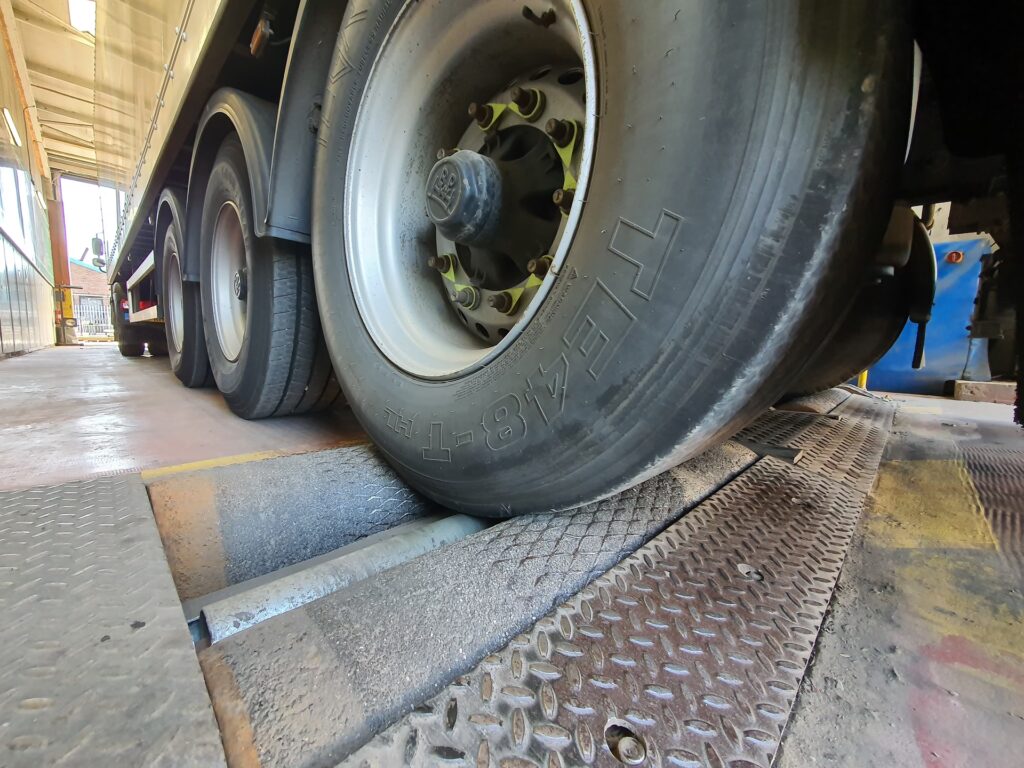

The DVSA's move to mandatory laden brake testing is a direct response to the critical need for accurate brake performance assessment under real-world operating conditions. An appropriate amount of weight on the vehicle and/or trailer is essential because it maximises the grip between the tyres and the roller brake tester. This allows the wheels to turn for longer before locking, providing a more accurate and meaningful evaluation of the overall braking efficiency. Testing an empty trailer, for instance, can lead to brakes locking prematurely, resulting in a 'pass' that doesn't genuinely reflect the vehicle's ability to stop safely when laden.
For most vehicles, to achieve a reliable test, they must be loaded to at least 65 per cent of their design axle weights with cargo or ballast. In some cases, where a vehicle's design makes this challenging, a minimum of 50 per cent may be accepted. It's crucial that any load or ballast used for the annual test is safely secured; otherwise, the test may be refused, leading to lost fees and the inconvenience of re-presenting the vehicle.
When Your Brake Test Fails: What to Do
A failed brake test, while frustrating, is an opportunity to address critical safety issues. BPW offers clear guidance on the necessary steps:
If the Service Brake Circuit Performance Fails:
- Inspect the foundation brake for correct functionality and condition.
- Ensure the lining material is not low.
- Check the drum or disc brake for contamination (e.g., oil, grease).
- On drum brakes, inspect the camshaft for seizure.
- On disc brakes, check caliper guide pins for seizure or wear.
- Verify that the brake setup precisely matches the brake calculation plate.
- Confirm the correct DTp number has been used, as an incorrect number will void the entire test evaluation. The DTp, or Department for Transport number, is directly related to the vehicle/trailer's braking information.
If the Park Brake Performance Fails:
In addition to the checks listed above for the service brake, you should also:
- Check for a weak or broken spring in the brake chamber.
- Ensure the mounted brake chambers match the brake calculation.
Driving a Vehicle with Brake Imbalance After a Test Failure
A common question arises: can a vehicle that has failed due to brake imbalance be driven back to the depot for repair? BPW advises that if your vehicle fails any checks, the result will be noted under the 'unsatisfactory wheel performance' header on the report. Generally, you can drive the vehicle back with caution, provided the DVSA inspectors have not issued a prohibition notice. However, it is vital to acknowledge the inherent safety risk and proceed with extreme care, planning for immediate repair.
Exceptions to Laden Testing
While laden testing is now the norm, the DVSA's Heavy vehicle brake test: best practice guidance (Section 2.1) does list specific instances where an unladen test may be permitted. These include:
- Vehicles designed for and normally carrying obnoxious loads (e.g., food/animal/human waste).
- Vehicles transporting livestock (e.g., horses, sheep, cattle).
- Vehicles carrying perishable liquids or goods vulnerable to contamination (e.g., liquid/powder tankers, concrete mixers).
- Vehicles with low load-bearing ability or false floors (e.g., furniture removal vehicles).
- Vehicles with small or restricted loading or access through openings (e.g., catering vans, mobile libraries, bullion or compactor vehicles).
Tri-axle semi-trailers may also be allowed unladen tests due to the challenges in sourcing suitable cargo. However, BPW stresses that presenting a fully laden trailer remains the optimal method to pass a brake test, as it allows for assessment under true operational loads.
Key Watch-Outs for Operators
Beyond the technical aspects of brake components, operators must be vigilant about broader testing practices:
- Insufficient Loads on Axles: As mentioned, testing an empty or inadequately loaded vehicle will lead to less braking force being applied and premature wheel lock-ups, yielding a misleading test result. The DVSA guidance is clear: aim for at least 65 per cent – and no less than 50 per cent – of the design axle weight.
- Passing on Locks Only: It's possible for a test to indicate a 'pass' even if the braking system's effectiveness falls short of the required value, particularly when tested with insufficient weight. This can happen if the wheels lock too easily. While an imbalance over 30 per cent will result in a fail unless it passes on locks, any discrepancy over 10 per cent should be thoroughly investigated and rectified to prevent future issues and ensure optimal safety.
Frequency of Brake Testing and Report Understanding
The DVSA guidance recommends that operators get their HGV or trailer's brakes tested by a roller brake tester at least four times per year, including at the annual MOT. These tests should align with your preventative maintenance inspections (PMIs), although the specific loading constraints may be more flexible for PMI checks compared to the annual test.
Understanding your brake test reports is a crucial part of an effective maintenance system. These reports offer far more than just a pass or fail; they provide detailed insights into your vehicle's braking performance, identifying areas that require attention before they become critical failures. Poorly maintained brakes can, and tragically have, led to catastrophic loss of vehicle control.
The DVSA and Traffic Commissioners have maintained a sharp focus on brake testing since the devastating Bath tipper tragedy in 2014. This sustained effort, supported by industry bodies, has shown positive results, with a significant reduction in annual test failures on service brake performance. However, there is always room for improvement, and Traffic Commissioners may take action where an operator's test history is unsatisfactory.
Comparative Overview: Laden vs. Unladen Brake Testing
| Feature | Laden Brake Test | Unladen Brake Test (Exceptions Only) |
|---|---|---|
| Purpose | Accurate assessment under operational conditions, simulating real-world braking. | Assessment for specific vehicle types where laden testing is impractical or unsafe. |
| Load Requirement | At least 65% (min 50%) of design axle weight. | No specific load, but may still be refused if not reasonable for vehicle type. |
| Tyre-Roller Grip | Maximum, preventing premature lock-ups, ensuring effective pressure. | Reduced, increasing risk of premature lock-ups and less accurate results. |
| Brake Actuation Pressure | Most effective, allowing for meaningful efficiency assessment. | Less effective, potentially giving misleading 'pass' results on locks only. |
| DVSA Stance | Mandatory from Jan 2023 for most HGVs/trailers. Refusal if not laden. | Permitted only for specific, pre-defined vehicle categories. |
| Outcome Reliability | Highly reliable, reflecting actual road performance. | Less reliable, may not indicate true stopping capability when laden. |
Frequently Asked Questions (FAQs)
Q: Why is laden testing so important for HGVs and trailers?
A: Laden testing ensures that the brakes are assessed under conditions that mimic actual operation. With sufficient weight, the grip between the tyres and the rollers is maximised, allowing for a more accurate measurement of braking force and efficiency. This prevents premature wheel lock-ups that can give a false 'pass' result on an unladen vehicle, which would not stop safely when loaded.
Q: Can I use my own ballast for the annual test?
A: Yes, you can load the vehicle yourself with appropriate cargo or ballast. Alternatively, Authorised Testing Facilities (ATFs) can often supply ballast for a fee. Regardless of the source, the load must be safely secured to avoid refusal of the test.
Q: What happens if I present an unladen vehicle for its annual test after January 2023?
A: Unless your vehicle falls into one of the specific exempt categories, a Vehicle Standards Assessor will refuse to test an unladen vehicle. You will lose your test fee and be required to re-present the vehicle correctly laden, incurring a new test fee.
Q: What is the DTp number and why is it so crucial?
A: The DTp (Department for Transport) number is a specific identifier related to the braking information for your vehicle or trailer. It must be accurate for the test to be valid. If the incorrect DTp number is used, the entire brake test evaluation will be void, requiring a re-test.
Q: How often should I test my trailer brakes?
A: The DVSA guidance recommends that operators have their HGV or trailer brakes tested by a roller brake tester at least four times per year, including the annual MOT. Regular testing is a key component of your preventative maintenance system.
Maintaining a rigorous approach to brake maintenance and testing is not just about compliance; it's about safeguarding lives and upholding the highest standards of road safety. By understanding and adhering to DVSA guidelines and BPW's expert advice, operators can ensure their fleets remain safe, efficient, and fully compliant with UK regulations.
