Fuel Pump Timing Marks Explained

The question of whether a fuel injection pump has a timing mark is a common one among car enthusiasts and DIY mechanics. Understanding the role of the fuel injection pump and its relationship with engine timing is crucial for maintaining optimal engine performance and preventing potential damage. While the concept of timing marks is familiar for components like camshafts and crankshafts, the specifics for fuel injection pumps can be a little less straightforward. Let's delve into the nuances of fuel pump timing and what you need to know.

The Role of the Fuel Injection Pump

The fuel injection pump is a vital component of your vehicle's fuel system. Its primary function is to deliver fuel from the fuel tank to the engine's injectors at the correct pressure and at the precise moment required for combustion. Modern vehicles predominantly use electronically controlled fuel injection systems, but older diesel engines, and some petrol engines, rely on mechanical fuel injection pumps. These pumps are often driven by the engine's timing belt or chain, meaning their operation is intrinsically linked to the engine's overall timing.

Timing Marks: What They Are and Why They Matter

Timing marks are reference points on various engine components that allow for precise alignment during assembly or maintenance. When installing a new timing belt or chain, or when replacing components like the fuel injection pump, these marks ensure that the camshafts, crankshaft, and in some cases, the fuel injection pump, are all synchronized. This synchronization is critical because it dictates when the fuel is injected into the cylinders relative to the position of the pistons and valves. Incorrect timing can lead to a host of problems, from rough idling and poor fuel economy to complete engine failure.

Does a Fuel Injection Pump Have a Timing Mark?

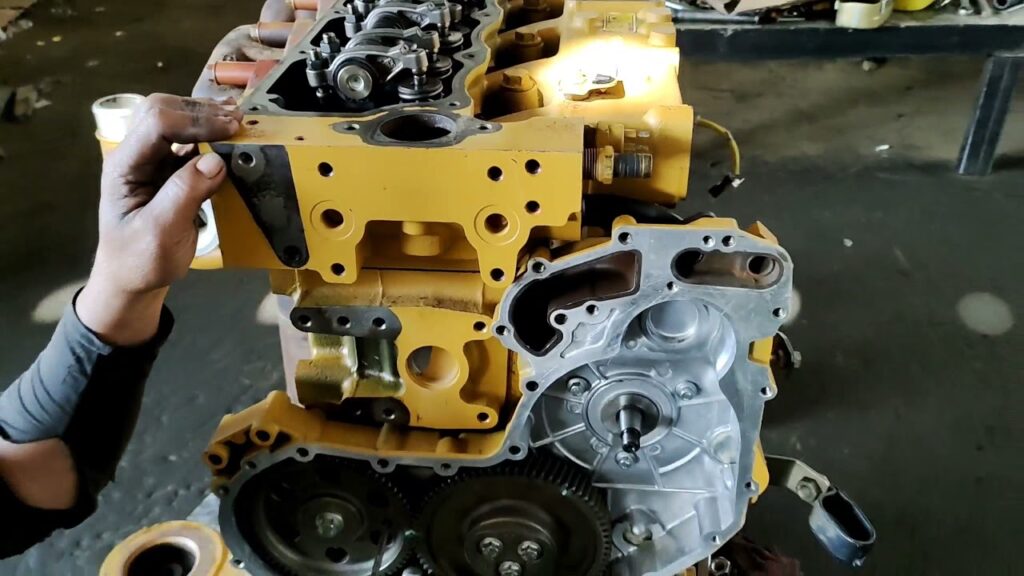

The information provided suggests a specific scenario for a particular vehicle. It states, "There is no timing mark on the rear face of the timing case, but there is a mark on the flange of the fuel injection pump." This indicates that yes, in some cases, a fuel injection pump will have a timing mark, but it might not always be located where one might expect, such as on the engine's timing case. Instead, the mark can be on the pump's own rotating flange.

Furthermore, the text mentions, "Both fuel injection pumps have a lock screw (B1) that locks the shaft. When the lock is applied before the pump is removed, it is not necessary to time the pump to the engine if the crankshaft has not been rotated." This is a significant piece of information. It implies that if the engine's crankshaft remains in its original position while the pump is being replaced, and if a locking mechanism is used on the pump's shaft, then re-timing the pump might not be necessary. This is because the pump's internal timing relative to its driven pulley or shaft would remain undisturbed.

Key Takeaways on Fuel Pump Timing Marks:

• The presence and location of timing marks can vary significantly between different vehicle makes and models.
• Some fuel injection pumps have a timing mark on their own flange, not on the engine's timing cover.
• Using a locking screw on the pump's shaft can simplify the replacement process, potentially negating the need for re-timing if the crankshaft is not moved.

Why Timing is Crucial for Fuel Injection Pumps

The precise timing of fuel injection is paramount for efficient combustion. In diesel engines, the fuel injection pump often meters and distributes fuel to each cylinder. The timing of this injection directly impacts:

• Power Output: Injecting fuel at the optimal point in the combustion cycle maximizes the force exerted on the piston.
• Fuel Efficiency: Correct timing ensures that fuel is burned completely, reducing waste and improving mileage.
• Emissions: Precise injection timing helps control the combustion process to minimize harmful exhaust emissions.
• Engine Smoothness: Well-timed injections contribute to a smoother running engine with less vibration and noise.

If the fuel injection pump is out of sync with the engine's crankshaft and camshafts, the fuel will be injected at the wrong time. This can lead to:

• Poor Performance: Loss of power, hesitation, and rough idling.
• Increased Fuel Consumption: Inefficient burning of fuel.
• Engine Knock or Detonation: Premature or uncontrolled ignition of fuel.
• Component Damage: In severe cases, incorrect timing can lead to piston or valve damage.

How to Time a Fuel Injection Pump (General Principles)

The exact procedure for timing a fuel injection pump will depend heavily on the specific vehicle. However, the general principles involve ensuring that the pump's internal timing mechanism is synchronized with the engine's crankshaft. This often involves aligning specific marks on the pump's pulley or flange with corresponding marks on the engine block or timing cover.

Here's a general outline of what might be involved, assuming you are replacing a pump and the crankshaft has been rotated:

1. Prepare the Engine: Ensure the engine is at the correct position for timing, typically Top Dead Centre (TDC) on the compression stroke for cylinder number 1. This is usually achieved by rotating the crankshaft pulley until the timing marks on the crankshaft and camshaft align.
2. Align Pump Marks: Locate the timing mark on the fuel injection pump's flange or pulley and align it with the corresponding mark on the engine or its mounting bracket. The provided information about a lock screw is crucial here – if the pump has a mechanism to lock its shaft, this is often engaged at a specific timing point.
3. Install the Pump: Fit the fuel injection pump into its mounting position, ensuring the timing marks remain aligned.
4. Secure the Pump: Tighten the mounting bolts and any locking mechanisms.
5. Install Drive Mechanism: Reconnect the drive belt or chain that powers the fuel injection pump. Ensure the tension is correct.
6. Check and Re-check: Manually rotate the engine a couple of full revolutions to ensure there are no obstructions and that all timing marks remain aligned.
7. Start and Test: Start the engine and check for smooth running. Listen for any unusual noises.

Important Note: For diesel engines, the timing of the injection pump is often critical, and specialized tools may be required to accurately set the timing. Always consult the vehicle's service manual for the precise procedure.

When is Re-timing Necessary?

Based on the provided information, re-timing a fuel injection pump is not necessary if:

• The crankshaft has not been rotated since the pump was removed.
• A lock screw or similar mechanism was used to secure the pump's shaft in its correct position before removal.

Re-timing becomes necessary if:

• The engine's crankshaft has been rotated while the pump was out of place.
• The pump was removed without engaging any locking mechanism, and its internal timing could have been disturbed.
• The pump is being replaced with a new or reconditioned unit, and its internal timing needs to be set relative to the engine.

Common Issues with Incorrect Fuel Pump Timing

If your vehicle is exhibiting symptoms that suggest incorrect fuel injection pump timing, you might notice:

Frequently Asked Questions

Q1: Do all fuel injection pumps have timing marks?

A1: Not necessarily. While many do, the location and presence of timing marks can vary greatly between manufacturers and models. Some systems rely on electronic control and internal pump calibration rather than external timing marks.

Q2: Where are timing marks on a fuel injection pump usually found?

A2: As per the provided information, they can be found on the pump's flange or pulley. Sometimes, they might be on the pump's body or housing, aligning with marks on the engine or its mounting bracket.

Q3: What happens if I don't time the fuel injection pump correctly?

A3: Incorrect timing can lead to poor engine performance, reduced fuel efficiency, increased emissions, and in severe cases, significant engine damage.

Q4: Can I rely on the information about the lock screw?

A4: The lock screw information is specific to certain pumps. If your pump has such a feature and you use it correctly, and the crankshaft hasn't moved, you might not need to re-time it. However, always verify with your vehicle's service manual.

Q5: Is timing a fuel injection pump a job for a DIY mechanic?

A5: Timing a fuel injection pump can be a complex task, especially on diesel engines. It often requires specialized tools and a good understanding of engine mechanics. If you are not experienced, it is highly recommended to have a qualified mechanic perform this job.

Conclusion

In summary, while the concept of timing marks is well-established in automotive mechanics, their application to fuel injection pumps can differ. As highlighted, some fuel injection pumps do indeed possess timing marks, often located on their flanges, rather than on the engine's timing case. Crucially, the presence of a locking mechanism on the pump's shaft can, under specific conditions (namely, no crankshaft rotation), simplify the replacement process and potentially negate the need for re-timing. However, it is always paramount to consult your vehicle's specific service manual to understand the exact procedure for your make and model. Proper timing ensures your engine runs efficiently, powerfully, and reliably.
