When discussing robust and reliable power units in the world of industrial and agricultural machinery, the Perkins 4.236 engine invariably comes to mind. This particular engine, a true titan in its class, has left an indelible mark on engineering history, powering countless applications across the globe for decades. Its innovative design and enduring performance have made it a cornerstone of Perkins' esteemed reputation, a testament to British engineering prowess and forward-thinking design.
- Understanding the Perkins 4.236 Nomenclature
- Groundbreaking Innovations for Agricultural and Industrial Use
- The Dawn of Direct Injection Technology
- A Heritage of Excellence and Adaptation
- Frequently Asked Questions About the Perkins 4.236
- What does the '4.236' in the engine name signify?
- Were there turbo versions of the Perkins 4.236 available?
- What was the main innovation introduced with the 4.236?
- What are the primary benefits of direct injection over indirect injection?
- What types of applications was the Perkins 4.236 used in?
- When was the Perkins 4.236 engine superseded?
- How many 4.236 family engines were produced?
Understanding the Perkins 4.236 Nomenclature
The naming convention for the Perkins 4.236 is remarkably straightforward and informative, immediately conveying key specifications. The '4' denotes the number of cylinders, indicating a four-cylinder engine configuration. The '236' refers to the total displacement of the engine in cubic inches. This simple yet effective system allowed customers and engineers alike to quickly grasp the fundamental characteristics of the power unit.
Beyond the original 4.236, Perkins developed a family of derivatives, each tailored to specific customer requirements and applications. These later iterations included the 4.248, 4.224, 4.212, and 4.204. While sharing the core design principles, their varied capacities ensured that Perkins could offer a bespoke solution for a wide array of machinery, from agricultural tractors to industrial forklifts. It's also worth noting the versatility extended to forced induction; turbo versions of the 4.236 were made available for nearly all applications, with the notable exception of marine engines, enhancing power output and efficiency where needed.
Groundbreaking Innovations for Agricultural and Industrial Use
The Perkins 4.236 was not merely a reliable engine; it was a platform for significant technological advancements that addressed real-world challenges faced by operators. For instance, the 4.236 tractor engines showcased genuine innovation, particularly with the optional inclusion of a balancer. This clever addition was designed to smooth out vibrations within the machinery the engine was powering, leading to a more comfortable operating experience and reduced wear and tear on components. This attention to detail demonstrated Perkins' commitment to not just power, but also operational refinement.
Furthermore, Perkins took a bold step forward by offering two distinct versions of the engine block. This seemingly minor detail had a profound impact on the engine's adaptability and applicability. By providing different block configurations, Perkins significantly increased the range of machines the 4.236 could be integrated into, catering to diverse mounting requirements and spatial constraints of Original Equipment Manufacturers (OEMs). This flexibility was a key factor in its widespread adoption across various sectors.
While predominantly known as a diesel engine, the 4.236's adaptability wasn't limited to its mechanical configuration. Other versions were produced that could run on petrol and Liquid Petroleum Gas (LPG) instead of diesel. These alternative fuel options were particularly prevalent in industrial machines, especially forklift trucks, where emissions regulations or fuel availability might favour non-diesel solutions. This multi-fuel capability further underscored the 4.236's versatile design.
The Dawn of Direct Injection Technology
Perhaps one of the most significant contributions of the 4.236 was its role in bringing direct injection technology to the forefront of Perkins' engine range. While the 6.354 engine also adopted direct injection, the 4.236 holds the distinction of being the first 4-cylinder direct injection engine offered for on-highway use by Perkins. The very first direct injection engine from Perkins, the 4.270D, was introduced in 1957 but was limited to off-highway applications. The 4.236, therefore, marked a crucial pivot for the technology's broader application.

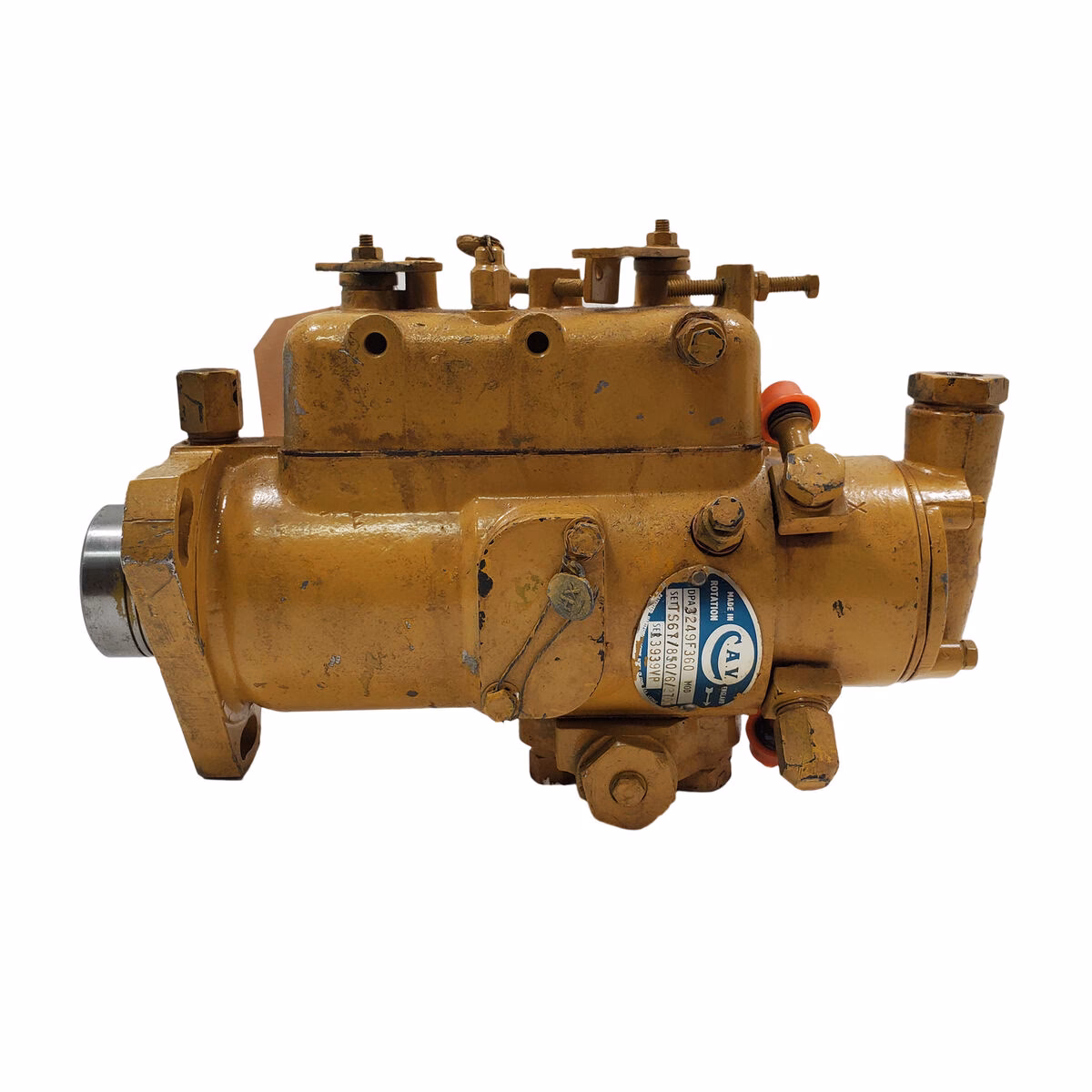

This move reflected a growing industry-wide trend towards direct injection, but Perkins distinguished itself by developing a more cost-effective engine that incorporated this advanced technology. Key to this achievement was the use of innovations such as machined induction ports and the adoption of the C.A.V. DPA fuel injection pump. These elements combined to create an efficient and reliable direct injection system that was also economically viable for mass production and widespread use.
Direct vs. Indirect Injection: A Crucial Distinction
To fully appreciate the impact of direct injection, it's helpful to understand the difference between the two primary fuel injection methods:
| Feature | Direct Injection (DI) | Indirect Injection (IDI) |
|---|---|---|
| Fuel Delivery | Fuel injected directly into the main combustion chamber (cylinder). | Fuel injected into a pre-chamber or swirl chamber, then enters the main cylinder. |
| Injector Type | Typically multi-hole injector assemblies for fine atomisation. | Often a single-hole pintle nozzle. |
| Combustion Process | More efficient, as combustion starts directly where power is needed. | Combustion begins in the pre-chamber, then spreads. |
| Cold Weather Starting | Significantly better due to direct fuel delivery and higher compression. | Can be challenging; often requires glow plugs for extended periods. |
| Fuel Economy | Greatly improved due to more precise and efficient combustion. | Generally less fuel-efficient due to heat loss in the pre-chamber. |
| Emissions | Tends to produce lower particulate emissions. | Can be higher in certain pollutants. |
| Noise Levels | Can be slightly noisier due to faster pressure rise. | Generally quieter due to more controlled combustion. |
The transition to direct injection brought with it two paramount benefits: significantly better cold weather starting capabilities and greatly improved fuel economy. These advantages were so profound that direct injection has dominated diesel engine design ever since, making the 4.236 a pivotal engine in this technological shift.
A Heritage of Excellence and Adaptation
The 4.236 is not just an engine; it is one of the foundational products that built the Perkins reputation globally. Its story is one of continuous improvement and adaptation. Perkins engineers and designers started with a proven and reliable product line, the P-Series, and infused it with the latest technological advancements to meet the demands of a new era. This blend of established reliability and cutting-edge innovation resulted in a new classic built upon strong foundations.
Over the course of more than 30 years, the original 4.236 engine underwent constant adaptation and development. Perkins maintained a proactive approach, closely listening to the ideas and feedback from customers, clients, and Original Equipment Manufacturers (OEMs) regarding how they envisioned the engine evolving. This customer-centric approach ensured that new adaptations were continually incorporated into the original design, allowing the 4.236 to maintain its position as a worldwide leader in its class. This commitment to listening and evolving is fundamentally 'the Perkins way'.
By the late 1980s, the 4.236 was gradually superseded by the 1000 Series, a natural evolution as technology advanced further. However, the sheer scale of its production underscores its monumental impact: Perkins' Peterborough site alone manufactured more than two million engines from the 4.236 family over its lifetime. Even today, millions of 4.236s and their derivatives continue to perform reliably for customers across the globe, a testament to their inherent durability and timeless design. This enduring performance truly earns the Perkins 4.236 its proud and well-deserved place in engine history.
Frequently Asked Questions About the Perkins 4.236
What does the '4.236' in the engine name signify?
The '4' indicates that it is a four-cylinder engine, and the '236' refers to its total displacement of 236 cubic inches.
Were there turbo versions of the Perkins 4.236 available?
Yes, turbo versions of the 4.236 were available for most applications, significantly boosting power output and efficiency, with the exception of marine applications.
What was the main innovation introduced with the 4.236?
The Perkins 4.236 was pivotal in introducing direct injection technology to a wide range of Perkins engines, particularly as the first 4-cylinder direct injection engine offered for on-highway use. This brought significant improvements in cold starting and fuel economy.
What are the primary benefits of direct injection over indirect injection?
Direct injection offers better cold weather starting, greatly improved fuel economy, and typically lower emissions due to more efficient combustion compared to indirect injection.
What types of applications was the Perkins 4.236 used in?
The 4.236 was incredibly versatile, powering a vast array of machinery including agricultural tractors, industrial forklifts, construction equipment, and various other on-highway and off-highway applications.
When was the Perkins 4.236 engine superseded?
The 4.236 was gradually superseded by the Perkins 1000 Series in the late 1980s, marking the next generation of Perkins engines.
How many 4.236 family engines were produced?
Over two million engines from the 4.236 family were produced at Perkins' Peterborough site alone, highlighting its immense success and widespread adoption.
