Brake Pad Spreaders: Your Essential Guide

When it comes to maintaining your vehicle's braking system, precision and the right tools are paramount. Among the array of specialised automotive equipment, the humble brake pad spreader might seem unassuming, but it plays a vital role in ensuring your brakes function optimally and safely. This indispensable tool is designed to make the often-fiddly task of replacing brake pads a much smoother and more efficient process. Whether you're a seasoned DIY mechanic or looking to understand more about your car's inner workings, grasping the function and benefits of a brake pad spreader is key to successful brake maintenance.

What Exactly is a Brake Pad Spreader?

At its core, a brake pad spreader is a mechanical device engineered to compress the brake caliper pistons. When you remove old, worn brake pads, the pistons that push these pads against the brake disc (rotor) remain extended. To fit new, thicker brake pads, you need to push these pistons back into their original positions within the caliper. This is precisely where the brake pad spreader comes in. It's inserted between the caliper piston(s) and the backing plate of the old brake pad, and by applying pressure, it evenly retracts the piston(s), creating the necessary space for the new pads.

The primary goal is to push the piston back without damaging it or the caliper housing. A good brake pad spreader will achieve this with ease, ensuring a clean and straightforward replacement. Some spreaders are designed for single pistons, while others can handle twin or even quad pistons found on more complex braking systems. The design ensures that the force is applied squarely and evenly to the piston face, preventing any misalignment that could cause future issues.

The Importance of Using a Brake Pad Spreader

While it might be tempting to try and use a screwdriver or a pry bar to push the pistons back, this is strongly discouraged. These methods are crude and can easily lead to:

• Damage to the Piston: A screwdriver can scratch or gouge the piston face, which can lead to leaks or uneven braking in the future.
• Damage to the Caliper: Forcing a lever can put undue stress on the caliper, potentially causing cracks or distortion.
• Damage to the Brake Fluid Reservoir: Pushing pistons back too forcefully without opening the bleed nipple or having a large enough reservoir can cause brake fluid to overflow, creating a mess and potentially damaging paintwork.
• Improper Seating of New Pads: If the pistons aren't retracted correctly, the new pads might not seat properly, leading to reduced braking performance or uneven wear.

A dedicated brake pad spreader is designed to apply controlled and even pressure, safeguarding your braking components and ensuring a professional finish to your brake pad replacement. It's an investment in the longevity and reliability of your vehicle's braking system.

Types of Brake Pad Spreaders

The market offers a variety of brake pad spreaders, each with its own advantages:

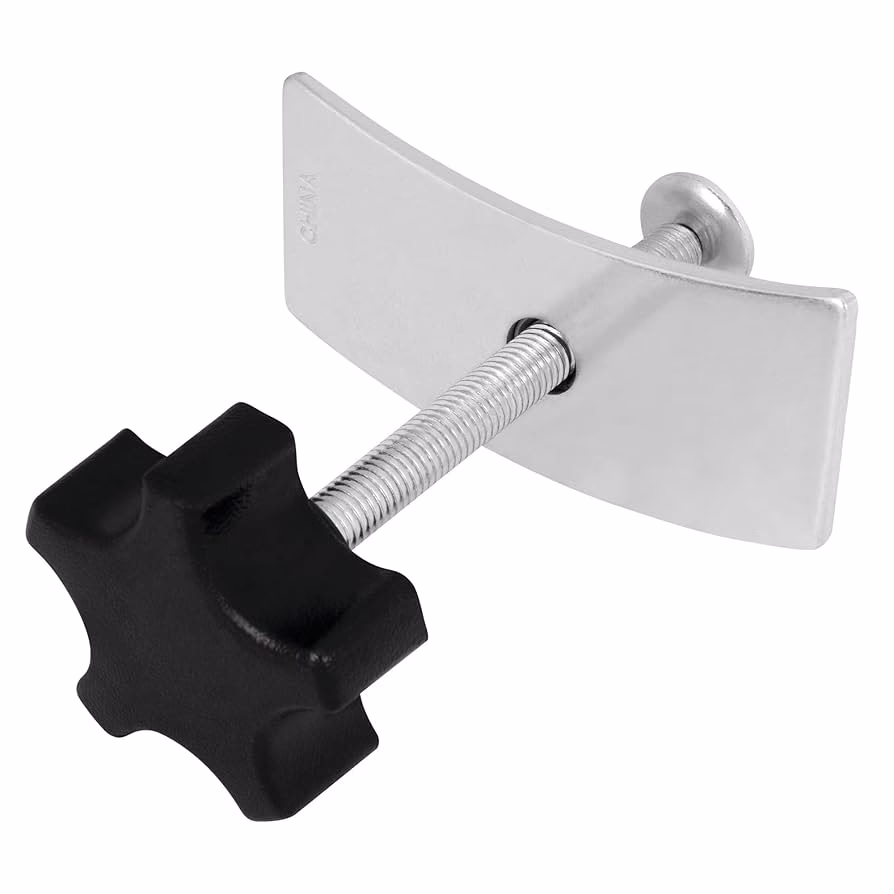

1. Screw-Type Spreaders

These are perhaps the most common and straightforward. They feature a screw mechanism that, when turned, drives two opposing plates apart, pushing the piston back. They are generally robust and effective for most standard brake systems. Some advanced versions have a rotating handle that makes the spreading action smoother.

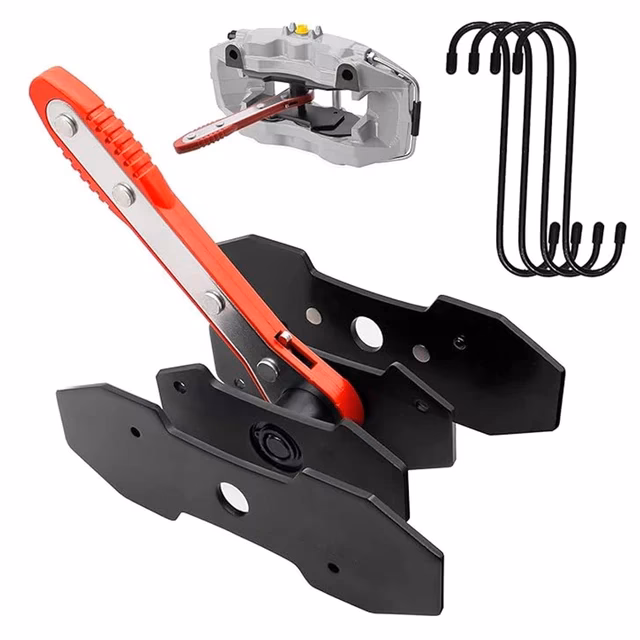

2. Ratcheting Spreaders

These are often more efficient and quicker to use. They typically have a lever or handle that, when pumped, extends the spreader plates. Many modern ratcheting spreaders are 'gearless', meaning they don't rely on a complex gear mechanism. Instead, they use a plate design that evenly distributes force. This 'gearless' design is particularly beneficial as it prevents misalignment of the piston. A key feature of many ratcheting spreaders is the ability to switch the mechanism from spreading to retracting, making them versatile.

3. Universal Brake Pad Spreaders

These are designed for maximum compatibility. They often feature a 360-degree access design, allowing them to be used on a wide range of vehicles and caliper types, including those with tight access. They might incorporate interchangeable spreader plates or a flexible design to accommodate different piston configurations.

4. X-Type Spreaders

As the name suggests, these spreaders have an 'X' shaped mechanism. When the central screw is turned, the arms of the 'X' push outwards, spreading the caliper pistons. They are compact and effective for many applications.

5. Disc Brake Piston Tools (Integrated)

Some comprehensive brake service kits include a tool that combines a brake pad spreader with a disc brake piston tool. A disc brake piston tool is specifically designed to rotate certain types of pistons back into the caliper, especially those with internal threads that require winding back rather than just pushing. These multi-functional tools can be very convenient for a full brake service.

Performance Tool Brake Pad Spreaders

Brands like 'Performance Tool' offer a range of brake pad spreaders to cater to different needs and budgets. They are known for providing reliable and durable tools. As mentioned, Performance Tool brake pad spreaders are typically sold individually, allowing you to select the specific type that best suits your requirements. Whether you need a simple screw-type for occasional use or a sophisticated gearless ratcheting spreader for frequent work, Performance Tool likely has an option. Their gearless models, for instance, are praised for their even force distribution, preventing piston misalignment and making the job easier.

Choosing the Right Brake Pad Spreader

When selecting a brake pad spreader, consider the following:

• Type of Vehicle(s): Do you work on a variety of cars, or just one? If it's a variety, a universal spreader might be the most economical choice. For specific vehicles with common caliper types, a dedicated screw or ratcheting spreader might suffice.
• Frequency of Use: If you're a professional mechanic or do brake jobs very frequently, investing in a high-quality ratcheting or universal spreader will save you time and effort. For occasional DIY use, a good quality screw-type spreader is often sufficient.
• Budget: Prices can vary significantly. Determine how much you're willing to spend, but remember that investing in a quality tool often pays off in the long run through durability and ease of use.
• Specific Features: Look for features like comfortable grips, clear markings, and the ability to switch between spreading and retracting if that's important to you. The 'gearless' design for even force distribution is a significant advantage to look for.

How to Use a Brake Pad Spreader

The general process for using a brake pad spreader is as follows:

1. Safety First: Ensure the vehicle is safely supported on jack stands and the wheels are removed.
2. Access the Caliper: Remove the caliper bolts to allow the caliper to be swung open or removed from the disc rotor.
3. Remove Old Pads: Take out the old brake pads.
4. Position the Spreader: Place the brake pad spreader between the caliper piston(s) and the backing plate of the old brake pad (or just against the piston face if the old pad is removed).
5. Apply Pressure: Slowly and steadily operate the spreader (turn the screw, pump the lever) to push the piston(s) back into the caliper body. Watch the brake fluid level in the master cylinder reservoir; if it gets too high, you may need to remove some fluid using a syringe or by opening the bleed nipple slightly (and then re-bleeding the brakes).
6. Check Clearance: Once the piston is fully retracted, remove the spreader. There should now be enough space to insert the new, thicker brake pads.
7. Install New Pads: Fit the new brake pads into the caliper bracket.
8. Reassemble: Swing the caliper back over the new pads and re-install the caliper bolts.
9. Pump the Brakes: Before driving, pump the brake pedal several times until it feels firm. This ensures the pistons are pushed out against the new pads.
10. Check Fluid Level: Double-check the brake fluid level in the reservoir and top up if necessary with the correct type of fluid (e.g., DOT 3, DOT 4).

Frequently Asked Questions (FAQs)

Q1: Can I use a brake pad spreader on all types of brakes?

Brake pad spreaders are designed for disc brakes. They are not used for drum brakes, which have a different mechanism involving brake shoes.

Q2: Do I need a special tool to retract rear brake pistons?

Some rear brake caliper pistons, particularly those on vehicles with integrated parking brakes, need to be rotated (wound back) rather than just pushed. For these, you'll need a specific disc brake piston tool that often comes with various adapter caps to fit different piston types. While some universal spreaders can push, they won't rotate. Always check your vehicle's service manual.

Q3: How do I know if my brake fluid needs checking?

Brake fluid absorbs moisture over time, which lowers its boiling point and can lead to corrosion. Tools like the ones mentioned that test the percentage of water in the brake fluid can indicate when it's time for a change. A visual inspection for discoloration can also be a clue, though not always accurate.

Q4: What is the size of a W80109 brake pad spreader?

Information regarding the specific dimensions of a W80109 model was not readily available. However, brake pad spreaders vary in size and capacity. When purchasing, check the product specifications to ensure it's suitable for your intended use.

Q5: Are Performance Tool brake pad spreaders sold separately?

Yes, Performance Tool brake pad spreaders are typically sold individually, allowing you to choose the specific model that best fits your needs from their range of styles, including gearless and universal options.

Conclusion

A brake pad spreader is a simple yet essential tool for any automotive enthusiast or professional mechanic performing brake maintenance. It ensures the job is done correctly, safely, and without damaging valuable components. By understanding the different types available and how to use them effectively, you can confidently tackle brake pad replacements and keep your vehicle stopping reliably for miles to come. Investing in a quality tool like those offered by Performance Tool is a wise decision for anyone serious about vehicle maintenance.
