Troubleshooting Monitor Connectivity Issues

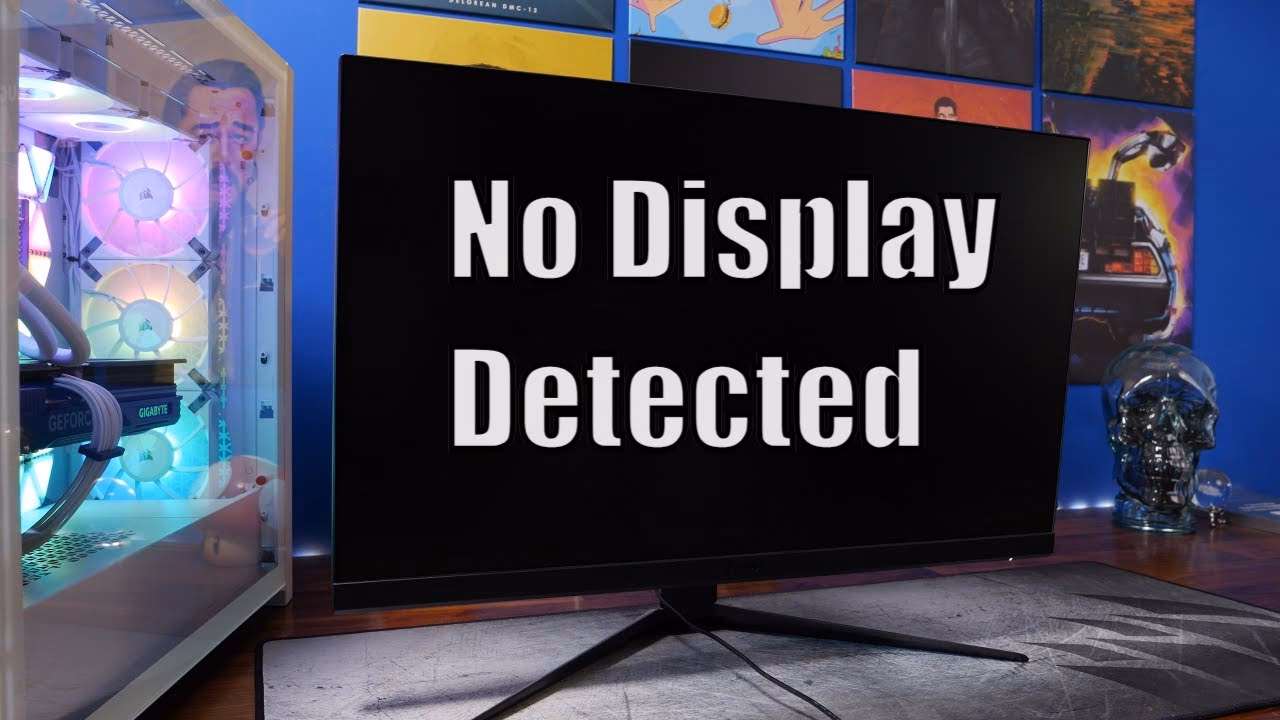

Encountering a blank screen when you expect your monitor to spring to life can be a deeply frustrating experience, especially if you're not particularly tech-savvy. The moment your monitor refuses to connect to your motherboard, despite being properly plugged in, can lead to a cascade of confusing troubleshooting steps. This article aims to demystify why this happens and provide you with a clear, actionable guide to resolving the issue.

While it might seem like a complex problem, many reasons for a monitor not displaying on the motherboard are quite common and often stem from simple oversights or configuration errors. We'll explore the most frequent culprits, from the automatic disabling of integrated graphics when a dedicated GPU is installed, to potential hardware faults, incorrect cabling, or outdated drivers. By the end of this guide, you should have a comprehensive understanding of how to diagnose and fix your monitor connectivity problems, ensuring your visual output is restored swiftly.

Understanding Why Your Monitor Isn't Displaying on the Motherboard

The journey to a working display often begins with understanding the fundamental components involved: your motherboard, your CPU (which may house integrated graphics), and potentially a dedicated graphics card (GPU). When you connect a dedicated GPU, it often automatically disables the integrated graphics processing unit (iGPU) found on your CPU or older motherboards. This is a common reason why a monitor plugged into the motherboard might not show anything, especially if you're expecting it to work alongside a dedicated graphics card.

However, this isn't the only reason. Let's delve into the specifics:

1. The Integrated Graphics Card Has Been Disabled

Modern CPUs frequently contain an iGPU, which acts as a graphics processor. This allows you to connect a monitor directly to the motherboard's display outputs. When you install a separate, dedicated graphics card into a PCIe slot on your motherboard, the system often defaults to using that card for video output, thereby disabling the iGPU. This is a power-saving and performance-optimising feature. To get your monitor working when connected to the motherboard again, you'll typically need to re-enable the iGPU within your computer's BIOS settings.

2. Faulty Ports and Cables

Before diving into more complex settings, always consider the simplest explanations. A loose connection, a damaged cable, or using the wrong type of cable can all prevent your monitor from displaying an image. Ensure your video cable (HDMI, DisplayPort, DVI, or VGA) is securely plugged into both the monitor and the correct port on your motherboard or graphics card. Older motherboards might have VGA ports, requiring a VGA cable. Trying to force an incompatible cable, like an HDMI cable into a port it wasn't designed for, can also cause issues. High-density HDMI cables, for instance, are often designed for specific slots on newer hardware.

3. Hardware Issues and Compatibility

If the connections and cabling are all correct, the problem could lie with the hardware itself. This could be due to:

• Motherboard Compatibility: Some motherboards have specific compatibility requirements with certain monitor brands or models. Researching your motherboard's specifications can help identify potential conflicts.
• Defective Ports: The display output ports on either your motherboard or your monitor could be damaged.
• No Integrated Graphics: Your CPU might not have an integrated graphics chip, meaning the motherboard's display outputs won't function for video output.
• Faulty Cables: Even if a cable appears to be the correct type, it might be internally damaged.

A good way to test for hardware issues is to connect a different monitor to your motherboard using a different cable. If another monitor works, the problem is likely with your original monitor or its cable. If the issue persists with a different monitor and cable, the problem may lie with the motherboard or CPU.

4. Your CPU Doesn't Have Onboard Graphics

As mentioned, not all CPUs are equipped with an integrated GPU. If your CPU lacks this feature, the display outputs on your motherboard will be non-functional for video output. You will need to rely on a dedicated graphics card and connect your monitor to that.

How to Get a Monitor Connected to the Motherboard Working

Resolving these issues often involves a systematic approach. Here are the key steps:

1. Ensure the Monitor is Powered and Connected Correctly

This might sound obvious, but always start by confirming that your monitor is plugged into a working power outlet and switched on. Check the power indicator light. If your monitor uses an external power brick, ensure that the cable is securely connected to both the monitor and the brick, and the brick is plugged into the wall.

2. Enable Integrated Graphics in BIOS

If you have a dedicated graphics card installed, the integrated graphics might be disabled. You can re-enable it via the BIOS/UEFI settings:

1. Restart your computer.
2. Press the BIOS key repeatedly as your computer starts up. Common keys include DEL, F2, F10, F12, or ESC. The exact key depends on your motherboard manufacturer.
3. Navigate the BIOS menu. Look for settings related to 'Integrated Graphics', 'Onboard Graphics', 'iGPU', or 'Chipset Configuration'. The exact location varies by manufacturer, but common paths include:
   • ASUS/MSI: Advanced -> System Agent (SA) Configuration -> Graphics Configuration -> iGPU Multi-Monitor: Enabled
   • Gigabyte: Chipset -> Internal Graphics -> Enable (or set to Auto and ensure an external GPU doesn't force it off)
   • ASRock: Advanced Menu -> Chipset Configuration -> IGPU Multi Monitor: Enable
   • Lenovo: Devices -> Video Setup -> Select Active Video: IGD -> Multi-Monitor Support: Enabled
4. Save changes and exit (usually by pressing F10).

Note: When using both integrated and dedicated graphics, ensure both monitors are connected to the appropriate outputs. Some users mistakenly plug one monitor into the motherboard and another into the GPU, which can cause conflicts. It's often best to have all monitors connected to the same graphics source (either all to the GPU or all to the motherboard, if supported and configured).

3. Install/Update Graphics Drivers

Even if your integrated graphics are enabled, they require drivers to function correctly. If your monitor is connected to the motherboard's output but isn't displaying, ensure the appropriate drivers are installed:

• Check Device Manager: In Windows, right-click the Start button and select 'Device Manager'. Expand 'Display adapters'. You should see your integrated graphics (e.g., Intel UHD Graphics) listed, possibly alongside your dedicated GPU.
• Download Drivers: If the integrated graphics are not listed or show an error, visit the website of your CPU manufacturer (e.g., Intel or AMD) and download the latest drivers for your specific iGPU model. Install them, and restart your computer.
• Dedicated GPU Drivers: Similarly, ensure your dedicated GPU drivers (Nvidia or AMD) are up-to-date, as these can sometimes influence how integrated graphics are handled.

4. Test with Different Cables and Monitors

As mentioned earlier, faulty cables are a common issue. Try using a known-good cable of the correct type. If possible, test your monitor on another computer or test your motherboard with a different, known-good monitor. This isolation process is crucial for pinpointing the faulty component.

5. Check Graphics Card Seating and Connections

If you have a dedicated graphics card, ensure it is properly seated in its PCIe slot. Sometimes, a card might appear to be in place but not making full contact. Gently remove and re-insert the card, listening for a click, and ensure any auxiliary power connectors are firmly attached.

6. Reset BIOS

A BIOS reset can resolve configuration issues. This can often be done by removing the CMOS battery from the motherboard for a few minutes (with the PC powered off and unplugged) and then reinserting it. Consult your motherboard manual for the exact procedure.

7. Force Windows to Detect Displays

In Windows 10/11, you can manually prompt the system to detect connected displays:

• Right-click on your desktop and select 'Display settings'.
• Scroll down to the 'Multiple displays' section.
• Click the 'Detect' button.

8. Roll Back or Reinstall Graphics Drivers

If the issue started after a driver update, rolling back to a previous version might help. In Device Manager, under 'Display adapters', right-click your graphics device, go to 'Properties', then the 'Driver' tab, and select 'Roll Back Driver' if available.

FAQ: Common Monitor and Motherboard Queries

Q1: Why is my monitor not connecting to my motherboard?
A: The most common reason is that when a dedicated graphics card is installed, the motherboard's integrated graphics are often automatically disabled. Ensure your CPU has onboard graphics and that the integrated graphics are enabled in the BIOS. Also, check that your monitor is plugged into the correct port (usually the dedicated GPU if one is present).

Q2: How do I get my monitor to work on my motherboard if I have a dedicated GPU?
A: You need to access your BIOS/UEFI settings and enable the integrated graphics (iGPU) and multi-monitor support. This allows the motherboard's display outputs to function even when a dedicated GPU is installed.

Q3: Is VGA good for gaming?
A: While VGA can work for basic display, it's not ideal for gaming. For the best gaming experience, use DisplayPort or HDMI, as they offer higher refresh rates, resolutions, and better signal quality.

Q4: What is the best connection for a monitor?
A: DisplayPort is generally considered the best connection for monitors, offering the highest bandwidth, support for high refresh rates, resolutions, and features like adaptive sync (G-Sync/FreeSync).

Q5: Why is my motherboard not detecting my HDMI?
A: This is often due to the CPU's onboard HDMI output not being enabled in the BIOS. Navigate to the BIOS settings, find the graphics configuration, and enable 'CPU onboard graphics multi-monitor' or a similar setting.

Final Thoughts

A monitor failing to display on your motherboard can be a perplexing issue, but by systematically working through these troubleshooting steps, you can identify and resolve the problem. Remember to start with the simplest checks – power, cables, and correct port connections – before moving on to BIOS settings and driver updates. Testing with alternative hardware is also a key diagnostic tool. With a bit of patience and this guide, you should be able to get your display up and running again.
