Understanding MOT Sub-Base Aggregates

In the realm of construction and landscaping, the foundation is everything. Before laying a pristine patio, constructing a durable driveway, or building a robust road, a crucial layer must be established: the sub-base. This unseen but vital component provides stability, distributes loads, and ensures the longevity of your project. In the UK, the standard for these foundational materials is often dictated by 'MOT' specifications, ensuring they meet rigorous quality and performance criteria. But what exactly are these MOT sub-bases, and more importantly, what are the different types available and how do you choose the right one for your specific needs?

Understanding the nuances between various MOT sub-base aggregates is paramount for anyone undertaking a construction project, whether it's a small garden path or a major road. Selecting the incorrect material can lead to costly failures, poor drainage, and an unstable surface. This comprehensive guide will delve into the world of MOT sub-bases, exploring their characteristics, common uses, and crucial differences, helping you make an informed decision for a truly durable foundation.

What is MOT Sub-Base? Unpacking the Standard

The term 'MOT' in the context of aggregates refers to specifications originally set by the Ministry of Transport (now primarily overseen by National Highways in England and similar bodies in other UK nations). These specifications outline the precise grading, particle shape, and composition requirements for materials used in road construction and other civil engineering projects. An MOT-certified aggregate means it has been tested and complies with these stringent standards, guaranteeing its suitability for critical load-bearing applications.

A sub-base serves as the primary load-bearing layer directly beneath the surface course (like tarmac, paving slabs, or block paving) and often a binder or base course. Its primary functions include:

• Load Distribution: Spreading the weight from the surface across a wider area of the underlying ground, preventing localised settlement and cracking.
• Stability: Providing a firm, unyielding platform for subsequent layers, ensuring the overall structure remains stable.
• Drainage: Allowing water to permeate through or be directed away from the surface, preventing waterlogging and frost heave.
• Protection: Shielding the subgrade (natural ground) from traffic loads and environmental factors.

The quality and proper compaction of the sub-base are absolutely critical. Without a well-chosen and correctly installed sub-base, even the finest surface materials will eventually fail.

MOT Type 1: The Ubiquitous Workhorse

When most people talk about sub-base, they're often referring to MOT Type 1. This is by far the most common and widely used aggregate for a vast array of construction projects across the UK. It is a premium crushed aggregate, typically made from limestone, granite, or basalt, although recycled crushed concrete can also be used if it meets the stringent specifications.

Key Features of MOT Type 1:

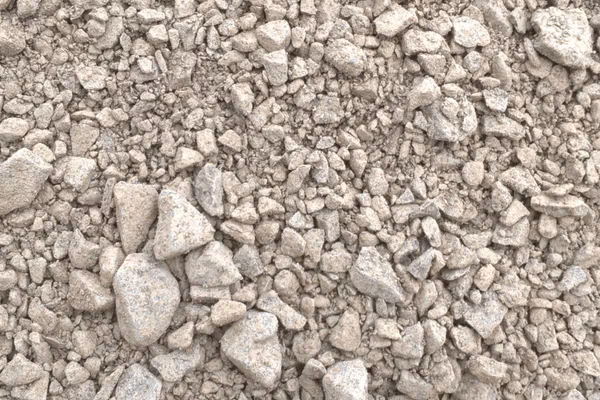

• Particle Size & Grading: The defining characteristic of MOT Type 1 is its specific grading, ranging from 40mm down to dust (fines). This carefully controlled mix of particle sizes allows for excellent interlock between the angular aggregates, creating a dense, stable, and highly compactable material. The presence of fines helps to bind the larger particles together, forming a strong, cohesive layer when compacted.
• Angular Aggregates: The materials used in MOT Type 1 are crushed, resulting in angular, irregular shapes rather than rounded pebbles. This angularity promotes superior interlocking when compacted, providing exceptional stability and resistance to movement under load.
• Durability & Strength: Due to its composition and grading, MOT Type 1 offers high compressive strength and durability, making it ideal for areas subjected to heavy loads and frequent traffic.
• Frost Resistance: High-quality MOT Type 1 is inherently resistant to frost and extreme weather conditions. Its ability to drain water effectively and its robust composition prevent it from becoming unstable or cracking due to freeze-thaw cycles, which is crucial in the variable UK climate.
• Weed Prevention: While not its primary function, the dense, compacted nature of MOT Type 1 creates an inhospitable environment for weeds, making it an excellent base for surfaces like driveways and paths where weed growth can be a nuisance.

Common Applications for MOT Type 1:

• Roads and Highways: Its primary and original purpose, providing a robust foundation for major infrastructure.
• Driveways: Essential for supporting the weight of vehicles, preventing ruts and ensuring a long-lasting surface.
• Pathways and Patios: Creating a stable, level base that resists settlement and promotes drainage.
• Building Foundations: Used as a sub-base for concrete slabs and other structural elements.
• Car Parks: Providing a durable base for both light and heavy vehicles.
• Drainage Regions: While dense, it still allows for some water permeation, making it suitable for certain drainage applications where a firm base is also required.

It's important to note that for optimal performance, MOT Type 1 Sub Base Aggregate must be thoroughly compacted after placement. This process dramatically increases its strength, density, and load-bearing capacity, preventing future settlement and ensuring the longevity of the overlying surface.

Beyond Type 1: Exploring Other Essential MOT Sub-Base Aggregates

While MOT Type 1 is incredibly versatile, it's not always the best or only option. Other MOT-compliant aggregates serve specific purposes, particularly where drainage or recycled content is a priority.

MOT Type 3: The Permeable Solution

MOT Type 3, often referred to as 'Permeable Sub-Base' or 'Reduced Fines Aggregate', is gaining significant traction due to its role in Sustainable Drainage Systems (SuDS). Unlike Type 1, Type 3 is specifically designed to allow water to pass through it freely, making it ideal for permeable paving solutions and areas where surface water management is critical.

Key Features of MOT Type 3:

• Enhanced Permeability: This is the defining feature. Type 3 contains significantly fewer fines (dust) than Type 1. This larger void space between particles allows water to drain rapidly through the sub-base layer into the ground below or into a drainage system.
• Particle Size: Typically ranges from 40mm down to 5mm or 10mm, with a very limited amount of fine material. This coarser grading is what facilitates the high drainage rate.
• Load-Bearing Capacity: While highly permeable, Type 3 still offers excellent load-bearing capabilities due to the strong interlock of its angular particles, making it suitable for driveways, car parks, and public spaces designed with SuDS in mind.
• Environmental Benefits: By promoting infiltration and reducing surface runoff, Type 3 helps mitigate flood risk, replenish groundwater, and reduce the burden on conventional drainage systems.

Common Applications for MOT Type 3:

• Permeable Paving: Essential for driveways, car parks, and public squares designed to allow rainwater to soak through.
• Sustainable Drainage Systems (SuDS): A key component in many SuDS designs, managing surface water naturally.
• Sports Pitches: Providing a free-draining base for all-weather sports surfaces.
• Tree Pits: Used to provide a stable base around trees in urban areas while allowing water and air to reach the roots.

Choosing Type 3 over Type 1 is crucial when designing a system that requires water to penetrate the surface and drain away naturally, rather than running off. Its use helps to create more resilient and environmentally friendly urban landscapes.

6F2/6F5: Recycled and Capping Aggregates

While not strictly 'sub-base' in the same primary sense as Type 1 or Type 3, aggregates like 6F2 and 6F5 (often referred to as 'Crusher Run' or 'Capping Layer Material') are frequently used in similar foundational applications, particularly for larger civil engineering projects. These are typically recycled crushed concrete, brick, and asphalt, offering an environmentally friendly and often more cost-effective alternative.

Key Features of 6F2/6F5:

• Recycled Content: Primarily composed of recycled construction and demolition waste, making them a sustainable choice.
• Variable Grading: The particle size can vary significantly, often from 75mm down to dust (6F5) or 125mm down to dust (6F2). This variability means their performance can be less consistent than virgin aggregates like Type 1.
• Cost-Effective: Generally cheaper than virgin aggregates due to their recycled nature.
• Strength: Can provide a good load-bearing layer, but their properties are more variable than Type 1 due to the heterogeneous source material.

Common Applications for 6F2/6F5:

• Capping Layers: Often used as a capping layer over the subgrade before the main sub-base (Type 1 or 3) is laid, particularly on sites with poor ground conditions.
• Temporary Haul Roads: Ideal for creating robust temporary access roads on construction sites.
• Bulk Fill: Used for raising ground levels or filling large voids.
• Hardstandings: For areas requiring a solid, cost-effective surface for storage or parking, where precise grading isn't paramount.

While 6F2/6F5 can act as a sub-base in some less critical applications, for high-traffic areas or those requiring specific drainage properties, Type 1 or Type 3 are generally preferred due to their consistent quality and predictable performance.

Choosing the Right MOT Sub-Base: A Critical Decision

Selecting the appropriate MOT sub-base aggregate is a decision that should not be taken lightly. The wrong choice can lead to significant issues down the line, from premature surface failure to drainage problems. Consider the following factors:

• Project Type and Load Requirements: Is it a pedestrian path, a residential driveway, or a heavy-duty commercial road? Heavier loads demand more robust materials like Type 1.
• Drainage Needs: Is water permeability a design requirement (e.g., permeable paving, SuDS)? If so, Type 3 is essential. If you need a dense, stable base with good runoff, Type 1 is suitable.
• Budget: While recycled materials like 6F2/6F5 can be cheaper, consider the long-term performance and potential for future repairs if they are not entirely suitable for the application.
• Ground Conditions: The nature of the underlying soil (subgrade) can influence the sub-base thickness and type. Poorly draining subgrades might necessitate more emphasis on the sub-base's drainage properties.
• Local Regulations & Specifications: Always check local planning requirements and any specific engineering specifications for your project.

The Importance of Proper Installation

Regardless of the MOT sub-base type you choose, its performance hinges on correct installation. This typically involves:

• Ground Preparation: Ensuring the subgrade is level, free of organic matter, and adequately compacted.
• Layering: Laying the sub-base material in lifts (layers), typically no more than 150-200mm thick per lift.
• Compaction: Thoroughly compacting each layer using appropriate machinery (e.g., plate compactor for smaller areas, roller for larger projects). This is arguably the most crucial step, as it locks the particles together, achieving the desired density and load-bearing capacity. Proper compaction prevents settlement and ensures structural integrity.
• Moisture Content: Ensuring the material has the correct moisture content during compaction is vital. Too dry, and it won't compact properly; too wet, and it can become unstable.

Comparative Overview of MOT Sub-Base Aggregates

To summarise the key differences, here's a comparative table:

Frequently Asked Questions About MOT Sub-Base

What does 'MOT' stand for in MOT Type 1?

In this context, 'MOT' refers to the Ministry of Transport specifications (now often updated by National Highways and other regional bodies in the UK). It signifies that the aggregate meets specific grading and quality standards required for use in road construction and other civil engineering projects, ensuring its performance and reliability.

Can I use any aggregate as a sub-base?

No, not all aggregates are suitable as a sub-base. It's crucial to use materials specifically designed and certified for this purpose, such as MOT Type 1 or Type 3. Using uncertified or poorly graded materials can lead to instability, poor drainage, and premature failure of your project due to inadequate load distribution or compaction.

How thick should my sub-base be?

The required thickness of a sub-base varies significantly depending on the intended use and anticipated load. For a pedestrian path, 100-150mm might suffice. For a residential driveway, 150-200mm is common. Heavy-duty commercial roads or industrial areas could require 300mm or more, often laid in multiple compacted layers. Always consult engineering specifications or a professional for specific project requirements.

Is MOT Type 1 suitable for permeable paving?

While MOT Type 1 does allow some water to pass through, it is generally not the ideal choice for dedicated permeable paving systems. Its higher fines content can lead to clogging and reduced long-term permeability. For permeable paving, MOT Type 3 is specifically designed with reduced fines to maximise water infiltration and is the recommended material.

What is the difference between sub-base and base course?

The sub-base is the foundational layer laid directly on the prepared subgrade. The base course (or binder course) is an intermediate layer laid on top of the sub-base, typically consisting of a coarser asphalt mix or a higher-strength aggregate, which provides further load distribution and a stable platform for the final surface course (e.g., wearing course tarmac or block paving).

Why is compaction so important for sub-base?

Compaction is vital because it increases the density and interlock of the aggregate particles, significantly improving the sub-base's strength, stability, and load-bearing capacity. Proper compaction reduces voids, minimises future settlement, and enhances drainage. Without adequate compaction, the sub-base will remain loose, leading to an unstable foundation that can cause cracking, rutting, and general failure of the overlying surface.

Conclusion

The world of MOT sub-base aggregates is more diverse than just a single 'Type 1'. From the robust and widely applicable MOT Type 1 to the environmentally conscious and free-draining MOT Type 3, and even the versatile recycled options like 6F2/6F5, each material plays a distinct role in ensuring the integrity and longevity of construction projects. By understanding their unique properties and applications, you can confidently select the right foundation material, laying the groundwork for a successful and enduring build. Always remember that the sub-base is not just a layer of stone; it's the hidden strength beneath your feet, demanding careful consideration and expert installation.
