Park Brake Limited Function: Causes and Fixes

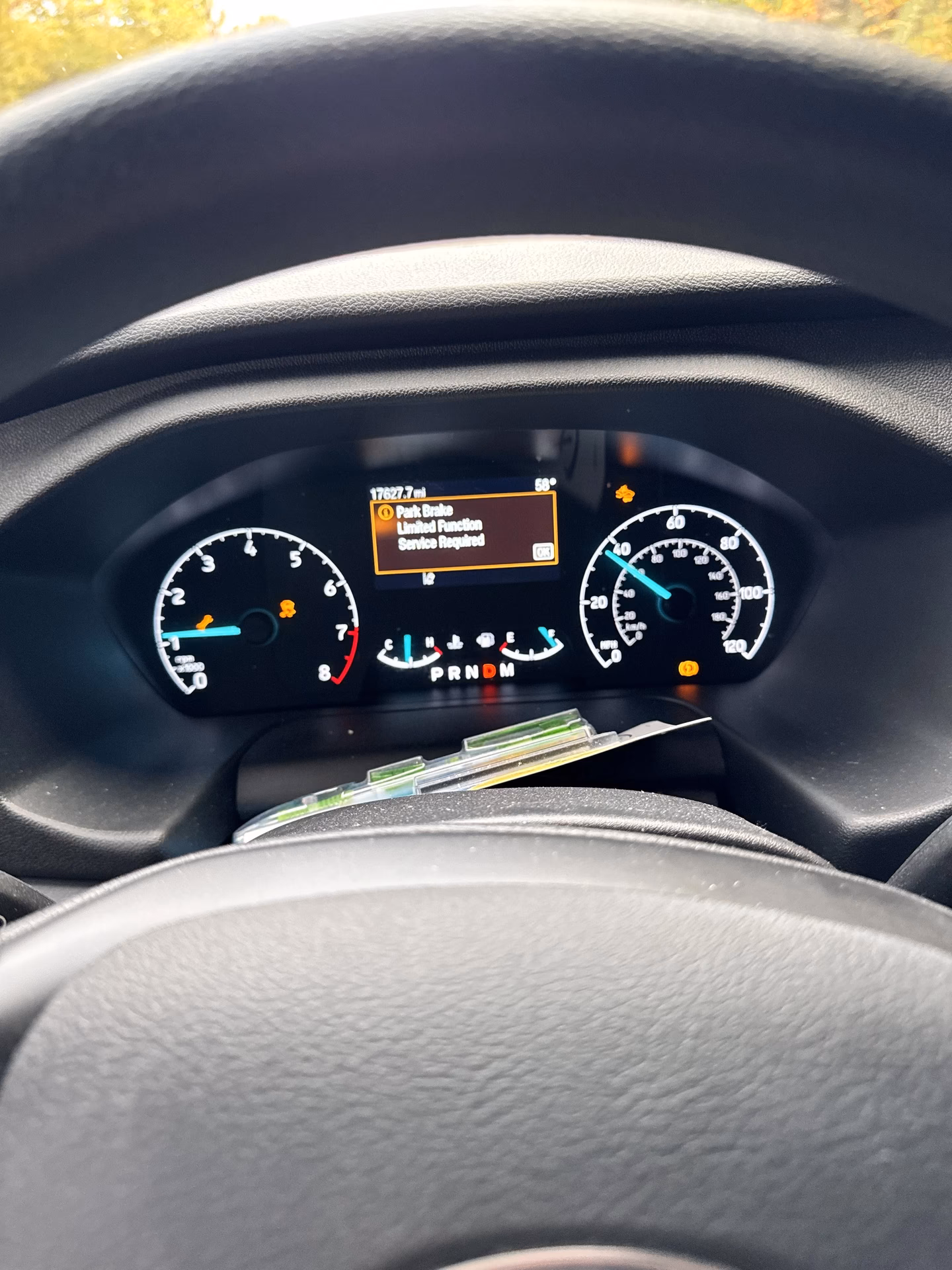

The illuminated message "Park Brake Limited Function Service Required" can be a rather unsettling sight on your Ford's dashboard. While it might sound alarming, understanding the potential culprits behind this warning is the first step towards a swift resolution. This issue often impacts the electronic parking brake (EPB) system, a sophisticated component that has replaced traditional handbrakes in many modern vehicles. While a malfunctioning parking brake might not pose an immediate danger when parked on a flat surface, its failure, particularly in Ford models, can have a knock-on effect on crucial safety systems like the Anti-lock Braking System (ABS) and traction control, making it a concern that warrants attention. Fortunately, in many cases, rectifying this problem is surprisingly straightforward and cost-effective.

Understanding the Electric Parking Brake System

Before delving into the specific causes of the warning message, it's helpful to grasp how the electric parking brake (EPB) system operates. Unlike older mechanical systems that relied on cables and levers, the EPB utilises electronic motors integrated into the rear brake calipers. These motors are controlled by a module and activated via a switch, typically located on the centre console. When engaged, these motors apply pressure to the brake pads, effectively holding the vehicle stationary. The system is designed for convenience and can often automatically disengage when you drive off, or engage automatically when the engine is switched off. However, this increased reliance on electronics also introduces a wider range of potential failure points.

Common Causes of 'Park Brake Limited Function'

The "Park Brake Limited Function" warning can manifest for a variety of reasons, ranging from simple software anomalies to more complex mechanical or electrical failures. Here are the most frequently encountered causes:

1. Random Software Glitches

One of the most common and often the easiest to resolve, causes for this warning is a temporary software glitch within the EPB control module. Modern vehicles are packed with complex software, and like any computer, they can occasionally experience minor errors. These glitches can occur without a clear external trigger and can temporarily disrupt the EPB's communication, leading to the warning message. Often, a simple reset of the system can clear the fault.

2. Defective Parking Brake Wiring Harness

The EPB system relies heavily on a network of wires to transmit signals between the control module, actuators, and sensors. A damaged or corroded wiring harness is a frequent culprit, particularly in Ford models manufactured between 2014 and 2019, with the Ford Edge being a notable example. Poor water resistance in the connectors is often cited as a reason for corrosion, especially after car washes or during rainy weather. A compromised wiring harness can disrupt the electrical signals, leading the system to believe there's a malfunction.

3. Faulty Parking Brake Actuator

The parking brake actuator is the small electric motor responsible for physically engaging the parking brake mechanism at each rear wheel. While these motors are generally well-insulated, they can fail over time due to wear and tear, internal damage, or exposure to the elements. If one or both actuators malfunction, the EPB system will likely report limited functionality. This is one of the more expensive components to replace.

4. Faulty Parking Brake Warning Switch

Every parking brake system has a switch that signals its engagement status to the vehicle's control module and illuminates the dashboard warning light. If this switch fails, even if the parking brake itself is still operational, the control module won't receive the correct feedback. This miscommunication can lead to the "limited function" warning appearing. These switches are relatively inexpensive and a common point of failure.

5. Failing ABS Module

The Anti-lock Braking System (ABS) module plays an integral role in the operation of the EPB. In many vehicles, the ABS system needs to be disengaged for the parking brake to function correctly. A fault within the ABS module can create communication errors between it and the EPB system, resulting in the warning message. Diagnosing and replacing an ABS module can be complex and costly.

6. Faulty ABS Sensor

Similar to the ABS module, ABS sensors monitor wheel speed and provide crucial data to various vehicle systems, including the EPB. If an ABS sensor fails or becomes contaminated, it can send incorrect information, leading to the EPB system interpreting a fault. Typically, a faulty ABS sensor will also trigger an ABS warning light and potentially affect the speedometer or traction control.

7. Old or Weak Battery

The EPB system, like many other electronic systems in your vehicle, is heavily reliant on a stable and sufficient electrical supply from the 12-volt battery. An old, weak, or failing battery may not provide the consistent voltage required for the EPB's motors and control modules to operate correctly. This can lead to intermittent functionality and warning messages.

Diagnosing the 'Park Brake Limited Function' Message

Accurately diagnosing the cause of the "Park Brake Limited Function" warning is crucial for an effective repair. Here’s how you can approach it:

1. Interpret Dashboard Warning Lights

Pay close attention to all warning lights illuminated on your dashboard. The EPB warning might appear alongside ABS or traction control lights, which can provide valuable clues about the root cause. A yellow warning light typically indicates a less critical issue, while a red light suggests a more urgent problem.

2. Use an OBD-II Scanner

An On-Board Diagnostics (OBD-II) scanner is an invaluable tool for pinpointing the exact issue. By plugging the scanner into your vehicle's OBD-II port, you can retrieve Diagnostic Trouble Codes (DTCs) stored in the system. These codes will often directly indicate which component or circuit is experiencing a fault, such as a specific actuator, sensor, or wiring issue.

3. Visual Inspection

A thorough visual inspection of the EPB system components can often reveal obvious problems. Check the wiring harnesses leading to the actuators for any signs of damage, fraying, or corrosion. Inspect the connectors for looseness or contamination. Also, visually check the parking brake switch for any obvious damage.

4. Listen for Actuator Operation

To check if the actuators are functioning, you can have a helper engage and disengage the parking brake while you listen near the rear wheels. A healthy actuator will typically produce a whirring or clicking sound as it operates. If you hear no sound from one or both sides, it strongly suggests a problem with the actuator on that side or its power supply.

Troubleshooting and Repair Solutions

Once the cause has been identified, here are the common troubleshooting and repair steps:

1. Resetting the System (Software Glitch)

If you suspect a software glitch, try engaging and disengaging the parking brake manually a few times. This can sometimes reset the system and clear the warning light. Ensure the vehicle is on a level surface and the parking brake is functioning audibly before attempting this.

2. Battery Check and Replacement

If your battery is older than four years or you've experienced charging issues, test its voltage. Most auto parts stores offer free battery testing. If the battery is weak or failing, replacing it can resolve low-voltage-related EPB warnings. Ensure your battery maintains a stable voltage of around 12.6 volts.

3. Wiring Harness Repair or Replacement

For damaged wiring harnesses, the solution is either to repair the affected wires and connectors or replace the entire harness. If corrosion is present, cleaning the connectors with a suitable contact cleaner can sometimes restore functionality, but replacement is often the more permanent solution. A new wiring harness can be relatively inexpensive, with costs around $100-$150 for both sides.

4. Actuator Replacement

If a faulty actuator is diagnosed, it will need to be replaced. This is a more involved repair, often requiring the removal of the rear wheel and brake caliper. The cost of a new OEM actuator can range from $180 to $400 per unit. Professional installation typically adds another $100-$150 in labour costs.

5. Switch Replacement

Replacing a faulty parking brake switch is a relatively straightforward job. The cost of the switch itself is usually around $25-$50 for an aftermarket part. Labour costs for replacement are typically around $100, as accessing the switch may require removing some interior trim panels.

6. ABS Module or Sensor Replacement

If the issue lies with the ABS module or sensors, these components will require replacement. ABS modules are significantly more expensive, ranging from $300 for a used unit to over $1,000 for a new OEM part, with labour costs also being substantial. ABS sensors are more affordable, typically costing between $25 and $50, and are relatively easy to replace.

7. Brake Caliper Service

In some cases, issues within the rear brake calipers, such as seized pistons or worn components, can impede the EPB's function. This might require servicing or replacement of the brake calipers, which can be a more extensive and costly repair.

Can You Drive With a Parking Brake Malfunction?

It is generally safe to drive with a "Park Brake Limited Function" warning, as the EPB is a separate system from your primary hydraulic brakes. Your foot brake should continue to function normally. However, it is advisable to avoid parking on steep inclines, as the parking brake's limited or non-existent function could lead to the vehicle rolling. Always park on level ground until the issue is resolved. Furthermore, if the EPB failure is linked to ABS or traction control issues, your vehicle's overall safety may be compromised, especially in adverse driving conditions.

Maintenance to Prevent Future Issues

Regular maintenance is key to preventing EPB issues:

• Regular Inspections: Periodically check the EPB system for any signs of wear, damage, or corrosion.
• Battery Health: Ensure your vehicle's battery is in good condition and properly maintained.
• Wiring Checks: Keep an eye on the wiring harnesses and connectors for any signs of damage or corrosion.
• Listen for Unusual Noises: Pay attention to any strange sounds when engaging or disengaging the parking brake.

By understanding the potential causes and following these troubleshooting and maintenance tips, you can effectively address the "Park Brake Limited Function" warning and ensure your Ford's braking systems remain safe and reliable.

Frequently Asked Questions (FAQs)

Q1: What is the most common cause of the "Park Brake Limited Function" warning?

The most common causes are often random software glitches or issues with the parking brake wiring harness, such as corrosion or damage.

Q2: Can I fix the parking brake myself?

Simple issues like a software glitch might be resolved by cycling the brake. However, for electrical faults, wiring repairs, or actuator replacements, it's often recommended to seek professional assistance or have a good understanding of automotive electronics and mechanics.

Q3: How much does it cost to fix a parking brake issue?

The cost can vary significantly. A software reset or battery check is inexpensive. Replacing a wiring harness or switch is moderately priced. However, replacing parking brake actuators or the ABS module can be quite costly, potentially running into hundreds or even over a thousand pounds.

Q4: Does a parking brake failure affect my regular brakes?

Typically, no. The parking brake is a separate system from your primary hydraulic braking system. Your foot brake should continue to operate normally. However, if the failure is linked to the ABS system, it could indirectly impact braking performance.

Q5: Do electric parking brakes need to be reset after a battery change?

In some cases, yes. After a battery disconnection or replacement, electronic systems like the EPB may need to be recalibrated or reset to function correctly. Consult your vehicle's owner's manual for the specific procedure.
