Pagid Installation Programme Explained

When it comes to vehicle maintenance, few systems are as critical as the braking system. It's not just about stopping; it's about stopping safely, consistently, and without compromise. For decades, Pagid has been a leading name in braking technology, supplying high-quality components to both original equipment manufacturers (OEMs) and the aftermarket. But simply choosing a premium brand like Pagid isn't enough; the true performance of their products is unlocked through meticulous and correct installation. This is where the Pagid Installation Programme comes into play – a comprehensive set of guidelines and best practices designed to ensure every Pagid component functions exactly as intended, providing unparalleled safety and longevity.

What is the Pagid Installation Programme?

The Pagid Installation Programme isn't a piece of software or a physical tool; rather, it's a philosophy and a detailed set of procedures developed by Pagid's engineers and technical experts. It encompasses every aspect of fitting Pagid braking components, from the initial inspection of the vehicle to the final bedding-in process. The programme emphasises the importance of cleanliness, correct torque settings, proper lubrication (where applicable), and thorough post-installation checks. It's built on years of research, development, and real-world testing, aiming to eliminate common fitting errors that can lead to noise, vibration, premature wear, or, most critically, reduced braking efficiency.

The core principle behind the programme is that even the highest quality brake pad or disc can underperform if not installed correctly. Pagid understands that the integrity of the entire braking system relies on the symbiotic relationship between its components and the vehicle itself. Therefore, the programme goes beyond just swapping parts; it advocates for a holistic approach to brake service, ensuring that surrounding components are also in optimum condition.

Why Adhere to the Pagid Programme?

Adhering to the Pagid Installation Programme offers a multitude of benefits, extending far beyond merely getting the brakes to work. For professional technicians, it provides a standardised, repeatable process that guarantees consistent results and reduces comebacks. For vehicle owners, it translates directly into a safer, more reliable, and more comfortable driving experience.

• Enhanced Safety: Correct installation ensures that brake components operate at their peak, providing predictable and effective stopping power in all conditions. This is paramount for preventing accidents.
• Optimal Performance: Following the programme helps to achieve the designed friction levels, heat dissipation, and overall precision that Pagid products are engineered for. This means better pedal feel and shorter stopping distances.
• Increased Longevity: Improper installation is a leading cause of premature wear. By following Pagid's guidelines, technicians can significantly extend the lifespan of brake pads and discs, saving time and money in the long run.
• Reduced Noise and Vibration: Many brake noise complaints stem from incorrect fitting, such as uncleaned hubs, seized caliper pins, or improper shimming. The Pagid programme addresses these issues directly, leading to quieter operation.
• Customer Satisfaction: A properly installed brake system performs flawlessly, leading to happier customers and a better reputation for the workshop.
• Warranty Compliance: In some cases, adhering to manufacturer-recommended installation procedures is a prerequisite for warranty claims should an issue arise.

Key Stages of a Pagid Brake Installation

The Pagid Installation Programme breaks down the brake service process into several critical stages, each with specific requirements to ensure a perfect fit and optimum functionality.

Pre-Installation Preparations

Before any new components are even unboxed, thorough preparation is essential. This stage sets the foundation for a successful installation.

• Vehicle Inspection: A comprehensive check of the entire braking system, including brake lines, hoses, fluid level, and the condition of the master cylinder and ABS components.
• Wheel Removal and Suspension Check: With the wheel off, inspect steering and suspension components for wear, as issues here can affect braking stability.
• Caliper Assessment: Carefully inspect the caliper for leaks, corrosion, or sticking pistons. Ensure caliper slide pins are free to move and lubricate them with appropriate, high-temperature, non-petroleum-based grease if necessary.
• Old Component Removal: Remove old brake pads and discs. Pay close attention to any shims or anti-rattle clips that were present, as these often need to be replaced with new ones supplied with Pagid pads.
• Hub and Mounting Surface Cleaning: This is perhaps one of the most critical steps often overlooked. The hub and caliper mounting surfaces must be absolutely spotless. Use a wire brush and brake cleaner to remove all rust, dirt, and old debris. Even a small amount of rust on the hub face can cause disc run-out, leading to vibration and judder.
• Disc Run-Out Measurement: After cleaning, mount the new disc and use a dial indicator to measure radial and lateral run-out. Ideally, lateral run-out should be less than 0.05mm. If it exceeds this, investigate the hub bearing or consider shimming the disc.

Disc and Pad Fitting

With the preparation complete, the focus shifts to the installation of the new Pagid components.

• Disc Installation: Ensure the disc sits flush against the clean hub. Some discs may have retaining screws; ensure these are correctly tightened.

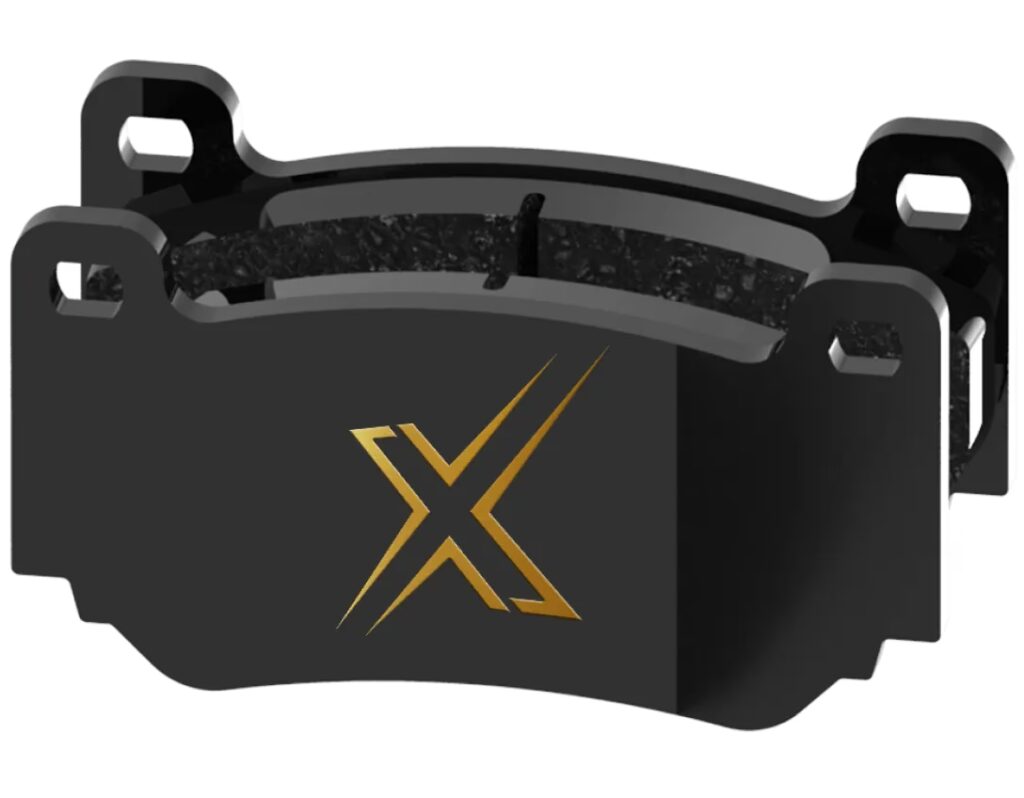

• Pad Installation: Install the new Pagid brake pads, ensuring they sit freely in the caliper carrier. Apply a thin layer of appropriate brake grease to the contact points between the pad backing plate and the caliper/carrier, but never to the friction material. Ensure any shims or anti-squeal shims supplied with the pads are correctly fitted. These are designed to absorb vibrations and prevent noise.
• Caliper Reassembly: Carefully slide the caliper back over the pads and disc. Ensure bolts are clean and apply a thread-locking compound if specified by the vehicle manufacturer.

Caliper and Hydraulic System Checks

The hydraulic system is integral to braking efficiency.

• Torque Settings: Tighten all caliper mounting bolts and wheel nuts to the vehicle manufacturer’s specified torque settings using a calibrated torque wrench. This is non-negotiable for safety.
• Brake Fluid: Check the brake fluid level and top up if necessary. Consider a full brake fluid flush if the fluid is old or contaminated, as fluid quality significantly impacts braking performance and component longevity.
• Bleeding the System: If the hydraulic system was opened (e.g., for caliper replacement), it must be properly bled to remove any air. Air in the lines leads to a spongy pedal and reduced braking effectiveness.

Post-Installation and Bedding-In

The final steps are crucial for optimising performance and preventing early issues.

• Final Checks: Double-check all connections, ensuring no tools or debris are left behind. Pump the brake pedal several times until it feels firm. This seats the pads against the discs and ensures the caliper pistons are extended.
• Wheel Reinstallation: Reinstall wheels, ensuring correct torque settings for wheel nuts.
• Brake Bedding-In: This is a vital part of the Pagid Installation Programme and cannot be skipped. The bedding-in process conditions the brake pads and discs to work optimally together. It involves a series of moderate stops from increasing speeds, allowing the friction material from the pads to transfer evenly onto the disc surface. This creates a uniform friction layer, improving performance, reducing noise, and extending pad life. Typically, this involves several stops from 30mph to 5mph, followed by a period of cooling, then repeat with slightly higher speeds and pressures, avoiding hard braking until the process is complete. Consult Pagid’s specific bedding-in recommendations for the particular pads.

Common Pitfalls and How to Avoid Them

Even experienced technicians can fall prey to common mistakes that undermine the quality of a brake service. The Pagid Installation Programme specifically addresses these:

• Unclean Hubs: As mentioned, rust or debris on the hub face is a primary cause of disc run-out, leading to steering wheel vibration (judder) during braking. Always thoroughly clean the hub.
• Ignoring Caliper Condition: A sticking caliper piston or seized slide pins will cause uneven pad wear, pulling to one side, and reduced braking effectiveness. Always inspect and service calipers.
• Incorrect Lubrication: Using the wrong type of grease (e.g., copper grease on pad backing plates) or applying it in the wrong place (e.g., on friction material) can lead to noise or reduced braking. Use only high-temperature, non-petroleum-based brake grease where specified.
• Skipping Bedding-In: Failing to bed-in brakes properly can result in uneven pad material transfer, leading to noise, judder, and premature wear.
• Over-Torquing or Under-Torquing: Incorrect torque on caliper bolts or wheel nuts can lead to dangerous failures. Always use a calibrated torque wrench.
• Reusing Old Hardware: Anti-rattle clips, shims, and retaining springs are often designed for a single use and should be replaced with new ones supplied with Pagid pads.

Pagid Installation Programme vs. Standard Practices

While many workshops follow general best practices, the Pagid Installation Programme distinguishes itself through its specific emphasis on certain critical details and its holistic approach. It’s not just about fitting parts; it’s about optimising the entire braking system around Pagid components.

ol>

Frequently Asked Questions (FAQs)

What is brake bedding-in?

Brake bedding-in, also known as 'burnishing' or 'seating,' is a crucial process after new brake pads and discs are installed. It involves a series of controlled stops that gradually heat the components, allowing a thin, even layer of friction material from the brake pads to transfer onto the surface of the brake discs. This creates a uniform contact patch, which is essential for optimal braking performance, reduced noise, and extended lifespan of both pads and discs. Skipping this step can lead to inconsistent braking, noise (squeal or groan), and premature wear or judder.

Do I need special tools for Pagid brakes?

While most Pagid brake installations can be performed with standard automotive tools (socket sets, wrenches, screwdrivers), some specific tools are highly recommended for precision and safety. These include a calibrated torque wrench (essential for tightening bolts to specified settings), a dial indicator (for measuring disc run-out), and a brake caliper piston compression tool (to safely retract caliper pistons). Additionally, a proper wire brush and brake cleaner are vital for cleaning hub and caliper mounting surfaces effectively.

Why are my new Pagid brakes noisy?

New brakes can be noisy for several reasons, often related to installation rather than the quality of the components. Common causes include:

• Improper Bedding-In: If the bedding-in process was skipped or done incorrectly, pad material may not have transferred evenly, leading to noise.
• Unclean Hubs: Rust or dirt on the hub face can cause disc run-out, leading to vibration and noise.
• Sticking Caliper Pins/Pistons: If caliper components are not moving freely, uneven pressure can cause noise.
• Incorrect Lubrication: Lack of, or incorrect, lubrication on pad contact points can lead to squealing.
• Missing or Incorrect Hardware: Anti-rattle clips or shims, if not installed or reused incorrectly, can cause vibrations and noise.
• Pad Chamfers/Slots: Some noise is normal during the initial wear-in phase as pads conform to the disc.

Following the Pagid Installation Programme meticulously addresses these potential issues.

How often should I check my brakes?

It is generally recommended to have your brakes inspected by a qualified technician at least once a year or every 12,000 miles, whichever comes first. However, it's good practice to have them checked more frequently, perhaps with every tyre rotation or oil change. Pay attention to any signs of trouble, such as a spongy pedal, grinding noises, pulling to one side, or a warning light on the dashboard, and have them inspected immediately if any of these occur. Regular checks are crucial for maintaining safety and preventing costly repairs down the line.

In conclusion, the Pagid Installation Programme is more than just a guide; it's a commitment to excellence in braking. By understanding and meticulously following its principles, technicians can ensure that every Pagid component performs at its absolute best, delivering the safety, longevity, and quiet operation that both Pagid and vehicle owners expect. Investing the time in proper installation is not just good practice; it's essential for peace of mind on the road.
