P06DD Code: UK Guide to Diagnosis & Repair

Encountering a P06DD code can be a puzzling and concerning experience for any vehicle owner. This diagnostic trouble code, often signalling an issue with your engine's oil pressure control, is one that demands your immediate attention. While the prospect of engine problems might seem daunting, understanding the P06DD code is the first crucial step towards a resolution. This comprehensive guide is designed to demystify the P06DD, delving into its meaning, common causes, and most importantly, providing a clear roadmap for diagnosing and repairing the underlying fault.

Whether you're a seasoned DIY mechanic eager to tackle the challenge yourself, or simply seeking to arm yourself with knowledge before consulting a professional, this article will equip you with the essential insights. We'll explore the intricacies of your engine's oil pressure system, uncover why this particular code might appear, and walk you through practical steps to get your vehicle running smoothly and reliably once more. Let's delve into the specifics of the P06DD code and ensure your engine receives the vital lubrication it needs.

Understanding the P06DD Code: A Comprehensive Overview

The P06DD diagnostic trouble code (DTC) is formally defined as "Engine Oil Pressure Control Circuit Stuck Off." This code indicates that your vehicle's Powertrain Control Module (PCM) has detected an anomaly within the engine oil pressure control system. Specifically, it means the engine oil pressure sensor is communicating to the PCM that the oil pressure is below the expected operational threshold, thereby adversely affecting the normal function of the oil pump.

The engine oil pump is a critical component, responsible for maintaining a consistent and adequate oil pressure supply throughout the engine. Modern oil pumps often operate with two distinct pressure stages, regulated by an on/off solenoid. In the low-pressure mode, with the solenoid activated (on), the system typically maintains a pressure of approximately 200 kPa (around 29 psi). Conversely, for the high-pressure mode, the solenoid is deactivated (off), boosting the pressure to roughly 450 kPa (approximately 65 psi). The minimum required oil pressure for your engine, under all operating conditions, is generally around 41 kPa (or 6 psi).

When the oil pressure sensor reports low oil pressure in a scenario where higher pressure is anticipated, or if there's detected damage to the oil pump face, the PCM takes preventative maintenance measures. It disables the oil pump drive to mitigate potential engine wear and subsequently logs the P06DD code as an alert. While the P06DD code can theoretically manifest in various vehicle makes and models, it is more frequently observed in certain brands. Notably, manufacturers such as Dodge, Jeep, Chevrolet, and Chrysler have reported a higher incidence of this particular code.

It's also worth noting that the P06DD code may not appear in isolation. It can often be accompanied by other diagnostic trouble codes, which can provide further clues regarding the underlying issue. Common accompanying codes that might shed more light on the problem include P0521, P0522, P0523, and P06DE. These additional codes can help narrow down the diagnostic process, indicating related problems within the oil pressure system.

P06DD Code at a Glance: Quick Summary

For a rapid understanding of the P06DD code, here's a brief summary:

• Definition: Engine Oil Pressure Control Circuit Stuck Off
• Severity: Medium to High
• DIY Skill Level: Intermediate
• Continue To Drive?: No
• Estimated Repair Cost: £20 – £600 (approx. $ equivalent)

The Seriousness of the P06DD Code: Why Immediate Action is Crucial

The severity level of the P06DD code ranges from moderate to high, underscoring the importance of addressing it promptly. Ignoring this code and continuing to operate your vehicle can lead to severe and potentially irreversible engine damage. Insufficient engine oil pressure directly translates to inadequate lubrication for vital engine components. This lack of lubrication dramatically increases friction between moving parts, leading to accelerated wear and tear.

Over time, the consequences of driving with a P06DD code can escalate significantly. You might experience engine overheating, a noticeable decrease in engine performance, and in the most severe cases, complete engine failure. This can transform a relatively straightforward repair into a costly engine rebuild or replacement.

Therefore, if the P06DD code is detected, it is emphatically advised not to continue driving the vehicle. Immediate attention from a qualified technician or a confident DIY enthusiast is necessary to accurately diagnose and resolve the underlying issue. Prioritising the longevity and reliability of your engine means addressing this problem without delay to prevent more extensive and expensive damage.

Common Symptoms of the P06DD Code

The presence of a P06DD code often triggers a series of noticeable symptoms, alerting the driver to the underlying problem. Recognising these signs can help you act quickly:

• Illuminated Check Engine Light: This is almost always the first and most obvious indicator that your vehicle's PCM has detected a fault.
• Low Oil Pressure Warning Light or Message: Many modern vehicles will display a dedicated warning light (often an oil can symbol) or a textual message on the dashboard indicating critically low oil pressure.
• Engine Misfires or Runs Roughly: Without adequate lubrication, engine components may not move smoothly, leading to irregular combustion and a rough-running engine.
• Engine Overheating: Oil also plays a role in cooling the engine. Insufficient oil pressure can lead to increased friction, which generates more heat, potentially causing the engine to overheat.
• Loss of Power or Reduced Engine Performance: A poorly lubricated engine struggles to perform efficiently, resulting in a noticeable drop in power and overall performance.
• Noise from the Engine: You might hear unusual noises such as ticking, knocking, or rattling, particularly from the top end of the engine (valvetrain) or the bottom end (bearings), due to metal-on-metal contact from lack of lubrication.

Unravelling the Causes of the P06DD Code

The P06DD code can stem from a variety of sources, ranging from simple maintenance oversights to more complex mechanical or electrical failures. Understanding these potential causes is key to accurate diagnosis:

• Engine Oil Level or Quality Issues: This is often the simplest cause. An engine running on insufficient oil, or with old, degraded, or incorrect viscosity oil, cannot maintain proper pressure.
• Faulty Oil Pressure Sensor: The sensor is responsible for reporting oil pressure readings to the PCM. If it fails, it can send inaccurate low-pressure signals, even if the actual pressure is fine.
• Malfunctioning Oil Pump: The oil pump itself can fail, either mechanically or due to a fault in its internal solenoid that controls the pressure stages.
• Clogged Oil Passages or Filters: Blockages within the engine's oil galleries or a severely clogged oil filter can restrict oil flow, leading to a drop in pressure downstream.
• Wiring or Connector Issues in the Oil Pressure Control Circuit: Damaged, corroded, or loose wiring and connectors in the electrical circuit leading to the oil pressure sensor or oil pump solenoid can disrupt communication with the PCM.
• Powertrain Control Module (PCM) or Software-Related Problems: In rare cases, the PCM itself might be faulty, misinterpreting signals, or a software glitch might be causing the code to appear erroneously. A pending flash update might also resolve a spurious alert.
• Loose Oil Galley Bolts (Specific to Pentastar Engines): A particularly noteworthy cause, especially prevalent in Pentastar engines (found in many Dodge, Jeep, and Chrysler models), involves the oil galley bolts located behind the camshaft phasers. These bolts can loosen over time, leading to a significant loss of oil pressure to the variable valve timing (VVT) system and other components.

Diagnosing and Repairing the P06DD Code: A Step-by-Step Guide

Addressing the P06DD code requires a systematic approach, combining diagnostic tools with careful inspection and repair. Below is a comprehensive guide to help you through the process.

Essential Tools and Parts for Diagnosis and Repair

Before you begin, ensure you have the following:

• OBD-II Scanner or Code Reader
• Multimeter
• Oil Pressure Gauge (mechanical is often preferred for accuracy)
• Basic hand tools (sockets, wrenches, screwdrivers)
• Engine oil (correct viscosity for your vehicle)
• New oil filter (if required)
• Replacement oil pressure sensor (if testing indicates failure)
• Replacement oil pump (if testing indicates failure)
• Gaskets and seals for any components removed (e.g., valve cover gaskets for Pentastar engines)
• Clean rags and oil drain pan

Step-by-Step Diagnostic and Repair Procedure

Note: Always ensure the engine is cool before performing any diagnostic or repair work. Refer to your vehicle’s specific service manual for precise instructions, torque specifications, and component locations. Exercise caution when working with hot or pressurised oil to prevent injury.

1. Retrieve and Evaluate Trouble Codes

Connect your OBD-II scanner or code reader to the vehicle's diagnostic port. Retrieve the P06DD code and, critically, any additional relevant codes (such as P0521, P0522, P0523, P06DE). These accompanying codes can provide invaluable clues about related issues and help you narrow down the diagnostic path.

2. Check Engine Oil Level and Quality

This is the simplest and often overlooked first step. Check your engine oil level using the dipstick. Ensure it is precisely at the recommended level. Also, inspect the oil's quality. Look for signs of contamination (milky appearance, fuel smell, metallic particles) or degradation (very dark, thick, or gritty). If the oil appears contaminated or significantly degraded, a full oil and filter change is highly recommended, using the manufacturer-specified oil type and viscosity (e.g., 5W-20 for many Pentastar engines).

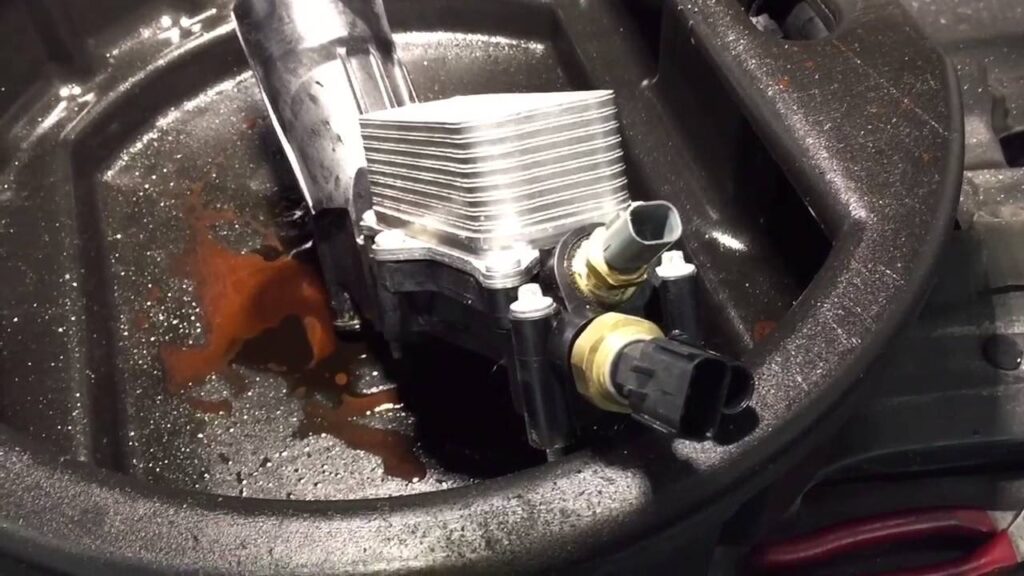

3. Inspect Oil Pressure Sensor and Wiring

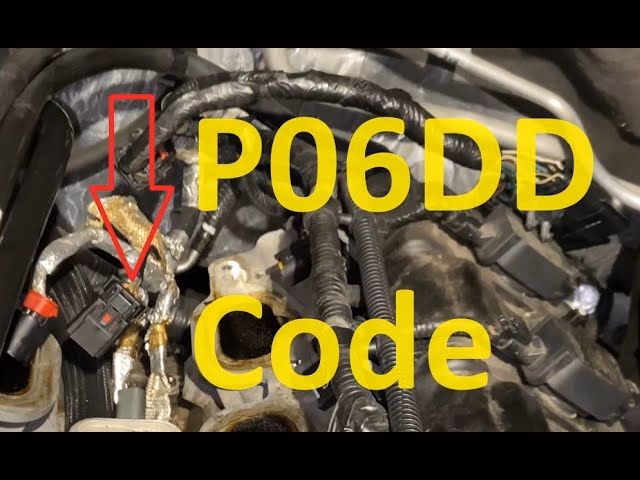

Locate the engine oil pressure sensor. Inspect both the sensor itself and its associated wiring and electrical connector for any visible signs of damage, fraying, corrosion, or looseness. Pay close attention to the sensor's clip or retaining mechanism, as these can sometimes become loose or broken, leading to intermittent contact. Ensure all connections are secure and clean any corroded terminals.

4. Test Oil Pressure Sensor

Using a multimeter, test the oil pressure sensor's functionality. This typically involves measuring its resistance or voltage output according to the manufacturer's specifications, which can be found in your vehicle's service manual. Compare your measured readings to the specified values. If the sensor's readings are outside the acceptable range, or if it shows signs of intermittent operation (e.g., by wiggling the connector), it is likely faulty and should be replaced. After replacement, clear the code and see if it returns.

5. Inspect Oil Passages and Filters

A clogged oil filter is a common culprit. Replace the oil filter, ensuring it is the correct type and installed properly. While more involved, severe blockages can occur within the engine's internal oil passages. This step typically involves more advanced diagnostics and sometimes partial engine disassembly, depending on the suspected location of the clog. For instance, if you suspect a pick-up tube blockage in the oil sump, the oil pan would need to be removed for inspection and cleaning.

6. Measure Actual Oil Pressure

This is a crucial diagnostic step. Remove the existing oil pressure sensor and install a mechanical oil pressure gauge in its place. Start the engine and measure the actual oil pressure at various engine speeds (idle, 2000 RPM, etc.). Compare these readings to the manufacturer's specifications for your engine. If the actual pressure is consistently below the specified range, even after verifying the oil level and sensor, it points towards a failing oil pump or significant internal engine wear. If the oil pump is confirmed defective, it will need to be repaired or replaced.

7. Investigate Loose Oil Galley Bolts (Specific to Pentastar Engines)

As highlighted in the causes, loose oil galley bolts are a known issue on Pentastar engines (3.2L, 3.6L). If you've addressed the more common issues and the P06DD code persists, this is your next significant area of investigation. These bolts are located behind the camshaft phasers, under the valve covers. They are crucial for maintaining oil pressure to the variable valve timing (VVT) system and hydraulic lifters. If these bolts work themselves loose, oil pressure escapes, leading to the P06DD code and potential valvetrain noise.

• To inspect, you will need to remove the valve covers (both front and rear, if possible, starting with the easier rear bank).
• Once the valve covers are off, visually inspect the oil galley bolts. They will be visible underneath the camshafts.
• If found loose, carefully tighten them to the manufacturer's specified torque. Some mechanics also recommend applying a small amount of Loctite to prevent future loosening, though this is a subject of debate.
• While the phasers do not necessarily need to be removed to tighten the bolts, accessing them can be challenging.

8. Check for PCM Software Updates

In some cases, particularly with certain vehicle models and specific engine variants (like the 3.6L Pentastar), the P06DD code might be triggered by a software anomaly or a spurious alert that can be resolved with a PCM flash update. It's worth checking with a dealership or a specialist mechanic if there are any pending software updates for your vehicle's PCM that address this specific code.

9. Clear the Code and Test Drive

Once you have performed the necessary repairs or replacements, use your OBD-II scanner to clear the P06DD code and any accompanying codes. Then, take the vehicle for a comprehensive test drive under various driving conditions (city, motorway). Monitor your dashboard for any warning lights and use your scanner to check for pending or returning codes. If the code does not reappear after a significant driving cycle, you have likely resolved the issue.

DIY Repair Level and Estimated Costs

The P06DD code repair procedure can range in complexity, requiring an intermediate DIY skill level. Tasks such as using specialised diagnostic tools (multimeter, oil pressure gauge), inspecting intricate engine components, and replacing parts like the oil pressure sensor or even the oil pump, can be challenging. Furthermore, if the issue stems from loose oil galley bolts, accessing them requires removing valve covers, which adds to the complexity.

If you possess intermediate mechanical skills, have access to the necessary tools, and feel comfortable following detailed instructions, you may be able to attempt many of these repairs yourself. However, if you are unsure at any point, or if the problem persists after initial attempts, it is highly advisable to seek assistance from a professional mechanic. Prioritising safety and ensuring the proper functioning of your vehicle is paramount.

Estimated Repair Cost Table for P06DD Code

Please note that these estimated costs are rough guidelines and can vary significantly based on factors such as your location within the UK, the specific make and model of your vehicle, and the labour rates charged by mechanics or repair shops. Part costs can also fluctuate.

Frequently Asked Questions (FAQs) About the P06DD Code

1. Can I continue to drive with a P06DD code?

No, it is strongly advised not to continue driving your vehicle with a P06DD code. This code indicates a problem with engine oil pressure, which is vital for lubrication. Driving with insufficient oil pressure can lead to severe engine damage, including overheating, increased wear, and potentially complete engine failure. Immediate diagnosis and repair are crucial.

2. What is the definition of the P06DD code?

The P06DD diagnostic trouble code is defined as "Engine Oil Pressure Control Circuit Stuck Off." It signifies that the Powertrain Control Module (PCM) has detected an issue where the engine oil pressure is below the expected level, impacting the oil pump's normal operation.

3. Is the P06DD code common in certain car brands?

While the P06DD code can appear in various vehicle makes, it is more commonly observed in certain brands, particularly those equipped with Pentastar engines. Manufacturers such as Dodge, Jeep, Chevrolet, and Chrysler have reported a higher incidence of this code.

4. What are the most common symptoms of a P06DD code?

The most common symptoms include an illuminated Check Engine Light, a low oil pressure warning light or message on your dashboard, engine misfires or rough running, engine overheating, a noticeable loss of power or reduced engine performance, and unusual engine noises like ticking or knocking.

5. What are the typical causes of the P06DD code?

Causes can range from simple issues like low engine oil level or poor oil quality to more complex problems such as a faulty oil pressure sensor, a malfunctioning oil pump, clogged oil passages or filters, wiring or connector issues in the oil pressure control circuit, and in some cases, PCM or software-related problems. For Pentastar engines, loose oil galley bolts are a significant cause.

6. Can I fix the P06DD code myself?

Fixing the P06DD code typically requires intermediate DIY skills. Simple checks like oil level and quality are easy, but tasks such as testing sensors with a multimeter, measuring oil pressure with a gauge, or replacing an oil pump or addressing loose oil galley bolts are more complex. If you are comfortable with these tasks and have the right tools, you can attempt the repair. Otherwise, professional assistance is recommended.

7. What is the estimated cost to repair a P06DD code?

The estimated repair cost for a P06DD code can vary widely, from as little as £20 for an oil top-up to £800 or more for an oil pump replacement or significant labour for internal engine repairs like tightening oil galley bolts. The cost depends on the specific cause, your vehicle's make and model, and whether you perform the repair yourself or hire a professional mechanic.

8. How do oil galley bolts relate to the P06DD code in Pentastar engines?

In Pentastar engines, oil galley bolts located behind the camshaft phasers are designed to maintain oil pressure to the variable valve timing (VVT) system and other hydraulic components. Over time, these bolts can loosen, allowing oil pressure to escape, which the PCM detects as insufficient pressure, triggering the P06DD code. Tightening these bolts is a common fix for this specific engine family.

Conclusion

Addressing the P06DD code promptly is paramount to maintaining the health and longevity of your vehicle's engine. By understanding its meaning, recognising its symptoms, and systematically diagnosing its causes, you're well on your way to a successful repair. Whether you choose to tackle the repair yourself or enlist the help of a trusted professional, the insights provided in this guide empower you to make informed decisions.

Remember, your engine's oil pressure system is its lifeblood. Taking immediate action when a P06DD code appears can save you from far more significant and costly repairs down the line. Drive safely, and keep your engine properly lubricated for many miles to come!
