P0011 Code: Unlocking Your Engine’s Secrets

The sudden illumination of your car’s Check Engine Light can be a source of immediate concern for any motorist. While it might seem like a cryptic warning, this light is your vehicle’s way of communicating a problem that requires attention. If you’ve hooked up an OBD-II scanner and found the P0011 code staring back at you, you’re in the right place. This article will delve deep into what the P0011 code signifies, its underlying causes, the symptoms you might experience, and, most importantly, how to diagnose and rectify this common engine fault, ensuring your vehicle runs smoothly and reliably.

Understanding the P0011 Code: Over-Advanced Timing Explained

At its core, the P0011 code stands for 'Intake Camshaft Position Timing – Over-Advanced (Bank 1)'. This diagnostic trouble code (DTC) is triggered when your vehicle’s Engine Control Module (ECM), often referred to as the Powertrain Control Module (PCM), detects that the intake camshaft timing on Bank 1 is further advanced than its commanded position. Bank 1 typically refers to the side of the engine that contains cylinder number one. In V-type engines, Bank 2 would refer to the opposite side, and issues there would trigger codes like P0021.

This code is intricately linked to your engine’s Variable Valve Timing (VVT) system. The VVT system is a sophisticated piece of engineering designed to optimise engine performance, improve fuel economy, and reduce emissions across various engine speeds and loads. It achieves this by adjusting the timing of the camshafts, which in turn controls when the intake and exhaust valves open and close. When the ECM detects that the intake camshaft on Bank 1 is 'over-advanced', it means the valve opening is happening too early relative to the crankshaft position.

It's worth noting that the P0011 code is part of a family of VVT-related codes. Other common codes you might encounter include:

• P0010: Intake Camshaft Position Actuator Circuit / Open (Bank 1)
• P0012: Intake Camshaft Position Timing – Over-Retarded (Bank 1)
• P0013: Exhaust Camshaft Position Actuator Circuit / Open (Bank 1)
• P0014: Exhaust Camshaft Position Timing – Over-Advanced (Bank 1)
• P0015: Exhaust Camshaft Position Timing – Over-Retarded (Bank 1)

These codes highlight the precision required for the VVT system to function correctly. A slight deviation can throw off the delicate balance of air-fuel mixture and combustion, leading to noticeable performance issues.

The Crucial Role of Your Engine's Variable Valve Timing (VVT) System

To fully grasp the implications of a P0011 code, it's essential to understand how the VVT system works. At its heart, the VVT system manipulates the camshafts to achieve optimal valve overlap and timing. This is primarily done through components like the Camshaft Phasers (also known as camshaft actuators) and the VVT Solenoids, or Oil Control Valves (OCVs).

The ECM monitors various engine parameters, such as engine speed, load, and temperature, to determine the ideal camshaft angle. It then sends a signal to the VVT solenoid, which acts as a gateway for pressurised engine oil. This oil is directed into specific chambers within the camshaft phaser. The pressure of the oil causes the phaser to rotate the camshaft, either advancing (rotating it earlier) or retarding (rotating it later) its timing. After commanding this change, the ECM continuously monitors the camshaft position sensors to confirm that the camshaft has moved to the correct position. If the actual position deviates significantly from the commanded position, particularly if it's too far advanced on Bank 1, the P0011 code is set.

The system's reliance on engine oil cannot be overstated. The VVT solenoids and phasers depend on a consistent supply of clean oil at the correct viscosity and pressure to operate accurately. Any compromise in the oil's quality or quantity can directly impede the VVT system's ability to adjust timing precisely.

Common Culprits Behind the P0011 Code

The P0011 code isn't usually a standalone issue but rather a symptom of an underlying problem within the VVT system or related components. Identifying the root cause is paramount for an effective repair. Here are the most common factors that can trigger this code:

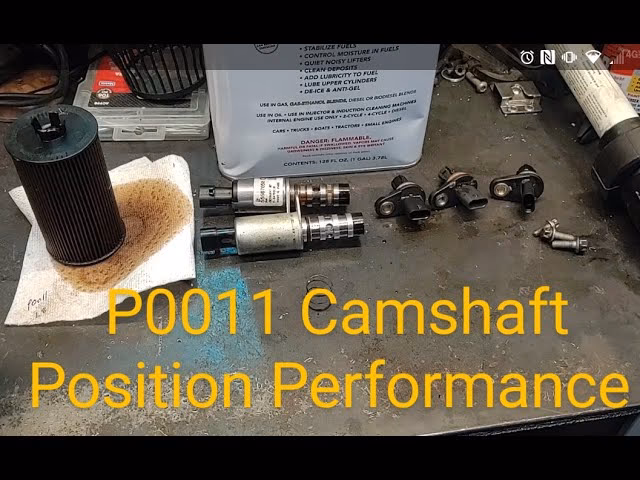

1. Faulty VVT Solenoid (Oil Control Valve)

The VVT solenoid is the most common cause of a P0011 code. This electrical component controls the flow of oil to the camshaft phaser. If the solenoid becomes stuck, fails electrically, or experiences internal wear, it may not regulate the oil flow correctly. This can lead to the camshaft being over-advanced or not moving as commanded.

2. Clogged Filter Screens in the VVT Solenoid

Many VVT solenoids have small filter screens designed to prevent debris from entering and damaging the delicate internal mechanisms. Over time, especially with poor oil maintenance, these screens can become clogged with sludge, carbon deposits, or metallic particles. A clogged screen restricts the oil flow, preventing the solenoid from accurately controlling the camshaft phaser, leading to incorrect timing.

3. Oil Quality, Level, and Viscosity Issues

This is arguably one of the most overlooked yet critical factors. The VVT system is highly dependent on the engine oil's properties:

• Low Oil Level: Insufficient oil can lead to a drop in oil pressure, which is vital for the VVT system to function. Without adequate pressure, the camshaft phasers cannot be moved effectively.
• Poor Oil Quality: Old, dirty, or degraded oil can develop sludge and deposits that clog oil passages and VVT components, impeding their operation.
• Incorrect Oil Viscosity: Using an engine oil with a viscosity different from the manufacturer's recommendation can significantly impact the VVT system. The ECM calculates the necessary solenoid pulse duration based on the assumed oil viscosity. If the oil is too thick or too thin, the actual camshaft movement will not match the ECM's command, often leading to timing errors and triggering the P0011 code. This is a very common reason for the P0011 code appearing specifically after an oil change.

4. The Impact of the Wrong Oil Filter

While seemingly minor, the oil filter plays a crucial role. Some aftermarket oil filters, or even incorrectly installed genuine filters, can restrict oil flow or cause a pressure drop within the lubrication system. Since the VVT system relies heavily on precise oil pressure, a compromised oil filter can starve the VVT components of the necessary pressure, leading to timing issues and a P0011 code. If the code appeared shortly after an oil and filter change, the filter should be a primary suspect.

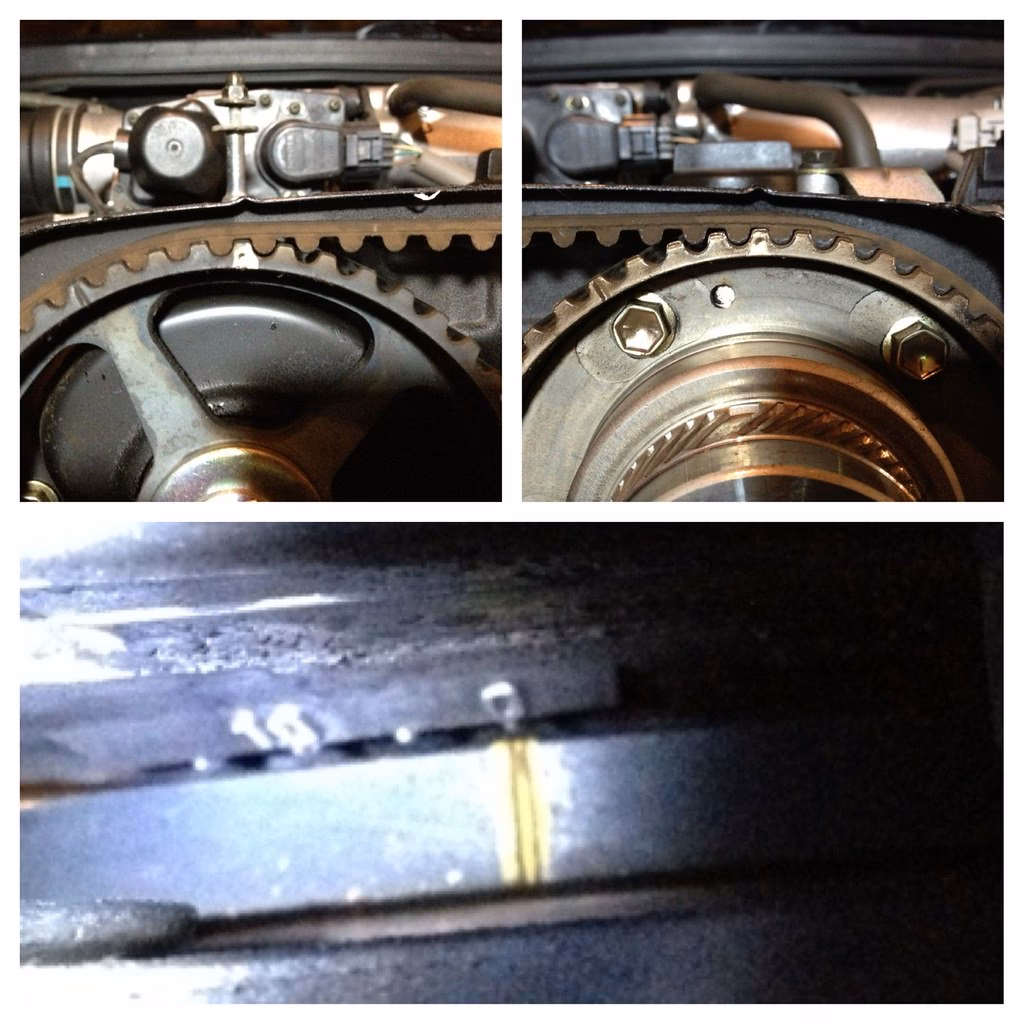

5. Timing Chain/Belt Issues

A stretched, worn, or damaged timing chain or belt can directly affect camshaft timing. If the chain or belt has stretched, or if there’s an issue with the tensioner or guides, the camshafts may not maintain their correct relationship with the crankshaft, resulting in the intake camshaft being over-advanced. A rattling noise from the engine is often a tell-tale sign of a stretched timing chain.

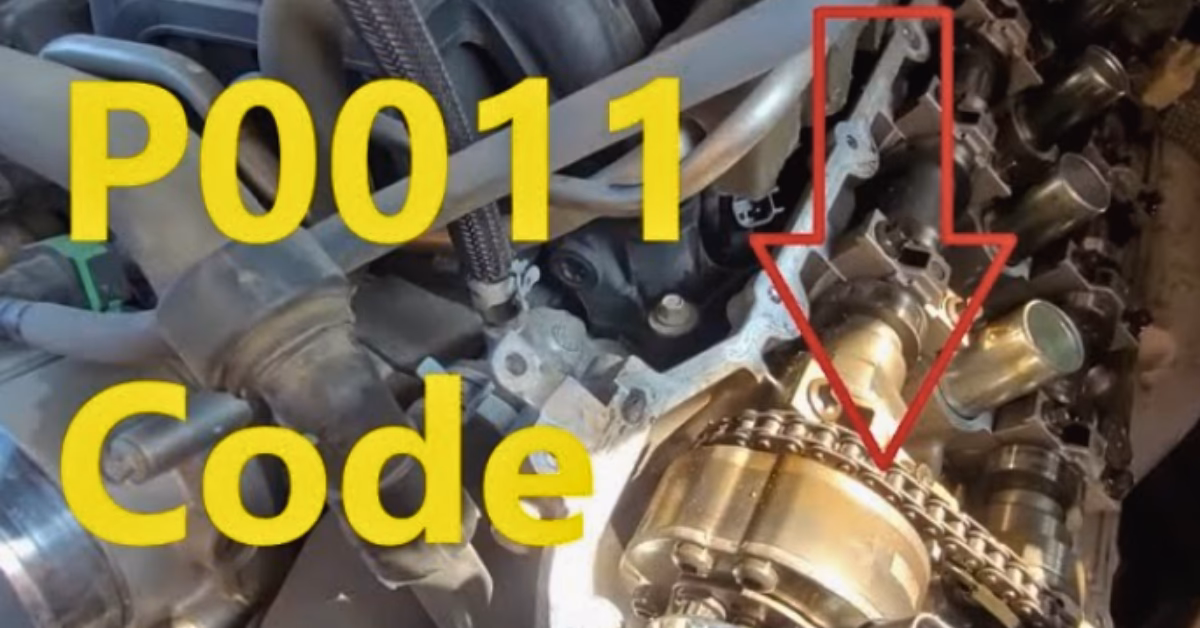

6. Worn or Damaged Camshaft Phasers (Actuators)

The camshaft phaser is the mechanical component that physically adjusts the camshaft's position. Over time, these units can wear out, become stuck, or develop internal leaks, preventing them from accurately adjusting the timing as commanded by the VVT solenoid. If the phaser is stuck in an advanced position, or cannot move freely, it will trigger the P0011 code.

7. Electrical Problems

Issues with the electrical circuit connected to the VVT system can also cause the P0011 code. This includes damaged, corroded, or loose wiring and connectors leading to or from the VVT solenoid, camshaft position sensor, or ECM. A poor electrical connection can disrupt signals, leading to incorrect timing adjustments or erroneous readings.

8. ECM Software Issues or Failure

While less common, software glitches or a faulty Engine Control Module (ECM) can sometimes be the cause. An outdated or corrupted ECM calibration might misinterpret sensor readings or send incorrect commands to the VVT system, leading to the P0011 code. In rare cases, the ECM itself may be failing.

Recognising the Symptoms of P0011

When your vehicle triggers a P0011 code, it will often exhibit a range of noticeable symptoms. These symptoms arise because the engine’s valve timing is out of sync, affecting the combustion process. It's crucial to pay attention to these signs, as they can help confirm the presence of the issue and indicate its severity.

• Illuminated Check Engine Light: This is almost always the first and most obvious symptom. The light will stay on until the problem is resolved and the code is cleared.
• Poor Engine Performance: Due to improper camshaft timing, the engine may struggle to perform efficiently. You might notice a general lack of power, reduced acceleration, or a feeling that the engine is 'dragging'. Misfires can also occur, leading to rough running.
• Decreased Fuel Efficiency: When the valve timing is incorrect, the engine’s combustion process becomes inefficient. This means your engine will burn more fuel to produce the same amount of power, leading to a noticeable drop in your miles per gallon (MPG).
• Rough Idling: The engine may idle roughly, vibrate excessively, or even stall, especially when coming to a stop or at low speeds. This occurs because the air-fuel mixture and combustion are not optimised for idle conditions.
• Engine Stalling: In more severe cases, particularly if the timing is significantly off, the engine may stall unexpectedly, making it difficult or impossible to restart. This can be particularly dangerous if it occurs while driving.
• Increased Emissions: Incomplete combustion due to incorrect timing can lead to higher levels of harmful pollutants being expelled through the exhaust, potentially causing your vehicle to fail emissions tests.
• Rattling Noise from the Engine: A distinct rattling or clattering noise, often originating from the front of the engine, can indicate issues with the timing chain or worn camshaft phasers, particularly if there's a lack of oil pressure to the phaser.

Diagnosing the P0011 Code: A Step-by-Step Guide

Accurately diagnosing the P0011 code requires a systematic approach. Rushing into replacing parts without proper diagnosis can lead to unnecessary expenses and frustration. Here’s how a professional mechanic would typically approach the diagnosis:

1. Initial Scan and Data Analysis

Begin by connecting an OBD-II scanner to your vehicle. Note down the P0011 code and any other co-existing diagnostic trouble codes (DTCs). Sometimes, related codes can provide additional clues. Pay close attention to live data streams, specifically camshaft position sensor readings and VVT solenoid duty cycles, to see if they align with commanded values.

2. Check Engine Oil Level and Condition – The First Port of Call

This is the most crucial first step and often overlooked. Verify that the engine oil level is at the correct mark on the dipstick. More importantly, assess the oil’s condition. If the oil is dark black, sludgy, or contains metallic flakes, it indicates poor maintenance or internal engine wear. If the oil hasn't been changed recently or looks contaminated, perform an oil and filter change using the manufacturer's recommended viscosity. Clear the code and drive the vehicle. Many P0011 codes are resolved simply by addressing oil issues.

3. Inspect and Test the VVT Solenoid (Oil Control Valve)

Locate the VVT solenoid for Bank 1 (intake). Remove it and visually inspect it for any damage or clogs in its filter screen. If the screen is clogged with debris or sludge, clean it thoroughly or replace the solenoid. You can also test the solenoid's electrical resistance using a multimeter, comparing it to manufacturer specifications. Additionally, you can apply 12V power and ground to the solenoid (briefly, no more than a second or two) to check if it clicks, indicating its mechanical function. A lack of click suggests a faulty solenoid.

4. Visual Inspection of Wiring and Connectors

Carefully inspect the wiring harness and electrical connectors leading to the VVT solenoid and camshaft position sensor for Bank 1. Look for any signs of damage, fraying, corrosion, or loose connections. A damaged wire or corroded pin can disrupt the electrical signals, leading to erroneous readings or ineffective solenoid operation.

5. Camshaft Phasers and Timing Chain/Belt Inspection

This step might require more advanced mechanical knowledge. Inspect the camshaft phaser for any signs of wear, damage, or being stuck. Depending on the vehicle, this may involve removing valve covers. Simultaneously, inspect the timing chain or belt for signs of stretching, looseness, or damage. Check the tensioner and guides for proper operation. If the timing is visibly off or the chain/belt is compromised, replacement will be necessary.

6. ECM and Sensor Testing (Professional Level)

If all other checks yield no clear fault, the issue might lie with the camshaft position sensor itself or the ECM. A professional diagnostic tool can be used to monitor the camshaft position sensor's live data. Compare the actual camshaft angle with the desired angle. If the sensor is providing erratic readings, it may need replacement. In rare cases, an ECM software update or even replacement might be required if it's proven to be faulty.

Common Diagnostic Mistakes to Avoid

One of the biggest mistakes technicians and DIY enthusiasts make is immediately replacing components like the VVT solenoid or camshaft phaser without thoroughly checking the basics. Always start with the simplest and most common causes:

• Ignoring Oil Condition: Failing to check the oil level, quality, and viscosity is a common oversight. A significant percentage of P0011 codes are resolved by a simple oil and filter change with the correct oil.
• Not Checking for Other Codes: Focusing solely on P0011 and neglecting other related DTCs can lead to misdiagnosis.
• Skipping Visual Inspections: Overlooking damaged wiring or clogged solenoid screens can lead to unnecessary component replacement.

Fixing the P0011 Code: Repair Strategies and Costs

Once the underlying cause of the P0011 code has been accurately identified, the repair process can begin. The cost of repair will vary significantly depending on the faulty component and whether you undertake the work yourself or enlist a professional mechanic.

• Oil and Filter Change: This is often the cheapest and simplest fix. Expect to pay between £30 and £80 for parts and labour if done professionally, or significantly less if you do it yourself.
• Repair Damaged Wiring or Connections: The cost here can vary widely, from a minimal amount for a simple wire splice (£20-£50) to several hundred pounds (£100-£400+) if a significant portion of the wiring harness needs repair or replacement.
• Replace VVT Solenoid (Oil Control Valve): This is a common and relatively straightforward repair. The part itself typically costs between £40 and £150, with labour adding another £50 to £150, making the total cost often in the range of £90 to £300.
• Replace Camshaft Actuator (Phaser): This can be a more involved job, especially if it requires special tools or significant engine disassembly. Parts usually range from £100 to £400, with labour costs potentially adding £200 to £600 or more, bringing the total to £300 to £1000+.
• Replace Timing Belt or Chain: This is one of the most expensive repairs associated with the P0011 code due to the labour involved. A timing belt replacement can cost between £300 and £700, while a timing chain replacement, which often requires more extensive engine disassembly, can range from £600 to £1500+, and potentially even more for complex engines.
• Update/Replace ECM: This is a rare occurrence. An ECM software update might cost £100-£250. Replacing the ECM itself is significantly more expensive, with the part alone costing £300-£1000+, plus programming and labour, potentially reaching £500 to £2000+.

Always obtain a detailed quote from a reputable garage before proceeding with any significant repairs.

Is the P0011 Code Serious? Can You Drive With It?

Yes, the P0011 code should be considered serious. While your car might still drive, ignoring this code can lead to significant engine damage and further problems down the line. The camshaft timing is fundamental to your engine's operation. When it's off, the engine is not combusting fuel efficiently, leading to:

• Increased wear and tear on engine components due to improper combustion and lubrication.
• Potential catalytic converter damage from unburnt fuel.
• Increased risk of engine stalling, which can be dangerous, especially in traffic.
• Catastrophic engine failure if a stretched timing chain or belt were to break, potentially causing valves to collide with pistons.

Therefore, it is not recommended to drive with a P0011 code for an extended period. If the code appears, try to limit driving to the absolute minimum necessary to get to a safe location or a repair shop. If you hear any unusual noises, such as rattling or knocking, or experience severe performance issues, stop driving immediately and arrange for your vehicle to be recovered.

Frequently Asked Questions (FAQs)

Can you drive with a P0011 code?

While your car might still run, it is strongly advised against driving with a P0011 code for any significant distance. The issue can worsen quickly, potentially leading to severe engine damage, such as a broken timing chain or belt, which can cause valves to hit pistons. It's best to address the issue promptly to prevent more costly repairs.

How much does it cost to fix code P0011?

The cost to fix a P0011 code varies widely depending on the underlying cause. It can be as inexpensive as £30-£80 for an oil and filter change. If a VVT solenoid needs replacing, expect to pay around £90-£300. More extensive repairs, such as replacing a camshaft phaser or a timing chain, can range from £300 to over £1500, potentially even more for complex engine designs.

What does P0011 code after oil change mean?

If a P0011 code appears shortly after an oil change, the most likely culprits are incorrect oil viscosity or a faulty/incorrect oil filter. The VVT system relies on precise oil pressure and flow, which can be disrupted by the wrong oil type or a restrictive filter. Always ensure you use the manufacturer's recommended oil and a quality filter.

Can low oil cause camshaft position sensor issues?

While low oil directly impacts the VVT system's mechanical components (like phasers and solenoids) by reducing oil pressure, it can indirectly affect camshaft position sensor readings. If the camshaft isn't moving as commanded due to low oil, the sensor will report an incorrect position to the ECM, which can then set the P0011 code. The sensor itself might be fine, but it's reporting a genuine mechanical issue caused by insufficient lubrication.

What happens if the camshaft sensor goes bad?

If the camshaft position sensor itself fails, it can lead to a range of performance issues. The ECM relies on this sensor to determine the exact position of the camshaft for proper fuel injection and ignition timing. A faulty sensor can cause symptoms like extended cranking, rough idling, misfires, stalling, reduced engine power, and poor fuel economy. It would typically trigger a different code (e.g., P0340 for Camshaft Position Sensor Circuit Malfunction), but its erratic readings can contribute to VVT-related codes.

What are the symptoms of incorrect timing?

Incorrect engine timing, whether due to a P0011 code or other issues, generally manifests as poor engine performance. Common symptoms include a rough or unstable idle, reduced engine power and acceleration, decreased fuel efficiency, engine misfires, stalling, and increased exhaust emissions. In severe cases, you might hear unusual noises from the engine, such as rattling or knocking, indicating mechanical stress.

The P0011 trouble code might seem daunting, but with a clear understanding of its meaning, causes, and diagnostic steps, it's a manageable issue. Prioritising proper engine oil maintenance is often the simplest and most effective preventative measure. If you're unsure about diagnosing or repairing the issue yourself, always consult with a qualified mechanic. Addressing the P0011 code promptly will safeguard your engine, restore your vehicle's performance, and prevent more significant, costly problems down the road.
