Unlocking Your Car's Potential: Open Hardware ECUs

In the evolving landscape of automotive technology, the Engine Control Unit (ECU) stands as the brain of your vehicle, managing everything from fuel injection to ignition timing. Traditionally, these vital components have been proprietary, closed systems, making repair and customisation a complex, often impossible, and certainly expensive endeavour. However, a groundbreaking movement towards open hardware ECUs is poised to revolutionise how we maintain, repair, and even enhance our cars, offering a refreshing alternative to the restrictive practices of original equipment manufacturers (OEMs).

The Challenge of Closed ECUs: A Modern Dilemma

Modern vehicles are increasingly reliant on sophisticated electronic control units. While these systems bring advanced performance and efficiency, they also present significant challenges. When an ECU malfunctions, the current industry practice often dictates a complete replacement rather than a repair. This 'replace, don't repair' mentality is not only financially burdensome for car owners but also contributes to electronic waste. The cost of a new OEM ECU can be prohibitive, often pushing owners towards less reliable solutions, such as sourcing used components from scrap vehicles. However, even these second-hand parts come with their own set of hurdles.

The core issue lies in the heavily protected and closed nature of contemporary automotive electronics. Every piece of hardware and its embedded firmware is designed to be exclusive to a specific vehicle or manufacturer. This means that installing a used ECU from another vehicle often necessitates extensive reverse engineering and complex modifications just to make it compatible and functional. This process is fraught with risks and typically requires specialised tools and knowledge that are largely inaccessible outside of authorised dealer networks. For independent workshops and car enthusiasts, this proprietary lock-in creates a frustrating barrier to entry, stifling innovation and limiting affordable repair options. The inability to easily diagnose, repair, or modify these crucial components forces reliance on official channels, which can be costly and inconvenient. This situation highlights a pressing need for more accessible and transparent automotive electronic solutions.

The Vision: Open Hardware ECUs to the Rescue

The concept of an open hardware ECU emerges as a direct response to these pervasive problems. The core idea is to design and prototype automotive hardware electronics that can perform the same operations and functionalities as their OEM counterparts, but with a crucial difference: they utilise open hardware and open firmware. This commitment to openness means that the designs, schematics, and software code are freely available for anyone to inspect, modify, and distribute. The ultimate goal is to create direct, drop-in replacements for existing wiring harnesses in vehicles, particularly older models where proprietary support may be dwindling or non-existent.

The benefits of such an approach are multifold. Firstly, it dramatically facilitates repeatability and maintenance. Any independent repair shop, or even a competent individual, can diagnose, troubleshoot, and repair these open systems without needing to reverse-engineer proprietary components or firmware. This eliminates the need for costly specialised tools and reduces the risks associated with modifying closed systems. Secondly, it fosters a vibrant community of developers and enthusiasts who can collaborate on improving and expanding the functionality of these ECUs. This collective intelligence leads to more robust, versatile, and innovative solutions over time. By embracing open standards, the automotive aftermarket can flourish, offering consumers more choices, lower costs, and greater control over their vehicles.

Furthermore, an open hardware project allows for greater customisation. For instance, selecting an operating system like Android Auto for the main LCD screen in the centre console becomes feasible. With a plethora of 'open auto' solutions already utilising platforms like the Raspberry Pi, the potential for integrating advanced infotainment and telematics features is vast. Designing hardware electronics to fit a System-on-Chip (SoC) module, such as NVIDIA's Jetson Nano, opens up possibilities for powerful, adaptable in-car computing, capable of running complex applications far beyond basic engine management.

Critical Design Considerations for Open Hardware

While the concept of open hardware automotive solutions is compelling, their implementation requires careful design considerations, especially concerning safety and reliability. Given that these electronics are integral to vehicle operation, ensuring their safety during driving is paramount. Moreover, the open nature of these systems should also facilitate simple and easy troubleshooting, debugging, and repair, embodying the spirit of accessibility.

Redundancy and Safety

A major requirement for deploying open solutions in a vehicle is redundancy. This means that in the event of a failure of a particular electronic component, a secondary component (or more) is immediately ready to take over the function of the malfunctioning one. This can be implemented in various ways: within the same hardware electronics installed in a specific location (similar to how some high-end vehicles like Tesla manage their systems), or through separate hardware electronics installed in different locations within the vehicle. This multi-layered approach to safety ensures that critical functions remain operational even when a component fails, significantly enhancing vehicle reliability and occupant safety.

Secure Communication

Another crucial hardware design consideration is the inclusion of a separate microcontroller dedicated exclusively to Controller Area Network (CAN) communication among the various devices installed in a vehicle. This dedicated CAN microcontroller would be able to communicate directly with the main microcontroller of the control module. By isolating CAN bus communication, the possibility of malfunction of the primary controller due to unauthorised intrusion or 'hacking' of the CAN bus network is significantly minimised. This architectural separation enhances the overall security and integrity of the vehicle's electronic systems.

To further bolster the safety and security of all proposed open hardware electronics, these systems are designed to incorporate functionalities and characteristics described in ongoing scientific research, such as those focusing on validating experimental data origins using blockchain-like fingerprint IDs. This commitment to cutting-edge security measures underscores the dedication to creating not just open, but also highly secure and reliable automotive solutions.

Speeduino: A Beacon of Open ECU Innovation

At the forefront of the open hardware ECU movement is the Speeduino project. This remarkable initiative provides a flexible, fully-featured Engine Management System (EMS), also known as an ECU, built upon the widely accessible and open-source Arduino platform. Speeduino is not just a concept; it's a tangible solution that offers the hardware, firmware, and software components necessary to create a complete engine management system, all released under open licenses.

With over 1000 installations worldwide, Speeduino has matured significantly, evolving into a robust product that effectively meets the demands of both hobbyists and automotive enthusiasts. Its success lies in its ability to provide sophisticated engine management capabilities without the exorbitant price tag typically associated with traditional aftermarket ECUs. By leveraging the Arduino ecosystem, Speeduino democratises access to advanced engine tuning and control, empowering individuals to take control of their vehicle's performance and maintenance in ways previously unimaginable.

The project's open-source nature means that its development is community-driven, benefiting from continuous improvements, bug fixes, and feature additions from a global network of contributors. This collaborative model ensures that Speeduino remains at the cutting edge of open-source engine management, constantly adapting to new technologies and user needs. For anyone looking to explore engine tuning, undertake custom engine builds, or simply gain a deeper understanding of their vehicle's inner workings, Speeduino offers an incredibly powerful and accessible platform.

Modifying Your Car's ECU: The Atlas Project

Beyond simply replacing existing ECUs with open hardware, the ability to recalibrate and modify modern vehicle ECUs is a highly sought-after capability for performance enthusiasts and software engineers alike. This is where projects like Atlas come into play. Atlas is a free, open-source ECU calibration application designed for reverse-engineering and recalibrating modern vehicles. Initially conceived to understand the behaviour of the 2022 WRX ECU, Atlas has expanded its scope to address a broader need for accessible, maintained tooling for first-party ECU access.

Atlas aims to encourage modern ECU research, recalibration, and modification by providing a comprehensive suite of tools. However, it's crucial to understand the inherent risks involved. Modifying your ECU can be dangerous; improper instructions or flashing incompatible calibrations can permanently 'brick' or ruin the ECU. Furthermore, incorrect modifications to calibration parameters—such as target boost, ignition timing, mass airflow calibration, wastegate duty cycle, or rev limiter—can directly damage your vehicle's engine. Therefore, the project strongly recommends consulting with a professional mechanic or tuner before attempting any ECU modifications, and users assume all risks when utilising these tools.

Atlas: Features and Capabilities

Atlas offers a rich set of features designed to empower users with in-depth ECU research and full recalibration capabilities:

• Comprehensive Tuning Suite: Enables deep ECU research, leading to full recalibration. It supports multiple platforms including Windows, macOS (M-series), and Linux (SteamOS, Raspbian), leveraging Java and open-source libraries. It integrates the Ghidra SRE Framework for analysing tables and emulating ROM machine code.
• Versatile Connectivity: Supports the Tactrix OpenPort 2.0 via direct serial/COM connection with a natively-written driver.

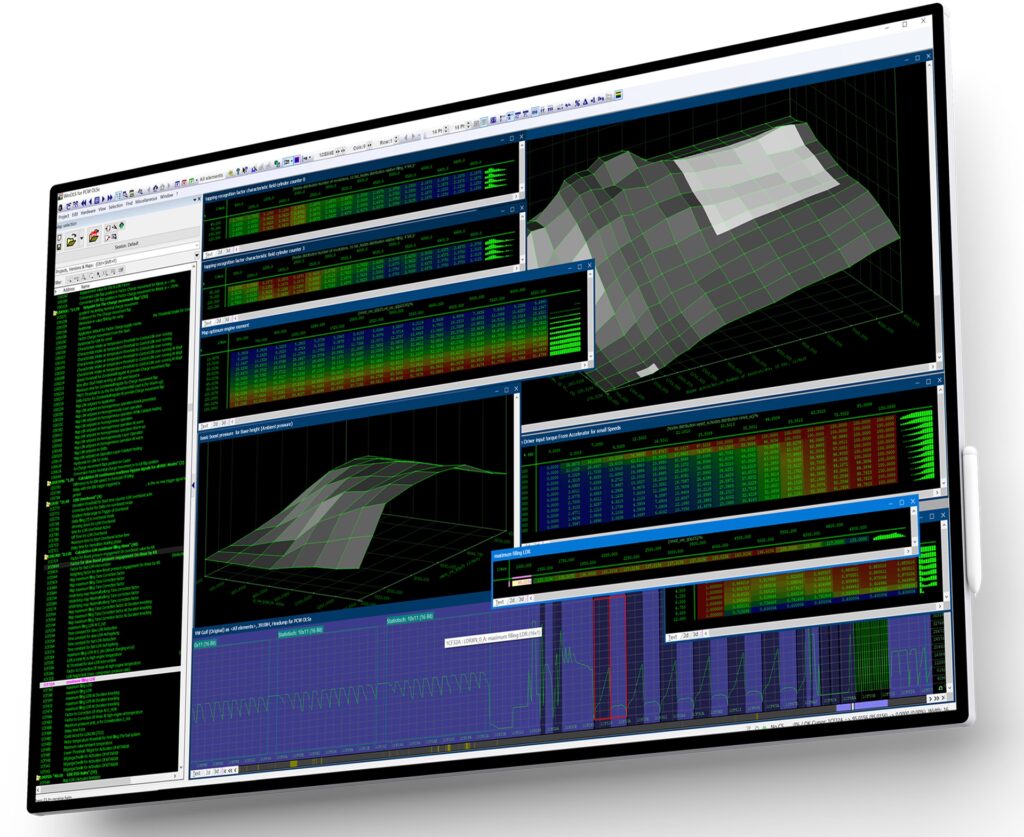

• Advanced Visualisation and Editing: Provides 2D and 3D OpenGL visualisations for gauges, tables, and function charts. It includes a 1-2 dimension table editor with common arithmetic functions for efficient calibration editing and a live table definition interface for managing project tables.
• Value Scaling Configuration: Features a user interface to rapidly create new scaling operations as they are identified within ECU logic.
• Comprehensive Documentation and Diagnostics: Allows customisation of memory parameters to annotate ECU RAM offsets (e.g., RPM, Requested Torque). It includes a simple node graph for documenting ECU behaviour and provides gauges and a data logger for calibration diagnostics and troubleshooting, with project configuration and CSV export capabilities.
• Streamlined Project Management: Offers a composite project system consolidating all calibrations and ECU configurations into a single file. It features an intelligent table-matching system to automatically detect new tables and discover existing tables in unknown variants, enabling a consistent experience across model years and variants with intelligent calibration cross-application.

Supported Hardware and Vehicles

Atlas supports J2534 (CAN) hardware. Its vehicle compatibility primarily focuses on Subaru and Toyota models, with active development expanding its reach. Supported vehicles include various Subaru WRX models (2022-2024 USDM/AUDM, 2015-2021 USDM), Subaru BRZ and Toyota GR86 (2022+ USDM), and Subaru WRX STi (2015-2021 USDM). It is also expanding support for NXP-based Toyota and Honda models from 2022 onwards.

Atlas provides support for various map areas, including Ignition, Airflow, Fueling, Idle, and Gear, for the listed vehicle families. While a map area may be supported, it doesn't always mean it's complete, but rather exposed sufficiently for common applications like adding horsepower or modifying idle and gear ranges.

Legal and Ethical Considerations: Emissions and Licensing

The use of open-source ECU tools like Atlas comes with significant legal and ethical responsibilities, particularly concerning emissions regulations. Atlas is explicitly designed for the legal and responsible modification of a vehicle's ECU calibration. Users are mandated to adhere strictly to all applicable emissions laws to ensure compliance and maintain the viability of such community resources.

The project unequivocally states that it does not condone, support, or facilitate the removal or tampering of any emissions-regulated components, including but not limited to, components such as the Exhaust Gas Recirculation (EGR) system, Tumble Generator Valve (TGV), and catalytic converters. Non-compliance with these laws could jeopardise the existence of Atlas and similar open-source projects. Users are strongly urged to familiarise themselves with and adhere to all relevant emissions regulations to support the continued success and legality of open-source automotive initiatives.

Atlas is licensed under the Affero General Public License (AGPL) version 3.0. This choice of license permits engineers and tuners to modify the Atlas source code and add functionality without requiring proprietary information, such as specific tunes or calibrations, to be shared. This encourages commercial entities to use Atlas for selling calibrations to customers, provided all emissions and local laws are followed. The goal is to provide the automotive community with comprehensive tools while respecting trade secrets within the commercial tuning market.

Proprietary vs. Open Hardware ECU: A Comparative Overview

Understanding the fundamental differences between traditional proprietary ECUs and the emerging open hardware alternatives can help illustrate the advantages of the latter.

Frequently Asked Questions About Open Hardware ECUs

What exactly is an open hardware ECU?

An open hardware ECU is an Engine Control Unit whose design, schematics, and firmware source code are publicly available, allowing anyone to study, modify, and distribute them. This contrasts with traditional, proprietary ECUs where such information is kept secret by the manufacturer.

Are open hardware ECUs legal to use?

The legality of using and modifying ECUs, whether open or closed, largely depends on local laws, particularly regarding emissions. While open hardware itself is generally legal, modifying your vehicle's emissions control systems is often illegal. Projects like Atlas explicitly state their commitment to legal and responsible modifications, urging users to comply with all applicable regulations.

Is it safe to modify my car's ECU with open-source tools?

Modifying an ECU carries inherent risks, including the potential to damage the ECU ('bricking' it) or cause severe engine damage if done incorrectly. Open-source tools provide the means, but the responsibility for safe and correct application lies entirely with the user. It is highly recommended to consult with experienced professionals or thoroughly educate yourself before attempting any modifications.

Who can benefit from open hardware ECUs?

Open hardware ECUs can benefit a wide range of individuals and organisations: car owners seeking more affordable repair options, independent mechanics looking for greater diagnostic and repair flexibility, automotive enthusiasts desiring deeper customisation and performance tuning, and developers interested in contributing to automotive technology.

Can I use an open hardware ECU in any car?

While the concept is universal, specific open hardware ECU projects like Speeduino and calibration tools like Atlas support a defined range of vehicles. Compatibility depends on the project's development and specific hardware interfaces. The aim is to create direct replacements for existing wiring, particularly beneficial for older vehicles where OEM support might be limited.

The Future of Automotive Electronics

The emergence of open hardware ECUs represents a pivotal shift in the automotive industry. By decentralising control and democratising access to critical vehicle components, this movement empowers car owners and independent repair shops, fostering a more sustainable and adaptable ecosystem. The ability to repair rather than merely replace, to customise beyond manufacturer limitations, and to collaborate on innovative solutions promises a future where vehicles are not just consumer products but truly adaptable and maintainable assets.

As projects like Speeduino and Atlas continue to mature and expand their reach, they lay the groundwork for a new era of automotive freedom. This transition will undoubtedly face challenges, particularly concerning compliance with stringent regulations and the inherent complexity of vehicle systems. However, the benefits of transparency, community-driven innovation, and reduced reliance on proprietary systems are compelling enough to drive this revolution forward, ensuring that the future of car maintenance and performance is more accessible, affordable, and ultimately, more open.
