Opel's Cam-in-Head Engine: A Hybrid Marvel

In the vibrant landscape of 1960s and 70s automotive engineering, manufacturers often found themselves at a crossroads, balancing the proven reliability of existing designs with the allure of emerging technologies. Opel, a marque known for its pragmatic yet innovative approach, tackled this challenge head-on with its fascinating Cam-in-Head (CIH) engine. This unique powerplant was, in essence, an ingenious bridge, attempting to marry the venerable pushrod architecture with the burgeoning benefits of overhead camshaft designs, all while striving for cost-effectiveness and performance gains. It represents a pivotal, albeit transitional, moment in engine development, offering a glimpse into how engineers sought to evolve without completely reinventing the wheel.

The Cam-in-Head engine, as its name cleverly suggests, positions its camshaft within the cylinder head itself. While this might sound akin to a modern Overhead Camshaft (OHC) engine, the CIH design takes a distinctive detour. Instead of the camshaft directly actuating the valves or using short followers, it retains a valvetrain remarkably similar to a traditional pushrod engine, complete with rocker arms and lifters. Imagine a classic pushrod design where the camshaft has been elevated from the engine block and relocated into the cylinder head, effectively rendering the long pushrods themselves superfluous. This ingenious hybrid approach allowed Opel to incorporate some of the advantages of an OHC setup while still leveraging a significant amount of existing pushrod valve gear, making it a truly unique proposition in its era.

Where Did This Innovation Find Its Home?

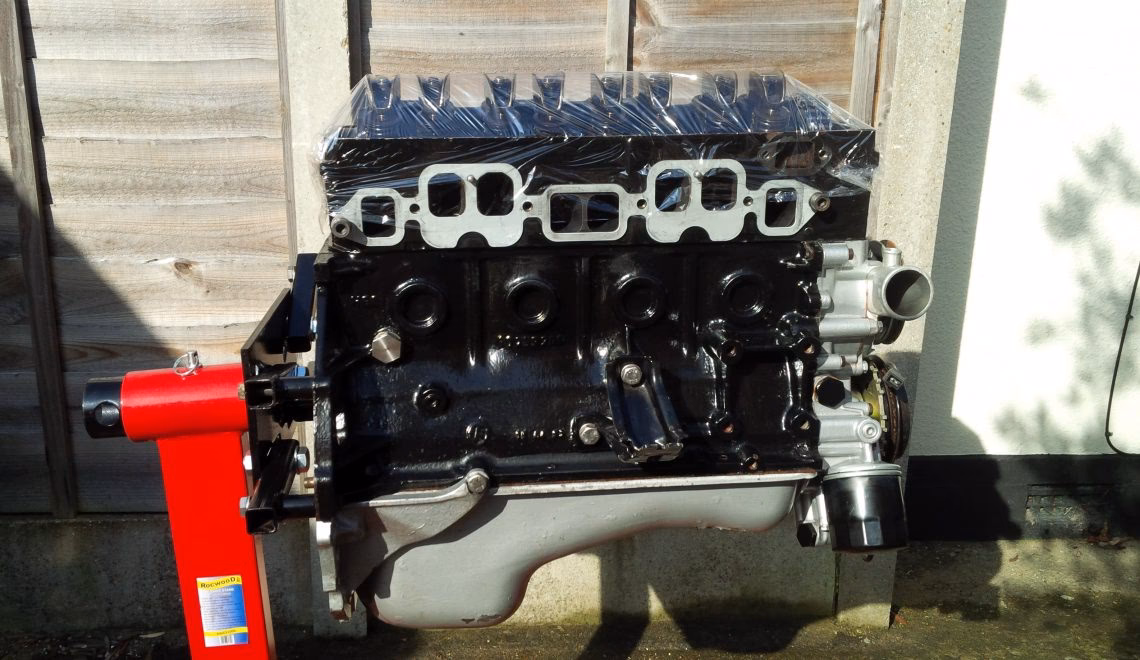

Opel's CIH engine found its way into several iconic models, most notably the sporty 1.9-litre, 4-cylinder blocks of the Opel GT and Manta coupes. These vehicles, celebrated for their stylish lines and engaging driving dynamics, benefited from the CIH's particular characteristics. The 1.9-litre unit, in particular, became synonymous with the CIH design, powering these popular models and providing a distinctive blend of performance and engineering intrigue to the Opel lineup. Its application in these cars underscores Opel's commitment to exploring new mechanical solutions to enhance their product offerings.

Unpacking the Advantages: Why CIH Made Sense

The decision to develop and implement the CIH engine was driven by a confluence of engineering, manufacturing, and even corporate considerations. From an internal perspective, particularly with its corporate overlords at General Motors, the CIH engine was an easier sell. By reusing much of the existing pushrod valve gear, it presented a financially attractive proposition, mitigating the significant investment typically required for an entirely new, ground-up OHC design. This strategic reuse of components allowed for a smoother transition to more advanced engine architectures without incurring prohibitive costs or necessitating entirely new production lines.

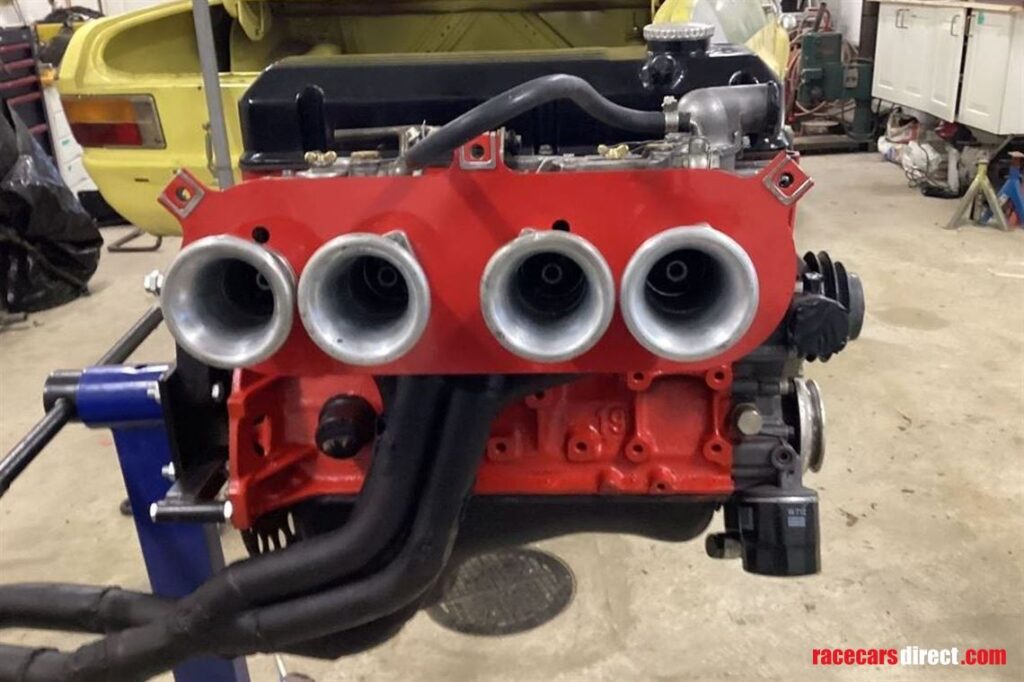

Beyond the financial incentives, the CIH design offered tangible performance and packaging benefits. The valvetrain, with the camshaft moved into the head, became inherently more compact than in a traditional pushrod engine. This reduction in size also translated to a significant decrease in the valvetrain's associated inertia. Less inertia means the engine can rev higher with less stress on the components, allowing for impressive redlines. Indeed, race-prepped CIH engines, equipped with roller rockers and suitable springs and cam profiles, were known to achieve rev limits north of 10,000 rpm – a testament to the design's high-revving potential.

Maintenance aspects also saw improvements. The design readily accommodated hydraulic lifters, which simplify engine upkeep by eliminating the need for periodic valve lash adjustments. Even in instances where hydraulic lifters weren't utilised, valve adjustments were considerably more straightforward than they would be in a direct-acting OHC setup, where the camshaft acts directly on the lifters. Furthermore, and significantly for vehicles like the Opel GT with its distinctive low-profile bonnet, the camshaft's location farther down in the cylinder head meant the engine's lower overall height compared to a true overhead camshaft configuration. This compact vertical packaging was a critical factor in achieving the sleek, aerodynamic lines of these sports coupes.

The Flip Side: Limitations and Compromises

While the CIH engine brought several advantages, it was not without its drawbacks, many of which stemmed from its transitional nature and the technologies prevalent at the time. A primary limitation revolved around its non-crossflow, 2-valve design. In this configuration, both the intake and exhaust ports are located on the same side of the cylinder head, leading to relatively poor airflow characteristics. This design inherently restricts the engine's 'breathing' capabilities, which in turn limits its ultimate power output and efficiency. Furthermore, the non-crossflow layout often necessitated compromises in the combustion chamber design, making it challenging to achieve optimal fuel-air mixture swirl and complete combustion.

The manufacturing process also presented challenges. The cylinder head casting for the CIH engine was relatively complex cylinder head, given the need to accommodate the camshaft and all the associated valvetrain components within its structure. This complexity introduced a heightened risk of casting flaws and, consequently, a greater susceptibility to cracking over time. To add to the engineering compromises, the CIH head was exclusively made from cast iron. While robust, cast iron is significantly heavier than aluminium, which was increasingly being adopted for cylinder heads in more advanced engine designs. This weight penalty contributed to a higher overall engine mass, impacting the vehicle's handling and fuel economy. Lastly, despite the valvetrain's inertial advantages over a pushrod design, the CIH still incorporated considerably more valve gear than a more direct OHC layout, which could lead to increased frictional losses and a slightly more complex assembly.

CIH vs. Its Contemporaries: A Comparative Look

To truly appreciate the Opel CIH engine, it's helpful to compare its characteristics against the two dominant engine architectures it sought to bridge: the traditional pushrod and the emerging overhead camshaft (OHC) designs. The CIH was truly a transitional form, attempting to offer the best of both worlds, albeit with its own unique set of compromises.

As the table illustrates, the CIH engine occupied a distinct middle ground. It offered clear advancements over the pushrod design in terms of valvetrain inertia and engine packaging, yet it fell short of the full benefits that a dedicated OHC architecture could provide, particularly concerning airflow and ultimate simplicity of the valvetrain itself.

The Legacy of a Stepping Stone

Opel's cam-in-head engine, while not achieving the widespread adoption or longevity of either traditional pushrod or pure OHC designs, remains a fascinating chapter in automotive history. It was a bold engineering statement, a pragmatic yet innovative attempt to fuse the best elements of existing and emerging technologies. This engine was truly a stepping stone, illustrating how manufacturers grappled with technological evolution in an era of rapid change. It provided Opel with a capable and distinctive powerplant for its beloved GT and Manta models, offering a unique blend of performance, packaging, and maintainability. Its existence reminds us that innovation often comes in many forms, sometimes as a revolutionary leap, and at other times, as an ingenious hybrid that bridges the gap between the past and the future.

Frequently Asked Questions (FAQs)

Q: What does CIH stand for?

A: CIH stands for 'Cam-in-Head'. This name directly refers to the unique placement of the camshaft within the cylinder head, differentiating it from traditional pushrod engines where the camshaft is located in the engine block.

Q: Is a CIH engine the same as an OHC (Overhead Camshaft) engine?

A: No, while both CIH and OHC engines have their camshaft in the cylinder head, they are not the same. A true OHC engine typically uses the camshaft to directly actuate the valves or via very short followers, eliminating pushrods entirely. The CIH engine, however, retains a pushrod-like valvetrain with rocker arms and lifters, even though the pushrods themselves are very short or effectively integrated into the design. It's a hybrid, not a pure OHC.

Q: What cars used the Opel CIH engine?

A: The Opel CIH engine was prominently featured in several popular Opel models, including the 1.9-litre, 4-cylinder versions of the Opel GT sports coupe and the Opel Manta coupe. It also powered other Opel vehicles of the era, though the GT and Manta are perhaps its most famous applications.

Q: Why did Opel eventually stop using the CIH design?

A: Opel, like most manufacturers, eventually moved towards more conventional and efficient engine designs. The CIH engine, despite its advantages, had limitations such as its complex cast-iron cylinder head, non-crossflow 2-valve design (which limited airflow), and greater valvetrain complexity compared to a simpler OHC setup. As OHC technology became more refined, cost-effective, and offered superior performance and efficiency, the CIH design was phased out in favour of more modern, dedicated OHC engines.

Q: Were CIH engines reliable?

A: Generally, Opel CIH engines were considered robust and reliable for their time, particularly when well-maintained. However, their complex cast-iron cylinder heads were known to be susceptible to cracking if subjected to overheating or improper handling. Like any engine, regular maintenance, appropriate cooling, and correct oil changes were crucial for ensuring their longevity and performance.
