OnGuard Systems: Do They Set DTCs?

In the evolving landscape of modern automotive technology, safety systems play an increasingly vital role in preventing accidents and enhancing driver awareness. Among these, collision mitigation systems like Bendix OnGuard are at the forefront, utilising sophisticated radar technology to monitor the road ahead and alert drivers to potential hazards. But as with any complex electronic system in a vehicle, the question often arises: can these advanced safety features develop faults, and if so, do they communicate these issues through Diagnostic Trouble Codes (DTCs)? The short answer is unequivocally yes, and understanding why and how is crucial for anyone operating a vehicle equipped with such technology.

A Diagnostic Trouble Code, or DTC, is essentially a message from your vehicle's onboard diagnostic (OBD) system indicating a malfunction or irregularity within a specific component or system. These codes are invaluable for mechanics and vehicle owners alike, providing a starting point for troubleshooting and repair. When it comes to highly integrated and safety-critical systems like OnGuard, the ability to generate and store DTCs is not just a feature, but a necessity, ensuring that any deviation from optimal performance is flagged for attention. Without DTCs, diagnosing issues with such complex systems would be akin to finding a needle in a haystack, leading to prolonged downtime and potential safety risks.

Understanding Bendix OnGuard Collision Mitigation

Before delving into the specifics of DTCs, let's briefly recap what Bendix OnGuard is and how it functions. Bendix OnGuard is a forward-looking collision mitigation system primarily used in commercial vehicles, though similar technologies exist in passenger cars. It employs a radar sensor mounted at the front of the vehicle to continuously scan the road up to 250 metres ahead. This sensor feeds data to a dedicated Electronic Control Unit (ECU) that processes information about other vehicles, their speed, and distance.

The system is designed to provide several layers of protection:

• Forward Collision Warning (FCW): Audible and visual alerts if the system detects that the vehicle is closing too quickly on an obstacle.
• Stationary Object Alert (SOA): Alerts for large, stationary metallic objects in the lane of travel.
• Adaptive Cruise Control (ACC): Automatically adjusts the vehicle's speed to maintain a safe following distance from the vehicle ahead.
• Active Braking: If the driver fails to react to warnings, the system can apply the brakes autonomously to mitigate or avoid a collision.

Given the critical nature of these functions, the accuracy and reliability of every component within the OnGuard system are paramount. Any anomaly can compromise its effectiveness, making robust diagnostic capabilities essential.

The Role of Diagnostic Trouble Codes (DTCs)

DTCs are standardised alphanumeric codes that pinpoint specific faults detected by a vehicle's various ECUs. They are stored in the vehicle's memory and can be retrieved using a diagnostic scan tool. Think of them as the vehicle's internal error log. Each code typically corresponds to a specific issue, such as a sensor malfunction, an electrical circuit fault, or a communication error between modules. For example, a common code might indicate a misfire in a particular cylinder, while another could point to a faulty oxygen sensor.

There are two main categories of DTCs:

• Generic Codes: These are standardised codes (P0xxx, B0xxx, C0xxx, U0xxx) that are common across all vehicle manufacturers, typically related to powertrain, body, chassis, and network communication.
• Manufacturer-Specific Codes: These codes (P1xxx, B1xxx, C1xxx, U1xxx onwards) are unique to a particular manufacturer and provide more detailed information about specific systems or components that are not covered by the generic codes. OnGuard system faults will very often fall into this category due to the proprietary nature of the system.

When an OnGuard system detects an issue, it will generate a manufacturer-specific DTC, which can then be read using specialised diagnostic software, such as Bendix ACom, or in some cases, a high-end generic scanner capable of accessing proprietary modules.

Why OnGuard Systems Set DTCs

OnGuard systems are sophisticated and rely on a multitude of inputs and internal processes to function correctly. Any disruption to these elements can trigger a DTC. Here are some common reasons why an OnGuard system might set a DTC:

• Sensor Malfunction or Blockage: The primary radar sensor is crucial. If it's blocked by dirt, ice, snow, or even a foreign object, its ability to 'see' the road ahead is compromised, leading to a DTC. Physical damage to the sensor or its mounting can also cause issues.
• Misalignment: The radar sensor requires precise alignment. Even a slight bump or vibration can knock it out of calibration, causing it to misinterpret data or fail to function, thus triggering a DTC.
• Wiring and Connectivity Issues: The OnGuard system communicates with other vehicle systems (e.g., brakes, engine ECU, vehicle speed sensors) via the Controller Area Network (CAN bus). Any open circuits, short circuits, or poor connections in the wiring harness leading to the radar sensor or its ECU can interrupt data flow and generate a DTC.
• Internal ECU Faults: Like any electronic control unit, the OnGuard ECU itself can fail due to internal component degradation, software glitches, or power supply issues.
• Software or Calibration Issues: Incorrect software versions, corrupted firmware, or improper calibration after a repair or replacement can lead to the system not operating as intended, resulting in DTCs.
• Brake System Integration Problems: Since OnGuard can initiate active braking, it relies heavily on seamless communication and functionality with the vehicle's brake system. Faults within the brake system that affect this integration can manifest as OnGuard DTCs.
• Power Supply Issues: Insufficient or intermittent power supply to the OnGuard ECU can cause erratic behaviour and lead to diagnostic trouble codes.

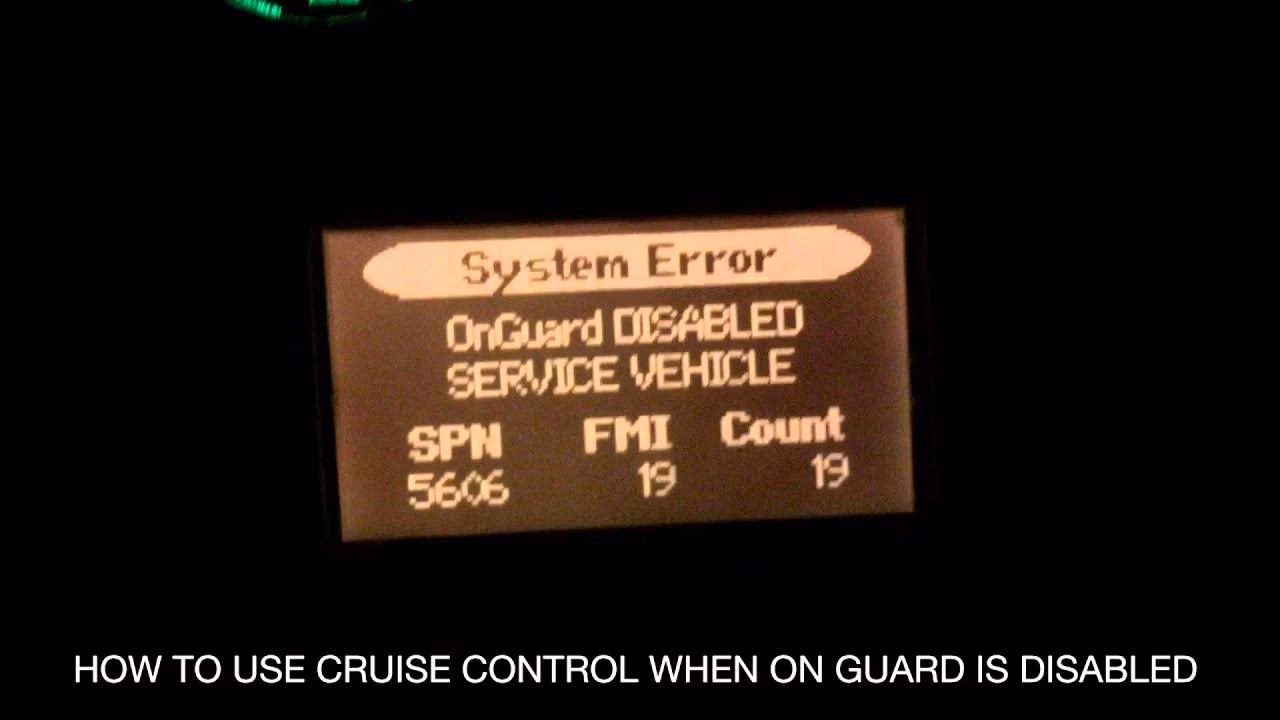

When a DTC is set, it often illuminates a warning light on the dashboard, such as a general "Check Engine" light, a specific OnGuard system warning light, or a "Collision Mitigation System Fault" message. This alerts the driver that the system is not functioning correctly and may be disabled.

Common OnGuard-Related DTC Scenarios and Their Impact

Understanding the common scenarios can help in initial diagnosis, though professional intervention is always recommended. Here's a table illustrating some potential issues and their typical impact:

Diagnosing OnGuard DTCs: The Professional Approach

While a general OBD-II scanner can read some generic powertrain codes, diagnosing OnGuard-specific DTCs often requires specialised tools and software. Bendix provides its ACom Diagnostic Software, which allows technicians to:

• Read and clear OnGuard-specific DTCs.
• View live data from the radar sensor and other system components.
• Perform system calibrations, which are critical after sensor replacement or major front-end repairs.
• Conduct functional tests to verify system operation.

The diagnostic process typically involves:

1. Connecting the Scan Tool: Plugging the diagnostic tool into the vehicle's diagnostic port (usually a 9-pin or 16-pin connector in commercial vehicles).
2. Retrieving DTCs: Reading all stored fault codes from the OnGuard ECU and other relevant modules.
3. Analysing Data: Interpreting the codes and reviewing live data streams to understand the conditions under which the fault occurred. This might include radar signal strength, vehicle speed, brake pedal status, and more.
4. Visual Inspection: Checking the radar sensor for physical damage, blockages, or obvious misalignment. Inspecting the wiring harness for signs of wear, corrosion, or damage.
5. Testing Components: Using the diagnostic tool to activate components or perform specific tests to confirm their functionality.
6. Repair and Verification: Addressing the root cause of the DTC, whether it's replacing a faulty sensor, repairing wiring, or performing a software update. After the repair, the DTCs are cleared, and the system is re-tested to ensure proper operation and that the fault does not immediately return.

It's important to stress that proper calibration of the radar sensor is often required after any repair or replacement involving the sensor or front-end components. Without precise calibration, the system's accuracy and effectiveness will be compromised, potentially leading to further DTCs or, more critically, unsafe operation.

Clearing DTCs: A Cautious Approach

While most diagnostic tools allow you to clear DTCs, it's crucial to understand that simply clearing a code does not fix the underlying problem. If the root cause of the fault is not addressed, the DTC will almost certainly reappear. Clearing codes without repair is akin to turning off a warning light without addressing the engine problem – the symptom disappears, but the danger remains.

DTCs should only be cleared once the necessary repairs have been completed and verified. This ensures that the system is operating correctly and that the fault has been genuinely resolved. In the case of safety systems like OnGuard, professional repair and verification are not just recommended, but essential for the continued safety of the vehicle and its occupants.

Preventive Maintenance for OnGuard Systems

Even advanced safety systems benefit from regular maintenance. While you can't prevent every fault, certain practices can help minimise the chances of an OnGuard system setting a DTC:

• Keep the Radar Sensor Clean: Regularly inspect and clean the front of the vehicle where the radar sensor is located. Remove any dirt, mud, snow, or ice that could obstruct its view.
• Avoid Damage: Be mindful of curbs, parking blocks, and other obstacles that could potentially damage the radar sensor or its mounting bracket.
• Regular System Checks: Pay attention to any warning lights or messages on your dashboard. If an OnGuard system fault light appears, have it checked promptly by a qualified technician.
• Professional Servicing: During routine vehicle servicing, ensure that technicians are aware of the OnGuard system and can perform basic visual checks and, if necessary, more advanced diagnostic scans.
• Proper Bodywork Repairs: If your vehicle is involved in a collision, especially one affecting the front end, ensure that any bodywork repairs include proper inspection and re-calibration of the OnGuard radar sensor.

Frequently Asked Questions (FAQs)

Q1: Can I drive my vehicle if the OnGuard system has set a DTC?

A1: While the vehicle may still be drivable, it is strongly advised to have the system checked immediately. When an OnGuard DTC is set, the collision mitigation system is likely either operating in a degraded mode or entirely disabled. This means you lose the critical safety benefits of the system, increasing your risk of an accident. Driving without this active safety feature should be done with extreme caution, and only to get the vehicle to a service centre.

Q2: How much does it cost to fix an OnGuard DTC?

A2: The cost varies significantly depending on the underlying issue. A simple cleaning of a blocked sensor might cost very little. However, if the radar sensor itself needs replacing, or if there are complex wiring issues or an ECU fault, the cost can be substantial due to the price of proprietary parts and the specialised labour required for diagnosis and calibration. Always get a detailed quote from a qualified service centre.

Q3: Is an OnGuard system fault covered by warranty?

A3: If your vehicle is still under its manufacturer's warranty, a fault with the OnGuard system may be covered, especially if it's due to a manufacturing defect. However, damage caused by external factors (e.g., collision, improper maintenance, environmental blockage) might not be covered. It's best to consult your vehicle's warranty documentation or contact the dealership or manufacturer directly.

Q4: Can I clear an OnGuard DTC myself with a generic OBD-II scanner?

A4: While some generic OBD-II scanners can read and clear basic generic powertrain codes, they typically cannot access or clear manufacturer-specific DTCs from complex safety systems like OnGuard. Furthermore, even if you could clear the code, it would reappear if the underlying issue isn't resolved. Specialised diagnostic software (like Bendix ACom) and expert knowledge are usually required for proper diagnosis and repair.

Q5: What's the difference between an OnGuard warning light and a DTC?

A5: An OnGuard warning light (or message on the dashboard) is the visual indication to the driver that there is a problem with the system. A DTC is the specific alphanumeric code stored in the vehicle's computer that precisely identifies the nature of that problem. So, the warning light is the symptom you see, and the DTC is the diagnostic information that helps a technician understand the cause of that symptom.
