OM651 Oil Filter Torque Guide

OM651 Oil Filter Torque: Getting it Right

Performing regular maintenance on your Mercedes-Benz, particularly with the robust OM651 engine, is crucial for its longevity and performance. A common and vital task is the engine oil and filter change. While many focus on the oil type and quantity, the correct torque applied to the oil filter is often overlooked, yet it's a critical detail that can prevent leaks and ensure proper sealing. This guide will focus on the specific torque requirements for the OM651 oil filter and provide a comprehensive overview of the oil change process.

Understanding the OM651 Engine

The Mercedes-Benz OM651 is a highly regarded 2.1-litre diesel engine found in a wide range of their vehicles, including models like the GLK250 BlueTec. It's known for its efficiency and power, making it a popular choice for many drivers. Like all engines, it requires regular oil changes to keep its internal components lubricated, cool, and free from contaminants. The oil filter plays a vital role in this by trapping debris and ensuring only clean oil circulates through the engine.

The Importance of Correct Oil Filter Torque

When it comes to installing a new oil filter, simply screwing it on until it feels tight is not sufficient. Over-tightening can damage the filter housing, the gasket, or even the engine block itself, potentially leading to costly repairs. Conversely, under-tightening can result in oil leaks, which can cause low oil pressure and significant engine damage. This is where a torque wrench becomes an indispensable tool.

What is Torque?

Torque is a measure of rotational force. In the context of an oil filter, it's the specific amount of twisting force applied to tighten it. Manufacturers specify a torque value to ensure the filter's gasket creates a perfect seal against the engine block without being crushed or deformed.

OM651 Oil Filter Torque Specification

For the Mercedes-Benz OM651 engine, the recommended torque for the oil filter is 25 Nm (Newton-metres). This is a precise figure that ensures the filter is securely seated and sealed effectively. It's important to note that this specification is for the filter housing or cartridge itself, depending on the specific design for your OM651 variant.

OM651 Oil Change Procedure: A Step-by-Step Guide

Changing the engine oil and filter on your OM651 can be a rewarding DIY task. Here’s a detailed breakdown of the process, ensuring you have all the necessary information.

Tools and Parts You'll Need:

Before you begin, gather all your supplies:

• Engine Oil: SAE 0W-40 is commonly recommended, with a specification of MB 229.5. The capacity is approximately 5.9 US quarts (5.6 litres), but it's always best to check your owner's manual and verify the level after the change.
• Engine Oil Filter: Ensure you have the correct filter for your specific OM651 model. Several part numbers are compatible, including:
  • MERCEDES-BENZ 6511800309
  • MANN & HUMMEL HU7010z
  • MAHLE OX153-7D2
  • KNECHT OX153-7D2ECO

  Refer to the comprehensive list of applicable oil filters provided in the initial information for further cross-references.

• Oil Filter Wrench or Pliers: Specifically designed to grip and turn the oil filter housing.
• Oil Drain Pan: Large enough to hold at least 7 litres of used oil.
• Oil Funnel: For clean refilling of new oil.
• Work Gloves: To protect your hands.
• Ramps or Floor Jack and Jack Stands (x2): To safely lift the vehicle.
• Wheel Chocks: For added safety.
• Ratchet and Metric Sockets: Typically 8mm and 13mm for splash shields and drain plugs.
• Torque Wrench: Essential for accurate tightening of the drain plug and oil filter.
• New Copper Washer: For the oil drain plug.

Step-by-Step Instructions:

1. Prepare the Vehicle: Drive the vehicle onto ramps or use a floor jack and secure it with jack stands. Ensure the transmission is in Park and engage the parking brake. Place wheel chocks behind the rear wheels.
2. Warm Up the Engine: For best results, warm the engine oil by running it for a few minutes. This makes the oil flow more easily. Allow the engine to cool for at least 15 minutes before proceeding to avoid burns from hot oil.
3. Remove the Splash Shield: Locate and remove the under-engine splash shield. This usually involves undoing several 8mm bolts or a combination of bolts and plastic retainers. Keep these bolts organised.
4. Position the Drain Pan: Place the oil drain pan directly beneath the engine oil drain plug. Ensure it's positioned to catch the entire volume of oil.
5. Drain the Old Oil: Using a 13mm wrench, carefully loosen and remove the oil drain plug. Remember that the oil will be hot. Allow the oil to drain completely, which may take several minutes.
6. Replace the Drain Plug Washer: It is highly recommended to replace the copper washer on the drain plug with a new one for each oil change to ensure a proper seal.
7. Reinstall the Drain Plug: Screw the drain plug back in by hand first to avoid cross-threading. Once snug, use your torque wrench to tighten it to the specified torque of 30 Nm (or 23 ft-lbs). Avoid using a breaker bar as this can lead to over-tightening.
8. Locate and Remove the Oil Filter: Identify the oil filter housing. Place your drain pan underneath it as some residual oil may drip out when it's removed. Use your oil filter wrench to unscrew the old filter cartridge.
9. Install the New Oil Filter: Ensure you replace the O-rings on the new filter cartridge if they are not pre-installed. Lubricate the new O-rings with a bit of fresh engine oil. Carefully screw the new filter into place by hand until it's snug. Then, use your oil filter wrench and torque wrench to tighten it to the specified 25 Nm.
10. Refill with New Oil: Open the engine oil filler cap. Using a funnel, carefully pour in the new engine oil. Start with slightly less than the stated capacity (e.g., 5 litres) to avoid overfilling.

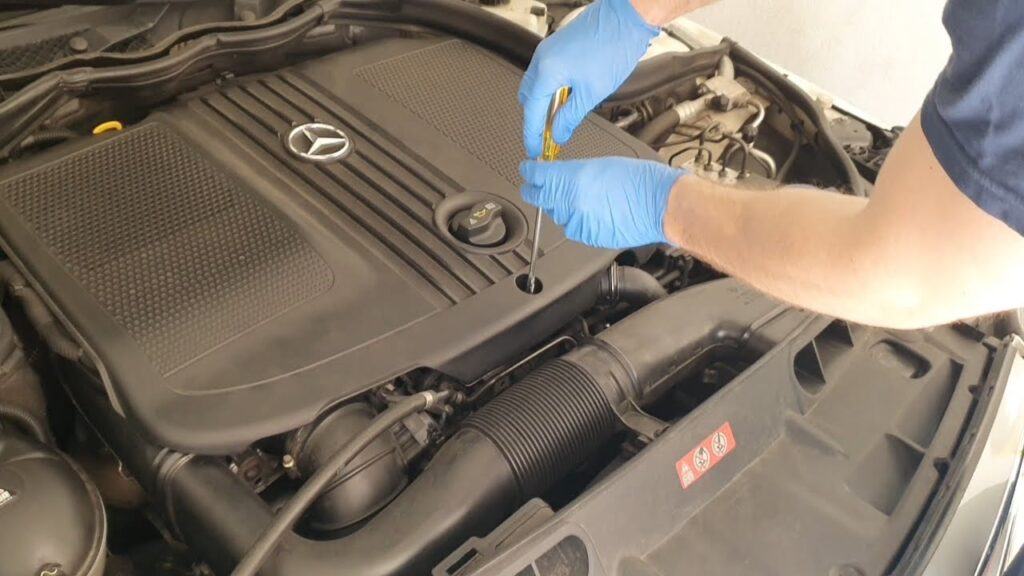

11. Check the Oil Level: Wait at least five minutes for the oil to settle in the sump. Check the level on the dipstick. If it's low, add oil in small increments (e.g., 0.25 litres at a time), waiting a few minutes between additions, until the level is within the optimal range on the dipstick. Do not overfill.
12. Reset Service Reminder: Refer to your vehicle's manual or a specific guide for resetting the oil service indicator on the instrument cluster.
13. Inspect for Leaks: Start the engine and let it run for a few minutes. While it's running, carefully check around the oil drain plug and the oil filter for any signs of leaks. Once you're satisfied, turn off the engine and re-check the oil level.

Capacity and Refill Notes

The official oil capacity for the OM651 is typically around 6.5 litres. However, when draining and refilling, you might get slightly less out, especially if the engine wasn't fully warmed or if the filter wasn't completely dry. As one user noted, draining into 2-litre bottles can help measure the exact amount removed (nearly 7 litres in their case). It’s often recommended to refill with around 6 litres initially and then carefully top up to the correct level on the dipstick after running the engine. The oil filter itself also takes up some of the oil capacity.

Common OM651 Oil Filter Part Numbers

The OM651 engine can use various oil filters from different manufacturers. While the Mercedes-Benz part numbers are specific, many aftermarket brands offer compatible filters. Some of the commonly cited compatible filters include:

Always double-check compatibility with your specific vehicle model and year before purchasing.

Frequently Asked Questions

Q1: How much torque does an OM651 oil filter have?
A: The OM651 oil filter should be torqued to 25 Nm.

Q2: How many litres of oil does an OM651 CDI take?
A: The OM651 engine typically requires around 5.6 to 6.5 litres of engine oil, depending on whether the filter is included in the capacity calculation and the specific model. It's best to start with 5.5-6 litres and top up to the correct level on the dipstick.

Q3: Can I use a regular wrench to tighten the oil filter?
A: While you might be able to loosen an old filter with a regular wrench, it's highly recommended to use a torque wrench for tightening to the specified 25 Nm. This ensures the correct pressure is applied for a proper seal.

Q4: What happens if I over-tighten the oil filter?
A: Over-tightening can damage the rubber gasket, leading to leaks, or even damage the filter housing or the engine's oil filter mounting point, which can be a costly repair.

Q5: How often should I change the oil and filter on my OM651?
A: Consult your owner's manual for the manufacturer's recommended service intervals. Generally, for diesel engines, this is typically every 10,000 to 15,000 miles or annually, whichever comes first. However, driving conditions can influence this.

Conclusion

Maintaining the correct oil filter torque on your OM651 engine is a small detail that makes a significant difference in preventing leaks and ensuring optimal engine protection. By following the correct procedure, using the right tools, and adhering to the specified torque values (25 Nm for the filter, 30 Nm for the drain plug), you can confidently perform this essential maintenance task and keep your Mercedes-Benz running smoothly for years to come.
