Keeping Your RV Vacuum Pump Running Smoothly: An Oil Change Guide

A vacuum pump is a vital piece of equipment in many industrial and laboratory settings, and its longevity and performance hinge significantly on proper maintenance. One of the most crucial aspects of this upkeep is the regular changing of the pump's oil. Just like the engine oil in your car, vacuum pump oil degrades over time, becoming contaminated with process vapours and particulate matter. Neglecting this simple task can lead to reduced pumping efficiency, increased wear on internal components, and ultimately, premature pump failure. This guide will walk you through the process of changing the oil in your Edwards RV series rotary vane pump, ensuring it continues to operate at its best.

Understanding the role of the oil in your vacuum pump is key to appreciating why its regular replacement is so important. In a rotary vane vacuum pump, the oil serves multiple critical functions: it lubricates the moving parts, cools the pump by dissipating heat, and crucially, it acts as a sealant for the pump's internal clearances, allowing it to achieve and maintain a deep vacuum. Over time, process vapours, moisture, and even tiny solid particles can enter the oil, causing it to break down. This contaminated oil loses its lubricating properties, reduces sealing efficiency, and can even become corrosive, attacking the pump's components. A clear oil level sight-glass is your window into the health of your pump's lubricant, but even clear oil can be past its prime.

When to Change Your Vacuum Pump Oil

For Edwards RV series pumps, a general guideline for oil replacement is every 3000 hours of operation. However, this is a baseline, and the actual frequency can vary significantly depending on your specific application and the nature of the gases being pumped. If your vacuum pump is handling condensable vapours, such as those encountered in freeze-drying or solvent evaporation, you may need to change the oil much more frequently. In some cases, it might even be necessary to change the oil after each process run to prevent the pump from sitting idle with heavily contaminated oil, which can lead to internal corrosion and damage.

Signs that indicate an immediate oil change is necessary include:

• The oil appearing cloudy, milky, or discoloured.
• A noticeable decrease in the pump's ultimate vacuum performance.
• The pump running hotter or noisier than usual.
• Frequent thermal overload trips.

Always err on the side of caution. Changing the oil more frequently than the recommended 3000 hours, especially under demanding conditions, is a small investment that significantly enhances the pump's longevity and reliability.

Gather Your Tools and Supplies

Before you begin the oil change process, ensure you have all the necessary tools and materials at hand. This preparation will make the procedure smoother and safer:

• New, clean vacuum pump oil (ensure it's the correct type for your pump – Edwards Ultragrade 19 for hydrocarbon-prepared pumps, or Krytox 1506/Fomblin 06/6 for PFPE-prepared pumps). Check your pump's manual or the pump itself for the correct oil capacity. For reference, RV3/RV5 pumps require a maximum of 0.70 litres, RV8 requires 0.75 litres, and RV12 requires 1.00 litres.
• A suitable container for draining the old oil.
• A wrench or spanner for the drain plug.
• Clean, lint-free cloths.
• Personal Protective Equipment (PPE), including gloves and eye protection.
• A sturdy block or wedge to tilt the pump (optional, but helpful for complete drainage).
• Funnel for refilling (optional, but recommended).
• Optional accessories: Edwards Gravity Oil Drain Kit or Oil Drain-Extension can simplify the process.

Step-by-Step Guide to Changing Your Edwards RV Pump Oil

Performing an oil change on your Edwards RV series pump is a straightforward process when following these steps. Always prioritise safety by ensuring the pump is fully isolated and cooled before you begin.

1. Warm Up the Pump: Run the vacuum pump for approximately ten minutes before starting the oil change. This warms the oil, reducing its viscosity and allowing it to drain more easily and completely.
2. Isolate and Disconnect: Switch off the pump and disconnect it from the electrical supply. Crucially, isolate the pump from your vacuum system to prevent any accidental suck-back or contamination.
3. Prepare for Drainage: Place a suitable container directly beneath the oil drain-plug (item 9 in Figure 1 of your pump's manual) at the bottom of the pump's oil-box. If you have an RV8 or RV12, remember these pumps are heavy (approx. 26 kg), so use appropriate lifting equipment if you need to move them.
4. Remove Filler and Drain Plugs: Locate one of the oil filler-plugs (item 6 in Figure 1) on top of the oil-box and remove it. Then, carefully remove the oil drain-plug.
5. Drain the Old Oil: Allow the old oil to drain completely into your prepared container. You may find it beneficial to slightly tilt the pump (e.g., by placing a block under the motor end) to ensure all the old oil is removed.
6. Flush if Contaminated (Optional but Recommended): If the drained oil is heavily contaminated (very dark, milky, or sludgy), it's a good practice to flush the reservoir. Refit the drain-plug temporarily, pour a small amount of clean, new vacuum oil into the filler hole, swirl it around, and then drain it out. Repeat until the flushing oil runs relatively clean.

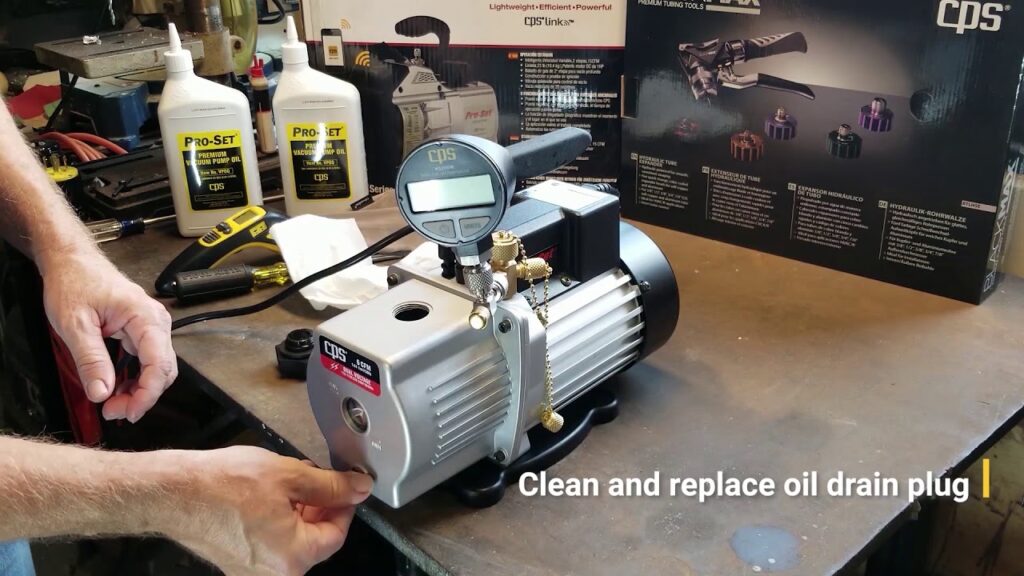

7. Refit Drain Plug: Once the oil has completely drained (and flushed, if applicable), refit the oil drain-plug. Tighten it firmly, but do not overtighten, as this can damage the plug or the housing.
8. Refill with New Oil: Using a funnel, slowly pour the new, clean vacuum oil into the oil filler hole. Fill the reservoir until the oil level just reaches the MAX mark on the bezel at the top of the oil-level sight-glass (item 8 in Figure 1).
9. Initial Run and Check: Refit the oil filler-plug, tightening it by hand (do not overtighten). Reconnect the pump to your electrical supply (but keep it isolated from your vacuum system for this step). Start the pump and allow it to run for about one minute. This circulates the new oil throughout the pump mechanism.
10. Final Oil Level Check: Switch off the pump and allow a few moments for the oil to settle. Recheck the oil level in the sight-glass. If it has fallen below the MAX mark, add more oil slowly until it reaches the MAX mark again.
11. Reconnect and Resume Operation: Once the oil level is correct, ensure all plugs are securely fitted. Reconnect the pump to your vacuum system and you are ready to resume operation.

Checking and Maintaining Oil Levels

Regularly checking your oil level is just as important as changing the oil. The oil-level sight-glass (item 8 in Figure 1) provides a quick visual check. The oil level should always be between the MAX and MIN marks on the bezel of the sight-glass. If the level drops below the MIN mark, it can lead to insufficient lubrication and sealing, causing pump damage and reduced performance. To top up the oil, simply remove one of the filler-plugs and carefully add oil until it reaches the MAX mark. Always use the correct type of oil for your pump.

Common Oil-Related Issues and Troubleshooting

Many common vacuum pump issues can be traced back to the oil. Here’s a quick guide to some problems and their oil-related solutions:

Important Considerations

Oil Type: Hydrocarbon vs. PFPE

Edwards RV pumps are supplied as either hydrocarbon-prepared or PFPE-prepared. It is absolutely crucial never to mix these oil types. Hydrocarbon oils (like Edwards Ultragrade 19) are standard, but if your pump is PFPE-prepared (for use with highly reactive gases, especially oxygen, requiring oils like Fomblin 06/6 or Krytox 1506), using hydrocarbon oil will cause severe damage and a significant safety hazard (risk of fire or explosion). Always verify the correct oil type for your specific pump model.

Disposal of Used Oil

Used vacuum pump oil is considered hazardous waste and must be disposed of safely and responsibly in accordance with all local and national environmental regulations. Do not pour it down drains or dispose of it with general waste. Contact your local waste management authority for guidance on proper disposal.

Frequently Asked Questions (FAQs)

Can I mix different brands of vacuum pump oil?

No, it is highly recommended to avoid mixing different brands or types of vacuum pump oil, even if they are both hydrocarbon or both PFPE. Different formulations can be incompatible, leading to reduced performance, foaming, or even pump damage. Always stick to the manufacturer's recommended oil type and brand.

What does contaminated oil look like?

Contaminated oil often appears cloudy, milky, or significantly darker than fresh oil. It might also have a strong, unusual odour. If it looks like any of these, it's time for a change.

How often should I check my vacuum pump's oil level?

You should check the oil level monthly for pumps in normal use, or more frequently if your pump handles high volumes of gas or vapour, or if it's operating under demanding conditions.

What happens if I don't change my vacuum pump oil?

Neglecting oil changes leads to reduced lubrication, impaired sealing, and increased wear on internal components, ultimately causing a drop in vacuum performance, increased operating temperature, and eventual pump failure. It can also void your warranty.

Can I reuse drained vacuum pump oil?

No, never reuse drained vacuum pump oil. Once it's drained, it's considered contaminated and has lost its essential properties required for optimal pump operation. Always refill with fresh, clean oil.

Regular oil changes are a fundamental part of vacuum pump maintenance that directly impacts its efficiency and lifespan. By following these guidelines and paying attention to the condition of your pump's oil, you can ensure your Edwards RV series vacuum pump continues to provide reliable, high-performance vacuum for years to come. Don't underestimate the power of proper lubrication and cleanliness in maintaining your valuable equipment.
