Mastering Fuel Oil Changeover in ECAs: A UK Guide

Operating a vessel in today's maritime environment demands strict adherence to environmental regulations, particularly concerning sulphur emissions. When entering or leaving Emission Control Areas (ECAs), the requirement to switch between high-sulphur and low-sulphur fuel oils is not merely a procedural step but a critical operation that impacts safety, operational efficiency, and regulatory compliance. This intricate process, often referred to as the 'Change Over Procedure in SECA', requires meticulous planning, precise execution, and a thorough understanding of the fuels involved. Failure to perform a correct changeover can lead to severe consequences, from engine damage to substantial fines imposed by Port State Control.

The shift from one fuel type to another, especially between fuels with significantly different sulphur content, is more complex than simply turning a valve. It involves managing varying fuel properties, ensuring system compatibility, and adhering to strict timelines. This article delves into the best practices for a safe and compliant fuel oil changeover, providing essential insights for crew members and operators navigating the challenging waters of sulphur emission regulations.

Understanding Sulphur Regulations and ECAs

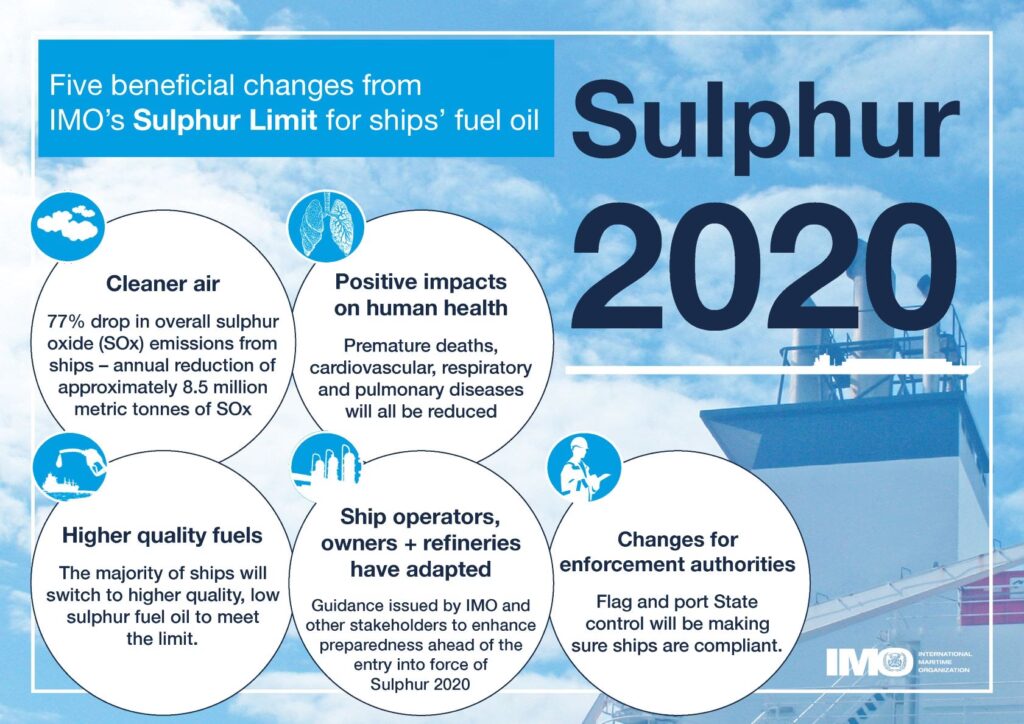

International maritime law, specifically MARPOL Annex VI, mandates strict limits on sulphur oxide (SOx) emissions from ships. These regulations are particularly stringent within designated Emission Control Areas (ECAs), which include regions such as the Baltic Sea, North Sea, and areas around North America. Outside these areas, ships commonly utilise High Sulphur Fuel Oil (HSFO), which is more economical but generates higher emissions. However, upon entering an ECA, vessels are legally obligated to switch to a compliant fuel oil with a significantly reduced sulphur content, typically Marine Gas Oil (MGO) or Very Low Sulphur Fuel Oil (VLSFO).

Beyond MARPOL, local regulations in various regions worldwide, including EU Ports, specific Chinese ECAs, Hong Kong, and Taiwan, also impose their own sulphur limits. This patchwork of regulations means that crews must be constantly aware of their vessel's position relative to these zones and initiate the changeover procedure well in advance to ensure full compliance upon entry. The primary objective is to prevent air pollution caused by maritime activity, safeguarding environmental health in sensitive coastal and port areas.

The Critical Impact of Fuel Oil Incompatibility

One of the most significant challenges during a fuel oil changeover arises from the potential incompatibility between different fuel oils. Fuels with varying sulphur levels often possess vastly different properties, including viscosity, density, and chemical composition. When incompatible fuels are mixed, even in small ratios, it can lead to a phenomenon known as 'sludge formation'. This sludge, a tar-like precipitate, can cause severe issues within the fuel oil system:

• Clogging of Filters and Separators: Sludge can quickly block fuel filters and separators, leading to reduced fuel flow, loss of engine power, and potentially engine shutdown.
• Damage to Fuel Pumps and Injectors: The abrasive nature of sludge can cause excessive wear and tear on precision components like fuel pumps and injectors, leading to costly repairs and reduced engine efficiency.
• Engine Malfunctions: In the worst-case scenario, severe clogging or damage can result in main engine failure, posing significant safety risks at sea.
• System Modifications: Dealing with incompatible fuels may necessitate complex modifications to the fuel oil system, adding to operational costs and complexity.

Therefore, it is paramount to ensure that the fuel system is thoroughly flushed and cleaned during the changeover process to minimise any mixing of incompatible fuel residues. This often involves careful monitoring of fuel temperatures and pressures throughout the transition.

The Role of Sulphur Level in Changeover Timing

The precise sulphur level in both the High Sulphur Fuel Oil (HSFO) and the compliant Low Sulphur Fuel Oil (LSFO) has a direct and significant impact on the time required to complete a safe and compliant changeover. Generally, the greater the difference in sulphur content between the two fuels, and the closer the compliant fuel is to the stricter sulphur limit (e.g., 0.50% or 0.10%), the longer the changeover process will take. This is primarily due to the need for a more gradual and thorough flushing of the fuel system to ensure that all traces of the higher sulphur fuel are removed before the vessel enters the ECA.

A prolonged changeover ensures that the entire fuel system, from tanks to engines, is adequately purged of the previous fuel. This prevents residual higher sulphur fuel from being combusted within the ECA, which would result in non-compliance. Rushing the process, or failing to account for the sulphur differential, dramatically increases the risk of regulatory breaches and the associated penalties.

Best Practices for a Safe Fuel Oil Changeover Procedure

A well-executed fuel oil changeover is a multi-step process that requires careful planning and execution. The overarching goal is to transition smoothly from HSFO to LSFO without compromising engine performance or violating environmental regulations.

1. Prior to Changeover: Planning and Preparation

Before initiating any changeover, thorough preparation is essential:

• Voyage Planning: The vessel's voyage plan must accurately account for the entry point into the ECA and the required time for the changeover procedure. This dictates when the process should commence.
• LSF Calculator Utilisation: Modern ships are equipped with a LSF calculator. This vital tool helps determine the accurate time the changeover should begin, taking into account the vessel's speed, fuel consumption, and the distance to the ECA boundary.
• Fuel Tank Readiness: All fuel tanks designated for the compliant low-sulphur fuel must be ready. This includes ensuring they contain the correct quantity of LSFO, as calculated in the voyage plan for the specific ECA.
• Separator Operations: Fuel separators should be operated in accordance with tank operations, ensuring the LSFO is properly purified before being transferred to settling and service tanks.

2. Main Engine Fuel Oil Changeover

The main engine changeover is arguably the most critical aspect of the procedure:

• Gradual Transition: The change from HSFO to LSFO should be gradual. Abrupt changes can shock the fuel system and engine, potentially leading to operational issues.
• Temperature Management: HSFO typically requires higher temperatures for optimal viscosity. LSFOs, particularly MGOs, have lower viscosity and require lower temperatures. Adjusting fuel oil heaters gradually to the appropriate temperature for the new fuel is crucial to prevent thermal shock and maintain correct fuel viscosity for injection.
• Monitoring Parameters: Continuously monitor fuel pressure, temperature, and viscosity at various points in the system (e.g., before filters, at the engine manifold) throughout the transition.
• Preventing Fuel Loss: Careful manipulation is required to prevent any unfavourable loss of the more expensive low-sulphur fuel. This involves precise timing of valve operations and fuel recirculation.

3. Auxiliary Engines and Boiler Fuel Oil Changeover

Auxiliary engines and boilers also require a specific changeover procedure:

• Changeover at Load: For auxiliary engines, the changeover should ideally take place while the engine is under load.
• Fuel Oil Heaters: Close the fuel oil heaters for the auxiliary engines and boilers as the system transitions to LSFO, which generally requires lower temperatures.
• Diesel Valve Operation: At the correct temperature for the LSFO, open the diesel valves.
• Heavy Oil Return: Close the heavy oil return line once the system is fully flushed with the low-sulphur fuel.
• Boiler Procedure: An equivalent, gradual procedure should be followed for boilers, ensuring a smooth transition to the compliant fuel without affecting steam production or boiler performance.

Potential Dangers and Risks During Changeover

Despite careful planning, several dangers can arise during the fuel oil changeover process:

• Pump Scuffing and Engine Failure: As mentioned, sudden changes in fuel properties, particularly viscosity, can lead to insufficient lubrication in fuel pumps (scuffing) or even main engine failure. This is a severe risk that can jeopardise the safety of the vessel and crew.
• Fuel System Contamination: Incomplete flushing can lead to residual HSFO mixing with LSFO, causing incompatibility issues like sludge formation and filter clogging.
• Regulatory Non-Compliance: An improperly executed changeover that results in the combustion of non-compliant fuel within an ECA will lead to severe penalties. These can include significant fines, detention of the vessel, and reputational damage.
• Port State Control Inspections: Maritime authorities, including Port State Control, conduct rigorous inspections, sometimes even at sea using drones, to verify compliance with sulphur limits. Any discrepancies in logbooks or fuel samples can lead to immediate action.

The Imperative of Accurate Record Keeping

Meticulous record keeping is not just good practice; it's a regulatory requirement and a crucial defence against allegations of non-compliance. Every action and activity related to the fuel oil changeover must be accurately documented:

• Fuel Quantities: Record the level of existing fuel before the changeover begins and monitor fuel consumption throughout the process.
• Official Logbooks: The Oil Record Book (ORB) and Engine Logbook must be diligently completed. This includes:
  • Date, time, and position (latitude and longitude) when the changeover commenced.
  • Date, time, and position when the changeover was completed.
  • The sulphur content of the fuels involved.
  • Any operational parameters or challenges encountered.
• Completion Position: It is critical to record the completion position just outside the limit of the designated ECA, clearly demonstrating that compliant fuel was in use before entry.

These records serve as irrefutable evidence of compliance during inspections and can prevent costly disputes.

Crew Training and Awareness: A Cornerstone of Safety

Given the complexities and potential risks involved, it is absolutely essential that the crew is well-trained and adequately familiarised with the fuel oil changeover process. Investing in continuous training for shipboard staff is not merely an expense but a critical investment in safety and operational integrity.

• Regular Drills and Training: Conduct regular drills and theoretical training sessions covering all aspects of the changeover procedure, including emergency scenarios.
• Awareness of Risky Situations: Raise crew awareness about the potential dangers, such as fuel incompatibility, pump scuffing, and the consequences of non-compliance.
• Staying Updated: Ensure the crew is kept abreast of any amendments to Fuel Oil Management regulations, changeover procedures, and new fuel types or technologies.
• Toolbox Meetings: Utilise resources like sample toolbox meeting guides (e.g., from SQE) to facilitate discussions and reinforce best practices onboard.

A well-trained and vigilant crew is the best safeguard against operational errors and regulatory breaches during this critical procedure.

Comparative Overview: HSFO vs. LSFO Changeover

To highlight the nuances, let's look at a simplified comparison of key considerations during a changeover:

Frequently Asked Questions About Fuel Oil Changeover

What is an Emission Control Area (ECA)?

An ECA is a designated sea area where stricter limits are applied to nitrogen oxides (NOx), sulphur oxides (SOx), and particulate matter emissions from ships. Vessels operating within these areas must use compliant low-sulphur fuels.

Why is it necessary to change fuel oil?

It's necessary to change fuel oil to comply with international and local environmental regulations, specifically MARPOL Annex VI, which limits sulphur emissions from ships operating in ECAs. This helps reduce air pollution and protect public health.

What happens if I don't change over to compliant fuel in an ECA?

Failure to change over to compliant fuel in an ECA can result in severe penalties, including substantial fines, detention of the vessel by Port State Control, and damage to the shipping company's reputation. It also contributes to environmental pollution.

How long does a fuel oil changeover typically take?

The duration of a fuel oil changeover varies depending on the vessel's size, engine type, fuel system complexity, and the sulphur differential between the fuels. It can range from a few hours to a full day or more, with most procedures requiring several hours of gradual transition.

Can I mix different fuel oils in my tanks?

Mixing fuels with different sulphur content and properties is generally not recommended due to the risk of incompatibility. This can lead to sludge formation, filter clogging, and potential engine damage. Proper flushing and segregation of fuels are crucial during changeover.

What is an LSF calculator and how is it used?

An LSF (Low Sulphur Fuel) calculator is a tool used on modern ships to calculate the precise time when the fuel oil changeover procedure should commence. It considers factors like the vessel's speed, fuel consumption, and the distance to the ECA boundary to ensure compliance upon entry.

What records must be kept during a changeover?

Detailed records must be kept in the Oil Record Book (ORB) and Engine Logbook. This includes the date, time, and position (start and completion) of the changeover, the types of fuels involved, and any operational parameters or incidents.

Conclusion

The fuel oil changeover procedure, particularly when entering or leaving Emission Control Areas, is a critical operation demanding precision, vigilance, and strict adherence to established protocols. From understanding the nuances of fuel incompatibility and the impact of sulphur levels on changeover timing, to meticulously following the steps for main and auxiliary engine transitions, every detail counts. The potential dangers, ranging from mechanical failure to severe regulatory penalties, underscore the importance of robust crew training and diligent record keeping. By embracing best practices and fostering a culture of continuous learning and compliance, maritime operators can ensure safe, efficient, and environmentally responsible operations, safeguarding their vessels, their crews, and our planet.
