Understanding Your Oil Filter Pressure Switch

The Unsung Hero: Your Oil Filter Pressure Switch

In the intricate world of automotive mechanics, certain components operate diligently behind the scenes, playing a crucial role in the health and longevity of your vehicle. One such component is the oil filter pressure switch. While it might not be as glamorous as a roaring engine or sleek alloy wheels, its function is paramount. This small but mighty device acts as a guardian, constantly monitoring the oil pressure within your engine's lubrication system, specifically in relation to the oil filter. Its primary purpose is to alert you when the oil filter is becoming clogged and restricting oil flow, thereby signalling that it's time for essential maintenance. Ignoring the message from this switch can lead to serious engine damage, making it a key player in ensuring your vehicle stays on the road and out of the repair shop.

What Exactly is an Oil Filter Pressure Switch?

At its core, an oil filter pressure switch is a sensor designed to measure the pressure differential across the oil filter. As oil passes through the filter medium, it encounters resistance. This resistance increases as the filter collects more contaminants and becomes progressively clogged. The oil filter pressure switch is strategically placed to detect this change. When the pressure on the 'dirty' side of the filter (before it) becomes significantly higher than the pressure on the 'clean' side (after it), it indicates that the filter is struggling to allow oil to pass through. The switch is calibrated to activate when this pressure difference reaches a pre-determined threshold. Upon activation, it typically sends a signal to your dashboard warning light, or in more advanced systems, it might trigger a notification on a digital display.

How Does it Work? The Mechanics Behind the Monitor

The operation of an oil filter pressure switch is based on a simple yet effective mechanical principle. It usually consists of a diaphragm or a spring-loaded plunger that is sensitive to pressure changes. Here's a breakdown of the process:

• Normal Operation: When the oil filter is clean, the resistance to oil flow is minimal. The pressure before and after the filter is relatively similar. The diaphragm or plunger within the switch remains in its resting position, and no signal is sent.
• Clogging Filter: As the oil filter accumulates debris, the filter medium becomes denser, and the passages for oil flow narrow. This creates a higher pressure upstream of the filter and a lower pressure downstream.
• Pressure Differential: The oil filter pressure switch is designed to respond to this pressure differential. When the pressure difference across the filter exceeds a set limit (e.g., 12 PSI), it signifies a problem.
• Switch Activation: This pressure differential forces the diaphragm or plunger to move, engaging a set of electrical contacts.
• Warning Signal: The closure of these contacts completes an electrical circuit, illuminating the oil warning light on your dashboard or triggering another alert. This is your cue that the oil filter needs attention.

It's important to note that some systems may also incorporate a bypass valve within the oil filter assembly. This valve is designed to open if the pressure differential becomes too extreme, allowing unfiltered oil to bypass the filter and continue lubricating the engine. While this prevents oil starvation, it means that dirty oil is circulating, which can accelerate engine wear. The pressure switch's role is to alert you to this situation before the bypass valve is forced to open for extended periods.

Why is Monitoring Oil Filter Pressure Crucial?

Regular monitoring of oil filter pressure, facilitated by the pressure switch, is vital for several reasons:

Preventing Engine Damage

The most critical function of the oil filter pressure switch is to prevent catastrophic engine damage. A clogged oil filter severely restricts the flow of lubricating oil to vital engine components such as bearings, camshafts, and pistons. Insufficient lubrication leads to increased friction, overheating, and ultimately, component seizure. The pressure switch acts as an early warning system, giving you the opportunity to replace the filter before this damage occurs.

Optimising Lubrication Efficiency

Clean oil is essential for effective lubrication. A dirty or clogged filter not only restricts flow but can also compromise the quality of the oil reaching the engine. By ensuring your oil filter is replaced at the recommended intervals, you guarantee that your engine is receiving clean, properly filtered oil, which is crucial for maintaining optimal performance and reducing wear.

Adhering to Maintenance Schedules

Vehicle manufacturers specify regular oil and filter changes as part of their recommended maintenance schedule. The oil filter pressure switch can serve as a reliable indicator, complementing these schedules. While following the manufacturer's mileage or time intervals is important, the pressure switch provides real-time feedback on the filter's condition, allowing for adjustments if operating conditions cause the filter to clog prematurely.

Understanding Oil Pressure Variations

The information provided in the detailed technical document highlights how oil pressure itself can vary. Factors like engine temperature, RPM, and the viscosity of the oil all play a role. For instance, cold oil is thicker and creates more resistance, potentially leading to higher initial pressure readings or even activating the bypass valve and, consequently, the pressure switch if the filter is already partially clogged. Conversely, hot oil is thinner, resulting in lower pressure. The oil pressure switch is designed to account for these normal variations, triggering only when the differential pressure indicates a problem with the filter itself, rather than just a general drop in oil pressure.

Common Issues Related to Oil Filter Pressure Switches

Like any automotive component, oil filter pressure switches can experience issues:

Faulty Switch

The switch itself can fail. This can manifest in a few ways:

• Failure to Activate: A faulty switch might not detect the pressure differential, meaning the warning light will not illuminate even when the oil filter is severely clogged. This is the most dangerous failure mode.
• False Activation: In some cases, the switch might trigger the warning light erratically or when there is no actual issue with the oil filter. This can be due to internal wear or damage to the switch's diaphragm or contacts.

Wiring Issues

The electrical connection to the switch can also be a point of failure. Corroded connectors, damaged wiring, or loose connections can interrupt the signal, preventing the warning light from functioning correctly.

Incorrect Installation

If the switch has been replaced, incorrect installation, such as over-tightening (which can damage the internal components) or improper sealing, can lead to malfunction.

Maintenance and Replacement

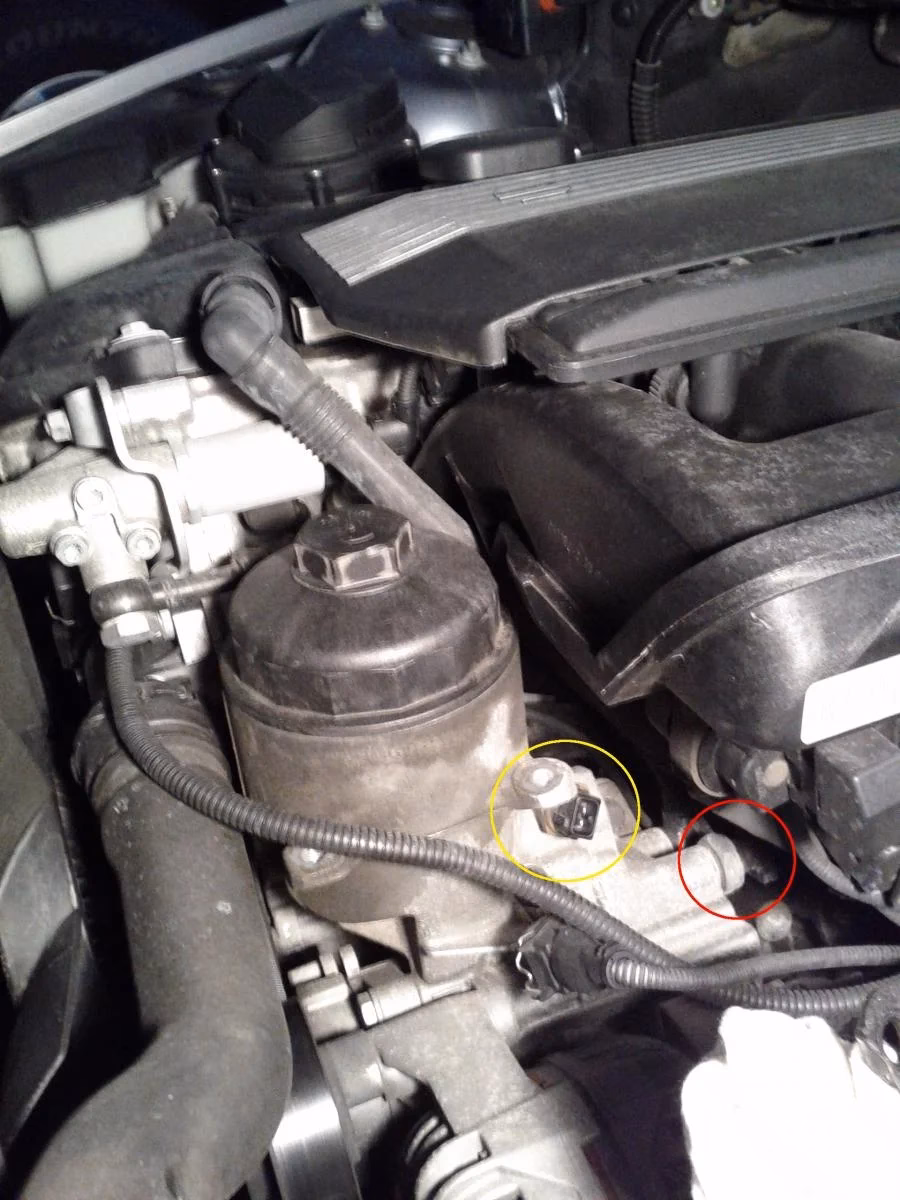

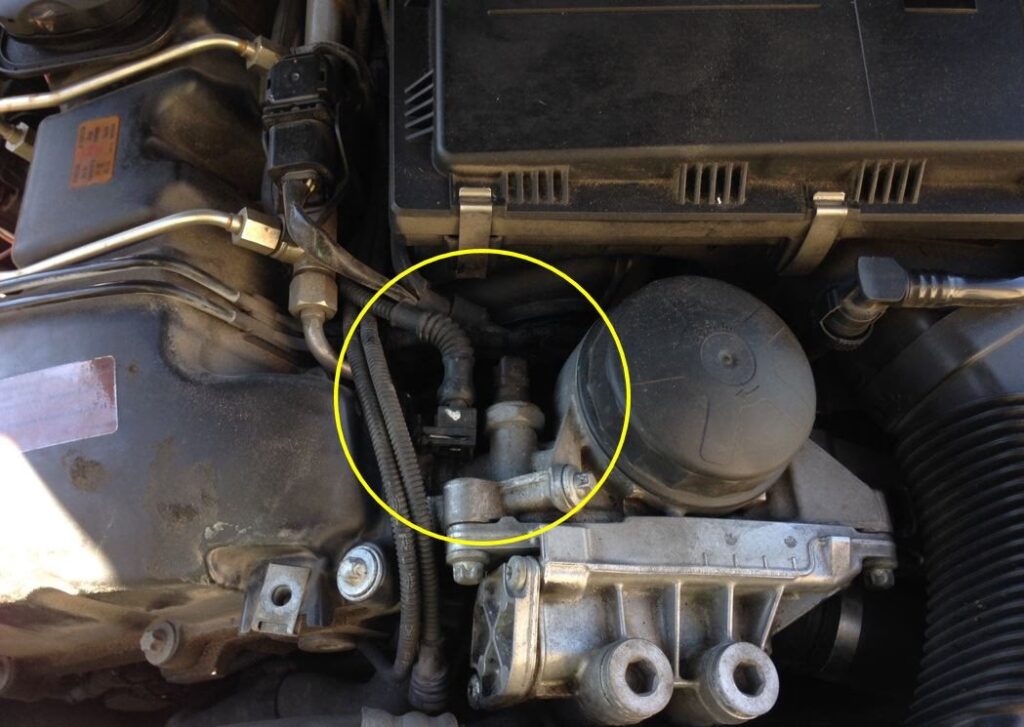

Replacing an oil filter pressure switch is generally a straightforward process, though it does require some mechanical aptitude. It's typically located near the oil filter housing or on the oil filter adapter itself. The process usually involves:

1. Safety First: Ensure the engine is cool and the vehicle is safely supported if access requires lifting.
2. Disconnect Battery: Always disconnect the negative battery terminal before working on electrical components.
3. Locate the Switch: Identify the oil filter pressure switch.
4. Remove Old Switch: Carefully unscrew the old switch using an appropriate wrench. Be prepared for a small amount of residual oil to escape.
5. Install New Switch: Apply thread sealant (if recommended by the manufacturer) to the threads of the new switch and screw it into place. Tighten to the manufacturer's specified torque – over-tightening can damage the switch.
6. Reconnect Wiring: Reconnect the electrical connector to the new switch.
7. Reconnect Battery: Reconnect the battery terminal.
8. Test: Start the engine and check for any leaks. The oil warning light should illuminate when the ignition is turned on and then go out shortly after the engine starts.

It's often recommended to replace the oil filter at the same time you replace the pressure switch, ensuring a complete refresh of your lubrication system's monitoring and filtering components.

Frequently Asked Questions (FAQs)

Q1: What happens if the oil filter pressure switch fails?

If the switch fails in a way that it no longer signals a problem, you might continue driving with a clogged oil filter, leading to restricted oil flow and potential engine damage. If it fails by falsely triggering, it can lead to unnecessary filter replacements.

Q2: Can I drive my car if the oil filter pressure warning light comes on?

It is strongly advised not to drive your vehicle if the oil filter pressure warning light (or a general oil pressure light) is illuminated. This indicates a critical issue with oil circulation. Continuing to drive could cause severe and irreversible engine damage. It's best to pull over safely, turn off the engine, and have the vehicle inspected immediately.

Q3: How often should I replace my oil filter pressure switch?

Unlike oil filters, which have a regular replacement interval, oil filter pressure switches are generally replaced only when they fail or if they are part of a larger diagnostic process for oil pressure issues. However, if you are performing extensive engine work or rebuilding, it's often a good preventative measure to replace it.

Q4: Is the oil filter pressure switch the same as the oil pressure sending unit?

No, they are different. An oil pressure sending unit typically measures the absolute oil pressure in the system and sends a reading to the gauge or a low-pressure warning light. The oil filter pressure switch, as discussed, specifically monitors the pressure difference across the oil filter to indicate filter blockage.

Q5: What is the typical torque specification for an oil filter pressure switch?

Torque specifications can vary by manufacturer and switch type. However, they are typically low, often in the range of 5-7 ft-lbs or similar low values. Always consult your vehicle's service manual for the precise torque specification to avoid damaging the switch or its threads.

Conclusion

The oil filter pressure switch, though often overlooked, is an indispensable component in maintaining the health of your vehicle's engine. By diligently monitoring the pressure differential across the oil filter, it provides a critical early warning of potential blockages, safeguarding your engine from the detrimental effects of restricted oil flow. Understanding its function, recognizing its warning signals, and ensuring its proper operation are key aspects of proactive vehicle maintenance. Regularly replacing your oil filter as per your manufacturer's recommendations, and being aware of the role this small switch plays, will contribute significantly to the longevity and performance of your engine.
