Understanding and Resolving Oil Clogging in Water-Cooled Screw Chillers

Water-cooled screw chillers are vital components in many industrial and commercial cooling systems. When they malfunction, it can lead to significant downtime and financial losses. One of the most prevalent and disruptive issues is oil clogging within the system. This problem, if left unaddressed, can severely impair the chiller's efficiency and lead to more catastrophic failures. This article delves into the intricacies of oil clogging, its root causes, the detrimental effects it has on your chiller, and provides comprehensive solutions for its rectification.

The Core of the Problem: Oil Clogging Explained

Oil clogging in a chiller system occurs when excessive refrigerant oil circulates beyond its intended path, leading to blockages in critical components. Refrigerant oil is essential for lubricating the compressor's moving parts, but its presence in the refrigerant circuit beyond a minimal amount can be detrimental. When oil accumulates in places it shouldn't, it impedes the flow of refrigerant, reducing the system's cooling capacity and overall efficiency.

Primary Causes of Oil Clogging

Several factors can contribute to the build-up of excess oil in your chiller:

• Compressor Wear: A worn compressor cylinder body or excessive clearance between the cylinder and piston is a primary culprit. As these components wear, more oil is discharged with the refrigerant. This oil, being more viscous than the refrigerant, can easily get trapped in the filter drier.
• Excessive Refrigerant Oil Charge: If the system is initially overcharged with refrigerant oil, it naturally leads to a higher probability of oil circulating into unwanted areas.
• Inefficient Oil Separation: While oil separators are designed to return oil to the compressor, they can become less efficient over time, allowing more oil to enter the general refrigerant circuit.

The Detrimental Effects of Oil Film Buildup

The presence of an oil film on heat exchanger surfaces has a significant negative impact on chiller performance. This film acts as an insulator, hindering efficient heat transfer:

As you can see from the table above, even a thin film of oil can drastically reduce the chiller's efficiency, leading to higher energy bills and reduced cooling output. This is because the oil film increases the condensing temperature and decreases the evaporating temperature, forcing the compressor to work harder.

Troubleshooting and Rectifying Oil Clogging

Addressing oil clogging requires a systematic approach:

1. Filter Drier Replacement: The most immediate step is to replace the clogged filter drier with a new one. This removes the immediate blockage and any desiccant that may have become saturated with oil.
2. Condenser Flushing: To remove accumulated oil from the condenser, high-pressure nitrogen gas is often used. For more stubborn oil deposits, applying heat to the condenser using an electric hair dryer during the nitrogen flush can significantly improve the removal process. This helps to vaporise and dislodge the oil.
3. Oil Separator Installation/Maintenance: To prevent future oil clogging, installing a high-efficiency oil separator is highly recommended. Regular maintenance and cleaning of existing oil separators are also crucial to ensure optimal performance.
4. Nitrogen Flushes: If an oil film has already formed within the system's pipelines, multiple nitrogen flushes are necessary. Continue flushing until no oil mist is visible in the expelled gas.

Other Clogging Issues to Consider

While oil clogging is a significant concern, it's not the only type of blockage that can affect your chiller. Two other common culprits are ice blockages and dirty blockages.

1. Ice Blockages

Ice blockages occur when excessive moisture is present in the chiller system. This moisture can originate from:

• Inadequate drying of system components and piping during installation.
• Moisture-laden refrigerant oil or refrigerant.
• Improper installation procedures, such as failing to evacuate the system adequately.
• Moisture trapped within the compressor's motor insulation.

Manifestations of Ice Jams:

• Gradual weakening or complete cessation of airflow.
• A drop in refrigerant circuit operation, leading to a cooler condenser.
• Increased discharge pressure and operational noise due to the blockage.
• No refrigerant flow in the evaporator, resulting in a shrinking frost area and reduced cooling.
• Temporary restoration of cooling after the unit has been shut down, as the ice melts.
• Intermittent blocking and unblocking cycles as ice forms and melts.

Resolving Ice Blockages:

The solution lies in thoroughly drying the entire refrigeration system. This typically involves:

• Evacuating the system to remove moisture.
• Replacing the filter drier.
• Monitoring the moisture indicator; it should turn green, signifying an acceptable moisture level.
• If significant water is present, sectional nitrogen flushing, filter replacement, refrigerant oil change, refrigerant replacement, and subsequent evacuation are necessary until the moisture indicator shows green.

2. Dirty Blockages

Dirty blockages happen when impurities obstruct the flow of refrigerant. This can lead to:

• Continuous compressor operation without effective cooling.
• An evaporator that is not cold and a condenser that is not hot.
• The compressor housing remaining cool to the touch.
• Absence of airflow sound from the evaporator.

Primary Causes of Dirty Blockages:

• Dust and metal shavings introduced during construction and installation.
• Oxide layers from pipe welding that break off.
• Contamination from uncleaned components or poorly sealed pipes.
• Impurities in the refrigerant oil and refrigerant, or poor-quality desiccant in the filter drier.
• A short distance between the capillary tube and the filter in the filter drier, making it susceptible to blockage.

Performance After Dirty Blockages:

• Partial clogging may result in a cool sensation in the evaporator without frost.
• Touching the outer surface of the filter drier or choke mechanism might reveal a cool feeling, potentially with frost.
• The evaporator fails to cool, the condenser remains unheated, and the compressor housing is not warm.

How to Solve Dirty Blockages:

Dirty blockages are commonly found in the filter drier, choke mechanism filters, and suction filters. While the choke and suction filters can often be cleaned, the filter drier typically requires replacement. Following replacement, a leak test and vacuum evacuation of the system are essential.

General Chiller Troubleshooting Tips

Troubleshooting chiller issues can be complex, and it's often best left to qualified professionals due to the high cost and potential danger involved. However, understanding common problems can help in diagnosing issues:

• Compressor Not Turning On: Check the power switch, circuit breaker/fuses, compressor overload, wiring connections, thermostat settings (especially in low ambient temperatures), line voltage, and phase connections (for 3-phase units).
• Pump Not Running: Inspect process valves for closure, check for pump failure, refrigerant shortage, fluctuating line voltage, low fluid levels in the reservoir, and blocked fluid filters.
• No Cooling: Investigate line voltage fluctuations, clogged air filters or condensers, refrigerant leaks, high ambient temperatures, and iced-up evaporators.
• High Discharge Pressure: Consider dirty condenser coils/tubes, low airflow over the condenser, reduced water flow through the condenser, high return condenser water temperature, partially closed discharge valves, high ambient temperatures, or refrigerant overcharge.
• Low Discharge Pressure: Look for dirty or obstructed evaporators, refrigerant undercharge, low ambient temperatures, or partially closed suction valves.

The Importance of Regular Maintenance

Regular preventative maintenance is the most effective strategy for avoiding issues like oil clogging, ice blockages, and dirty blockages. This includes:

• Scheduled cleaning of condenser and evaporator coils.
• Regular replacement of filter driers.
• Checking and maintaining oil levels and the efficiency of oil separators.
• Performing system evacuation and leak testing as part of routine servicing.

By proactively addressing potential problems and adhering to a strict maintenance schedule, you can ensure the longevity and optimal performance of your water-cooled screw chiller, preventing costly breakdowns and maintaining efficient operation.

Frequently Asked Questions (FAQs)

Q1: How often should I replace the filter drier in my chiller?
A1: The frequency of filter drier replacement depends on the operating conditions and the presence of moisture or contaminants. However, it is generally recommended to replace it during scheduled maintenance or if the moisture indicator shows signs of saturation.

Q2: Can I use a regular vacuum cleaner to clean chiller components?
A2: No, never use a regular vacuum cleaner. Specialised tools and techniques, often involving nitrogen flushing, are required for cleaning chiller components to avoid introducing contaminants or damaging sensitive parts.

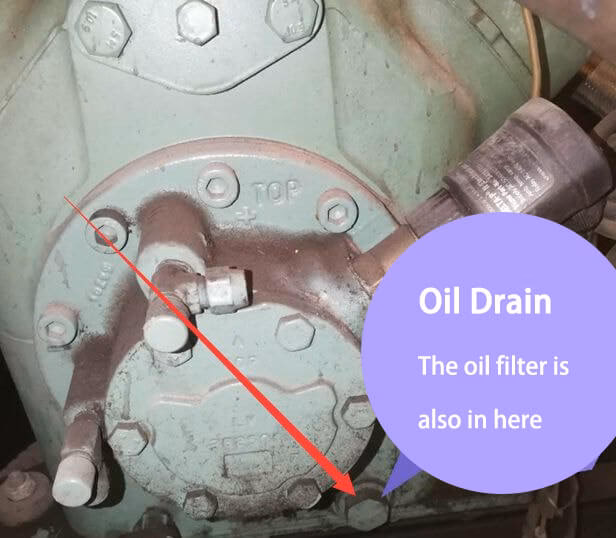

Q3: What is differential pressure in a compressor, and why is it important?
A3: Differential pressure is the difference between the discharge pressure and the suction pressure of the compressor. It's a key indicator of the compressor's health. A significantly low differential pressure can suggest internal leaks within the compressor, such as between the discharge plate and the bearing housing, indicating wear and potential failure.

Q4: My chiller is making unusual noises. What could be the cause?
A4: Unusual noises can stem from various issues, including loose parts, fan and belt vibrations, worn bearings, or tube vibrations. It's crucial to have these investigated by a qualified technician.

Q5: What are the signs of refrigerant leaking in my chiller?
A5: Signs of refrigerant leaks can include a gradual decrease in cooling performance, the compressor running continuously, or low-voltage alarms if the leak affects system pressure significantly. A thorough leak detection test is required for confirmation.
