Understanding the Oil Suction Gun

In the world of automotive maintenance, precision and efficiency are key. Whether you're a seasoned mechanic or a DIY enthusiast, having the right tools can make all the difference. One such tool that often goes unrecognised but plays a crucial role in fluid management is the oil suction gun. This handy device is designed to simplify the often messy task of extracting and transferring oil and other automotive fluids, making it a valuable addition to any toolkit.

What Exactly is an Oil Suction Gun?

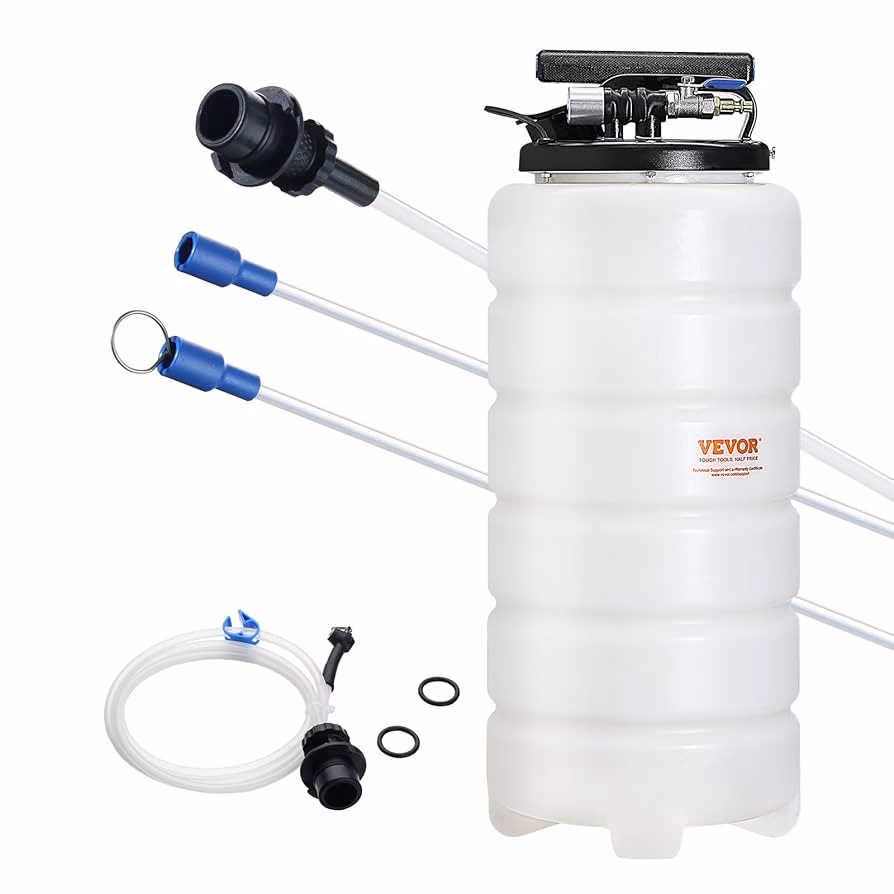

An oil suction gun, also known as an oil extractor or fluid transfer pump, is a manual or powered device used to draw oil or other liquids out of tight or inaccessible spaces within a vehicle. Its primary function is to remove used engine oil, gearbox oil, differential oil, or even coolant without the need to drain the entire system from the bottom. This is particularly useful in situations where the drain plug is difficult to access or has been damaged.

These guns typically consist of a cylinder with a plunger or piston, a hose or tube that is inserted into the fluid, and a spout or nozzle for dispensing the extracted fluid. The basic principle of operation relies on creating a vacuum to draw the fluid into the cylinder. When the plunger is pulled back, it creates a low-pressure area inside the cylinder, and the atmospheric pressure outside forces the fluid up the hose and into the cylinder.

How Does an Oil Suction Gun Work?

The operation of an oil suction gun is remarkably straightforward, relying on the principles of vacuum and displacement. Here's a breakdown of the typical process:

• Insertion: A flexible, narrow hose is inserted into the oil filler cap or dipstick tube, reaching down into the oil reservoir (e.g., the engine's oil pan).
• Creating Vacuum: The user operates a handle or trigger, which moves a piston within the gun's cylinder. Pulling the plunger back creates a vacuum inside the cylinder.
• Fluid Suction: The vacuum pulls the oil from the vehicle's reservoir, through the hose, and into the cylinder.
• Extraction: Once the cylinder is full, the user releases the suction mechanism and then operates a mechanism to expel the oil from the gun into a waste container or designated disposal unit. This is often achieved by pushing the plunger forward.
• Repetition: The process is repeated until the desired amount of fluid has been extracted.

Some advanced models may feature a built-in reservoir or a connection to a larger collection tank, allowing for greater volumes to be extracted in one go. The size and capacity of the gun can vary, with smaller units suitable for topping up fluids and larger ones designed for complete oil changes.

Types of Oil Suction Guns

While the fundamental principle remains the same, oil suction guns come in various forms to suit different needs and preferences:

Manual Suction Guns

These are the most common and affordable type. They are operated entirely by hand, typically using a plunger mechanism. They are lightweight, portable, and don't require any power source, making them ideal for occasional use or situations where electricity is not available. However, they can be more labour-intensive for larger jobs.

Pneumatic Suction Guns

These guns utilise compressed air to create the vacuum. They are connected to an air compressor and offer faster and more powerful suction than manual models. This makes them suitable for professional workshops or for those who frequently perform oil changes on multiple vehicles. They can extract fluids more quickly and efficiently.

Electric Suction Pumps

Powered by a vehicle's battery (usually 12V) or a mains power supply, electric suction pumps offer the convenience of automated operation. Simply connect the power, insert the hose, and switch it on. They are generally more powerful and faster than manual guns and are a good option for those who want a hassle-free solution for regular maintenance.

Key Features and Considerations

When choosing an oil suction gun, several factors should be considered to ensure it meets your requirements:

• Capacity: The volume of fluid the gun can hold per cycle. This ranges from small, handheld units holding a few hundred millilitres to larger pumps capable of extracting several litres at once.
• Hose Length and Diameter: Ensure the hose is long enough to reach the bottom of the oil pan and has a diameter small enough to fit through the dipstick tube or oil filler opening. Some kits come with multiple hose options.
• Material Quality: Look for durable materials that can withstand exposure to oil and other automotive fluids. Brass or stainless steel components are generally more robust.
• Ease of Use: Consider the ergonomics of the design, especially for manual models. A comfortable grip and smooth plunger action are important.
• Disposal: Think about how you will dispose of the used oil. Most suction guns are designed to dispense into standard waste oil containers.
• Versatility: Some suction guns can also be used for transferring other fluids like coolant, power steering fluid, or even saltwater from boats.

Advantages of Using an Oil Suction Gun

The oil suction gun offers several compelling benefits for vehicle owners and mechanics alike:

• Convenience: It eliminates the need to get under the vehicle or struggle with a potentially stubborn drain plug.
• Cleanliness: By extracting oil through the top, it significantly reduces the mess and drips associated with traditional draining methods.
• Accessibility: It's invaluable for vehicles where the drain plug is difficult or impossible to reach, or if the plug is stripped or damaged.
• Speed: For those performing frequent oil changes, especially with powered models, it can be a faster method than traditional draining.
• Precision: It allows for the controlled extraction of a specific amount of fluid, useful for tasks like topping up or precise fluid level adjustments.

When is an Oil Suction Gun Most Useful?

While an oil suction gun can be used for most engine oil changes, it truly shines in specific scenarios:

• Boats and Marine Engines: Many marine engines have dipstick tubes as the primary access point for oil changes.
• Generators and Small Engines: Smaller engines on lawnmowers, generators, and other equipment often have limited access to drain plugs.
• Classic Cars or Modified Vehicles: Vehicles with custom sumps or restricted undercarriage access can benefit greatly.
• Emergency Situations: If a drain plug is cross-threaded or seized, a suction gun provides an immediate alternative to draining the oil.
• Preventative Maintenance: For those who prefer to change their oil regularly and want to minimise mess and effort.

Comparison of Oil Suction Gun Types

To help you decide which type is best for you, here's a quick comparison:

Tips for Using Your Oil Suction Gun Effectively

To get the most out of your oil suction gun and ensure a smooth operation:

• Warm the Engine: Run the engine for a few minutes to warm the oil. Warm oil is less viscous and will flow more easily, making extraction quicker and more complete.
• Ensure Correct Hose Insertion: Make sure the hose is inserted past the oil level and reaches the bottom of the oil pan for maximum extraction. Avoid forcing the hose, which could damage the dipstick tube or oil pickup.
• Empty Regularly: Don't overfill the gun's cylinder. Empty it into a suitable waste container frequently to maintain suction efficiency.
• Proper Disposal: Used engine oil is a hazardous waste. Dispose of it responsibly at a designated recycling centre or auto parts store. Never pour it down drains or onto the ground.
• Clean After Use: Rinse the gun and hose with a suitable solvent (like brake cleaner or degreaser) and allow it to dry thoroughly before storing. This prevents contamination and prolongs the life of the tool.

Frequently Asked Questions (FAQs)

Conclusion

An oil suction gun is a practical and efficient tool that can significantly simplify the process of changing engine oil and other automotive fluids. By understanding how it works and choosing the right type for your needs, you can perform maintenance tasks more cleanly and conveniently. Whether you opt for a simple manual model or a more powerful electric or pneumatic version, it's a worthwhile investment for any car owner looking to take control of their vehicle's upkeep.
