Mastering Kranzle K7/K10 Pressure Washer Servicing

Your Kranzle K7 or K10 pressure washer is a robust piece of equipment, built for demanding tasks, but even the most durable machines require regular attention to maintain their peak performance and longevity. Neglecting routine maintenance can lead to reduced efficiency, premature wear, and costly breakdowns. This comprehensive guide will walk you through the essential steps to service your Kranzle pressure washer, ensuring it continues to deliver powerful, reliable cleaning for years to come. Think of it as an investment in your machine's future, safeguarding its powerful output and extending its operational life significantly.

Essential General Service Steps for Your Kranzle

Before you even think about changing the oil, a thorough general service of your pressure washer is crucial. This involves ensuring the water pathway is clear, clean, and free from leaks, which is fundamental to the unit's efficient operation and the longevity of its internal components.

1. Draining the Water from the System

The first step in any proper service is to remove all residual water from the system. This is especially important if the pressure washer will be stored in a cold environment where water could freeze and cause significant internal damage. Freezing water expands, and in the confined spaces of a pump, this can lead to cracked housings and irreparable damage.

• Procedure: Begin by attaching a standard garden hose to the drain valve, typically located at the lowest point of the pressure washer's pump unit. Once the hose is securely attached, open the drain valve fully. Allow ample time for all the water to drain out completely. You might need to tilt the machine slightly to ensure every last drop is expelled. This step ensures that no standing water remains to foster algae growth or, more critically, to freeze.

2. Flushing the System Thoroughly

After draining, flushing the system is vital to remove any lingering debris, sediment, or chemical residues that may have accumulated during use. Over time, even filtered water can leave deposits, and if you use your pressure washer with detergents or other cleaning solutions, residues can build up and potentially corrode internal components or clog nozzles.

• Procedure: Once the system is empty of old water, connect a fresh garden hose to the inlet valve of the pressure washer. Turn on the water supply at a moderate pressure. Allow the water to run through the system for several minutes. Observe the water as it exits; it should eventually run clear, indicating that any contaminants have been flushed out. This process ensures a clean internal environment for the fresh water supply.

3. Replacing the Inlet Filter

The inlet filter is your pressure washer's first line of defence against impurities in the water supply. It prevents grit, sand, and other particulate matter from entering the pump, where they could cause abrasive wear to delicate seals and pistons. A clogged or damaged filter can restrict water flow, leading to reduced performance and increased strain on the pump.

• Location and Removal: The inlet filter is typically found within or attached to the inlet valve where your garden hose connects. Carefully unscrew or unclip the housing that contains the filter.
• Inspection and Replacement: Remove the old filter. Inspect it for any visible dirt, debris, or tears. Even if it looks relatively clean, it's good practice to replace it annually, or more frequently if you often use unfiltered water sources. Insert a new, genuine Kranzle inlet filter, ensuring it seats correctly to provide an effective seal.

4. Checking and Replacing Seals

Seals are critical components that prevent water and oil leaks within the pump, maintaining the necessary pressure for effective cleaning. Over time, seals can harden, crack, or wear down due to friction, high pressure, and exposure to water and chemicals. Worn seals are a common cause of pressure loss and visible leaks.

• Inspection: Carefully inspect all visible seals on the pump unit, hose connections, and any other moving parts. Look for signs of cracking, hardening, deformation, or any obvious leaks when the machine is under pressure. Pay particular attention to the high-pressure seals and O-rings.
• Replacement: If any seals show signs of wear or damage, they absolutely must be replaced. Refer to your Kranzle K7 or K10 manual for specific seal locations and part numbers. Using genuine Kranzle replacement seals is highly recommended to ensure proper fit and material compatibility. This step is crucial for maintaining the high pressure output and preventing internal pump damage.

5. Lubricating Moving Parts

Proper lubrication reduces friction and wear, ensuring smooth operation and extending the lifespan of mechanical components. For a pressure washer, this primarily involves the pump's moving parts and hose connections.

• Recommended Lubricant: Use a high-quality, water-resistant silicone grease. Silicone grease is ideal because it's safe for rubber and plastic components (like O-rings and seals) and provides excellent water repellency, which is essential in a wet environment.
• Application: Apply a thin, even layer of grease to the pump's plungers (if accessible), the threads of hose connections, and any quick-connect fittings. This prevents seizing, makes connections easier to secure, and provides an additional barrier against water ingress. Do not over-lubricate, as excess grease can attract dirt.

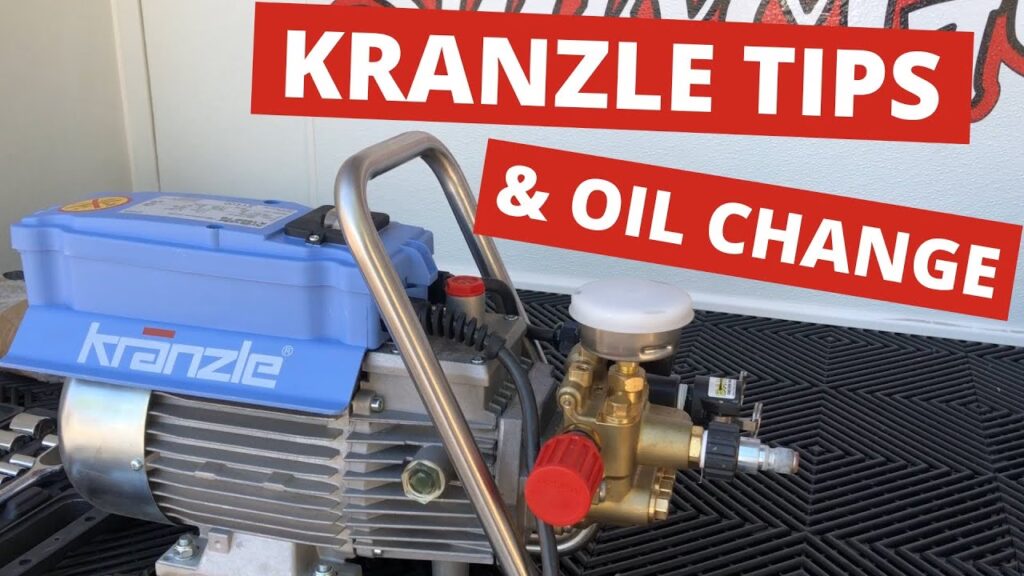

Changing the Oil on Your Kranzle K7 or K10

The oil in your Kranzle pressure washer lubricates the pump's crankcase, protecting the pistons, connecting rods, and bearings from friction and heat. Over time, this oil degrades and can become contaminated with microscopic metallic particles from normal wear. Regular oil changes are paramount to prevent premature wear and ensure the smooth, efficient operation of the pump.

1. Locating the Oil Drain Plug

The oil drain plug is specifically designed for easy oil removal and is strategically placed to allow for complete drainage.

• Location: The oil drain plug is typically found on the bottom of the pressure washer, usually near the base of the pump unit. It's often a hexagonal bolt, sometimes slightly recessed.

2. Preparing for Oil Drainage

This step is crucial to ensure a clean and contained oil change, preventing spills and making cleanup easier.

• Drain Pan: Position a suitable drain pan directly underneath the oil drain plug. Ensure the pan is large enough to contain the entire volume of old oil. For Kranzle K7/K10 models, a container larger than 1 litre is recommended to be safe.

3. Removing the Red Oil Filler Cap

Removing the filler cap allows air to enter the crankcase, facilitating a smoother and more complete drainage of the old oil. Without removing it, a vacuum can form, making drainage slow and incomplete.

• Procedure: Locate the red plastic oil filler cap on the top of the pump unit. Use an appropriately sized spanner or socket to carefully loosen and remove it. Exercise caution here; as it's made of plastic, excessive force can easily strip or crack it. Gentle, firm pressure is all that's needed.

4. Removing the Oil Drain Plug and Draining

This is where the old, degraded oil is finally removed from the system.

• Procedure: Using a wrench or socket that fits the drain plug, loosen and remove it. Allow the old oil to drain out completely into your prepared drain pan. This can take several minutes.
• Inspect and Clean Magnetic Plug: Kranzle models often feature a magnetic drain plug. As the oil drains, inspect the end of the plug for any metallic debris. A small amount of fine, grey paste is normal wear; however, larger shavings or chunks indicate a more significant internal issue. Clean the magnetic plug thoroughly with a rag before re-installation. This magnet helps to collect wear particles, preventing them from circulating within the pump.

5. Cleaning and Replacing the Clear Plastic Oil Viewer

The oil viewing window allows you to quickly check the oil level without opening the pump. It's important to keep it clean and properly sealed.

• Removal and Cleaning: Carefully remove the clear plastic oil viewer located on the side of the machine. Be extremely gentle as it is plastic and can be easily damaged or scratched. Clean both sides of the viewer thoroughly with a clean, lint-free cloth.
• Re-installation: Once clean, re-insert the viewer into its housing. Again, be very careful not to overtighten it, as this can crack the plastic or damage the O-ring, leading to leaks. It should be snug, but not strained.

6. Adding New Oil

The type and amount of oil are critical for proper lubrication and preventing damage.

• Oil Type: Use only high-quality synthetic 10W-40 motor oil. Synthetic oil offers superior protection across a wider temperature range and lasts longer than conventional oil.
• Filling Procedure: Once the old oil has completely drained and the drain plug has been securely replaced, begin adding the new oil slowly through the top filler cap opening.
• Monitoring Level: Fill the machine until the oil level is visible at the top of the viewing window. It's crucial not to overfill, as this can create excessive pressure within the crankcase, leading to seal damage and leaks. Fill slowly and check the viewing window frequently.

7. Running the Machine and Final Check

A final check confirms the oil level is correct after the oil has circulated throughout the pump.

• Run Time: Run the pressure washer briefly (a minute or two) to allow the new oil to circulate and settle within the pump.
• Final Level Check: Turn off the machine, wait a few minutes for the oil to settle, and then re-check the oil level using the clear oil level indicator. Add more oil as needed until the level is precisely at the recommended mark (typically the top of the viewing window). Securely replace the red oil filler cap.

Why Regular Servicing Matters: The Benefits

Investing time in regular servicing offers a multitude of benefits that far outweigh the effort involved:

• Extended Lifespan: Routine maintenance, particularly oil changes and seal checks, significantly reduces wear and tear on critical components, vastly extending the operational life of your Kranzle pressure washer. This means less frequent need for costly replacements.
• Optimised Performance: A well-maintained machine operates at its peak efficiency. Clean filters ensure optimal water flow, correctly lubricated parts reduce friction, and fresh oil provides superior protection, all contributing to consistent high pressure and effective cleaning.
• Preventative Measures: Servicing allows you to identify and address minor issues (like a slightly worn seal) before they escalate into major, expensive repairs (like pump damage due to a severe leak). It's always cheaper to replace a seal than an entire pump.
• Reliability: Knowing your machine is in top condition provides peace of mind. You can rely on your Kranzle to start and perform flawlessly whenever you need it, avoiding frustrating breakdowns mid-job.
• Safety: Leaking seals or compromised components can pose safety risks. Regular checks ensure all parts are in good working order, contributing to safer operation.

Tools Required for Servicing

Having the right tools on hand makes the servicing process much smoother and more efficient. Here's a list of what you'll likely need:

• Garden hose (for flushing)
• Drain pan (larger than 1 litre capacity)
• Wrench or socket set (for oil drain plug and filler cap)
• Clean rags or shop towels
• New Kranzle inlet filter (specific to K7/K10)
• Replacement seals and O-rings (as needed)
• High-quality silicone grease
• Synthetic 10W-40 motor oil (sufficient quantity)
• Funnel (for adding new oil, makes it much easier to avoid spills)
• Gloves (for protection)

Safety Precautions During Servicing

Safety should always be your top priority when working with machinery, especially pressure washers.

• Disconnect Power: Always ensure the pressure washer is unplugged from the mains power supply before performing any service or maintenance.
• Release Pressure: Before working on any water-related components, ensure all residual pressure has been released from the system by squeezing the trigger gun until water stops flowing.
• Wear PPE: Wear appropriate personal protective equipment, including safety glasses to protect your eyes from debris or splashes, and gloves to protect your hands from oil or grease.
• Ventilation: When dealing with oil, ensure you are working in a well-ventilated area.
• Proper Disposal: Dispose of old oil and any contaminated rags responsibly according to local environmental regulations. Never pour oil down drains or onto the ground.

Common Questions About Kranzle K7/K10 Servicing

How often should I service my Kranzle K7 or K10 pressure washer?

General servicing (draining, flushing, filter/seal check) should ideally be done before and after extended periods of storage, or at least annually. The oil should be changed after the first 50 hours of operation, and then every 200-300 hours, or annually, whichever comes first. Refer to your specific Kranzle manual for precise manufacturer recommendations, as usage patterns can vary.

Can I use any 10W-40 motor oil for the oil change?

While 10W-40 is the correct viscosity, it is crucial to use a high-quality synthetic 10W-40 motor oil. Synthetic oils offer superior lubrication, thermal stability, and wear protection compared to conventional oils, which is vital for the demanding conditions inside a pressure washer pump. Avoid non-synthetic oils.

What happens if I don't change the oil?

Neglecting oil changes will lead to the oil degrading and losing its lubricating properties. This results in increased friction, accelerated wear on internal pump components (pistons, bearings, connecting rods), and eventually, catastrophic pump failure. This is often the most expensive repair for a pressure washer.

My pressure washer is leaking. Is it a seal issue?

Leaks are very commonly caused by worn or damaged seals and O-rings. If you observe water dripping from the pump unit or connections, it's highly likely a seal needs replacement. Address leaks promptly to prevent water from entering sensitive electrical components or causing further internal damage.

Where can I buy genuine Kranzle replacement parts?

Genuine Kranzle replacement parts, including inlet filters, seals, and specific lubricants, can typically be purchased from authorised Kranzle dealers, reputable online retailers specialising in pressure washer parts, or directly from Kranzle's official distributors in the UK. Using genuine parts ensures compatibility and maintains the machine's warranty.

Maintenance Checklist & Schedule for Kranzle K7/K10

By diligently following these steps and adhering to a regular maintenance schedule, you will not only extend the operational life of your Kranzle K7 or K10 pressure washer but also ensure it consistently delivers the powerful, reliable performance you expect. A little care goes a long way in keeping your valuable equipment in prime condition, ready for any cleaning challenge you throw its way.
