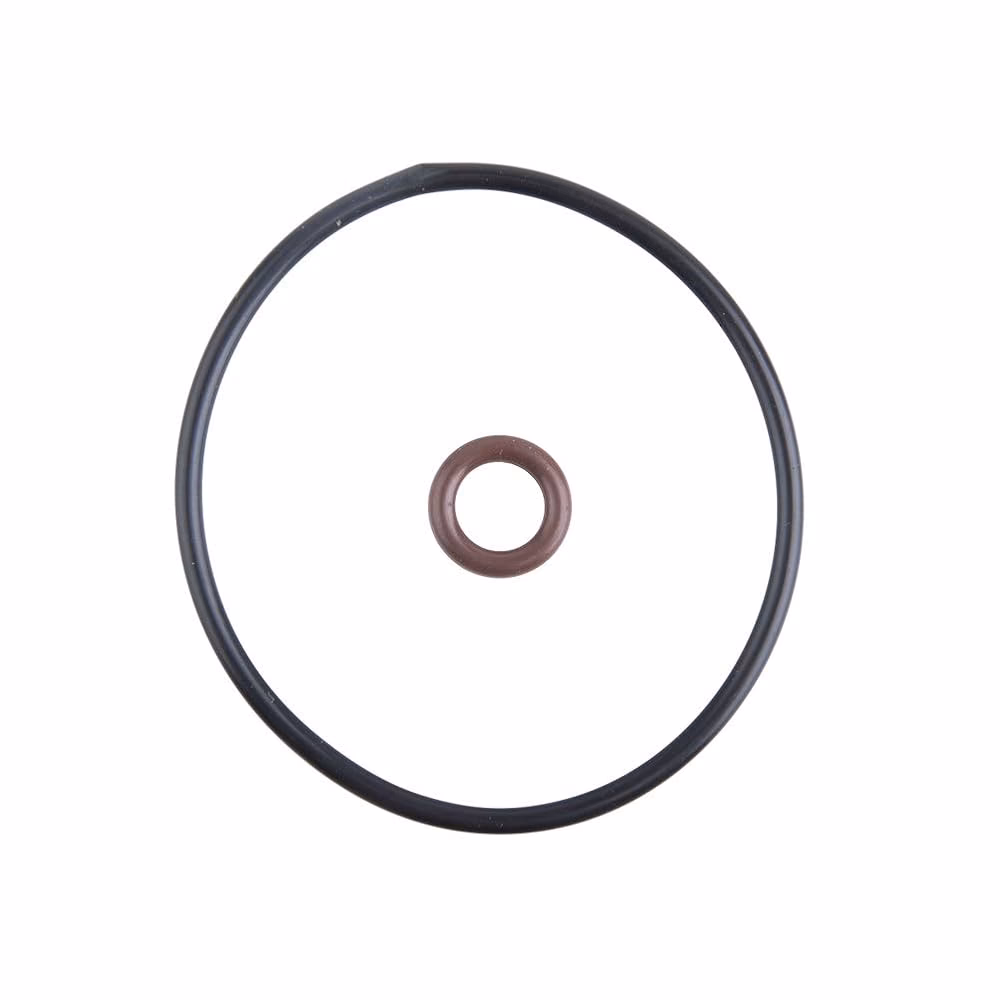

O-Ring Replacement: Your UK Maintenance Guide

O-rings are humble yet critical sealing components, indispensable in countless mechanical systems, from your car's engine to complex industrial machinery. Their primary role is to prevent the leakage of fluids and gases, ensuring that systems operate efficiently and safely. However, the effectiveness of an O-ring hinges entirely on its correct installation and, when necessary, its proper replacement. A poorly fitted or damaged O-ring can lead to significant fluid loss, system inefficiency, and potentially costly repairs. This comprehensive guide delves into the best practices for O-ring installation, replacement, and precise measurement, empowering you to maintain the integrity and efficiency of your automotive and mechanical systems.

Understanding the nuances of O-ring handling, from selection to final seating, is paramount. This article aims to equip you with the knowledge required to tackle O-ring tasks with confidence, ensuring a robust and leak-free seal every time. Whether you're a seasoned mechanic or a DIY enthusiast, mastering these techniques will safeguard your equipment and enhance its longevity.

Installing an O-Ring: The Foundation of a Leak-Free Seal

Proper O-ring installation is not merely about placing a rubber ring into a groove; it's a meticulous process that ensures optimal sealing of mechanical systems, effectively preventing fluids and gases from leaking out or entering unwanted areas. Executing each step carefully is crucial to avoid damaging the O-ring or compromising its performance. Here's a general overview of the installation process, broken down into critical stages:

Choosing the Right O-Ring Size and Material

The initial and perhaps most critical step is selecting an O-ring of the correct size and material. The O-ring must be chemically compatible with the fluid it will contact and physically compatible with the operating environment (e.g., temperature, pressure). Furthermore, the size must fit snugly into the designated groove without being stretched excessively or compressed too much. An undersized O-ring will stretch thin, losing its sealing capability, while an oversized one will be difficult to seat and may pinch, leading to immediate failure. Always consult material compatibility charts and application specifications to make an informed choice.

Cleaning the O-Ring and Groove

Before installation, both the O-ring and its groove must be impeccably clean. Any dirt, debris, or residual sealant from a previous installation can compromise the seal, creating pathways for leakage. Use a clean, lint-free cloth to thoroughly wipe the groove, ensuring it's free from particulate matter. Inspect the new O-ring for any manufacturing defects, debris, or damage. Even microscopic particles can create a leak path under pressure, so this step cannot be overlooked. A clean surface is fundamental for effective lubrication and proper seating.

Lubricating the O-Ring and Groove

Lubrication is a vital step often underestimated. Applying a compatible lubricant to both the O-ring and the groove allows the O-ring to slide smoothly into position without twisting, pinching, or tearing. This reduces installation force, minimises friction, and helps the O-ring seat correctly, ensuring an even seal around its entire circumference. We will discuss lubricant selection in more detail later, but remember: the lubricant must be compatible with both the O-ring material and the system fluid to prevent degradation of the O-ring over time.

Installing the O-Ring with Care

Once cleaned and lubricated, carefully place the O-ring into its groove. Ensure it sits snugly and evenly, without any twists or kinks. For challenging installations or when working with delicate O-rings, an O-ring pick tool can be invaluable. These tools are designed to manipulate the O-ring without causing damage. Gently guide the O-ring into its final position, ensuring it is uniformly stretched or compressed as required by the design. The goal is an even fit, allowing the O-ring to exert consistent sealing force when the system is assembled and pressurised.

O-Ring Replacement: Recognising the Need and Acting Decisively

Over time, O-rings are subject to wear, environmental degradation, and operational stress, which can lead to them becoming worn, cracked, or otherwise damaged. Such deterioration inevitably causes leaks and significantly reduces the effectiveness of the seal, potentially leading to system failure or reduced performance. Before undertaking a replacement, it's crucial to correctly determine if the O-ring needs replacing and understand the root cause of its malfunction.

Key indicators that an O-ring requires replacement include:

• Visible Damage: Cracks, voids, nicks, cuts, or abrasions on the O-ring's surface.
• Deformation: Flattening, swelling, or hardening of the O-ring, causing it to lose its original circular cross-section.
• Discoloration: Changes in colour, indicating chemical attack or excessive heat exposure.
• Loss of Elasticity: The O-ring feels brittle or has lost its ability to rebound when stretched or compressed.
• Leaking: Any sign of fluid leakage from the sealed joint is a definitive indicator of seal failure.

Once you've determined that a replacement is necessary, the next steps involve careful removal of the old O-ring and then, critically, the selection of an appropriately sized and material-compatible replacement.

Removing an O-Ring: Tools and Techniques for Undamaged Extraction

Removing an old, often brittle or stuck O-ring without damaging the surrounding components or the groove itself requires careful execution and the right tools. While some O-rings might be easily prised out, others require more finesse. The preferred tool for this task is an O-ring pick set.

O-ring picks typically consist of a long, slender shaft with a pointed or hooked end. They come in various shapes and sizes, allowing you to access and gently lift the O-ring from its groove. The key is to avoid using sharp, blunt, or metal tools like screwdrivers that can scratch or gouge the sealing surfaces, as this can create permanent leak paths even with a new O-ring installed. Instead, carefully insert the pick under the O-ring and gently lift it out. For stubborn O-rings, you may need to work around the circumference, gradually freeing it from the groove.

Precision in Measurement: Sizing Your O-Ring Correctly

An incorrectly sized O-ring is a common cause of seal failure. Whether it's too small and overstretched or too large and pinched, the wrong dimensions will compromise the seal's effectiveness and lead to leakage. O-rings are typically measured in millimetres, focusing on three key dimensions:

• Inner Diameter (ID): The distance across the inside of the O-ring.
• Outer Diameter (OD): The distance across the outside of the O-ring.
• Cross-Section (CS): The thickness of the O-ring itself.

These measurements can be taken using a precision ruler or, ideally, a set of calipers for greater accuracy. For a new O-ring, these dimensions are usually provided in its specification. For a used O-ring, especially one that may have deformed, measuring the groove dimensions can often provide a more reliable guide for the replacement size. As a rule of thumb for specifications like "NBR O-ring 5.7 X 1.9MM (OD 9.5MM)": the smallest dimension (1.9mm) is typically the cross-section, the largest (9.5mm) is the outer diameter, and the intermediate value (5.7mm) is the inner diameter. Accurate measurement is crucial for ensuring proper compression and fill within the groove, leading to a reliable and long-lasting seal.

Identifying O-Ring Materials: The Right Choice for the Job

Choosing the correct O-ring material for a replacement is as vital as selecting the right size. The material must be compatible with the application's operating conditions, including temperature, pressure, and, most importantly, the fluid it will be sealing. Using an incompatible material can lead to rapid degradation, swelling, shrinking, or hardening of the O-ring, resulting in premature seal failure. If the original material is unknown, several methods can help identify it:

The Rubber Indicator Test

This ingenious testing device, often used by professionals, helps identify the material type based on its elasticity and rebound properties. It comprises a tube containing a specific magnitude weight. The O-ring is placed on a stable, flat surface, and the weight is dropped onto it from a predetermined height. Upon impact, the O-ring will rebound, and the height of the first bounce corresponds to a specific material type, indicated by calibrated ranges on the device. For example, a higher bounce might indicate Ethylene Propylene (EPDM), followed by Nitrile (NBR), Kalrez, and finally Viton (FKM) for the lowest bounce. This method provides a quick, non-destructive way to narrow down material possibilities.

Seal Material Guides and Industry Standards

Another reliable approach is to consult a seal material guide or cross-reference chart. These guides list various sealing materials, such as NBR (Nitrile Butadiene Rubber), FKM (Fluoroelastomer, commonly known as Viton), and EPDM (Ethylene Propylene Diene Monomer), along with their advantages, disadvantages, and, critically, their compatibility with different media (e.g., oils, fuels, acids, water). Understanding the fluid in your system is paramount here. For instance, NBR is excellent for petroleum-based oils and fuels, FKM offers superior chemical and high-temperature resistance, while EPDM is ideal for brake fluids and hot water applications.

Hardness of the O-Ring Material (Durometer)

Beyond material type, the hardness of an O-ring, measured on the Shore A durometer scale, is a key characteristic. An O-ring specification often includes this, e.g., "70 Shore A". The Shore A scale measures the indentation hardness of rubber materials, indicating their resistance to permanent indentation or deformation. A higher number on the Shore A scale signifies a harder, less flexible material, while a lower number indicates a softer, more flexible one. For instance, 70 Shore A is considered a medium hardness, offering a good balance of resistance to deformation under pressure while retaining some flexibility. The correct hardness ensures the O-ring can withstand system pressure without extruding or losing its sealing force, contributing significantly to the seal's longevity and performance.

The Critical Role of Lubrication in O-Ring Performance

Proper lubrication of the O-ring before installation is a non-negotiable step that significantly contributes to its long-term performance and the overall success of the seal. Lubrication serves several vital functions:

• Facilitates Installation: By reducing friction, lubrication allows the O-ring to slide smoothly into its groove without twisting, rolling, or tearing. This is especially important for dynamic seals or installations into tight spaces.
• Reduces Installation Force: Less force is required to seat the O-ring, reducing the risk of damage during assembly.
• Prevents Abrasion and Pinches: Lubrication creates a protective film that minimises surface friction between the O-ring and mating components, preventing nicks, cuts, and abrasions that can occur during installation. It also helps prevent the O-ring from pinching or extruding.
• Extends O-Ring Life: By reducing wear and tear during initial compression and subsequent operation, lubrication helps the O-ring maintain its elasticity and sealing properties for an extended period.
• Ensures Smooth Transitions: In dynamic applications, lubrication ensures smooth movement between the O-ring and the sealing surface, reducing wear and heat generation.

When selecting a lubricant, several application parameters must be considered:

• Compatibility: The lubricant must be chemically compatible with the O-ring material and the system fluid. Incompatible lubricants can cause the O-ring to swell, shrink, harden, or become brittle.
• Temperature Range: The lubricant must perform effectively within the operational temperature range of the application, maintaining its viscosity and protective properties.
• System Fluid Compatibility: It should not contaminate or react negatively with the fluid being sealed.
• Film Strength: Capable of producing a high surface tension film to provide adequate lubrication under pressure.
• System Cleanliness: Should not clog system filters or leave harmful residues.

Common Lubricant Types for O-Rings

The choice of lubricant is often dictated by the O-ring material and the application's specific requirements. Here are a couple of common types:

Always ensure the lubricant is specifically designed for O-rings and compatible with the O-ring material and the system fluid to maximise seal efficiency and lifespan.

Frequently Asked Questions About O-Rings

How are O-rings measured?

O-rings are primarily measured by their inner diameter (ID), outer diameter (OD), and cross-section (CS). These measurements are typically taken using precision tools like calipers or a ruler for less critical applications. Manufacturers often specify O-rings by their ID and CS, with the OD being a derived dimension.

What is an O-ring installation tool?

An O-ring installation tool, often a type of O-ring pick or plier, is designed to assist in gently placing or manipulating O-rings into their designated grooves or housings. These tools help prevent damage such as nicks, cuts, or twists during the installation process, ensuring the O-ring seats correctly and forms a proper seal.

How do I know if my O-ring is damaged?

Signs of a damaged O-ring include visible cracks, nicks, cuts, or abrasions on its surface. It might also appear flattened, hardened, swollen, or discoloured. Any fluid leakage from the sealed joint is a definitive indicator that the O-ring has failed and needs immediate replacement.

Can I reuse an O-ring?

While it might be tempting, reusing an O-ring is generally not recommended, especially in critical applications. Once an O-ring has been compressed and exposed to operational conditions, it can suffer from permanent deformation (compression set), reducing its ability to rebound and seal effectively. Always use a new O-ring for replacement to ensure optimal performance and reliability.

What happens if I use the wrong O-ring size?

Using the wrong O-ring size can lead to immediate or premature seal failure. If the O-ring is too small, it will be overstretched, thinning its cross-section and reducing its sealing force. If it's too large, it may pinch, extrude, or simply not fit correctly into the groove, creating a leak path. Correct sizing ensures the O-ring receives the appropriate compression for an effective seal.

Conclusion

The seemingly simple O-ring plays a pivotal role in the operational integrity of countless mechanical systems. From preventing leaks in your vehicle's engine to ensuring the smooth function of industrial machinery, the proper selection, installation, and maintenance of these seals are non-negotiable. By adhering to the best practices outlined in this guide – from precise measurement and material selection to careful installation and the crucial step of lubrication – you can significantly extend the lifespan of your components, enhance system efficiency, and avoid costly repairs. Mastering O-ring replacement is a fundamental skill for anyone involved in mechanical maintenance, ensuring robust, leak-free performance every time.
