BMW E46 ATF: 'Lifetime' vs. Regular Changes

The concept of 'lifetime' oil in modern vehicles, particularly for automatic transmission fluid (ATF) in BMWs like the E46 325ti Compact, often sparks debate among owners and mechanics. BMW's assertion that this fluid never needs changing can be a point of contention, especially when considering the real-world degradation of even the most advanced lubricants. This article delves into what 'lifetime' oil truly means in this context, the importance of regular servicing, and provides a comprehensive guide to performing an automatic transmission service on your E46 325ti.

Understanding 'Lifetime' ATF

BMW, like many manufacturers, has moved towards sealed-for-life transmission systems, suggesting that the original ATF is formulated to last the operational life of the transmission. This is often based on ideal operating conditions and a belief that the fluid's properties will not significantly degrade over time. However, the reality of automotive use, with its varying temperatures, stresses, and potential for microscopic contamination, means that even the best oils will eventually break down. Factors such as heat cycles, shear forces within the gearbox, and the gradual accumulation of wear particles can all contribute to the degradation of the ATF's lubricating and cooling properties. While automatic transmission failures are not rampant, proactive maintenance can undoubtedly extend the lifespan and performance of the gearbox. Many specialists advocate for automatic transmission servicing every 30,000 miles, with some suggesting as low as every 12,000 miles, though the latter is often considered unrealistic due to the cost of the specific fluid required.

Why Service Your Automatic Transmission?

The primary reasons for servicing your automatic transmission, even with 'lifetime' fluid, are to maintain optimal performance and prevent premature wear. Over time, ATF can become contaminated with tiny metal particles shed from clutch packs and gears, as well as by-products of heat and oxidation. These contaminants can clog the fine passages within the valve body and transmission cooler, impairing hydraulic function. The fluid's viscosity can also change, reducing its ability to lubricate and cool critical components. Replacing the old fluid and filter removes these contaminants and replenishes the transmission with fresh, high-quality fluid, ensuring smooth shifts and prolonging the life of the gearbox. Even on a low-mileage vehicle like the E46 325ti featured, with only 46,000 miles covered, the drained oil was notably dark and dirty, indicating that the 'lifetime' oil had already begun to degrade significantly.

Parts and Tools Required

To undertake an automatic transmission service on your BMW E46 325ti, you will need the following:

• 7 Litres of Correct ATF: For the ZF-5HP19 gearbox commonly found in the E46 325ti, the specified fluid is Esso LT71141 Synthetic fluid. It is crucial to use the correct fluid, as incorrect ATF can cause significant damage.
• ATF Filter: A new filter is essential to remove accumulated debris from the transmission.
• New Sump Gasket: To ensure a leak-free seal when refitting the transmission sump.
• New Sump Bolts or Loctite: The original sump bolts are often stretch bolts and are recommended for single use. If reusing old bolts, applying a thread-locking compound is advisable.
• Tools: Various Torx bits (T27 and T30), a 6mm hex bit for the drain plug, a torque wrench, a transmission jack (recommended), measuring jugs, clean rags, and brake cleaner.

Identifying the Correct ATF

Before commencing the service, it's vital to confirm the correct ATF for your specific transmission. Many BMW E46 transmissions will have a sticker attached to the sump detailing the BMW part number for the required oil. If this sticker is missing or illegible, you can often find a metal plaque directly on the transmission casing itself. This plaque will usually indicate the transmission manufacturer and model number (e.g., ZF-5HP19). With this information, you can then consult BMW technical data or reputable parts suppliers to determine the precise ATF specification required.

Step-by-Step Transmission Service Guide

1. Draining the Old ATF

It is highly recommended to drain the transmission fluid when the gearbox is cold. This allows more of the old fluid to return to the sump, ensuring a more complete drain. A transmission temperature below 30°C is advised, which can be verified using BMW diagnostic equipment. If this is not available, ensure the vehicle has been stationary for at least 3-4 hours to allow the fluid to cool. Some specialists drain the fluid while hot, but draining cold can yield up to 2 litres more fluid. Before draining, it is prudent to check that the filling plug can be loosened. If it is seized or cannot be removed, do not proceed with the ATF change until a new filling plug is available. The drain plug on this transmission is typically a 6mm hex fitting. Drain the old ATF into a measuring jug to accurately record the volume removed. This measurement is crucial for refilling with the correct amount of new fluid.

2. Removing the Transmission Sump

Once the bulk of the fluid has drained, the transmission sump needs to be removed. This is secured by approximately 22 T27 Torx bolts. As you undo these bolts, be prepared to support the sump, as it will drop slightly. It's advisable to use a transmission jack or have assistance to safely lower the sump. Be aware that the sump will still contain a small amount of residual fluid (around 250ml), so tip this into your measuring jug to obtain the final drained oil volume. The sump also houses small magnets designed to capture ferrous metal particles, which are a natural byproduct of gearbox wear. Thoroughly inspect these magnets for excessive metal debris, which could indicate a more serious internal issue.

3. Replacing the ATF Filter

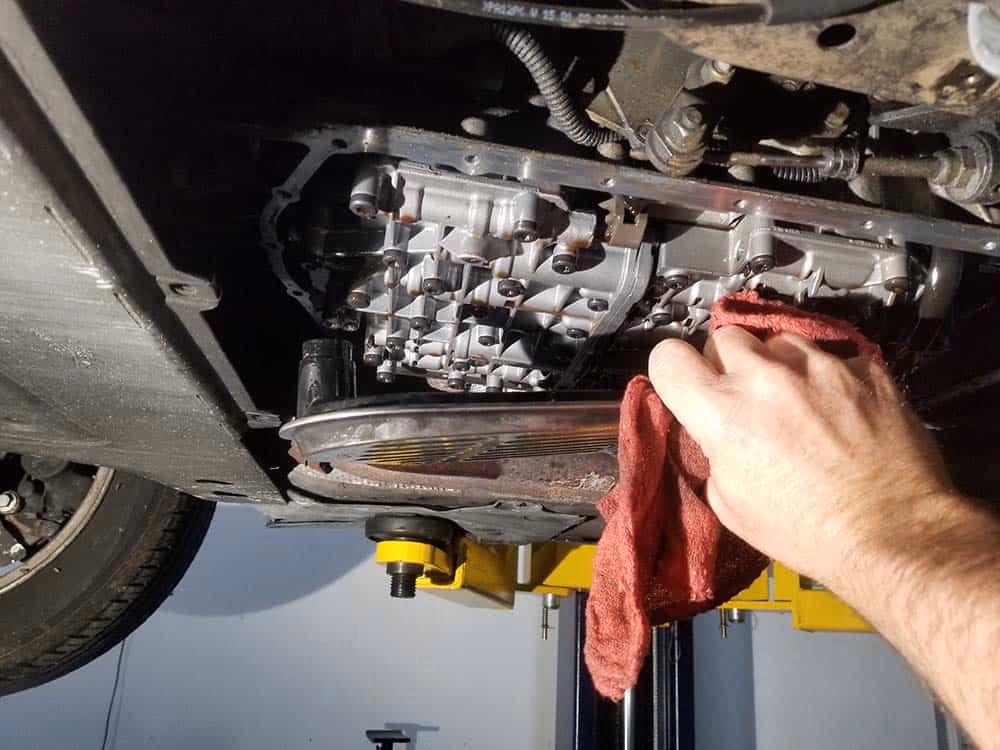

With the sump removed, you will see the ATF filter attached. This filter is typically secured by two T30 Torx bolts. Once these bolts are removed, the filter can be pulled downwards. A small amount of additional fluid may spill out; this is normal. Ensure that the old O-ring seal, which the filter slides into, is also removed from the transmission housing. The new filter will come with a new, pre-installed seal.

4. Cleaning and Refitting the Sump

When refitting the sump, it's essential to thoroughly clean both the sump and the mating surface on the transmission. If you are reusing the old sump, meticulously clean out all the old fluid, sludge, and metal particles from the sump pan and off the magnets. Brake cleaner is effective for degreasing the mating surface. Fit the new sump gasket and then carefully refit the sump pan. Tighten the sump bolts in a sequential, criss-cross pattern to ensure an even seal. Torque the bolts to the manufacturer's specifications. Ensure the drain plug is also securely tightened.

5. Refilling with New ATF

The refilling process requires precision and monitoring of the ATF temperature. With the engine off, refill the transmission through the filler plug hole using the same volume of new Esso LT71141 ATF that you drained earlier. Once the filler plug is refitted, start the engine. With your foot firmly on the brake pedal, cycle the gear selector through all positions (P, R, N, D, and manual selections) holding each for approximately 3 seconds. This allows the new fluid to circulate throughout the transmission. Using a BMW diagnostic machine, monitor the ATF temperature. The target temperature for checking the fluid level is typically between 40°C and 50°C. Once this temperature is reached, with the engine still running and the transmission in Park (P), remove the filler plug. If the fluid level is correct, a small amount of ATF will overflow from the filler hole. If no fluid overflows, add more ATF incrementally until it just begins to exit the hole. Once the correct level is achieved, refit the filler plug.

6. Final Checks

After the service is complete, turn off the engine. It is crucial to check for any leaks around the sump and filler plugs. Clean off any spilled ATF from the transmission, exhaust, or surrounding components to prevent any potential fire hazards or unpleasant smells.

Comparison: 'Lifetime' vs. Serviced ATF

The benefits of regular ATF changes become evident when comparing the condition of old fluid to new. The dark, sludgy appearance of the fluid drained from a 46,000-mile E46 325ti, as shown in the provided images, starkly contrasts with the clear, clean appearance of new ATF. This sludge is a direct result of heat cycles and the breakdown of the fluid and internal components. Regular servicing, ideally every 30,000 miles, significantly minimises sludge formation, keeps the transmission internals cleaner, and ensures optimal lubrication, thereby extending the overall lifespan and reliability of the gearbox.

Frequently Asked Questions

Q1: How often should I change the ATF in my BMW E46 325ti?
While BMW claims 'lifetime' fluid, most specialists recommend a service every 30,000 miles to ensure optimal performance and longevity.

Q2: What is the correct ATF for a BMW E46 325ti (ZF-5HP19)?
The correct fluid is Esso LT71141 Synthetic fluid. Always verify with your vehicle's specific documentation or a reliable parts supplier.

Q3: Can I reuse the old sump bolts?
Technically, sump bolts are stretch bolts and are designed for single use. However, they can often be reused if they show no signs of damage, and it is recommended to use a thread-locking compound. New bolts are always the preferred option.

Q4: How do I check the ATF level correctly?
The ATF level must be checked with the engine running, the transmission in Park, and the fluid temperature between 40°C and 50°C. The fluid should just begin to overflow from the filler hole at this temperature.

Q5: Is it safe to drain the ATF when the transmission is hot?
While it is possible, draining the fluid when cold allows for a more complete drain, potentially removing up to 2 litres more old fluid and contaminants.

Conclusion

The 'lifetime' oil claim by BMW for the E46 325ti's automatic transmission should be viewed with a degree of scepticism. While the fluid is of high quality, the harsh realities of everyday driving mean that it will degrade over time. Regular automatic transmission servicing, including fluid and filter changes, is a prudent investment that can significantly extend the life of your gearbox, maintain its performance, and potentially save you from costly repairs down the line. By following the steps outlined above and using the correct parts and fluids, you can ensure your E46 325ti's transmission continues to operate smoothly for many years to come.

For any further questions or comments, please feel free to reach out to Power Developments.
