Precision & Longevity: Your Guide to Lathe Lubrication

A lathe is a cornerstone of any serious workshop, enabling precision work from metal turning to woodworking. However, even the most robust machinery is only as good as its maintenance regime. At the heart of this regime lies proper lubrication. Neglecting this crucial aspect can lead to significant equipment depreciation, reduced accuracy, and ultimately, costly breakdowns. This in-depth guide will demystify lathe lubrication, covering everything from daily routines to long-term oil changes, ensuring your machine remains a reliable workhorse for years to come.

The Indispensable Role of Lathe Lubrication

Adequate lubrication is paramount for the longevity and precision of your lathe. Every moving part, from the smallest gear to the pivotal spindle bearings, relies on a consistent film of oil to reduce friction and prevent wear. Without it, metal-on-metal contact will quickly degrade components, leading to excessive heat, premature failure, and a noticeable decline in the machine's overall accuracy. Think of lubrication as the lifeblood of your lathe, allowing its complex entourage of mechanisms to work effectively and smoothly, minimising resistance and preserving the integrity of its intricate parts.

Understanding Lubrication Frequencies

Daily Spindle Bearing Care

The pivotal spindle bearings are critical components that demand frequent attention. To lubricate them, you'll typically need to locate and remove the small, headless set screws that cover their access points. Once these are out, generously flush the bearings with the appropriate lubrication. It's crucial to remember to reinsert these plugs immediately after the process is complete to protect the interior from contaminants. In terms of frequency, ideally, you should lubricate the spindle bearings once a day. If your machine is being operated particularly vigorously, consider lubricating them several times throughout the day to ensure continuous protection.

Scheduled Oil Changes for Your Lathe

Beyond daily spot lubrication, the entire machine's lubrication, particularly within the headstock, requires scheduled changes. The appropriate time for a full oil change on a lathe is largely dependent on its usage intensity. For machines run for more than 6 hours every day, the initial oil change should occur after the first 200 hours of use. This is a critical break-in period where new machines can shed small metal filings and casting dust, which need to be removed. Following this initial change, the subsequent interval extends significantly: you'll only need to reapply lubricant after 500 hours. Once this second change is complete, the lathe will be well-settled, and future changes can be spaced out to every 2000 hours. For a lathe used 8 hours daily, this 2000-hour mark translates to roughly six months of operation.

The Lubrication Process: A Step-by-Step Guide

Once you've applied the lubrication, the process isn't quite finished. It's essential to run the machine for a few minutes. This step serves two vital purposes: it helps to eliminate any excess oil you might have applied, preventing it from attracting dirt and debris, and it also works to eliminate any potential binding in the bearings, ensuring they move freely and smoothly. While performing these steps, keep an eye out for any unusual heating. This can be a tell-tale sign of poor lubrication, incorrect bearing alignment, or inaccurate adjustment. Should you notice excess oil on the exterior of the machine, it's wise to wipe it off using a mutton cloth. Excess oil on the outside will only serve as a magnet for wood chips and dirt, which can then find their way into critical components. Identifying the various lubrication points on your lathe is generally straightforward, as they are often marked by small, easily removable knobs that provide access to the oiling holes.

Choosing the Right Lubricant for Your Lathe

The Non-Detergent Imperative

When it comes to the general lubrication of your lathe, particularly in the headstock, the type of oil is paramount: you must use non-detergent oil. The reason for this is crucial. Detergent oils, which became common in the 1950s, contain additives designed to suspend and trap dirt particles. These are ideal for modern engines with oil filters, where the suspended particles are carried to the filter for removal. However, a lathe, especially in its headstock, typically lacks an oil filter. With non-detergent oil, which is essentially pure oil, any dirt particles that enter will sink directly to the bottom. This is the desired outcome, as it keeps the particles away from the gears and bearings, where they could cause significant damage. You'll often find non-detergent oil used in small electrical engines for this very reason. For amateur users or those with older models without a manual, non-detergent Mobil is often a safe and widely compatible choice.

Specialised Oils for Specific Tasks

Cutting Oil vs. Regular Oil

It is emphatically not advisable to use regular engine oil for cutting operations. Standard oils are formulated for heavy-duty resistance and protection, not for the unique demands of metal cutting. Cutting oil, on the other hand, is specifically designed to prevent rust and decay of metal cutters. Its key property is its ability to withstand extreme amounts of heat generated during the cutting process. When applied, cutting oil helps to negate this intense heat, facilitating a more effective cutting motion and significantly minimising resistance. Reduced resistance directly translates to a longer tool life for your valuable cutters.

The primary distinction between cutting fluid and regular lubricants lies in their fundamental functions:

The use of cutting fluid is vital for preserving the life of your cutting equipment. It keeps the tool cooler, preventing it from bending and breaking out of position. This results in improved durability and enhanced performance, as the tool will take considerably longer to dull.

Slideway Oil

Slideway oil represents a specialised range of lubricants engineered for high performance, particularly for the lubrication of metal and plastic slideways. Its impressive friction characteristics, including superior lubricity, are highly valued. This oil is designed to reduce 'stick-slip' – the jerky, inconsistent motion that can occur in machine tool slides, leading to a much smoother and more consistent feed. The result is a significantly better surface finish on your workpiece. Slideway oil is also versatile, proving valuable for lubricating hydraulic systems and even as a chain oil in certain applications.

Machine Oil

Machine oils are broad-spectrum lubricants designed to oil various machine parts. They are effective on most small engines and play a critical role in reducing friction within moving components. Beyond friction reduction, a good machine oil provides a robust defence against rust and corrosion, prolonging the life of metal parts.

Lathe Spindle Oil

Specifically formulated for lathes, spindle oil is designed to significantly boost the anti-wearing properties of your machine, enhancing its overall durability. This high-performance oil contains elements that actively protect your spindle bearings from rust and wear. Due to its low viscosity, spindle oil is also suitable for a wide array of other machine tools that require similar light oils.

ISO 68 Equivalents

For those needing to cross-reference oil specifications, it's useful to know that SAE 20 oil is generally considered equivalent to both ISO 46 and ISO 68 grades.

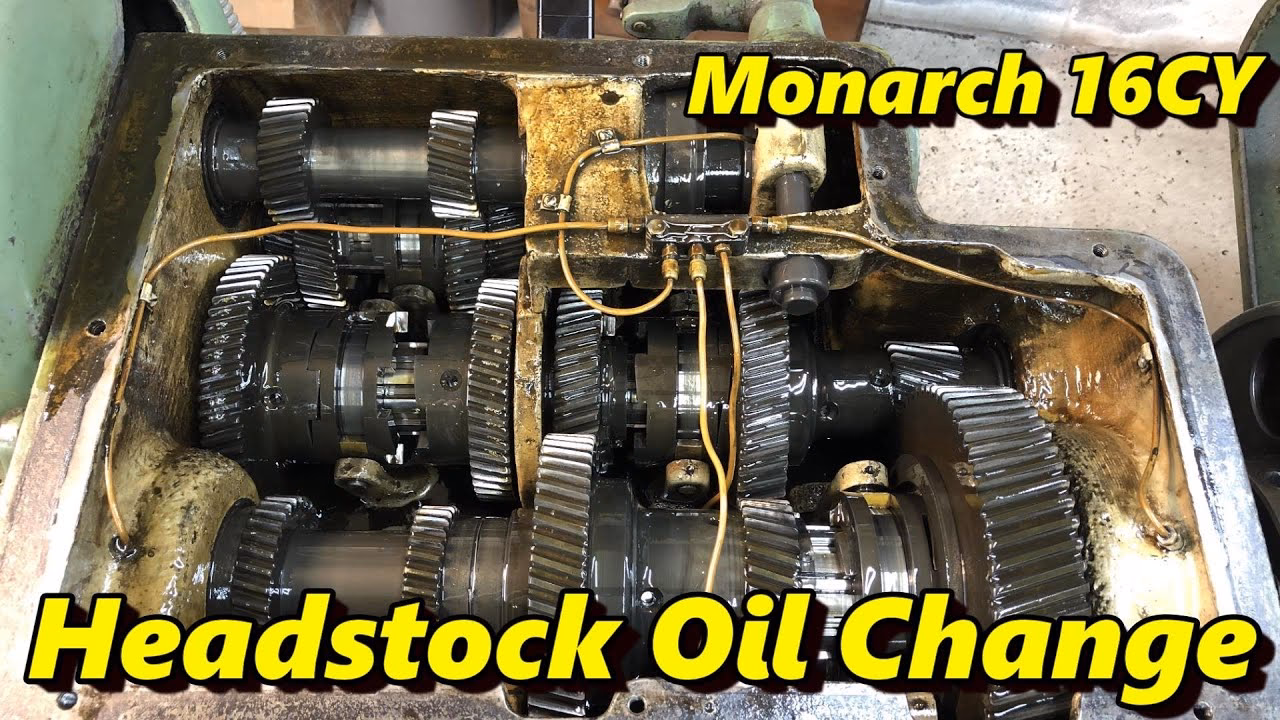

Maintaining Your Geared Head Lathe's Headstock

The headstock of a geared head metal lathe houses complex gearing and plays a pivotal role in the machine's operation. Proper oiling here is non-negotiable.

When to Change Headstock Oil

Many metal lathe manufacturers recommend changing the headstock oil every 6 months. However, practical experience in many workshops suggests a more nuanced approach. Unless your lathe is operating 8 hours a day, seven days a week in an industrial setting with multiple operators, a strict 6-month interval might be overkill. In many private workshops, the oil in the headstock is rarely, if ever, completely drained, provided the machine's usage is monitored and conditions are known. However, there are definite times when an oil change is essential:

• When purchasing a new or used lathe: Always drain and clean out the headstock. New machines, especially those manufactured in Asia, can often contain metal filings and cast iron dust from the manufacturing process. Used lathes have an unknown history, making a fresh start imperative.
• When something sounds amiss: If you hear unusual noises, a 'clink-clank' from within the headstock, it’s a clear sign that an inspection is needed. Draining the oil makes working inside the headstock significantly easier and cleaner.

Draining and Flushing the Headstock

Most geared head metal lathes feature a threaded plug at the bottom of the headstock for draining oil. This plug is typically on the side opposite the spindle, often concealed by the gear cover. Be aware that these are usually just threaded holes in the casting, lacking any sort of drain, funnel, or trough, meaning oil can easily get everywhere. A favoured method for clean draining is the 'taped bag method': simply tape a large Ziploc bag directly below the plug. When you unscrew the plug, the oil runs down the side of the headstock directly into the bag. Ensure the bag is large enough to contain all the oil; if not, you can reinsert the plug, replace the bag, and continue.

Flushing the headstock is a more involved process and should be approached with caution. If the oil isn't excessively dirty, it's often best to avoid flushing. Many headstocks contain open bearings, and flushing risks dislodging particles or sludge from the bottom or crevices, potentially forcing them into these sensitive bearings. Even a single particle can compromise a bearing under the stress and tension of operation.

However, if flushing is deemed necessary, here's a recommended procedure:

1. Begin by attempting to vacuum out any visible particles and use a brush to clean the interior, aiming to keep debris out of the bearings.
2. Then, try a mixture of kerosene and oil to flush out the headstock.
3. For extremely dirty headstocks, a water hose with pressure might be needed. If water is used, allow everything to dry thoroughly for a day or so afterwards.
4. After the kerosene and oil flush (and drying, if water was used), manually turn every shaft individually and slowly. Your goal is to feel for any hesitation or resistance in the bearings, which would indicate the presence of dirt or particles. Some lathe manuals even suggest filling the headstock with an oil and kerosene mixture and running the lathe without a load for a few minutes to aid flushing.

Once the draining, flushing, and servicing are complete, simply refill the headstock with the correct oil.

Selecting Headstock Oil

Always consult your lathe's manual for the manufacturer's specific oil recommendations. However, for older lathes or those with outdated manuals, a widely recommended choice for personal or small workshops is non-detergent Mobil DTE Heavy/Medium 20 SAE Grade Circulating Machine Oil. While some manuals might suggest a 30-weight oil, for non-industrial use (i.e., not running 8 hours a day), a 20-weight non-detergent oil should generally suffice perfectly well. The crucial point, as reiterated, is that the oil must be non-detergent.

Troubleshooting Common Lubrication Issues

As mentioned, unusual heating can be a direct symptom of lubrication problems. Always ensure you're using the correct type and amount of oil. Beyond lubrication, heating can also point to issues with bearing alignment or inaccurate adjustments. Regular visual inspections and a keen ear for any changes in your lathe's operating sounds are your best tools for early detection of potential issues, allowing you to address them before they escalate into significant damage.

Frequently Asked Questions (FAQs)

Why is oil used when cutting metal on the lathe?

Cutting fluid is vital for preserving the life of your cutting equipment. It keeps the tool cooler, preventing it from bending and breaking out of position due to heat. This leads to improved durability and enhanced performance, as the tool will take significantly longer to dull.

What is ISO 68 oil equivalent?

SAE 20 oil is generally considered equivalent to both ISO 46 and ISO 68 grades for lubrication purposes.

Do I need to change the oil in the heads of my metal lathes?

Yes, especially when acquiring a new or used lathe, or if you hear unusual noises from the headstock. While not always on a strict 6-month schedule for hobbyist use, periodic checks and changes are crucial for longevity.

What's the best way to change the oil in the headstock of my metal lathe?

The "taped bag method" is highly recommended for clean draining. For flushing, vacuuming and brushing followed by a kerosene/oil mixture is suggested, but avoid flushing if the oil isn't very dirty to prevent particles entering bearings.

Conclusion

Proper lubrication is not merely a task; it is an investment in the life and precision of your lathe. By understanding when and how to lubricate, and by selecting the correct types of oil for each application, you empower your machine to perform at its peak for many years. Regular attention to these details will prevent costly repairs, maintain accuracy, and ensure your lathe remains a reliable and invaluable asset in your workshop. Always prioritise the manufacturer's instructions where available, but never underestimate the power of vigilant, hands-on maintenance.
