DR350 Oil Change: Master Your Dry Sump System

For any dedicated rider, understanding and performing regular maintenance on your motorcycle is not just a chore, it's a vital part of ensuring longevity, reliability, and peak performance. When it comes to the legendary Suzuki DR350, a versatile dual-sport machine equally at home on rugged trails and country lanes, one of the most fundamental tasks is the oil change. Unlike many conventional bikes, the DR350 features a distinctive dry-sump engine design, which introduces a few extra steps compared to its wet-sump counterparts. But fear not! With the right knowledge, tools, and a systematic approach, you can confidently tackle this essential service, keeping your DR350 roaring for many more adventures.

Understanding the Unique DR350 Dry-Sump Engine

The Suzuki DR350, like many dirtbikes and dual-sports, utilises a dry-sump engine configuration. This design stands in contrast to the more common wet-sump system found in most road bikes and cars. In a wet-sump engine, the majority of the engine oil collects in a large pan, or sump, directly beneath the crankshaft. From there, it's drawn up by a single pump and circulated through the engine before returning to the pan by gravity.

A dry-sump system, however, stores most of its oil in a separate, external reservoir. In the clever case of the DR350, this reservoir is ingeniously integrated into the bike's hollow steel frame itself. Multi-stage oil pumps are employed to scavenge oil from the engine's crankcase (which remains relatively dry) and transfer it to the external tank, from where another stage of the pump delivers it under pressure to lubricate crucial engine components.

While seemingly more complex, the dry-sump design offers several distinct advantages for a bike like the DR350. Firstly, it allows for a larger oil capacity, which aids in better heat dissipation and extends the oil's lifespan. Secondly, it permits the engine to be mounted lower in the frame, as there's no bulky oil pan hanging beneath, contributing to a lower centre of gravity and improved handling, particularly beneficial for off-road riding. Lastly, with oil circulating through external lines and a dedicated tank, there are more opportunities for effective oil filtration and temperature control, ensuring the engine receives clean, optimally conditioned lubricant.

Why Regular Oil Changes Are Non-Negotiable

Regardless of engine design, oil is unequivocally the lifeblood of your engine. It performs multiple critical functions: lubricating moving parts to reduce friction and wear, cooling the engine by carrying away heat, cleaning by suspending contaminants, and protecting against corrosion. Over time, engine oil degrades due to heat, oxidation, and contamination from combustion by-products, dirt, and metallic particles. Neglecting regular oil changes can lead to:

• Increased friction and premature wear of engine components.
• Reduced lubrication efficiency, potentially leading to overheating.
• Accumulation of sludge and deposits, clogging oil passages.
• Decreased engine performance and fuel efficiency.
• Ultimately, costly engine damage or failure.

For a dual-sport bike like the DR350, which often endures challenging conditions like dusty trails, extreme temperatures, and stop-and-go riding, regular oil changes are even more critical to maintain its rugged reliability.

The Recommended Oil Change Interval for Your DR350

The question of 'how often?' is paramount. For a dirt-use dual-sport like the Suzuki DR350, particularly when ridden hard or in challenging off-road conditions, a good rule of thumb is to change the oil every 1500 miles. This interval provides a solid balance between protecting your engine and not over-servicing. However, this is a guideline, not a strict rule, and several factors might warrant more frequent changes:

• Riding Style: Aggressive off-road riding, frequent short trips, or consistent high-RPM operation will accelerate oil degradation.
• Environmental Conditions: Riding in extremely dusty, dirty, or wet conditions can introduce more contaminants into the oil.
• Time: Even if you don't hit the mileage target, oil degrades over time. Many recommend an annual oil change, even for low-mileage bikes, especially after winter storage.
• Oil Type: While conventional oil is common, fully synthetic oils generally offer better stability and can sometimes extend intervals, though for the DR350's intended use, sticking to recommended conventional intervals is perfectly adequate.

Always consult your Suzuki DR350's owner's manual for the definitive manufacturer-recommended intervals for both mileage and time, and adjust based on your specific riding habits.

Gathering Your Essential Tools and Supplies

Before you begin, gather everything you'll need. Proper preparation makes the job smoother and cleaner:

• Socket wrench with various sockets (14mm, 12mm, 19mm, 8mm)
• Oil drain pan(s) or suitable containers
• Cardboard or old newspapers to protect your workspace
• Clean rags or shop towels
• New crush washer for the crankcase drain bolt
• New oil filter (ensure it's the correct one for your DR350)
• Fresh engine oil (10w40, approximately 1900 ml capacity)
• Funnel for adding new oil
• All-purpose solvent or brake cleaner for cleaning up spills
• Gloves (optional, but recommended for cleanliness)

Having everything organised and within easy reach will prevent frustrating interruptions during the process.

Step-by-Step: Performing the DR350 Oil Change

Preparation is Key

Ensure your bike is on a level surface, ideally on a stand that allows you easy access to the underside. Place cardboard or old newspapers beneath the engine and frame to catch any spills and keep your workspace clean. Position your oil drain pan(s) ready.

Removing the Skid Plate

The first step for accessing the drain bolts and oil lines on your DR350 is to remove the skid plate. This protective plate, typically bolted to the frame beneath the engine, will obstruct your access. Locate and remove the bolts securing it, and set the skid plate aside.

Draining the Crankcase Oil

Locate the main drain bolt on the bottom of the engine crankcase. Using your socket wrench and a 14mm socket, carefully loosen and remove this bolt. Be prepared for oil to flow out immediately, so ensure your drain pan is directly underneath. Allow the oil to drain thoroughly. Note the old crush washer on the bolt; this should always be replaced with a new one to ensure a leak-free seal upon reassembly.

Draining the Frame Oil

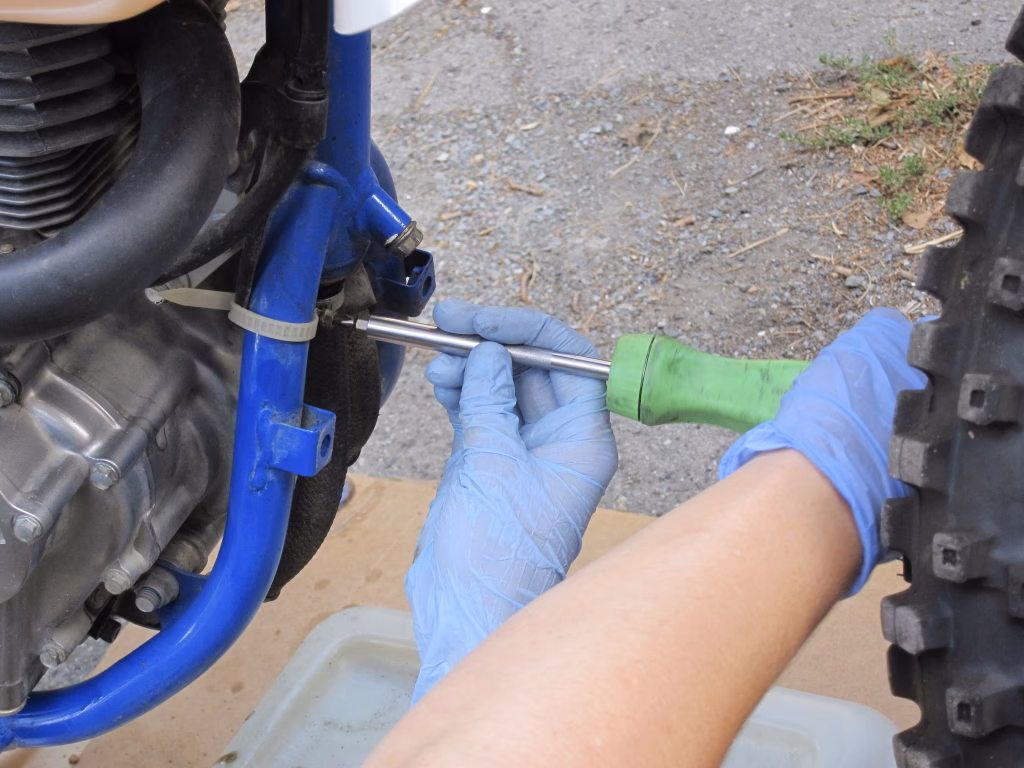

Since the DR350's frame acts as the oil tank, there's a separate drain point for this reservoir. Locate the 12mm drain bolt on the frame itself, typically at a low point. Position your drain pan and remove the bolt, allowing the oil from the frame to drain completely. This step is crucial for ensuring all old oil is removed from the dry-sump system.

Inspecting and Cleaning the Oil Strainer

With the frame draining, you'll need to access the main oil line and the oil strainer. The oil line is usually held by a clamp; loosen this clamp and gently wiggle the main oil line off its fitting. This will expose a larger nut, typically 19mm, which secures the oil strainer. This nut can be quite tight, so apply steady pressure with your wrench to break it loose. Once removed, carefully pull out the oil strainer. Inspect it thoroughly for any metal particles or debris, which could indicate internal engine wear. Clean the strainer thoroughly with a rag and some all-purpose solvent or brake cleaner, then allow it to dry completely before reinstallation.

Replacing the Oil Filter

The oil filter is located behind a protective plate on the right side of the engine. There are usually several small 8mm bolts securing this plate. As you remove these bolts, be aware that there is a spring beneath the plate, designed to keep pressure on the filter. Hold the plate pressed against the engine as you remove the last few bolts to prevent it from springing off. Once the plate is off, inspect its O-ring for any cracks, flat spots, or signs of wear that could lead to leaks. Set the plate aside carefully. Note the orientation of the old oil filter as you remove it; the new filter must be installed in the same direction. Place the old filter in a suitable container to drain.

Take your new oil filter and carefully place it onto the oil filter boss in the correct orientation. Re-position the filter plate, ensuring the spring is correctly seated. Hold the plate firmly against the engine and replace the 8mm bolts. These are small bolts, so it is absolutely critical not to overtighten them, as they can easily strip or break the threads in the engine casing. Tighten them snugly, but do not force them.

Cleaning Up the Mess

Once all draining is complete and components are ready for reassembly, take the opportunity to clean up any oily residue or spills. Spraying a general-purpose solvent over the affected areas and wiping them down with a clean rag will leave your engine looking tidy and make it easier to spot any future leaks.

Reassembly: Buttoning Up Your DR350

Now it's time to put everything back together. Follow these steps carefully:

1. First, replace the crankcase oil drain bolt. Remember to use a fresh crush washer and tighten it firmly, but do not overtighten, as there is no separate oil pan to repair if threads are stripped.
2. Next, re-insert the cleaned oil screen into the frame and tighten its 19mm nut securely.
3. Slip the main oil line hose back over its fitting and re-secure the clamp firmly.
4. Finally, replace the 12mm oil frame drain bolt, ensuring it's tightened properly.

Your bike is now sealed and ready for fresh oil.

Adding Fresh Oil and Checking Levels

For your DR350, conventional 'dino' oil of 10w40 weight is typically recommended in the manual. When purchasing conventional oil, it's crucial to look for the API (American Petroleum Institute) roundel on the back of the bottle. Ensure the bottom section of this circular symbol is EMPTY. If it contains symbols or text indicating 'Energy Conserving' or similar, it means the oil contains friction modifiers that are suitable for car engines but can cause the wet clutch in your motorcycle to slip, leading to performance issues and potential damage. Oils specifically formulated for motorcycles will have the empty bottom circle.

On the DR350, oil is both checked and added via a dipstick/filler hole located between the handlebars and the fuel tank. Remove the dipstick and set it aside. Consult your manual for the exact oil capacity, which is typically around 1900 ml (1.9 litres) for the DR350. Using a clean funnel, begin adding the new oil gradually. It's a good practice to add slightly less than the full capacity initially (e.g., 1500 ml). Re-insert the dipstick, and then start the bike (with assistance if needed for kick-starting). Let the engine run for a few minutes to circulate the oil and warm up. This bike needs to be warm to get an accurate dipstick reading.

Once the bike has run for a few minutes and is warm, stop the engine and wait approximately 2-3 minutes for the oil to settle back into the frame and sump. Then, remove the dipstick, wipe it clean, re-insert it fully without screwing it in (unless your manual specifies otherwise), and pull it out again to check the level. The oil level should fall within the hash marks on the dipstick. If it's low, add small increments of oil (e.g., 100-200 ml at a time), restart the bike, run it for a minute, wait, and re-check until the level is at the top of the hash marks. Be patient; it's always easier to add more oil than to drain excess.

Choosing the Right Oil: More Than Just Viscosity

Selecting the correct oil for your DR350 is paramount. While the manual specifies 10w40, understanding the nuances of motorcycle oil is key. As mentioned, the API roundel on the back of the oil bottle is your most important guide. Unlike cars, most motorcycles (including the DR350) use a wet clutch, which shares the engine oil. Car-specific oils often contain friction modifiers that can cause these clutches to slip, leading to poor performance and premature wear. Always look for oils specifically labelled for motorcycles, or those with the 'empty circle' in the API roundel, indicating they are free of friction modifiers harmful to wet clutches.

While full synthetic oils are often considered a premium choice, offering superior performance in extreme temperatures and potentially longer drain intervals, they are not strictly necessary for the DR350. High-quality conventional 'dino' oil, changed at the recommended intervals, provides perfectly adequate protection for this engine. The key is consistency in maintenance and using oil that meets the appropriate specifications.

Post-Service Checks and Environmental Responsibility

Once you've completed the oil change, take a moment to double-check all drain bolts, the oil filter cover, and the oil line clamp to ensure they are securely tightened. Look for any drips or leaks. Then, take your bike for a short, gentle ride to ensure everything is functioning correctly. After the ride, perform one final oil level check, as the system may need to fully circulate and settle.

Finally, remember your environmental responsibility. Used engine oil and filters are hazardous waste and must be disposed of properly. Do not pour them down drains or throw them in the regular rubbish. Most local auto parts shops, recycling centres, or municipal waste facilities will accept used oil and filters for free recycling. Utilise designated drain containers to collect your old oil and filters, making the recycling process quick, easy, and clean.

Frequently Asked Questions About DR350 Oil Changes

How often should I change the oil on my Suzuki DR350?

For a DR350 ridden hard, especially off-road, a good interval is every 1500 miles. However, consider changing it more frequently if you ride in very dusty conditions, engage in aggressive off-road riding, or if it's been a year since the last change, even with low mileage.

What type of oil is best for my DR350?

A 10w40 weight conventional 'dino' oil is generally recommended. Crucially, ensure the oil is suitable for motorcycles with a wet clutch. Look for the API roundel on the bottle; the bottom section should be empty, indicating no friction modifiers that could cause clutch slip.

Is changing oil on a dry-sump engine more difficult than a wet-sump?

It's generally more involved, yes, due to having multiple drain points (crankcase and frame) and the extra step of inspecting the oil strainer. However, it's certainly not 'difficult' and is well within the capabilities of a home mechanic with proper preparation and tools.

Why does the DR350 use its frame as an oil tank?

This clever design allows for a larger oil capacity, which helps with better cooling and extends oil life. It also permits the engine to sit lower in the frame, contributing to a lower centre of gravity for improved handling, particularly beneficial for a dual-sport bike.

What should I do if I accidentally overfill the oil?

Overfilling can lead to issues like oil foaming, increased crankcase pressure, and potential oil leaks. If you've significantly overfilled, it's best to drain a small amount from one of the drain bolts until the level is within the correct range on the dipstick.

What is a crush washer and why is it important?

A crush washer is a single-use sealing gasket, typically made of soft metal like copper or aluminium. It deforms (crushes) when the drain bolt is tightened, creating a perfect, leak-proof seal. Reusing an old crush washer significantly increases the risk of oil leaks, so always replace it.

Should I clean the oil strainer every time I change the oil?

Yes, it is highly recommended. The oil strainer acts as a coarse filter, catching larger debris before it enters the oil pump. Inspecting and cleaning it ensures unrestricted oil flow and provides an early warning if significant metallic particles are present, which could indicate internal engine issues.

Conclusion

Performing an oil change on your Suzuki DR350 might seem a little more complex due to its dry-sump system, but by following these detailed steps, you'll find it's a straightforward and rewarding task. This essential maintenance not only extends the life of your engine but also gives you a deeper understanding of your bike. Armed with the right knowledge and tools, you can confidently keep your DR350 in prime condition, ready for countless more miles of adventure on and off the beaten path.
