How Cartridge Oil Filters Work

The Essential Role of Cartridge Oil Filters in Engine Health

In the complex world of automotive mechanics, few components are as critical yet often overlooked as the engine oil filter. Specifically, the cartridge oil filter has become a staple in modern vehicle design, playing a vital role in safeguarding your engine's longevity and performance. These filters are meticulously engineered to capture an array of harmful contaminants, from microscopic dirt particles and abrasive dust to damaging metal fragments shed by internal engine components. By ensuring that your engine oil remains pristine, cartridge oil filters act as the first line of defence against premature wear, potential damage, and catastrophic engine failure.

The significance of clean engine oil cannot be overstated. It's the lifeblood of your engine, responsible for reducing friction between rapidly moving parts, efficiently dissipating heat generated during combustion, and preventing the insidious buildup of sludge and deposits. A well-maintained oil filter is fundamental to this process, guaranteeing that your engine receives a consistent supply of clean lubricant, which directly translates to optimal performance, improved fuel efficiency, and a longer operational lifespan. Neglecting this small but mighty component can lead to substantial and costly repairs down the line, making timely replacement not just a recommendation, but a necessity for any conscientious car owner.

A Glimpse into the History of Oil Filtration

The concept of filtering engine oil isn't a new one; its roots stretch back to the early days of automotive innovation. The patent for the first bypass oil filtration system, a precursor to modern designs, was granted in 1923 to Ernest Sweetland and George Greenhalgh. They christened their groundbreaking invention the “Purolator,” a clever portmanteau of “pure” and “oil later.” The original cartridge filter design featured a pleated, woven cotton element housed within an oil filter casing, typically mounted in an upright position. Over the decades, advancements in material science and engineering have driven the evolution of these systems, leading to the highly efficient and reliable cartridge filters we see today. From their humble beginnings, cartridge filters have found their way into a diverse range of applications, including contemporary car engines, heavy-duty industrial machinery, and even aircraft, consistently offering enhanced performance and simplified maintenance procedures.

Understanding the Mechanics: How Cartridge Oil Filters Work

At its core, a cartridge oil filter's primary function is to meticulously remove contaminants from your engine oil. This process is crucial for preventing the wear and tear that can compromise engine components over time, ultimately ensuring optimal performance and extending the interval between oil changes. Clean engine oil is indispensable for minimizing friction between moving parts, effectively managing heat, and preventing the formation of harmful sludge and deposits that can lead to reduced efficiency, increased fuel consumption, and even complete engine failure. Essentially, a cartridge filter acts as a vital guardian of your engine's health and performance by ensuring a constant flow of clean, lubricating oil.

Key Components of a Cartridge Oil Filter

A cartridge oil filter is a sophisticated assembly of several precisely engineered components, each contributing to its overall effectiveness:

1. Filter Media

This is the heart of the filtration process. The filter media is responsible for physically trapping contaminants. Common materials include:

• Cellulose: Derived from plant fibres, cellulose offers good filtration at a lower cost but generally has a shorter service life compared to synthetic alternatives.
• Synthetic Fibres: Materials like polyester or glass fibres provide superior filtration efficiency and a longer service life, though they come at a higher price point.
• Blended Media: A combination of cellulose and synthetic fibres aims to strike a balance, offering improved filtration and longevity over pure cellulose, while remaining more affordable than fully synthetic options.

As engine oil circulates, it passes through this media, with contaminants becoming lodged within the fibres, allowing only clean oil to proceed.

2. End Caps

Positioned at both ends of the filter media, the end caps serve a critical sealing function. They prevent oil from bypassing the filter media, thereby ensuring that all oil entering the filter undergoes the filtration process. These are typically constructed from durable metal or robust plastic capable of withstanding the high pressures and temperatures within an engine. Their role is to maintain the integrity of the filter element and create a secure connection to the centre tube, guaranteeing that contaminants are effectively separated from the clean oil.

3. Centre Tube

The centre tube is integral to the structural integrity of the filter element. It provides support for the filter media, preventing it from collapsing under pressure, and crucially, it serves as the conduit for clean oil to flow back into the engine. Usually made from metal like steel or aluminium for strength and durability, the centre tube ensures that filtered oil can efficiently return to lubricate and cool the engine's moving parts.

4. Seals and Gaskets (O-rings)

Essential for preventing leaks, the seals and gaskets, most commonly O-rings, create a tight seal between the filter housing and the engine block. These components are typically made from synthetic rubber or other elastomeric materials designed to withstand the harsh engine environment of high temperatures and pressures. Their ability to maintain sealing properties over time is vital for preventing oil leaks and ensuring effective filtration. Regular inspection and replacement of these seals are necessary for optimal engine performance.

The Filtration Journey: Step-by-Step

The process by which a cartridge oil filter cleans your engine oil is a continuous cycle:

1. Oil Entry: Engine oil, under pressure from the oil pump, is directed into the filter housing.
2. Flow Through Media: The oil is forced to pass through the intricate layers of the filter media.
3. Contaminant Capture: As the oil flows, microscopic particles, dirt, metal shavings, and other impurities become trapped within the filter media's fibres.
4. Clean Oil Path: The now-purified oil exits the filter media and flows into the centre tube.
5. Return to Engine: From the centre tube, the clean oil is channelled back into the engine to lubricate and cool critical components.

This cycle repeats continuously, with the filter media gradually accumulating contaminants. Once the media becomes saturated, its ability to filter effectively diminishes, necessitating its replacement during a routine oil service.

Oil Flow Dynamics

Maintaining consistent oil flow is paramount. As the engine runs, oil is drawn from the sump, pumped into the filter, and then distributed throughout the engine. The filter's design ensures that this flow is uninterrupted, even as contaminants begin to accumulate. Proper flow prevents oil starvation to vital engine parts and aids in heat dissipation. Any restriction in flow, often caused by a clogged filter, can lead to increased engine temperatures and wear.

Contaminant Capture Effectiveness

The effectiveness of a filter in capturing contaminants is measured by its filtration efficiency. Higher efficiency filters, often those using synthetic media, can trap smaller particles, offering greater protection. However, this can also mean they become saturated more quickly. The capacity of a filter – how much contaminant it can hold – is also important. A filter with a larger capacity might allow for slightly longer service intervals, but it's crucial to balance this with the need for consistently clean oil.

Oil Return to the Engine

The final stage is the unimpeded return of clean oil to the engine's lubrication system. This ensures that all moving parts receive the necessary lubrication to function correctly, reducing friction and wear. The centre tube's design facilitates this return, ensuring that the purified oil can efficiently resume its critical tasks.

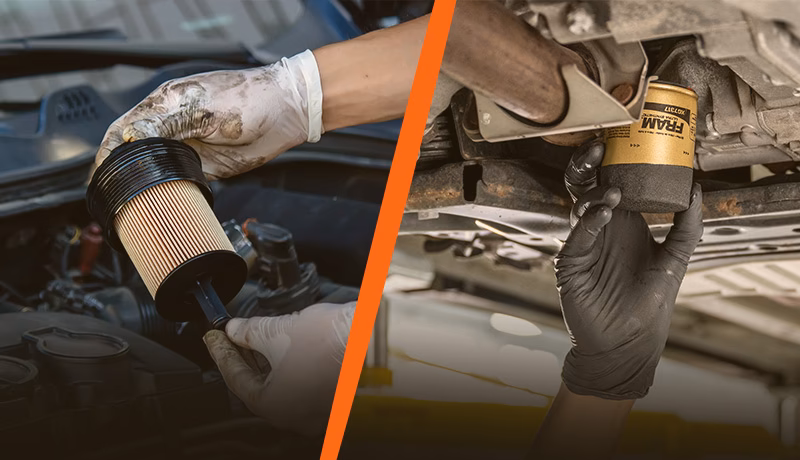

Comparing Cartridge and Spin-On Oil Filters

While both filter types serve the same fundamental purpose, their design and user experience differ significantly:

Cartridge filters are often favoured for their environmental benefits due to reduced waste. However, spin-on filters are generally simpler and quicker to replace, making them a popular choice for DIY mechanics and in vehicles where ease of access is a priority.

Factors to Consider When Choosing a Cartridge Oil Filter

Selecting the right cartridge oil filter involves more than just picking one off the shelf. Several factors should guide your decision:

A. Vehicle Compatibility

This is the most crucial factor. An oil filter must be designed for your specific vehicle's make, model, and engine. Using an incompatible filter can lead to inadequate filtration, oil leaks, or even damage to the engine. Always consult your vehicle's owner's manual or a reputable parts catalogue to identify the correct part number.

B. Filter Media Type

As discussed, the choice of filter media (cellulose, synthetic, or blend) impacts filtration efficiency, capacity, and lifespan. For demanding driving conditions, high-performance engines, or extended oil change intervals, synthetic or blended media is often recommended.

C. Filtration Efficiency

Filtration efficiency refers to the filter's ability to trap contaminants of a specific size. Higher efficiency means cleaner oil, which can lead to better engine protection and potentially longer engine life. Look for filters that specify their efficiency rating, especially if you have a modern, technologically advanced engine.

D. Filter Capacity

Capacity determines how much contaminant the filter can hold before becoming clogged. A higher capacity filter can potentially extend the time between changes, but it's essential to balance this with the recommended service interval. Driving in dusty or dirty conditions may necessitate a filter with a higher capacity or more frequent changes.

E. Service Interval

Always adhere to your vehicle manufacturer's recommended service interval for oil and filter changes. This interval is based on extensive testing and is designed to ensure optimal engine protection. While some high-quality filters might allow for extended intervals, it's wise to consult with a professional mechanic before deviating from the manufacturer's guidelines.

Conclusion: The Unseen Protector

In summary, cartridge oil filters are indispensable components for maintaining the health and performance of your vehicle's engine. By diligently trapping contaminants, they prevent premature wear, reduce friction, and ensure efficient operation. Understanding how these filters work, the materials they are made from, and the factors influencing their selection empowers you to make informed decisions about your vehicle's maintenance. Investing in a high-quality, compatible oil filter and adhering to recommended replacement schedules is one of the most effective ways to prolong your engine's life, enhance fuel efficiency, and avoid costly future repairs, ultimately contributing to a smoother, more reliable driving experience and a healthier environment through reduced emissions.
