There's little more frustrating than waking up to a cold home, only to find your oil boiler has locked out yet again. Intermittent boiler issues can be a real headache, disrupting your heating and hot water supply at the most inconvenient times. Whether you're experiencing a strong smell of oil, clicking sounds without ignition, or simply a stubborn boiler that refuses to fire up, understanding the underlying causes is the first step towards a warm and comfortable home.
This comprehensive guide delves into the common reasons why your oil-powered boiler might be behaving erratically or going into lockout, drawing on expert insights and practical advice. We'll explore everything from simple DIY fixes to situations that demand a qualified engineer's touch, ensuring you have the knowledge to tackle your boiler woes effectively.
Understanding Your Boiler's Intermittent Behaviour
Let's first address a common scenario: your boiler locks out, all pipework is cold, and there's a distinct smell of oil. You try resetting it, the motor runs, you hear a click, but it locks out again. Sometimes, cycling the mains supply seems to temporarily resolve the issue. This specific pattern often points to an underlying problem with the ignition system or fuel delivery, even if the solenoid coil has previously been replaced.
A strong smell of oil after an attempted start is a critical symptom. It indicates that fuel is being injected into the combustion chamber, but there's no flame to ignite it. This unburnt oil accumulates, leading to the smell and potential safety hazards. The clicking sound followed by lockout suggests the control box is initiating the firing sequence, but the crucial step of ignition isn't happening.
The Role of Ignition and Fuel Delivery

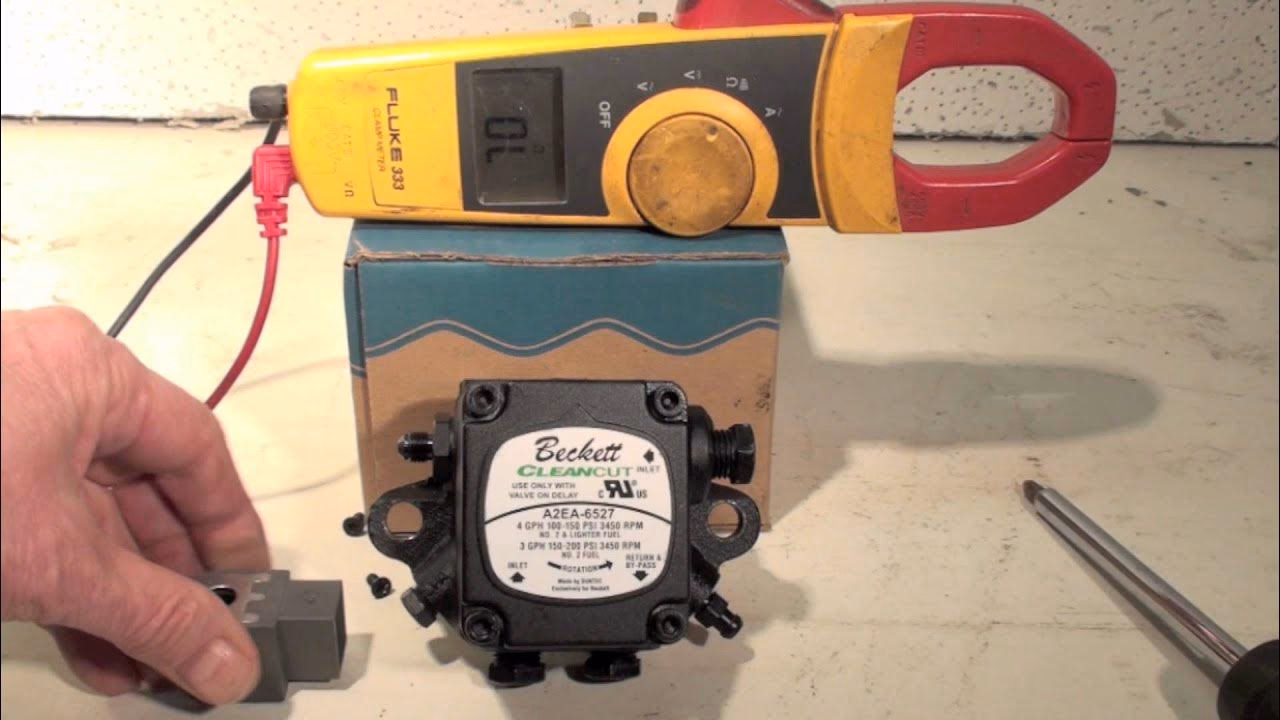

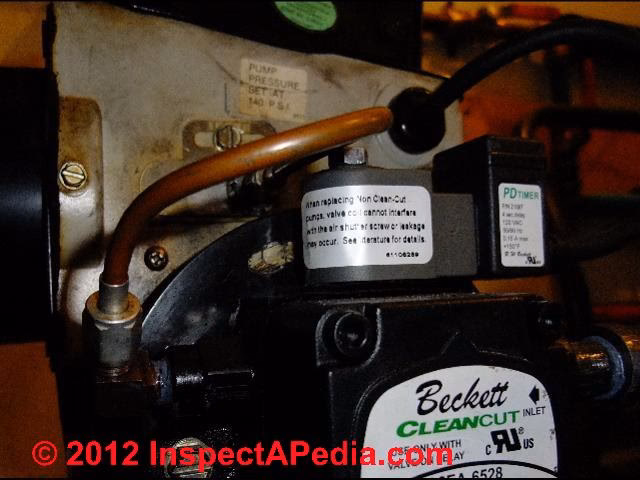

When your boiler tries to fire, it goes through a precise sequence: the fan runs, the fuel pump operates, the solenoid coil opens to allow oil flow, and then the ignition transformer provides a spark to light the oil. If any part of this chain fails, the boiler will detect a problem and enter a safety lockout.
Given the symptoms of a delayed start, oil smell, and the need to cycle the mains, a common culprit is a 'lazy' ignition transformer. Over time, these components can become less efficient, especially when cold, failing to produce a strong enough spark consistently. This is a classic reason for a boiler struggling to fire up first thing in the morning. Other related issues could include:
- Cracked or badly adjusted electrodes: These are the components that deliver the spark from the transformer to the oil. If they are cracked, dirty, or incorrectly spaced, the spark may be weak or misdirected, leading to poor ignition. They might arc out on the blast tube, preventing proper firing.
- Excess air: If the boiler's air-to-fuel ratio is incorrect, too much air can effectively 'blow out' the spark, especially during cold starts when conditions are less ideal for ignition. This is often an adjustment issue.
For a faulty ignition transformer, you might find a part number like 182759383096 (though this can vary by model). Replacing it typically involves just a couple of screws or a snap ring, a single clip-off plug, and two electrode leads. It's often a straightforward job for a qualified engineer.
Common Reasons Your Oil Boiler Locks Out
Beyond the specific ignition issues, many other factors can cause an oil boiler to refuse to fire up or go into lockout. Understanding these can help you diagnose the problem, or at least provide valuable information to your heating engineer.
1. Running Out of Oil
This might seem obvious, but it's surprisingly common. If your oil tank is empty, your boiler simply won't have any fuel to burn. Most oil tanks have a gauge, either directly on the tank or a remote display inside your home, that shows the fuel level.
How to fix it:
Check your oil gauge. If it's empty or very low, you'll need to order a refill from your oil supplier. Some companies offer emergency top-up services, though these might be more expensive.
2. Incorrect System Pressure
Oil boilers, like most central heating systems, operate within a specific pressure range, typically around 1.3 bar. If the pressure drops too low or climbs too high, the boiler's safety mechanisms will kick in, causing it to lock out to prevent damage.
How to fix it:
- If pressure is too high: You'll need to bleed water from your system, usually through a radiator bleed valve. Have a container and cloth ready for any excess water. Alternatively, you can use the drain cock.
- If pressure is too low: First, check for any visible leaks in your system. If there are no leaks, you can usually repressurise the system by opening the valves on your external filling loop. Always consult your boiler manual for specific instructions.
3. Blocked Condensate Pipe
Modern condensing boilers produce condensate (acidic water) as a byproduct of combustion, which is then drained away, usually outside. This pipe can become blocked by debris or, more commonly in colder weather, freeze solid. A blocked condensate pipe will cause the boiler to lock out as a safety measure.
How to fix it:
Locate the condensate pipe, usually a white plastic pipe (around 21.5mm diameter) coming from your boiler and leading outside. Check for any visible obstructions or ice. If it's frozen, gently pour warm (not boiling) water over the frozen section to thaw it. Once clear, reset your boiler. Consider insulating the pipe with lagging to prevent future freezing.
4. Faulty Fan
The boiler's fan plays a crucial role in expelling dangerous combustion gases through the flue. If the fan malfunctions, the boiler's safety features will prevent it from firing up to avoid a build-up of harmful gases. You might notice an absence of the usual low humming sound or vibration when the boiler attempts to start.
How to fix it:
A faulty fan requires the attention of a qualified heating engineer. They will be able to test the component, diagnose the exact fault, and carry out any necessary repairs or replacements.
5. Faulty Air Pressure Switch
Working in conjunction with the fan, the air pressure switch monitors the airflow within the boiler and the flue. It's designed to confirm that the fan is operating correctly and that combustion gases are being safely expelled. If this switch detects an issue, it will prevent the boiler from firing up.
How to fix it:
As with a faulty fan, diagnosing and rectifying an issue with the air pressure switch requires a qualified engineer. They will check both components to determine the root cause of the problem.
6. Printed Circuit Board (PCB) Fault
The PCB is essentially the 'brain' of your boiler, controlling all its functions and communicating between different components. If the PCB develops a fault, it can send incorrect signals, fail to recognise working components, or simply cease to function, leading to erratic behaviour or a complete lockout.
How to fix it:
Diagnosing a PCB fault can be challenging, even for engineers. They will use a multimeter to test the board. If the PCB is indeed faulty, it's often one of the most expensive components to replace. For older boilers, a PCB fault might be the tipping point where replacing the entire boiler becomes a more cost-effective long-term solution.
7. Radio Frequency (RF) Pairing Issues
Many modern boilers use wireless thermostats that communicate with the boiler via radio frequency (RF) signals. If this pairing is lost or corrupted, your boiler might appear to have a mind of its own, firing up at odd times or not responding when you want it to.
How to fix it:
This is often a straightforward fix. Consult your boiler's manual for instructions on how to reset your thermostat to its default settings and re-pair it with the boiler. If you don't have the manual, an online search for your specific boiler model should yield the necessary steps.
8. Radio Frequency Crossover
In densely populated areas, or if a neighbour has a boiler with a similar RF system, it's possible for radio frequencies to cross over. This can lead to your neighbour's thermostat controlling your boiler, and vice-versa, causing unpredictable heating patterns.
How to fix it:
The simplest solution is to speak to your neighbours. If you both suspect a crossover, one of you will need to change your boiler's operating frequency. Your boiler manual should provide instructions on how to do this. An online search can also provide guidance if the manual is unavailable.
DIY vs. Professional Help: When to Call an Engineer
While some boiler issues can be safely tackled by a competent homeowner, others absolutely require the expertise of a Gas Safe registered (for gas) or OFTEC registered (for oil) engineer. Attempting complex repairs yourself can be dangerous and may invalidate your boiler's warranty or insurance.
| Issue Type | Likely Cause | DIY Fix Potential | When to Call an Engineer |
|---|---|---|---|
| Fuel Supply | Run out of oil | High (Order fuel) | If boiler won't restart after refuelling |
| System Pressure | Incorrect pressure | Medium (Bleed/Repressurise) | If pressure keeps dropping/rising, suggesting a leak or fault |
| Drainage/Safety | Blocked condensate pipe | High (Thaw/Clear) | If problem persists or pipe is inaccessible |
| Ignition System | Faulty ignition transformer, electrodes, over-airing | Low | Always – requires specialist tools and knowledge |
| Airflow/Combustion | Faulty fan, air pressure switch | None | Always – safety critical components |
| Control/Electronics | Faulty PCB, RF issues | RF issues: High (Reset pairing); PCB: None | Always for PCB diagnosis and replacement |
Frequently Asked Questions About Oil Boiler Issues
How often should I get my oil boiler serviced?
It is highly recommended that your oil boiler is serviced annually by an OFTEC registered engineer. Regular servicing helps to maintain efficiency, prevent breakdowns, and ensure the safe operation of your appliance. It can also catch minor issues before they escalate into major, costly repairs.
What's the difference between a boiler lockout and a breakdown?
A boiler lockout is a safety feature where the boiler shuts itself down because it has detected a fault or an unsafe condition. It will often display a fault code. A breakdown, on the other hand, is a broader term for any instance where the boiler simply stops working, which may or may not be due to a lockout. A lockout is a specific type of breakdown, triggered by the boiler's internal safety systems.
Is it safe to reset my boiler multiple times?
While pressing the reset button once or twice to clear a temporary fault is generally acceptable, repeatedly resetting a boiler that continues to lock out is not advisable. If your boiler consistently locks out after a reset, it indicates an underlying problem that needs professional diagnosis. Continuous resetting without addressing the root cause can exacerbate issues and potentially lead to dangerous situations, especially if unburnt fuel is accumulating.
When should I consider replacing my oil boiler?
You might consider replacing your oil boiler if:
- It is old and inefficient (e.g., over 15 years old).
- It frequently breaks down, leading to recurring repair costs.
- A major component, such as the PCB or heat exchanger, needs replacing, and the cost of repair is a significant percentage of the cost of a new boiler.
- You are looking to upgrade to a more energy-efficient model to save on fuel bills and reduce your carbon footprint.
When considering a replacement, it's wise to obtain several quotes. Companies like Heatable can provide competitive prices on a range of new, efficient boilers, often beating local and national installers.
Conclusion
An intermittent oil boiler can be a significant source of stress, but by understanding the common causes of lockouts and poor performance, you're better equipped to address the issue. While simple problems like a lack of oil or a frozen condensate pipe can often be resolved with a bit of DIY, more complex issues, particularly those involving ignition, fans, or the main control board, demand the expertise of a qualified and registered heating engineer.
Always prioritise safety. If you are ever in doubt about diagnosing or fixing a boiler problem, or if the issue persists after attempting a simple fix, do not hesitate to call a professional. A well-maintained and properly functioning oil boiler is essential for the comfort and safety of your home.
