Golf Mk6 Rear Subframe: Corrosion & Longevity

It's a common scenario for many drivers of well-loved, slightly older vehicles: the trusty workhorse that’s served you faithfully for years starts throwing up MOT advisories. For owners of a 2012 Golf Mk6 TDI, particularly those approaching or exceeding 100,000 miles, concerns about underbody corrosion, specifically the rear subframe, are increasingly prevalent. While it's natural to want to keep a reliable car running for as long as possible, understanding the severity of these advisories, especially regarding structural components, is paramount before investing in further maintenance.

Your Golf Mk6, at 107,000 miles, sounds like it's been a dependable runner, perfectly suited for those shorter winter commutes. However, recent MOT advisories, particularly concerning rear subframe corrosion and leaking front shock absorbers, signal that it’s time for a serious assessment. The honesty of your garage in suggesting a potential write-off due to subframe issues, even when it means turning down work, is a strong indicator that this isn't just a minor advisory that can be ignored. Let's delve into what these issues mean for your car's future.

Understanding Your Golf's Rear Subframe

The subframe is a critical structural component of your vehicle, essentially a separate frame that bolts to the main unibody chassis. It serves as a mounting point for various crucial systems, including the suspension components, steering rack, and sometimes the engine or gearbox. In the context of your Golf Mk6, the rear subframe supports the rear suspension arms, springs, and shock absorbers, playing a vital role in the car's handling, stability, and safety. Because it’s located underneath the car, it’s constantly exposed to road grime, water, salt, and other corrosive elements, making it highly susceptible to rust over time.

The Threat of Corrosion: Advisory vs. Failure

Corrosion on a subframe can range from minor surface rust, which is largely cosmetic, to deep, penetrating rust that compromises the component's structural integrity. An MOT advisory for corrosion, such as "corrosion to rear subframe / rear wishbone arms," means the MOT tester has identified rust that isn't yet a direct safety concern but requires monitoring and potentially future attention. However, if that corrosion progresses to the point of perforation (a hole forming through the metal) or significantly weakens the subframe or its mounting points, it will become an MOT failure.

The garage's reluctance to advise extensive work like shock absorber replacement and a timing belt change, due to the subframe corrosion, highlights a very real concern. If the subframe is severely corroded, especially at its mounting points to the main chassis, the car could indeed be deemed unroadworthy or uneconomical to repair. This is because the subframe mounting is often an integral part of the main chassis structure. If rust has eaten into these chassis mounting areas, repairing it can be extremely complex, expensive, and sometimes impossible to do safely and legally, leading to the car being written off.

Assessing the Severity: Do You Need a Second Opinion?

Given the garage's candid advice, it's wise to get a definitive assessment of the subframe corrosion's severity. While their honesty is commendable, different garages can have slightly different interpretations or levels of scrutiny, and an independent assessment can offer peace of mind. Consider taking your car to a council-run MOT test centre. These centres do not offer repair services, so their assessment is purely for the MOT standard, without any potential for profit from subsequent repairs. They can provide an unbiased opinion on whether the corrosion is superficial, a genuine concern, or already at a level that would lead to a future MOT fail.

A thorough inspection should involve a mechanic carefully probing and tapping the corroded areas, particularly around the subframe's attachment points to the chassis. They'll be looking for signs of deep rust, flaking metal, and any areas of perforation or significant weakening. It's this level of detail that determines whether the corrosion is a manageable issue or a death knell for the vehicle.

Subframe Bushes vs. Subframe Corrosion: A Key Distinction

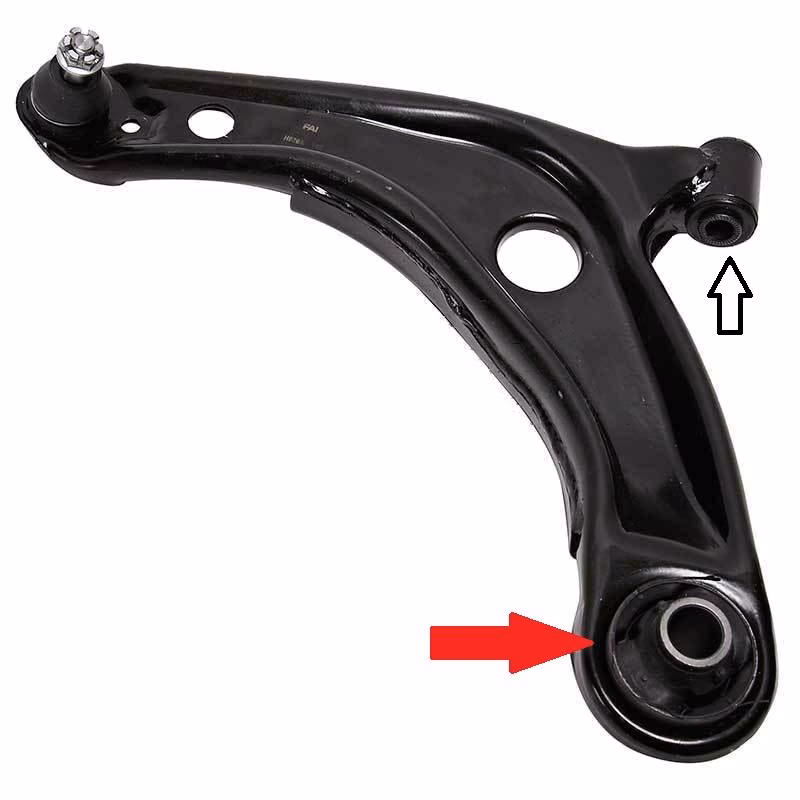

It's important to distinguish between corrosion of the metal subframe itself and wear or failure of the subframe bushes. The bushes are rubber components that sit between the subframe and the car's body, designed to absorb vibrations and provide a cushioned mounting. They are wear-and-tear items that deteriorate over time, leading to excessive movement, knocking noises, and poor handling. Failure of subframe bushes (as seen in the instance of the £200 repair quote for nearside and offside rear subframe pin or bush failure at 80,000 miles) is a common issue and generally a much more straightforward and cost-effective repair than structural subframe corrosion. Replacing bushes alone typically doesn't involve replacing the entire subframe, unless the subframe itself is so corroded that it cannot hold the new bushes properly. A £200 repair for bushes sounds reasonable and is a common fix for a car of that mileage.

However, if the corrosion is on the metal subframe itself, especially at the mounting points, that's a different ball game. While bushes can be replaced, a severely corroded subframe might need replacement, which is a much larger job, or worse, if the chassis mounts are compromised, the car could be beyond economical repair.

Repairing Subframe Corrosion: Is It Possible?

The possibility of repair depends entirely on the extent and location of the corrosion:

• Surface Rust: If it's merely surface rust, cleaning the area, applying rust converter, and then treating it with a protective underbody wax or paint can prevent further deterioration. This is a preventative measure.
• Minor Structural Corrosion: In some cases, if the corrosion is localised and hasn't compromised a critical load-bearing area, a skilled fabricator might be able to weld in repair patches. However, this is highly dependent on the MOT regulations and the specific area affected. Welding on chassis components is a serious structural repair that must be done correctly.
• Severe Corrosion or Perforation: If the subframe has significant holes or is severely weakened, particularly at its mounting points, replacement of the entire subframe might be the only option. The availability of new or good used subframes for a Mk6 Golf should be considered. This is a substantial job, requiring significant labour, and can be expensive.
• Chassis Mounting Point Corrosion: This is the most problematic scenario. If the corrosion has spread from the subframe to the main chassis mounting points, the car is often deemed a write-off. Repairing the main chassis is complex, expensive, and often requires specialist jig work to ensure structural integrity and alignment, making it uneconomical for a car of your Golf's age and value. As mentioned in the provided information, "the subframe mounting is actually part of the chassis - once you start poking that, you'll often find a large hole starts to appear." This confirms the severity of chassis corrosion.

The ultimate decision hinges on a cost-benefit analysis. If the repair costs for a new subframe (or extensive welding) exceed the car's market value, or if the chassis itself is compromised, then the garage's advice to consider it a potential write-off is sound. For a car that only serves a specific, limited purpose, pouring significant money into a potentially condemned chassis might not be the most financially prudent choice.

Addressing Other Advisories: Leaking Shock Absorbers and Timing Belt

While the subframe issue takes precedence, the other advisories are also important:

• Leaking Front Shock Absorbers: This is a definite MOT failure if severe enough. Leaking shocks compromise ride comfort, handling, braking efficiency, and can lead to uneven tyre wear. Replacing them is a common maintenance item for a car of 107,000 miles. If the subframe issue proves repairable, then addressing the shocks is a sensible next step. Often, suspension work can be done concurrently with subframe work if components need to be removed anyway.
• Timing Belt: Having been done at 55,000 miles, your timing belt is now due for replacement around 110,000 miles (or after a set number of years, whichever comes first, consult your Golf's service schedule). This is a critical preventative maintenance item for TDI engines; failure can lead to catastrophic engine damage. If you decide to proceed with subframe and shock repairs, then doing the timing belt at the same time is a logical step to secure the car's mechanical longevity.

Making the Decision: To Keep or To Go?

Your goal to keep the Golf running "for a good while longer" is admirable, especially for a car that serves a specific, useful role. The key is to obtain that definitive, independent assessment of the subframe corrosion. If it's superficial or limited to replaceable components like bushes, then investing in the shocks and timing belt makes perfect sense. However, if the corrosion has eaten into the main chassis mounting points, you might be facing an uneconomical repair. In such a scenario, even though it's a reliable car, the cost of making it safe and roadworthy could quickly outweigh its value, making a replacement vehicle a more sensible long-term financial decision.

Preventative Measures for Future Corrosion

For any vehicle, especially those used in wintery or wet conditions, proactive measures can help mitigate corrosion:

• Regular Underbody Washes: Especially after driving on salted roads, thoroughly rinsing the underside of your car can remove corrosive elements.
• Underbody Protection: Consider having a professional underbody wax or rust-proofing treatment applied. This creates a barrier against moisture and salt.
• Routine Inspections: During servicing, ask your mechanic to pay close attention to the subframe and other structural components for early signs of rust. Catching it early can prevent it from becoming a major issue.

Frequently Asked Questions (FAQs)

Is rear subframe corrosion common on a 2012 Golf Mk6 TDI?

Yes, as cars age, especially those driven in areas with harsh winters or high road salt usage, corrosion on underbody components like the rear subframe is increasingly common. The Mk6 Golf, now over a decade old, is at an age where such issues frequently appear on MOT advisories.

Can I drive with subframe corrosion?

If it's a minor advisory for surface rust, yes, but it needs monitoring. If the corrosion is severe, has caused perforation, or has compromised the structural integrity of the subframe or its chassis mounting points, it will be an MOT failure, making the car unroadworthy and potentially unsafe to drive.

What's the difference between an MOT advisory and a fail for corrosion?

An advisory means the component has corrosion, but it's not yet at a level that fails the test criteria for safety or structural integrity. A fail means the corrosion is severe enough to compromise the vehicle's safety or structure, requiring immediate repair. The line between the two can be subjective, which is why an independent second opinion can be valuable.

Can rear subframe bushes be replaced without replacing the whole subframe?

Absolutely. Subframe bushes are designed to be replaceable components. Replacing worn bushes is a common repair that can significantly improve handling and reduce noise, and it's much less involved and expensive than replacing the entire subframe. The £200 quote you received for bush replacement is typical for this kind of work.

Can a car with a corroded subframe be sold on?

A car with a significant subframe corrosion issue, especially if it affects the chassis mounting points, would be very difficult to sell legitimately as a running vehicle without full disclosure and a substantial discount reflecting the necessary repairs. If the corrosion is severe enough to warrant an MOT fail or a write-off, then the car's value is significantly diminished, often to scrap value. As mentioned, if the subframe mounting (part of the chassis) is compromised, the car is effectively condemned.
