Wheel Alignment: Keeping Your Vehicle on Track

Ensuring your vehicle's wheels are correctly aligned is fundamental to its safe operation, optimal tyre longevity, and overall driving comfort. Misaligned wheels can lead to a host of problems, from uneven tyre wear and poor fuel efficiency to compromised steering control and an uncomfortable ride. This is where specialised services become invaluable, offering expertise and equipment to tackle even the most complex alignment challenges.

Understanding Wheel Alignment

Wheel alignment, often referred to as tracking, is the process of adjusting the angles of the wheels of your vehicle so that they are set parallel to each other and perpendicular to the ground. This precise setup ensures that your vehicle drives straight, handles predictably, and that your tyres make even contact with the road surface. The key angles that are adjusted during an alignment are:

• Camber: The inward or outward tilt of the top of the tyre when viewed from the front of the vehicle.
• Caster: The angle of the steering axis when viewed from the side of the vehicle. It influences steering stability.
• Toe: The direction of the tyres relative to each other. If the front of the tyres points slightly inward, it's 'toe-in'; if they point slightly outward, it's 'toe-out'.
• Kingpin Inclination (KPI): The angle of the steering axis when viewed from the front of the vehicle. It affects steering effort and stability.

Why is Proper Alignment Crucial?

The benefits of maintaining correct wheel alignment are substantial:

• Tyre Wear: Misalignment is a leading cause of premature and uneven tyre wear. When wheels are not pointing in the same direction, tyres are forced to scrub against the road, leading to rapid degradation of the tread. Proper alignment ensures tyres wear evenly across their surface, maximising their lifespan.
• Fuel Efficiency: When your wheels are not aligned, your vehicle's tyres create more rolling resistance. This means your engine has to work harder to move the vehicle, consuming more fuel. Correct alignment reduces this resistance, improving your miles per gallon.
• Handling and Steering: Properly aligned wheels contribute significantly to a vehicle's handling characteristics. You'll notice improved steering response, a tendency for the vehicle to track straight without you having to constantly correct the steering wheel, and greater stability, especially at higher speeds.
• Safety: Ultimately, good alignment is a matter of safety. A vehicle that pulls to one side, has a steering wheel that is off-centre, or exhibits erratic handling can be dangerous, particularly in emergency situations.

When Should You Get Your Alignment Checked?

Several indicators suggest your vehicle might need an alignment check:

• Uneven Tyre Wear: As mentioned, this is a primary symptom. Look for wear on the edges or shoulders of your tyres.
• Vehicle Pulling to One Side: If your car drifts to the left or right when you're driving on a straight and level road, it's a strong sign of misalignment.
• Crooked Steering Wheel: If the steering wheel isn't centred when you're driving straight, an alignment adjustment is likely needed.
• Vibrations: While vibrations can have multiple causes, they can sometimes be linked to alignment issues.
• After Suspension Work: Any work done on the suspension system, such as replacing shock absorbers, struts, or steering components, will almost always necessitate a wheel alignment.
• After an Impact: Hitting a pothole, kerb, or being involved in a minor collision can easily knock your wheels out of alignment.

Specialised Alignment Services: Tackling Complex Issues

While many garages offer standard wheel alignment services, some situations require a higher level of expertise and specialised equipment. This is particularly true when dealing with older vehicles, commercial vehicles, or vehicles that have experienced significant damage. For instance, a king pin job refers to the replacement or refurbishment of the kingpins, which are pivot points in the steering system of many vehicles, especially older trucks and buses. These can wear over time, leading to looseness in the steering and alignment problems.

Specialist workshops possess the capability to perform complex repairs and adjustments that go beyond a standard four-wheel alignment. This can include:

• Machining and Sleeving Axles: For vehicles with worn or damaged kingpin bosses or axle ends, specialists can machine the affected areas and install sleeves to restore them to the correct dimensions. This process ensures that new kingpins fit snugly and that the steering geometry can be accurately set. This ability to machine and sleeve any axle to any size highlights a dedication to handling challenging restoration and repair work.

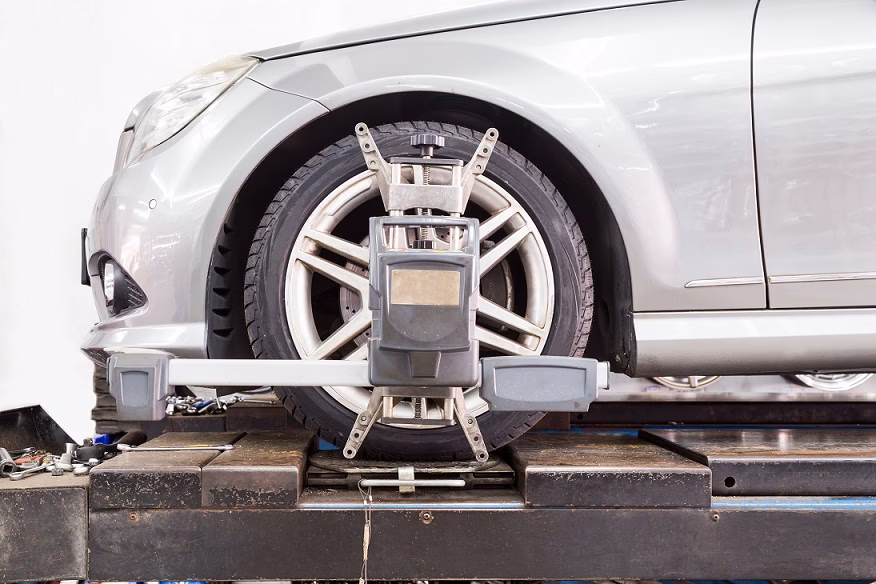

• Advanced Alignment Equipment: Modern alignment systems use laser or camera technology to measure all critical suspension angles with high precision. Specialists will have access to the latest equipment that can accommodate a wide range of vehicle types and sizes, including those with non-standard suspensions or older steering mechanisms.
• Expert Diagnosis: Experienced technicians can accurately diagnose the root cause of alignment problems, distinguishing between simple adjustments and the need for more involved repairs like kingpin replacement or axle rectification.

The Kingpin Job: A Closer Look

The kingpin is a crucial component in the steering linkage of many vehicles. It's essentially a hardened steel pin that allows the steering knuckle (which holds the wheel hub) to pivot relative to the axle beam or suspension component. When a kingpin wears, it creates excessive play in the steering system. This play can manifest as:

• A loose or vague steering feel.
• Increased difficulty in keeping the vehicle driving straight.
• Faster wear on other steering and suspension components.
• The need for constant steering corrections.

Replacing kingpins is a labour-intensive job. It typically involves disassembling the steering knuckle, pressing out the old kingpins (which are often a press-fit), cleaning and preparing the bores in the knuckle and axle, and then pressing in new kingpins. If the bores have become enlarged or damaged due to wear, the specialist may need to machine them and install precisely fitted sleeves to restore the original dimensions and ensure a tight, correct fit for the new kingpins. This capability is what sets specialised workshops apart; they can address the underlying structural issues that prevent a standard alignment from being effective.

Comparison of Services

Here's a general comparison between standard alignment services and specialised services:

Frequently Asked Questions

Q1: How long does a wheel alignment take?

A standard wheel alignment typically takes between 30 minutes to an hour. However, a more complex job involving component replacement or axle machining, such as a kingpin job, can take several hours or even a full day, depending on the extent of the work required.

Q2: Can I do a wheel alignment myself?

While basic toe adjustments might be attempted with string and measuring tools, achieving a precise, multi-angle alignment requires specialised equipment and knowledge. For accurate and safe results, it's best left to professionals.

Q3: How often should I get my alignment checked?

It's recommended to have your wheel alignment checked at least once a year, or whenever you notice any of the symptoms mentioned earlier, such as uneven tyre wear or the vehicle pulling to one side.

Q4: What is the cost of a wheel alignment?

The cost of a standard alignment can vary, but typically ranges from £50 to £100. Specialised services, especially those involving kingpin replacements or axle repairs, will be significantly more expensive due to the labour and specialised machining involved.

Q5: What does it mean to machine and sleeve an axle?

Machining an axle means using precision cutting tools to remove excess material or to create a perfectly smooth and dimensionally accurate surface on a worn or damaged part of the axle. Sleeving involves fitting a precisely machined metal sleeve into a bored-out area, often to restore the original diameter and integrity of a component, such as the bore where a kingpin sits.

Conclusion

Maintaining your vehicle's wheel alignment is a critical aspect of automotive care. While standard alignments address common issues, the ability to perform complex repairs like kingpin jobs, including the machining and sleeving of axles, signifies a high level of automotive expertise. Such specialised services ensure that even the most challenging steering and alignment problems can be resolved, keeping your vehicle safe, efficient, and a pleasure to drive.
