SGSSAA: The Ultimate Anti-Aliasing Guide

Understanding SGSSAA: A Deep Dive into Enhanced Visual Fidelity

In the pursuit of a truly immersive and visually stunning gaming experience, the fidelity of on-screen graphics is paramount. One of the most persistent visual annoyances for gamers is aliasing, often referred to as 'jaggies' or 'stair-stepping' along the edges of rendered objects. This phenomenon arises from the way digital displays render continuous lines and curves. To combat this, various anti-aliasing (AA) techniques have been developed, each with its own strengths and weaknesses. Among these, Sparse Grid Supersampling Anti-Aliasing (SGSSAA) stands out as a particularly effective, albeit niche, solution, primarily championed by NVIDIA for its graphical prowess.

SGSSAA is a sophisticated form of supersampling anti-aliasing developed by NVIDIA. Unlike more common methods like Multi-Sampling Anti-Aliasing (MSAA) or Fast Approximate Anti-Aliasing (FXAA), SGSSAA operates on a principle of rendering the scene at a higher resolution and then downsampling it, but with a clever twist. It employs a 'sparse grid' sampling pattern, which means it samples fewer points than a full supersampling grid but does so in a way that is strategically placed to catch those troublesome jagged edges more effectively. This approach offers a remarkable balance between visual quality and performance impact, making it a favourite for enthusiasts looking to eliminate aliasing with minimal frame rate sacrifice.

Historically, SGSSAA has proven to be exceptionally effective in older titles, particularly those running on DirectX 9 (DX9). Games such as the original releases of Skyrim, Borderlands, and Battlefield have seen significant visual improvements when SGSSAA is applied. However, it's important to note that NVIDIA's official support for SGSSAA has largely focused on older game engines. While newer titles utilizing DirectX 11 (DX11) or DirectX 12 (DX12) may not directly support SGSSAA through standard driver settings, creative workarounds, such as utilising DX9 clients where available, can still unlock its benefits.

Why SGSSAA is a Game Changer

The primary advantage of SGSSAA lies in its unparalleled ability to eradicate the 'edge shimmer' or 'aliasing' that plagues many games. While other methods like Level of Detail (LOD) bias or downsampling from a higher resolution can mitigate these issues to some extent, they often fall short of the pristine clarity that SGSSAA provides. SGSSAA effectively smooths out jagged edges, resulting in a much cleaner and more visually pleasing image. It's considered by many to be a superior method for achieving a completely aliasing-free experience, especially when compared to even high levels of MSAA.

The technique works by applying supersampling across the entire scene in a sparse grid pattern. This means that instead of sampling every pixel multiple times uniformly, SGSSAA samples key areas more intensely, effectively 'filling in the gaps' that cause aliasing. This intelligent sampling strategy makes it more efficient than traditional full supersampling (SSAA) while delivering superior results to MSAA. The outcome is a sharp, clean image with virtually no perceptible jaggies, particularly noticeable on fine details like foliage, distant objects, and character outlines.

SGSSAA vs. Other Anti-Aliasing Techniques

To truly appreciate SGSSAA, it's beneficial to compare it with other common anti-aliasing methods. Understanding these differences will highlight why SGSSAA is often considered the holy grail for visual purists:

As you can see, SGSSAA offers a compelling middle ground. It aims for the visual perfection of SSAA but with a performance profile that is more manageable, often outperforming high levels of MSAA in terms of pure edge smoothing and clarity, especially on complex textures and fine geometry.

Enabling SGSSAA: A Step-by-Step Guide for NVIDIA Users

SGSSAA is an NVIDIA-specific technology, meaning it is only available to users with NVIDIA graphics cards. The process of enabling it typically involves using a utility called NVIDIA Inspector. This powerful tool allows users to delve into advanced graphics settings for specific applications, overriding default driver settings and unlocking hidden features.

Here's how to get SGSSAA up and running:

1. Download NVIDIA Inspector: You'll need to download NVIDIA Inspector. A reliable source is often found on tech enthusiast websites like Guru3D. Ensure you download the latest version compatible with your system.
2. Open NVIDIA Inspector: Once downloaded, extract and run the NVIDIA Inspector executable.
3. Create or Load a Profile: NVIDIA Inspector works by applying settings on a per-application basis. You'll need to find or create a profile for the game you wish to enhance.
4. Locate the Game Profile: In NVIDIA Inspector, you can search for games by typing their name in the search bar. For example, if you're targeting Final Fantasy XIV, search for "Final Fantasy XIV".

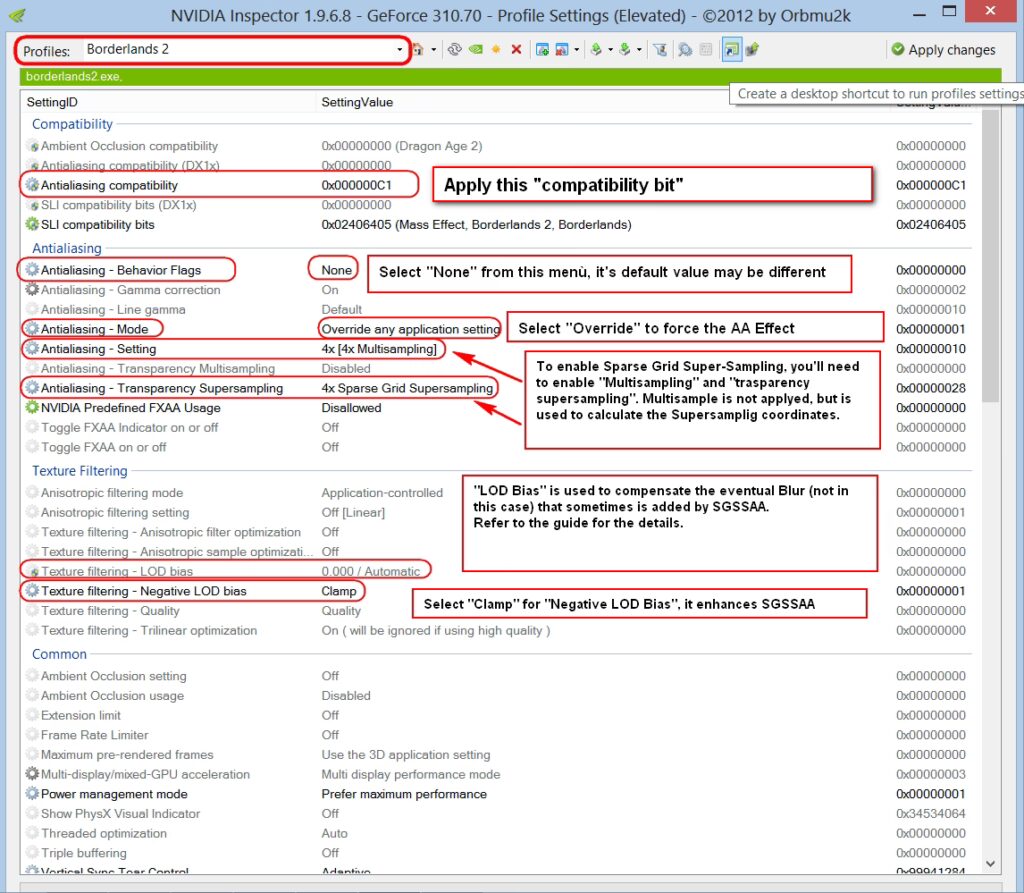

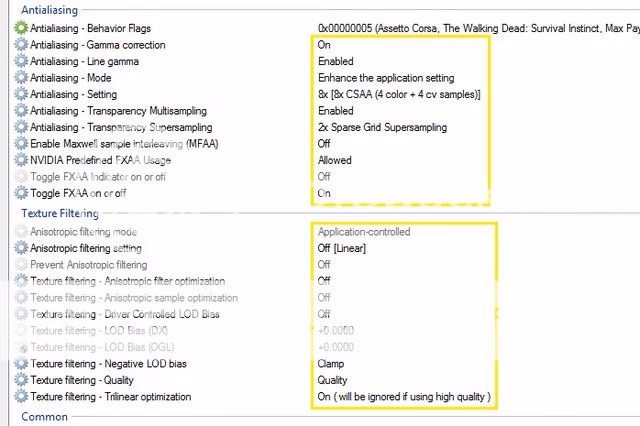

5. Configure SGSSAA Settings: Within the game's profile, you'll find numerous settings. The key settings for SGSSAA typically involve:
   • Antialiasing compatibility: Set this to a value that ensures compatibility. A common value for many games is 0x000010C1.
   • Antialiasing - Mode: Set this to Override any application setting.
   • Antialiasing - Setting: This determines the MSAA level. For example, 4x [4x Multisampling].
   • Antialiasing - Transparency Multisampling: Often set to Disabled.
   • Antialiasing - Transparency Supersampling: This is where you set the SGSSAA level. It must match your MSAA setting. So, if you chose 4x MSAA, set this to 4x Sparse Grid Supersampling. You can also try 2x MSAA with 2x SGSSAA.
6. Apply Changes: After configuring the settings, click the 'Apply changes' button, usually located in the top-right corner of the NVIDIA Inspector window.
7. Launch the Game (DX9 Client if applicable): For games like Final Fantasy XIV that offer both DX9 and DX11 clients, it's crucial to ensure you are launching the DX9 version to maximise SGSSAA compatibility. This is often done via the game's launcher settings. For games like Skyrim, you simply launch the game after applying the settings.
8. Full Screen Mode: For optimal results and to ensure SGSSAA is applied correctly, run your game in Full Screen mode.

Performance Considerations and Adjustments

While SGSSAA is more efficient than full SSAA, it still imposes a performance cost. The exact impact varies depending on the game, your hardware, and the SGSSAA level you choose. For instance, running at 4x MSAA combined with 4x SGSSAA can significantly reduce frame rates on older or less powerful hardware.

Tips for managing performance:

• Adjust SGSSAA Levels: If you experience significant frame drops, try reducing the SGSSAA level (e.g., from 4x to 2x). Remember, the MSAA and SGSSAA levels must match.
• In-Game Settings: Experiment with other in-game graphics settings. Turning off features like HDR rendering or adjusting transparency lighting (e.g., to 'Normal') can sometimes free up performance without a drastic visual downgrade.
• Lower Resolution: While counterintuitive when aiming for higher visual quality, if your hardware is struggling, running the game at a slightly lower resolution and enabling SGSSAA can still yield a cleaner image than running at native resolution with less effective AA.
• Monitor Frame Rates: Use in-game or third-party benchmarking tools to monitor your frame rates before and after applying SGSSAA to gauge the performance impact accurately.

Even with these considerations, many users with mid-range to high-end NVIDIA cards can enjoy the benefits of SGSSAA without compromising their desired frame rates, especially in less demanding titles or DX9 clients.

Compatibility and Limitations

The primary limitation of SGSSAA is its strong association with older graphics APIs, particularly DirectX 9. While it was a revolutionary technique, NVIDIA's focus has shifted to newer AA methods for modern titles. This means that enabling SGSSAA in games built on DX11 or DX12 engines can be challenging or impossible without specific game support or advanced driver modifications.

Furthermore, using a DX9 client for a game that has a DX11 or DX12 counterpart means you might miss out on newer graphical features or optimizations. For example, a recent 4K UI update might not function correctly or be available in the DX9 version of a game.

However, for games that are primarily enjoyed in their DX9 iterations, or where the visual benefits of SGSSAA far outweigh the loss of newer graphical features, it remains an incredibly valuable tool. It's a testament to how clever engineering can extend the visual life of older, beloved titles.

Frequently Asked Questions about SGSSAA

Q1: Does SGSSAA work on AMD graphics cards?
No, SGSSAA is a proprietary NVIDIA technology and is not compatible with AMD graphics cards.

Q2: Can I use SGSSAA with DX11 or DX12 games?
Generally, no. SGSSAA is most effective and reliably enabled in DirectX 9 applications. While some advanced users might find workarounds for specific DX11 titles, it's not officially supported and may not yield good results or could be unstable. It's best to stick to DX9 games or DX9 clients.

Q3: What is the difference between SGSSAA and Transparency Supersampling?
SGSSAA is a specific implementation of Transparency Supersampling developed by NVIDIA. While both aim to reduce aliasing on transparent surfaces (like foliage or fences), SGSSAA uses a sparse grid pattern for greater efficiency and effectiveness compared to standard transparency supersampling found in some driver profiles.

Q4: Will SGSSAA fix all graphical glitches?
SGSSAA primarily targets edge aliasing and shimmer. It will not fix other graphical issues like texture pop-in, poor draw distance, or artifacting caused by driver conflicts or game bugs. Shadows, in particular, may still exhibit flickering that SGSSAA cannot resolve.

Q5: Can I use GShade or other injectors with SGSSAA?
Yes, GShade and NVIDIA Freestyle are often compatible with DX9 clients and can be used alongside SGSSAA. This allows for further visual customization on top of the enhanced anti-aliasing.

Final Thoughts: The Enduring Appeal of SGSSAA

In conclusion, Sparse Grid Supersampling Anti-Aliasing (SGSSAA) remains a powerful and highly effective method for achieving pristine visual clarity in PC gaming, particularly for titles that predate the widespread adoption of DX11 and DX12. By leveraging NVIDIA Inspector and understanding the nuances of its implementation, gamers can significantly reduce or eliminate distracting aliasing and edge shimmer, leading to a more immersive and visually satisfying experience. While its relevance may be tied to older game engines, for those who cherish titles that benefit most from its capabilities, SGSSAA is an indispensable tool in the pursuit of graphical perfection. The slight performance trade-off is often well worth the dramatic improvement in image quality, ensuring that even older games can look exceptionally sharp and smooth on modern hardware.
