DIY Mountain Bike Disc Brake Pad Replacement

Ensuring your mountain bike's disc brakes are in top condition is paramount for both performance and, more importantly, safety. Worn brake pads can lead to reduced stopping power, inconsistent braking, and even damage to your rotors. While it might seem like a daunting task, replacing your disc brake pads is a straightforward maintenance job that most riders can accomplish at home with a few basic tools. This comprehensive guide will walk you through every step, from identifying worn pads to the crucial bedding-in process, ensuring your bike stops reliably every time you hit the trails.

Understanding Your Disc Brakes: A Quick Overview

Before diving into the replacement process, it's helpful to understand the basic components of your disc brake system. Your brakes consist of a lever on the handlebar, hydraulic lines (or a cable in mechanical systems), a caliper mounted to the frame or fork, and a rotor attached to your wheel hub. Inside the caliper, two pistons push the brake pads against the rotor when you squeeze the lever, creating friction that slows or stops the bike. The pads are a consumable item, designed to wear down over time as they perform their vital function.

When to Replace Your Brake Pads

Knowing when to replace your brake pads is key to maintaining optimal braking performance and preventing more costly repairs. Here are the common signs:

• Reduced Braking Performance: If your brakes feel spongy, require more lever pressure, or simply don't stop you as effectively as they used to, your pads are likely worn.
• Audible Squealing or Grinding: While some squealing can be due to contamination, a persistent, loud squeal often indicates worn pads. A metallic grinding sound means the pads are completely worn, and the metal backing plate is contacting the rotor – this requires immediate attention to prevent rotor damage.
• Visible Wear: Most pads have a minimum thickness indicator. Generally, if the pad material is less than 0.5mm to 1mm thick (or if the spring clip is touching the rotor), it's time for replacement. Some pads have fins; ensure these aren't contacting the rotor.
• Contamination: If your pads have been contaminated by oil, grease, or brake fluid, they may lose their effectiveness and require replacement, even if they have plenty of material left.

Tools and Materials You'll Need

Gathering all your tools before you start will make the process much smoother:

• New disc brake pads (ensure they are compatible with your brake caliper model)
• Appropriate Allen keys (typically 4mm or 5mm for caliper bolts, and a smaller one for pad retention bolts on some models)
• Flathead screwdriver (small, for prying or pushing pistons)
• Piston press tool or a clean plastic tyre lever/wide, blunt object (to push back pistons)
• Clean rags or paper towels
• Rubbing alcohol (isopropyl alcohol) or specific disc brake cleaner
• Gloves (optional, but recommended to prevent contamination)
• Torque wrench (optional, but highly recommended for precise tightening)

Step-by-Step Guide to Replacing Your Brake Pads

Step 1: Prepare Your Bike and Workspace

Firstly, ensure your bike is stable. If you have a bike stand, use it. If not, carefully lean your bike against a wall or have someone hold it. Shift your gears to the smallest cog on the cassette to give yourself more space around the rear caliper if working on the rear brake. It's also a good idea to lay down some old newspaper or a mat to catch any dirt or fluid.

Step 2: Remove the Wheel

Open your quick-release skewer or loosen the thru-axle, and carefully remove the wheel from the bike. Set it aside in a clean, safe place where the rotor won't get bent or contaminated. Avoid squeezing your brake lever with the wheel removed, as this can cause the pistons to over-extend and potentially become stuck or expel fluid.

Step 3: Remove the Old Brake Pads

Now, locate the brake caliper. Inside, you'll see the two brake pads. They are typically held in place by one of two common methods:

• Split Pin: Many Shimano and SRAM brakes use a small split pin (or cotter pin) that passes through holes in the pads and the caliper body. Use pliers or a small flathead screwdriver to straighten the bent ends of the split pin, then pull it out.
• Pad Retention Bolt: Other brakes, particularly some higher-end models, use a small threaded bolt (often a 2mm or 3mm Allen bolt) that screws through the pads and caliper. Unscrew this bolt completely.

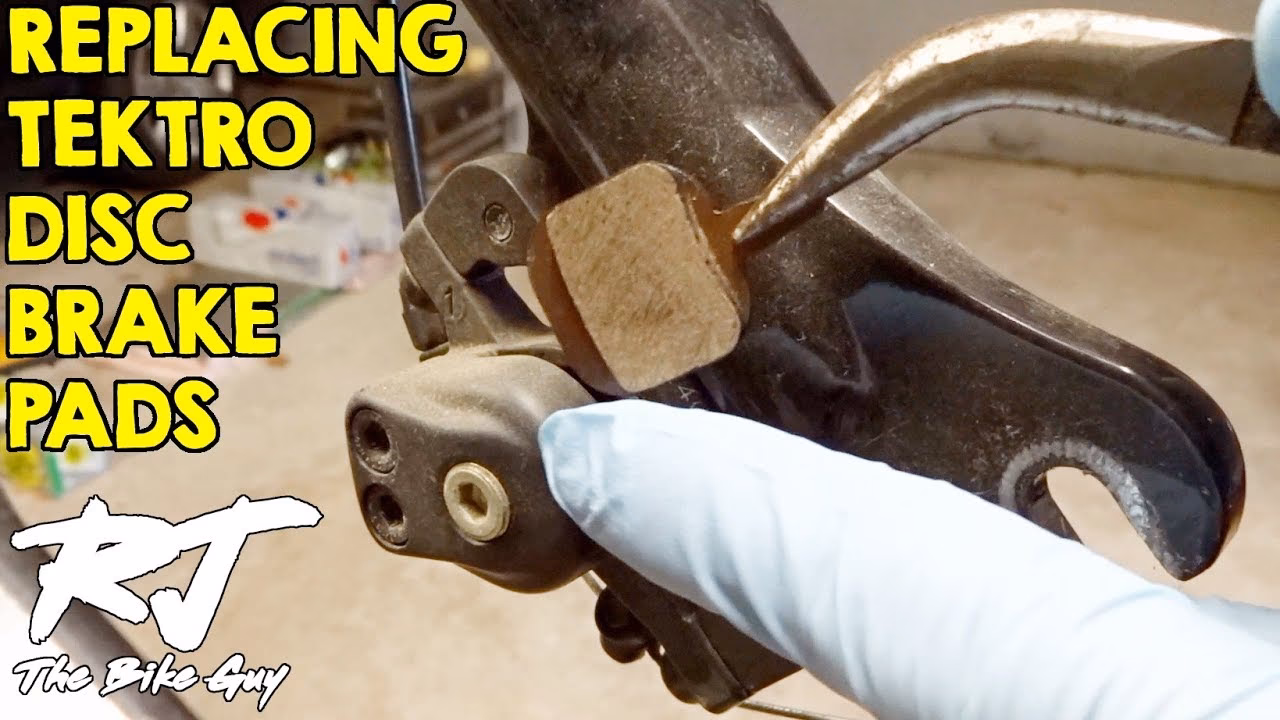

Once the retention mechanism is removed, the pads should slide out easily from the top or bottom of the caliper. Sometimes they might be a bit snug, so you might need to gently wiggle them or use a flathead screwdriver to carefully lever them out. Note how the spring clip (a metal piece that sits between the pads) is oriented – you'll need to install the new pads with this clip in the same way.

Step 4: Clean the Caliper and Push Back the Pistons

This is a critical step. As your old pads wore down, the pistons in your caliper extended further to compensate. When you install new, thicker pads, you need to push these pistons back into their bores to create enough space. If you skip this, your new pads will rub against the rotor, and your wheel won't spin freely.

• Clean the Caliper: Before pushing the pistons back, use a clean rag and rubbing alcohol to clean any brake dust or grime from around the pistons. This prevents pushing dirt back into the caliper seals. Avoid spraying cleaner directly into the caliper; apply it to the rag first.
• Push Back Pistons: Place your piston press tool, a clean plastic tyre lever, or a wide, blunt flathead screwdriver between the pistons. Gently but firmly apply even pressure to push both pistons back into the caliper body until they are fully retracted and flush with the caliper walls. Be careful not to damage the piston faces or the caliper. If only one piston moves, hold the extended one in place with the tool while pushing the other back. For hydraulic brakes, you might notice a small amount of brake fluid being pushed back into the reservoir – this is normal.

Step 5: Install the New Brake Pads

Take your new brake pads and the spring clip. Place the spring clip between the pads, ensuring it's oriented correctly (it usually bows outwards, pushing the pads apart). Carefully slide the new pad assembly into the caliper, ensuring they seat properly. The spring clip should hold them together and slightly apart.

Once the pads are in place, reinsert the pad retention mechanism:

• Split Pin: Thread the split pin through the holes in the pads and caliper, then bend the ends to secure it.
• Pad Retention Bolt: Screw the retention bolt back in and tighten it gently. Do not overtighten, as this can strip the threads.

Step 6: Reinstall the Wheel and Align the Caliper

Carefully reinstall your wheel, ensuring the rotor slots perfectly between the new brake pads in the caliper. Close the quick-release skewer or tighten the thru-axle to the manufacturer's recommended torque. It's crucial that your wheel is securely fastened.

Now, you need to align your brake caliper to prevent rotor rub and ensure even pad wear:

• Loosen the two bolts that secure the brake caliper to your frame or fork. They should be loose enough for the caliper to move freely from side to side.
• Squeeze and hold the brake lever firmly. This centres the caliper over the rotor.
• While holding the lever, carefully tighten the two caliper mounting bolts. Alternate tightening them a little at a time to ensure even pressure and prevent the caliper from shifting. If you have a torque wrench, tighten them to the manufacturer's specified torque (usually around 6-8 Nm).
• Release the brake lever and spin the wheel. Listen for any rubbing. If you hear rubbing, loosen the caliper bolts slightly and repeat the alignment process. Sometimes, a slight adjustment by eye is needed after the initial lever-squeeze method.

Step 7: Bed-In Your New Brake Pads

This is perhaps the most overlooked, yet vital, step for optimal brake performance and longevity. Bedding-in (or 'breaking-in') new pads properly ensures that a thin layer of pad material is transferred evenly onto the rotor, creating a stronger friction surface and preventing squealing. Do not skip this!

Find a safe, open area where you can ride and stop repeatedly without obstruction. Avoid steep descents or panic stops during this process.

• Accelerate to a moderate speed (around 15-20 mph or 25-30 km/h).
• Apply the brakes firmly but not to the point of locking the wheel, allowing them to slow you down to a walking pace. Do not come to a complete stop.
• Release the brakes and allow them to cool for a few seconds.
• Repeat this process 15-20 times for each brake. You should notice the braking power gradually increase and become more consistent.
• After several repetitions, do a few harder stops from a higher speed, again, without coming to a complete stop.

During the bedding-in process, the pads and rotors will get hot and may produce some smoke and a distinct smell – this is normal. Once complete, allow the brakes to cool fully before your next ride. Properly bedded-in pads will provide superior stopping power, consistency, and a quieter ride.

Types of Disc Brake Pads: Organic vs. Metallic vs. Semi-Metallic

Understanding the different types of brake pads can help you choose the right ones for your riding style and conditions.

Troubleshooting Common Issues After Pad Replacement

Even with careful installation, you might encounter a few issues:

• Rotor Rubbing: Most common issue. Re-align the caliper (Step 6). Ensure pistons are fully retracted. Check if the rotor is bent.
• Squealing Brakes: Ensure pads are properly bedded-in. Clean rotor and pads with rubbing alcohol if contamination is suspected. Check if pads are compatible with rotor material.
• Spongy Lever: This usually indicates air in the hydraulic system, not directly related to pad replacement unless you accidentally opened the bleed port or squeezed the lever without the wheel. If persistent, a brake bleed might be necessary.
• Reduced Power: Pads not bedded-in properly. Contamination of pads or rotor. Ensure you installed the correct pads for your brake model.

Frequently Asked Questions (FAQs)

How often should I change my mountain bike brake pads?

There's no fixed schedule, as it depends heavily on your riding style, terrain, and weather conditions. Aggressive downhill riding in wet, muddy conditions will wear pads much faster than casual dry trail riding. Regularly inspect your pads for wear (every few rides or before a big ride) and replace them when the material reaches 0.5mm to 1mm thickness.

Can I ride with worn brake pads?

It is strongly advised not to. Riding with worn pads significantly reduces your stopping power, making your bike unsafe. It can also lead to metal-on-metal contact, which rapidly damages your rotors, leading to a much more expensive repair.

Do I need to bleed my brakes after changing pads?

Generally, no. Changing brake pads does not introduce air into the hydraulic system. You only need to bleed your brakes if the lever feels spongy due to air in the lines, or if you've opened the system (e.g., cut brake lines, replaced a caliper). Pushing the pistons back during pad replacement simply returns fluid to the reservoir, which is normal.

Can I mix different types of pads (e.g., organic on one side, metallic on the other)?

It is not recommended. For optimal and consistent braking performance, always use the same type of pads on both sides of a single caliper. Mixing pad types can lead to uneven wear, inconsistent braking feel, and reduced power.

What should I do if my rotor gets contaminated?

If your rotor gets contaminated with oil, grease, or other fluids, it will cause squealing and reduced braking power. Clean the rotor thoroughly with rubbing alcohol or a specific disc brake cleaner and a clean rag. If the contamination is severe or has soaked into your brake pads, you may need to replace the pads as well, as they are porous and can absorb contaminants.

Conclusion

Changing your mountain bike disc brake pads is a fundamental maintenance task that empowers you to keep your bike in peak condition and, most importantly, safe for every ride. By following these detailed steps, from preparing your workspace to the crucial bedding-in process, you'll ensure your brakes provide reliable and consistent stopping power. Regular inspection and timely replacement of your pads will not only enhance your riding experience but also prevent more significant and costly repairs down the line. So, grab your tools, get stuck in, and enjoy the confidence that comes with perfectly functioning brakes on your next adventure.
