Nitromethane: The Ultimate Racing Fuel

For decades, the quest for ultimate engine performance has led racers down some rather exotic fuel paths. While many concoctions have been tried and subsequently discarded, one fuel has consistently stood out as the most potent and legendary: nitromethane. Known for its distinctive cackle, fiery exhaust flames, and the sheer power it unleashes, nitromethane has become synonymous with the pinnacle of motorsport, particularly in the realm of drag racing. However, its volatility and the extreme demands it places on an engine mean that running nitromethane is akin to dancing on the edge of destruction. This article delves into the fascinating world of nitromethane, exploring its properties, historical significance, and the complex science behind its unparalleled performance.

What Exactly is Nitromethane?

Nitromethane, chemically represented as CH3NO2, belongs to a class of compounds known as nitroalkanes. These substances are characterised by the presence of a nitro group (-NO2), which contains both nitrogen and oxygen atoms. This molecular structure is the key to nitromethane's power. Unlike traditional fuels that rely on atmospheric oxygen for combustion, nitromethane carries its own internal oxidiser. This means it can combust vigorously even in environments with limited air, producing immense heat and pressure – the very essence of explosive power. This intrinsic characteristic is why nitromethane has also found use as a rocket fuel and in various industrial applications, such as a cleaning solvent and in the synthesis of pharmaceuticals and pesticides, making it relatively accessible.

A History Forged in Speed

The use of nitromethane as a fuel is not a recent phenomenon. Its earliest documented application is believed to be with model tether-car racers, where these miniature marvels achieved speeds exceeding 200 mph. For full-size automobiles, the mid-to-late 1930s saw the Auto Union Grand Prix and land speed record cars, designed by Ferdinand Porsche, utilising a potent nitromethane blend. These technologically advanced machines, backed by the Nazi regime's ambition to showcase German engineering prowess, were decades ahead of their time. The fuel mixture used in these cars reportedly consisted of 85 percent nitromethane, with the remainder being benzole, acetone, and castor oil. Tragically, this era also witnessed the death of famed German racer Berndt Rosemeyer, who perished attempting a land speed record at 268 mph in one of these formidable machines.

Unbeknownst to the German efforts, American hot rodders independently rediscovered nitromethane's potential in the late 1940s. Vic Edelbrock Sr. and his associates are credited with its first significant competition use in the United States. In 1949, a fateful encounter with a gallon of nitromethane-based fuel, initially deemed too dangerous, led Edelbrock, Bobby Meeks, and Fran Hernandez to experiment. They blended 10 percent nitromethane with methanol in their Midget car engine. The results were astonishing and alarming: the engine nearly maxed out a 200hp dynamometer, its spark plugs glowed cherry red, and it refused to shut down easily, requiring a towel to smother the flames. This initial foray highlighted the extreme nature of nitromethane, necessitating the development of stronger engine internals, colder spark plugs, and modifications to fuel system components like carburetors and fuel containers to withstand the increased power and corrosive effects.

The impact of this discovery was profound. In 1949, Fran Hernandez, aboard Vic Edelbrock Sr.'s car, powered by this experimental brew, won the first sanctioned drag race at the Goleta, California, airport. The following year, at the famed Gilmore Stadium, Roger Ward, a future Indy 500 winner, piloted Edelbrock's Midget car, fueled by the secret mix, to victory against the dominant Offenhauser engines. This feat, unheard of for a Ford V8-60 against the more powerful Offys, cemented nitromethane's reputation as a game-changer in racing. Edelbrock's early secret was eventually revealed through the tell-tale flames erupting from exhaust pipes, leading to further experimentation with fuel blends and the eventual rise of nitromethane in various racing disciplines, including dry lake racing and even the Indy 500 by 1954.

The Science of Unrivalled Power

The immense power generated by nitromethane stems from its unique chemical properties and its interaction with air during combustion. While high-octane racing gasoline serves as a baseline, replacing it with methanol, the best alcohol fuel, yields a 5-10 percent power increase. However, nitromethane, particularly in concentrations of 80-90 percent, can deliver two to three times the power of methanol. This is primarily due to its stoichiometric air/fuel ratio. For gasoline, this ideal ratio is approximately 14.7:1 (pounds of air to pounds of fuel). Methanol, carrying some of its own oxygen, requires a ratio of about 6.45:1. Nitromethane, with its substantial internal oxygen supply, boasts an astonishingly low stoichiometric ratio of just 1.7:1. This means that for a given engine displacement, significantly more nitromethane can be burned per combustion cycle compared to gasoline.

While gasoline possesses a higher heating value per pound (around 19,000 Btu/lb) than nitromethane (approximately 4,850 Btu/lb), this metric alone doesn't tell the whole story. The concept of Specific Energy (SE) value, calculated by dividing the heat value by the air/fuel ratio, provides a more accurate comparison of energy delivered per pound of air. At stoichiometric ratios, nitromethane's SE value is roughly 2.2 times greater than gasoline. Racing engines running on nitromethane often operate at much richer ratios than the theoretical ideal, with some pushing towards 0.5:1. At these extremely rich mixtures, nitromethane's SE potential can be up to six times that of gasoline. Compared to methanol, nitromethane offers a theoretical SE advantage of nearly 40 percent at stoichiometric ratios and over 110 percent at maximum power ratios. Furthermore, nitromethane's high heat of vaporization, approximately double that of methanol, provides a significant cooling effect within the combustion chamber. This cooling is crucial, as nitromethane's propensity to combust explosively, rather than burn controllably like gasoline, necessitates mitigating any potential hot spots.

The combustion of nitromethane at extreme rich conditions also leads to a chemical reaction that produces byproducts like hydrogen. Hydrogen is highly combustible and contributes to the intense energy release and the characteristic bright white flames sometimes seen exiting the exhaust.

Optimising the Mix: The Art and Science

While running 100 percent nitromethane is technically possible, experts generally advise against it. Blending nitromethane with other fuels, even in small percentages, can lead to more consistent performance, cleaner running, and a reduced tendency for cylinders to drop power. For many, a 98 percent nitromethane blend is considered the sweet spot for optimal performance and consistency, provided the ignition system can handle the demands. However, sanctioning bodies like the NHRA often impose restrictions, limiting Top Fuel and Funny Cars to a 90 percent nitromethane blend to manage speeds. A/Fuel dragsters, for instance, are typically permitted up to 94 percent.

Common Fuel Blends and Additives:

Methanol: The most common blending agent for nitromethane, primarily due to its availability and acceptance by many racing organisations. Methanol helps suppress detonation and pre-ignition. A common recommendation is a blend of 97.5 percent nitromethane with 2.5 percent water and 7.5 percent methanol, claimed to offer nearly the full power potential of pure nitromethane while significantly reducing detonation tendencies.

Propylene Oxide: Adding around 10 percent propylene oxide to a nitromethane blend can reportedly increase power by approximately 10 percent. While higher concentrations are possible, the power gains diminish. Propylene oxide requires careful storage in polyethylene containers in cool locations due to its low boiling point and potential for polymerization, which can lead to explosions.

Acetone: Up to 5 percent acetone can be added to raise the autoignition point, thereby reducing pre-ignition. On colder days, a 10 percent acetone blend can assist with initial engine start-up.

Benzene/Benzole: While some experts suggest that blending methanol with benzene or benzole (a coal-tar derivative) can yield superior results to using methanol alone, benzene is a known carcinogen and is banned by most racing organisations.

Hydrazine: Hydrazine (N2H4), a potent rocket fuel, is considered extremely dangerous when mixed with nitromethane. While it can theoretically boost power, the reaction between the slightly acidic nitromethane and basic hydrazine creates a highly explosive compound. The efficacy of such a mix is highly time-sensitive, and the inherent instability makes it incredibly hazardous, leading to spontaneous explosions or self-detonation. Hydrazine is also highly toxic and should be avoided.

Nitropropane: Unlike nitromethane, nitropropane (C3H7NO2) can be mixed with gasoline, with even a 10 percent blend offering modest power increases. Running straight nitropropane provides a power gain comparable to using 60 percent nitromethane.

Nitrous Oxide and Nitromethane: A Volatile Combination

Combining nitrous oxide and nitromethane is technically feasible, but its practical application is limited by regulations and significant technical challenges. Nitrous oxide, which contains 36 percent oxygen by weight, can accelerate the flame front, allowing for reduced ignition timing and thus less stress on ignition components. Systems have been developed that can handle up to 25 percent nitrous oxide with nitromethane. However, supplying sufficient fuel to handle such a potent combination requires specialised, high-capacity fuel solenoids and injectors. Early experiments have shown dramatic power increases, but also a tendency to shred clutches and, in some cases, catastrophic engine failure, underscoring the extreme forces at play.

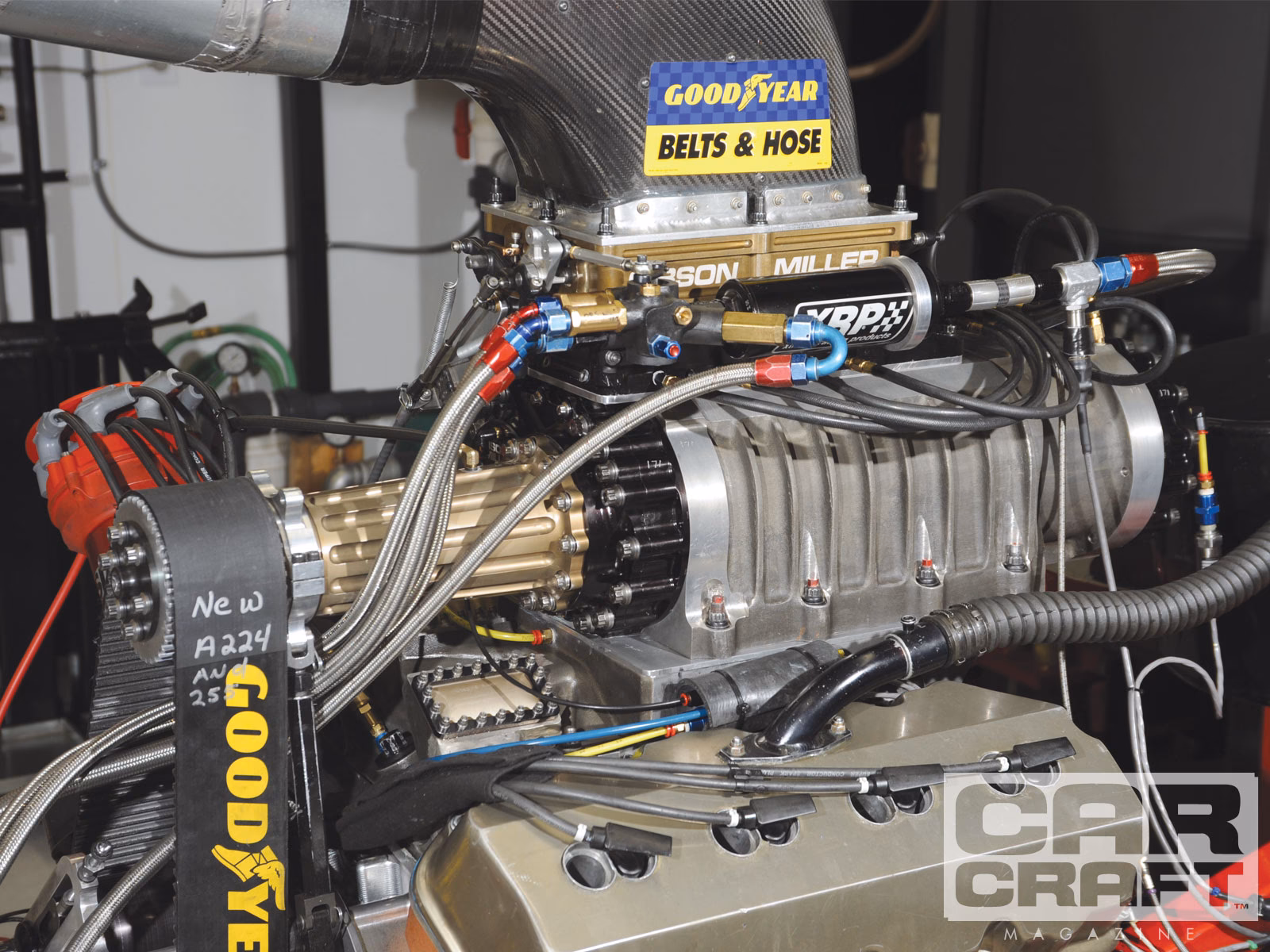

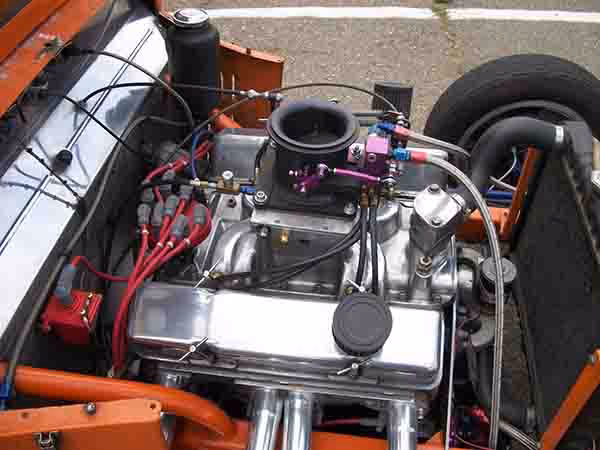

The Unique Demands of Nitromethane Engines

Engines designed to run on nitromethane require significant modifications to cope with its power output and combustion characteristics.

• Ignition: High-performance ignition systems, capable of delivering massive amounts of voltage and amperage, are essential to reliably ignite the rich nitromethane mixture. Modern systems can produce outputs equivalent to an arc welder at each cylinder.
• Starting and Stopping: Starting a nitromethane engine is a delicate process. It requires higher cranking speeds (1,800-2,000 rpm) compared to gasoline engines to ensure adequate fuel atomisation and prevent hydrolock. Engines often require a preliminary warm-up on gasoline or alcohol. Once running, high temperatures can lead to autoignition, making it difficult to shut down. The practice of cutting off both fuel pumps and ignition is common for safely stopping a nitromethane engine.
• Fuel System: Fuel tanks and components must be made of materials resistant to nitromethane's corrosive properties. Nickel plating on carburetors and fuel containers was common in early applications.
• Internal Components: Due to the immense cylinder pressures and heat, nitromethane engines are built with significantly stronger components. This includes larger wrist pins, heavier crankshafts, and robust connecting rods. Bearings, pistons, and other parts are given more clearance, and heavy-duty oils (e.g., 70W) are used to withstand the extreme loads.
• Compression Ratios: Nitromethane engines typically run much lower compression ratios than their gasoline or alcohol counterparts. Naturally aspirated nitromethane engines might have compression ratios around 10:1 to 11:1, while blown engines could be as low as 6:1. This is to prevent detonation due to the fuel's inherent volatility.
• Camshafts and Valve Train: Camshaft profiles are designed for lower RPM ranges compared to gasoline engines, focusing on durability and efficient fuel delivery rather than peak revs. Valve sizes are significantly larger to facilitate the massive fuel flow.
• Timing: Nitromethane requires substantial ignition lead (timing advance), often double that of a comparable gasoline engine, to account for its combustion characteristics. While often described as slow-burning, its burn rate is actually between gasoline and methanol. The challenge lies in vaporising the liquid fuel within the cylinder during the combustion cycle.

The Spectacle of Nitromethane

The visual and auditory spectacle of a nitromethane-powered machine is as iconic as its performance. The characteristic cackle, the aggressive roar, and the dramatic flames erupting from the exhaust pipes are all part of the nitromethane experience. These flames, often reaching 10 feet or more, are a result of unburned fuel igniting in the atmosphere, sometimes mixed with byproducts of combustion like hydrogen, creating bright white flares. The sheer volume of fuel being pushed through the engine, coupled with the advanced ignition systems, contributes to this dramatic display.

Conclusion: A Fuel for the Fearless

Nitromethane remains the undisputed king of racing fuels, offering unparalleled power potential. Its history is intertwined with the pursuit of speed and engineering innovation. However, its extreme nature demands respect, meticulous preparation, and a deep understanding of the underlying science. For those who dare to harness its power, nitromethane provides a thrilling, albeit dangerous, path to pushing the boundaries of automotive performance.

Frequently Asked Questions:

Q1: Is nitromethane safe to handle?
Nitromethane is a volatile and potentially explosive compound. While it's relatively stable compared to some other explosive chemicals and won't ignite from a simple spark or flame in an open puddle, it can explode under certain conditions, such as impact or confinement. Extreme caution and proper safety procedures are essential when handling it.

Q2: Can nitromethane be used in street cars?
No, nitromethane is not suitable for use in standard street cars. Engines designed for nitromethane require extensive modifications to handle its extreme power, heat, and corrosive properties. Using it in a regular car would likely lead to catastrophic engine failure.

Q3: What is the difference between nitromethane and nitrous oxide?
Nitromethane is a fuel that carries its own oxygen for combustion. Nitrous oxide (N2O) is an oxidiser that is added to a conventional fuel (like gasoline) to increase the amount of oxygen available for combustion, thereby boosting power. They are fundamentally different in their role and application.

Q4: Why do nitromethane engines have lower compression ratios?
Nitromethane is highly prone to detonation (uncontrolled explosive combustion). Lower compression ratios reduce the likelihood of the fuel igniting prematurely due to heat and pressure within the cylinder, ensuring a more controlled burn and preventing engine damage.

Q5: What makes the flames shoot out of the exhaust?
The flames are typically caused by unburned nitromethane igniting upon contact with atmospheric oxygen as it exits the exhaust pipe. This is often a result of the extremely rich fuel mixtures and the rapid combustion process.
