Nissan X-Trail Piezo Injector Diagnostics

10/02/2005

Rating: 4.24 (6624 votes)

The quest to reliably test and diagnose piezo injectors without the necessity of sending them off for specialist examination is a recurring challenge for many automotive technicians. This often stems from the fact that many diesel service centres, while capable of assessing spray patterns, struggle to replicate the precise operating conditions and loads that injectors experience when fitted to the vehicle. This article delves into a practical approach to diagnosing a Nissan X-Trail exhibiting symptoms and fault codes pointing towards a collective injector issue, offering insights into how to tackle such problems in-house.

How do I replace a Mazda fuel injector?
Steps to Replace a Mazda Fuel Injector Depressurize the Fuel System - Disconnect the fuel pump fuse and start the engine until it stalls. Remove the Injector Rail - Unbolt the fuel rail and carefully detach the injectors. Install the New Injector - Apply a small amount of oil to the O-rings and securely insert the new injector.
Table

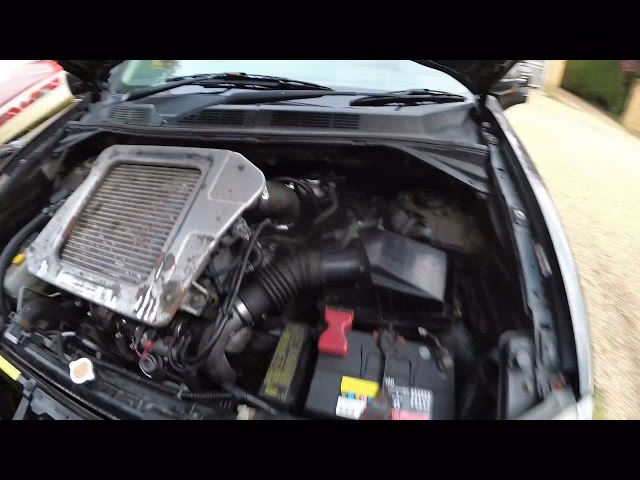

Understanding the Symptoms and Fault Codes

The specific case that prompted this investigation involved a Nissan X-Trail presenting with two distinct fault codes: "P2146: Injector 1 & 2 Power supply short to ground" and "P2146: Injector 3 & 4 Power supply short to ground". The customer's description of the vehicle's behaviour was equally telling: "under load, wants to conk out". Further discussions revealed a pattern: the X-Trail would start and run perfectly from cold, but under any significant load, such as during overtaking manoeuvres, the engine would falter and eventually stall. This issue would progressively worsen, leading to a complete inability to start the engine until it had cooled down sufficiently. A road test after clearing the codes confirmed the alarming nature of the fault, with the vehicle cutting out unexpectedly, a truly worrying experience for any driver.

Initial Diagnostic Steps: Software and Known Issues

Before diving into the intricate details of the injectors themselves, a crucial, yet often overlooked, step is to verify if there are any available software updates or known service bulletins related to the vehicle's Electronic Control Module (ECM) or fuel system. In the fast-paced world of automotive diagnostics, time is a precious commodity. Chasing a fault that could have been resolved by a simple software update is a common pitfall that can lead to wasted hours and unnecessary frustration. Staying abreast of manufacturer technical information is paramount, as it can often provide a shortcut to the root cause of many issues.

Interpreting Fault Codes: The Importance of Manufacturer Data

The initial fault codes suggested a power supply issue affecting all four injectors. However, the interpretation of fault codes can sometimes be ambiguous, with different diagnostic tools or information sources offering varying descriptions. In this instance, a deeper dive into manufacturer-specific technical data revealed that P2146, in the context of this Nissan X-Trail, actually indicated "number 1 and 4 cylinder fuel injector circuit open." Similarly, P2149 was interpreted as "number 2 and 3 cylinder fuel injector open." The Diagnostic Trouble Code (DTC) detection description further clarified this as an "improper voltage signal sent to the ECM through Cylinders 1 and 2 and Cylinders 3 and 4." This highlights the significant advantage of using 'dealer'-level diagnostic tools, although the substantial investment required may not be economically viable for all independent workshops.

Beyond Basic Continuity: Testing Under Load

The traditional method of checking wiring continuity, while a fundamental diagnostic procedure, often falls short when it comes to modern, complex electrical systems. The repair procedure for an injector power supply circuit that is open or shorted can be quite involved. Rather than simply checking for a complete circuit, a more insightful approach is to assess how the circuit performs under load. This can be achieved using various methods. A simple incandescent bulb can be used to draw current and observe voltage drop. Alternatively, advanced diagnostic tools like the PicoScope 4225 or 4425, with their floating input capabilities, offer a more precise way to measure voltage drop across specific points in the circuit. Understanding and utilising these advanced testing techniques, such as floating inputs and voltage drop testing, is key to accurate diagnosis.

Piezo Injectors: A Closer Look

Nissan, like many other modern vehicle manufacturers, employs piezo injectors in its diesel engines. A critical characteristic of these injectors is their significantly higher operating voltage compared to older solenoid-type injectors, often reaching up to 250 volts in some systems. When working with such high voltages, safety is paramount. It is imperative to use an attenuator and to be acutely aware of the risks involved. Wherever possible, suitable breakout leads should be employed during injector testing to avoid damaging the injector harness or the diagnostic equipment. The inherent advantage of piezo injectors lies in their ability to offer infinite and highly precise control over injection timing and quantity, enabling manufacturers to meet increasingly stringent emissions standards and improve fuel efficiency. However, these benefits come with a caveat: piezo stacks are exceptionally sensitive and fragile. Even a minor shock can cause damage, and prolonged storage in a horizontal position can lead to the drying out of internal components. When subsequently refitted and subjected to operational stress, these compromised stacks can experience undue strain, potentially leading to premature failure.

Advanced Diagnostic Setup: PicoScope in Action

With four channels at their disposal, the technician in this scenario employed a sophisticated diagnostic setup using a PicoScope. Three of the channels were dedicated to monitoring the voltage on both sides of the injector, allowing for a comprehensive view of the electrical behaviour. A fourth channel was used to simultaneously monitor the current flowing through the injector.

Table: Comparing Injector Types

To better understand the differences and diagnostic considerations, let's compare piezo injectors with traditional solenoid injectors:

FeaturePiezo InjectorSolenoid Injector
Actuation MechanismPiezoelectric crystals expand/contract with voltageElectromagnetic coil creates a magnetic field to move a plunger
Operating VoltageHigh (e.g., up to 250V)Lower (e.g., 12V or 24V)
Response TimeExtremely fast and preciseRelatively slower
Control PrecisionVery high, allowing for multiple injections per cycleGood, but less precise than piezo
Sensitivity to ShockHigh; fragile piezo stackLower; more robust
Diagnostic ComplexityRequires specialised equipment and safety precautionsGenerally simpler
Typical ApplicationModern common rail diesel engines for emissions compliance and performanceOlder diesel engines and some petrol injection systems

Diagnostic Strategy for the Nissan X-Trail

The initial fault codes (P2146 and P2149) indicated a circuit issue affecting all injectors. The symptoms of stalling under load strongly suggested that the issue was not a simple wiring open circuit but rather something that manifested under demand. The high operating voltage of the piezo injectors meant that a short to ground or an open circuit under load could have catastrophic effects on the ECM. The diagnostic approach focused on verifying the integrity of the injector circuits and the control signals from the ECM.

Step 1: Visual Inspection

A thorough visual inspection of the injector wiring harness, connectors, and the ECM connectors was performed. Look for any signs of chafing, melting, corrosion, or loose connections. Pay close attention to areas where the wiring might be susceptible to movement or heat. The connectors for the injectors and the ECM should be carefully inspected for bent pins, debris, or signs of water ingress.

Step 2: Resistance Testing

While not definitive for piezo injectors under load, checking the resistance of each injector can sometimes reveal a completely open or shorted coil within the injector. However, it's important to note that piezo injectors typically have a very high internal resistance due to the nature of the piezo stack. Consult the manufacturer's specifications for the correct resistance range. A significant deviation from the specified resistance could indicate an internal injector fault.

Step 3: Voltage and Current Monitoring with PicoScope

This is where the advanced diagnostic tools come into play. By connecting the PicoScope as described (monitoring voltage on both sides of the injector and current), the technician can observe the injector's behaviour in real-time. The ECM sends a complex pulsed voltage signal to the piezo injectors. By observing the voltage and current waveforms, one can identify:

  • Injector Activation: Does the injector receive the expected voltage pulses from the ECM?
  • Current Draw: Is the current draw within the expected parameters? A significantly low current might indicate an open circuit or a weak piezo stack. A high current could suggest a short circuit.
  • Waveform Anomalies: Irregularities in the voltage or current waveforms can point to internal injector issues or problems with the ECM's driver circuit.

The goal is to see consistent and stable waveforms across all injectors when the engine is running. Any injector showing a significantly different waveform or no waveform at all would be considered suspect.

Step 4: Voltage Drop Testing (Advanced)

To specifically test the wiring harness integrity under load, a voltage drop test can be performed. This involves connecting the PicoScope's high-impedance channels across specific sections of the wiring harness while the engine is running and experiencing the fault. For example, measuring the voltage drop between the ECM connector and the injector connector on a power supply wire. A higher-than-expected voltage drop indicates increased resistance in that section of the wiring, which could be due to damaged wires, poor connections, or corrosion.

Potential Causes and Solutions

Based on the fault codes and symptoms, the potential causes for the Nissan X-Trail issue could include:

  • Wiring Harness Damage: As indicated by the fault codes, a short to ground or an open circuit in the wiring harness connecting the ECM to the injectors is a strong possibility. This could be due to chafing, insulation breakdown, or damaged connectors.
  • ECM Fault: While less common, a fault within the ECM's injector driver circuits could lead to these symptoms. However, it's always best to rule out external factors like wiring issues first.
  • Internal Injector Fault: Although the fault codes point to a circuit issue, a failing piezo injector could, in some circumstances, cause erratic behaviour that the ECM interprets as a circuit fault. This is particularly true if the piezo stack is internally damaged, leading to abnormal electrical characteristics.

Frequently Asked Questions

Can I test piezo injectors with a standard multimeter?

A standard multimeter is generally insufficient for accurately testing piezo injectors. Their high operating voltages and complex actuation signals require more sophisticated equipment like an oscilloscope. While a multimeter can check basic resistance, it cannot replicate the dynamic operating conditions.

What are the risks of testing piezo injectors?

The primary risk is the high operating voltage (up to 250V). Mishandling can lead to electric shock. Additionally, the piezo stacks themselves are fragile and can be damaged by improper handling, excessive voltage spikes, or physical shock.

How do I know if my Nissan X-Trail injectors are bad?

Symptoms like rough running, stalling under load, poor acceleration, increased fuel consumption, and specific fault codes related to injector circuits are indicators of potential injector problems. Advanced diagnostic testing using an oscilloscope is the most reliable way to confirm a fault.

Can I use a "noid light" to test piezo injectors?

Standard "noid lights" are designed for lower voltage systems like solenoid injectors and are not suitable for testing the high-voltage signals of piezo injectors. Using them could damage the noid light, the vehicle's wiring, or the ECM.

What is the role of the ECM in piezo injector operation?

The ECM precisely controls the firing of piezo injectors by sending specific voltage pulses. It monitors the injector circuits for faults and adjusts injection parameters based on various sensor inputs to optimise performance, fuel economy, and emissions.

Conclusion

Diagnosing piezo injectors on a Nissan X-Trail, or any vehicle equipped with them, requires a methodical approach and appropriate diagnostic tools. By understanding the unique characteristics of piezo technology, performing thorough visual inspections, and utilising advanced oscilloscope techniques to monitor voltage and current under load, technicians can effectively diagnose and repair issues without resorting to costly off-vehicle testing. The case of the X-Trail, with its specific fault codes and symptoms, underscores the importance of detailed manufacturer data and the power of modern diagnostic equipment in pinpointing the root cause of complex automotive problems. Always prioritise safety when working with high-voltage systems and refer to specific vehicle service information for accurate testing procedures and specifications.
