Understanding Your Nissan Qashqai's Handbrake System
The handbrake, also known as the parking brake or e-brake, is a crucial safety feature in any vehicle. It's designed to keep your car stationary when parked, especially on inclines, and can also serve as an emergency brake if the primary braking system fails. For Nissan Qashqai owners, understanding how to maintain and adjust this system can save you money on garage bills and give you peace of mind.
It's important to note that there are different types of handbrake systems. Earlier models of the Nissan Qashqai (like the J10) typically featured a traditional mechanical handbrake operated by a lever between the front seats. Newer models, such as the Qashqai J11 (2014-2022), often come equipped with an electronic parking brake (EPB). This guide will primarily focus on adjusting the mechanical handbrake, as the electronic system is typically self-adjusting and requires diagnostic tools for any issues. If you have a J11 model and are experiencing problems with the EPB, it's best to consult a qualified mechanic.
When to Consider Adjusting Your Handbrake
Several signs indicate that your Nissan Qashqai's handbrake might need adjustment:
- Excessive Lever Travel: If you find yourself pulling the handbrake lever up to its maximum position (e.g., more than 6-8 clicks on a manual system) before it effectively holds the car, it's a strong indicator that the cable has stretched and requires tightening.
- Vehicle Rolling on Inclines: When parked on a moderate hill, if your car begins to roll even with the handbrake fully engaged, the system is not providing adequate stopping power.
- Handbrake Warning Light: While the handbrake warning light often illuminates when the brake is engaged, if it flickers or stays on when the brake is disengaged, it could signal a problem with the adjustment or the system itself.
- Reduced Braking Performance: Although less common for just an adjustment issue, a significantly weakened handbrake can also be a symptom of a cable that needs tightening.
Tools and Preparations
Before you begin, ensure you have the necessary tools and have taken the appropriate safety precautions. Adjusting the handbrake is generally a straightforward process, but safety is paramount.
Essential Tools:
- Socket Set: You'll likely need a socket wrench with various sizes, typically around 10mm or 12mm.
- Wrench: An adjustable wrench might also be useful.
- Jack and Axle Stands: To safely lift and support the rear of the vehicle. Never rely solely on a jack.
- Wheel Chocks: To prevent the vehicle from rolling.
- Gloves: For a better grip and to keep your hands clean.
- Torque Wrench (Optional but Recommended): For precise tightening if specified in your vehicle's manual.
Safety First:
- Park on a Level Surface: Ensure the vehicle is parked on a flat, stable surface.
- Engage the Primary Brake: Apply the foot brake firmly.
- Apply Wheel Chocks: Place wheel chocks securely around the front wheels to prevent any accidental movement.
- Engage the Handbrake (Temporarily): Pull the handbrake up a few clicks to help stabilise the vehicle, but remember you'll need to release it for adjustment.
- Open the Bonnet: You'll need access to the engine bay for some adjustments.
Step-by-Step Handbrake Adjustment (Mechanical System)
The adjustment point for the mechanical handbrake on most Nissan Qashqai models (J10) is typically located under a cover in the cabin, often near the handbrake lever itself, or sometimes under the vehicle near the rear axle. We'll detail the most common cabin adjustment method.
Step 1: Access the Adjustment Nut
Locate the plastic trim panel surrounding the handbrake lever. This panel usually has a small notch or seam that allows you to pry it open. You might need a trim removal tool or a flathead screwdriver to gently lift and remove this cover. Be careful not to force it, as you could damage the plastic.
Once the cover is removed, you should see the handbrake mechanism, including a threaded rod with one or two adjustment nuts. These nuts control the tension of the handbrake cables.
Step 2: Release the Handbrake
Ensure the handbrake lever is fully in the 'down' or 'released' position. If it's stiff, you may need to gently pull it up slightly and then push the release button while lowering it.
Step 3: Perform the Adjustment
This is the core of the process. The goal is to tighten the cable so that the handbrake engages more firmly with fewer clicks of the lever.
Identify the Adjustment Nut(s): There are usually two nuts. One nut acts as a locknut, and the other is the actual adjuster. You'll typically need to loosen the locknut first if present.
Tighten the Cable: Using your socket wrench or spanner, turn the adjustment nut clockwise. This action pulls the handbrake cables tighter. It's crucial to make small adjustments at a time. Turn the nut a few clicks (e.g., a quarter or half turn) and then test the handbrake.
Step 4: Test the Handbrake
After each small adjustment, return to the driver's seat and pull the handbrake lever up. Count the number of clicks it takes to engage. Aim for the recommended number of clicks specified in your Qashqai's owner's manual, which is often between 4 and 7 clicks for a firm hold. The lever should feel progressively firmer as you pull it.
Important Test: With the handbrake engaged to its normal holding position (e.g., 5 clicks), try gently rolling the car forward by releasing the foot brake. The car should not move. Then, try rolling it backward. It should remain stationary.
Step 5: Check for Binding
It's equally important to ensure the handbrake isn't too tight. If the handbrake is over-tightened, it can cause the rear brakes to drag, leading to reduced fuel efficiency, premature brake wear, and potential overheating of the braking components. After adjusting, ensure the handbrake lever is fully released and that there is no resistance felt when the car is moving freely. Some people like to jack up the rear wheels and spin them to ensure they rotate freely when the handbrake is disengaged.
Step 6: Secure the Adjustment and Reassemble
Once you are satisfied with the handbrake's performance and have confirmed it's not too tight, if you loosened a locknut, tighten it now against the adjuster nut to secure your setting. Make sure it's snug but don't overtighten.
Carefully replace the trim panel around the handbrake lever, ensuring all clips snap back into place. You might want to test the handbrake one final time after reassembly.
Troubleshooting Common Issues
Uneven Adjustment: If the handbrake seems to pull more to one side, the cables might be unevenly stretched or need individual adjustment. This is less common for basic adjustments but can occur.
Stretched Cables: If, after making the maximum adjustment, the handbrake still feels too loose, the cables may have stretched beyond their serviceable limit and will need to be replaced. This is a more involved job and might be best left to a professional.

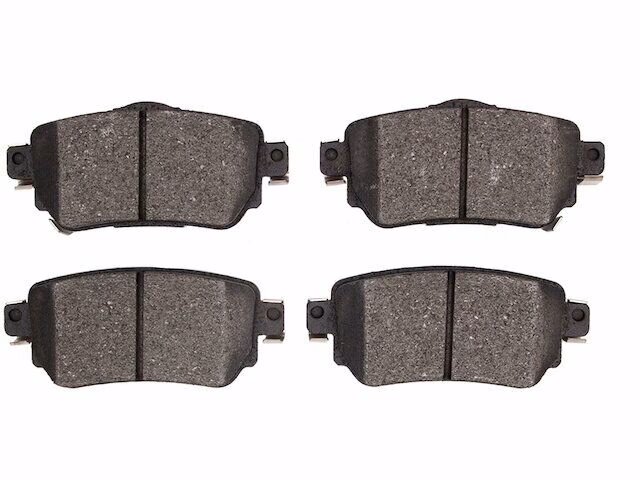

Brake Shoe/Pad Issues: The handbrake often operates via separate brake shoes within the rear drum brakes (or a separate mechanism in disc brakes). If these shoes or pads are worn down, they won't engage effectively, even with a properly tensioned cable. In such cases, replacing the brake shoes or pads will be necessary.
Seized Cables: Occasionally, the handbrake cables can become corroded or seized, preventing them from moving freely. This can lead to a stiff handbrake or one that doesn't fully release. Replacement of the affected cable is usually required.
Electronic Parking Brake (EPB) on Qashqai J11
As mentioned, the Nissan Qashqai J11 (2014 onwards) predominantly features an electronic parking brake. This system replaces the traditional handbrake lever with a button, typically located on the centre console. The EPB uses electric motors attached to the brake calipers to apply and release the parking brake.
Key Characteristics of the EPB:
- Automatic Engagement/Disengagement: Many EPB systems can be programmed to automatically engage when the ignition is switched off and disengage when the driver selects a gear and presses the accelerator.
- Self-Adjustment: The EPB automatically adjusts for brake pad wear, meaning manual adjustment is not typically required or possible.
- Diagnostic Tools Needed: If you experience issues with the EPB, such as the warning light staying on, the brake not engaging, or a failure to disengage, it usually requires diagnostic equipment to identify the fault. This could be a faulty switch, a problem with the control module, or an issue with the caliper motors.
Can you adjust an EPB? In short, no, not in the traditional sense. The system's computer manages the tension and operation. If you suspect a problem with your EPB, it's essential to have it checked by a qualified technician who can access the vehicle's diagnostic codes.
Frequently Asked Questions (FAQs)
Q1: How many clicks should my Nissan Qashqai handbrake have?
A1: While it can vary slightly, a typical range for a properly adjusted mechanical handbrake on a Nissan Qashqai is between 4 to 7 clicks. Always refer to your owner's manual for the precise specification.
Q2: Can I adjust the handbrake myself?
A2: Yes, adjusting a mechanical handbrake is a relatively simple DIY task for most car owners with basic tools and mechanical aptitude. The electronic parking brake, however, is not designed for user adjustment.
Q3: What happens if my handbrake is too tight?
A3: An overly tight handbrake can cause the rear brakes to drag constantly. This leads to increased fuel consumption, accelerated wear on brake pads and discs (or shoes and drums), and can even cause the brakes to overheat, potentially damaging them.
Q4: My handbrake warning light is on, what should I do?
A4: If the warning light stays on when the handbrake is fully released, it indicates a problem. For mechanical systems, it might be a sensor issue or the brake is indeed slightly engaged due to over-adjustment or a cable problem. For EPBs, it's almost certainly a fault that needs diagnostic attention.
Q5: How often should I check my handbrake adjustment?
A5: It's good practice to check your handbrake's effectiveness periodically, perhaps every 6 months or 10,000 miles, or whenever you notice a change in its performance, such as needing more clicks to engage.
Conclusion
Maintaining the correct tension on your Nissan Qashqai's handbrake is essential for safety. By following these steps, you can adjust a mechanical handbrake yourself, ensuring your vehicle remains secure when parked. Remember that for electronic parking brake systems, professional diagnosis is usually required for any issues. Regularly checking your handbrake's performance will give you confidence every time you park your Qashqai.
