P0611: Fuel Injector Control Module Performance

The P0611 diagnostic trouble code (DTC) signifies a problem with the Fuel Injector Control Module's performance. This module is a critical component of your vehicle's fuel system, responsible for precisely managing the fuel delivered to the engine's cylinders. When the Powertrain Control Module (PCM) detects that the Fuel Injector Control Module (FICM) is not operating within its expected parameters, it will trigger this code. This can lead to a variety of drivability issues and, if left unaddressed, potentially more significant mechanical problems. Understanding the intricacies of the P0611 code is the first step towards a successful diagnosis and repair.

Understanding the Fuel Injector Control Module (FICM)

Before delving into the specifics of the P0611 code, it's essential to grasp the role of the FICM. In many vehicles, the FICM works in conjunction with the PCM. The PCM is the main computer that controls various engine functions, including fuel injection. The FICM, often a dedicated module, specifically manages the operation of the fuel injectors, ensuring they open and close at the precise moments and for the correct duration to achieve optimal combustion. It receives signals from the PCM and, in turn, sends signals to the fuel injectors. If the PCM doesn't receive the expected feedback from the FICM, or if the FICM's internal diagnostics report a malfunction, the P0611 code will be set.

Common Causes of P0611

Several factors can contribute to the P0611 code being stored in your vehicle's computer. Identifying the root cause is crucial for an effective repair. Here are the most common culprits:

• Faulty Fuel Injector Control Module (FICM): This is perhaps the most direct cause. The FICM itself can fail due to internal electronic issues, overheating, or age. A degraded FICM may not be able to regulate voltage or signal the injectors correctly.
• Wiring Issues: The electrical connections between the PCM, FICM, and the fuel injectors are vital. Damage to the wiring harness, such as chafing, breaks, or short circuits, can disrupt communication and lead to performance issues. Loose or corroded connectors at the FICM or injector harnesses are also common culprits.
• Performance Degradation: Over time, electronic components can degrade. This can mean the FICM, while not completely failed, is operating outside its specified performance parameters. This can be due to wear and tear on internal components.
• Poor Electrical Connections: Beyond damaged wiring, a simple poor connection at a connector can cause intermittent or constant issues. This could be due to dirt, moisture, or bent pins preventing a solid electrical path.
• PCM Malfunction (Less Common): While less frequent, a malfunctioning PCM could incorrectly interpret signals from the FICM or fail to communicate properly with it, leading to the P0611 code.

Symptoms Associated with P0611

When your vehicle displays the P0611 code, you might notice several symptoms that indicate a problem with the fuel injection system. Recognizing these signs can help you pinpoint the issue more quickly:

• Check Engine Light (CEL) or Service Engine Soon Light: This is the most common and direct indicator that a fault has been detected by the PCM.
• Rough Idling: Improper fuel delivery can cause the engine to run unevenly, especially at idle.
• Engine Misfires: If the FICM isn't firing the injectors correctly, it can lead to misfires, where one or more cylinders fail to combust fuel properly.
• Reduced Engine Power: A malfunctioning FICM can lead to insufficient fuel being injected, resulting in a noticeable loss of power, particularly during acceleration.
• Poor Fuel Economy: Inefficient fuel delivery can also negatively impact your vehicle's fuel consumption.
• Stalling: In severe cases, the engine may stall unexpectedly, especially when coming to a stop.

Diagnostic Steps for P0611

Diagnosing the P0611 code requires a systematic approach to isolate the fault. Here’s a typical diagnostic procedure:

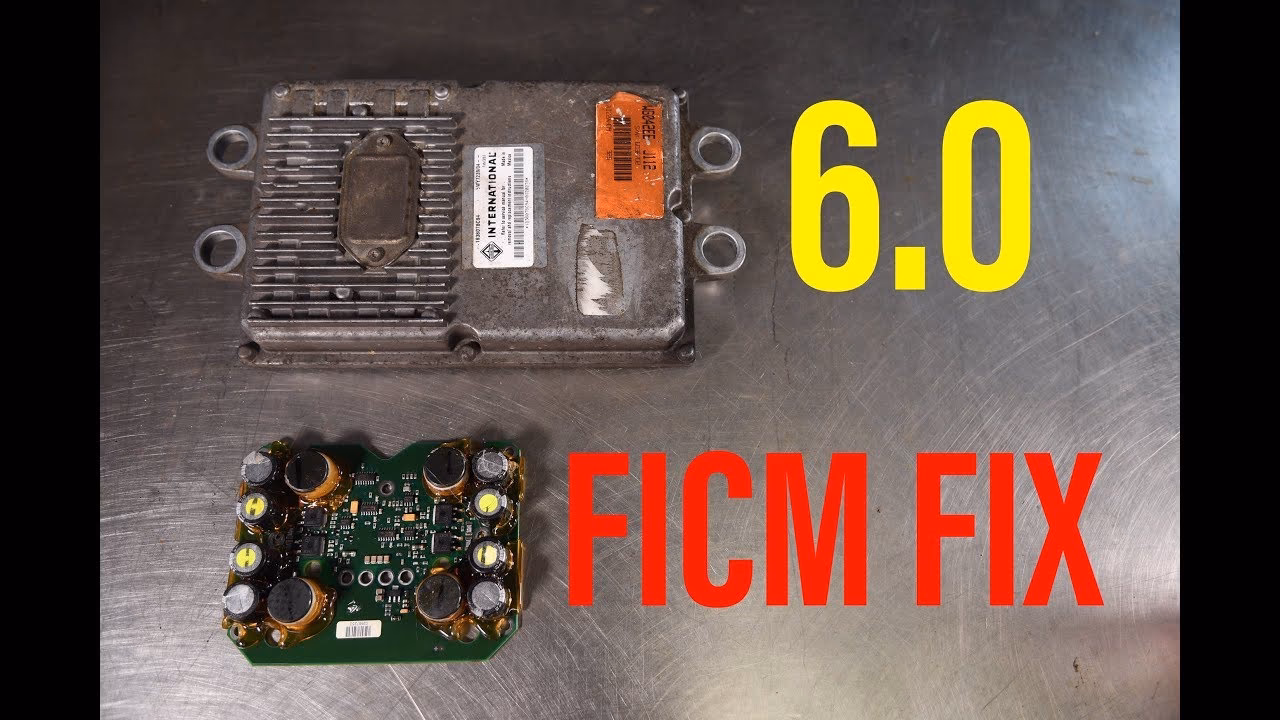

What Does PCM Stand For?

In the context of automotive diagnostics, PCM stands for Powertrain Control Module. The PCM is the central computer that manages and controls the powertrain, including the engine and transmission. It receives input from various sensors throughout the vehicle and uses this information to send commands to actuators, such as the fuel injectors, ignition system, and transmission solenoids. The PCM monitors the performance of other modules, including the FICM. If the PCM does not receive a valid signal from the FICM, or if it detects an internal error within the FICM, it will set a diagnostic trouble code like P0611.

Repairing the P0611 Code

Once the cause of the P0611 code has been identified, the repair process can begin. The specific repair will depend on the diagnosed fault:

• Replacing the FICM: If the FICM is found to be faulty, it will need to be replaced. This is often a straightforward process, but it's crucial to use a quality replacement part that meets or exceeds OEM specifications. After installation, the new FICM may require programming or configuration to match your vehicle's specific requirements.
• Repairing Wiring Harness: If damaged wiring or connectors are the issue, the affected sections of the harness will need to be repaired or replaced. This might involve splicing in new wire sections, repairing damaged connectors, or replacing the entire harness if the damage is extensive. Ensuring proper insulation and secure connections is paramount.
• Addressing Poor Connections: Cleaning corroded connectors with appropriate contact cleaner and ensuring pins have proper tension can resolve issues caused by poor electrical contact.

Clearing the Code and Test Drive

After completing any necessary repairs, it's essential to clear the DTCs from the PCM using your OBD-II scanner. Once the code is cleared, you should perform a thorough test drive under various conditions (e.g., idling, acceleration, steady cruising) to ensure the issue is resolved and the Check Engine Light remains off. Monitor the vehicle's performance for any signs of recurrence. Some advanced scanners allow you to monitor live data during the test drive, which can be helpful in confirming the repair.

Estimated Repair Costs and Time

The cost and time required to fix a P0611 code can vary significantly depending on the nature of the fault and the labour rates in your area. Generally:

• Diagnosis: A professional diagnosis can take anywhere from 1 to 2 hours, depending on the complexity of the issue. Labour rates typically range from £75 to £150 per hour.
• Parts: A replacement FICM can cost anywhere from £200 to £600 or more, depending on the vehicle make and model. Wiring repairs will vary based on the extent of the damage.
• Labour: The labour time for replacing an FICM is often around 1 to 2 hours. Wiring repairs can take longer.

Therefore, a complete repair for a P0611 code could range from approximately £300 to £1000 or more.

Frequently Asked Questions (FAQs)

Q1: What are the main symptoms of a P0611 code?

The most common symptom is the illumination of the Check Engine Light or Service Engine Soon warning light. Other symptoms can include rough idling, engine misfires, reduced engine power, and poor fuel economy.

Q2: Can I drive my car with the P0611 code?

While your car might still be drivable, it's not recommended to drive for extended periods with this code active. The issues causing the code can lead to further damage to the engine or fuel system, and can also compromise safety due to reduced performance.

Q3: How do I visually inspect the wiring and connectors for damage?

When inspecting wiring, look for any signs of physical damage such as cuts, chafing, melting, or kinks. For connectors, check for corrosion (a greenish or whitish powder), bent or broken pins, loose terminals, or signs of moisture ingress. Ensure all connections are secure and properly seated.

Q4: Is it possible to fix the P0611 code myself?

Basic visual inspections and checks of accessible wiring and connectors can be performed by a DIY enthusiast. However, testing the FICM performance and diagnosing complex wiring issues often requires specialised diagnostic tools and technical knowledge. If you're not experienced with automotive electrical systems, it's best to seek professional help.

Q5: What is the role of the PCM in relation to the FICM?

The PCM monitors the FICM. If the PCM doesn't receive a signal from the FICM, or if the signal is outside expected parameters, it will set a P0611 code, suspecting an internal error or communication failure with the FICM.

Conclusion

The P0611 fault code points to a performance issue with your vehicle's Fuel Injector Control Module. While it can manifest through various symptoms, a thorough diagnostic process involving visual inspections, electrical testing, and potentially module testing is key to accurately identifying the cause. Addressing this code promptly will help ensure your engine runs efficiently and prevent potential further damage. If you're unsure about the diagnostic steps or repairs, consulting a qualified mechanic is always the wisest course of action.
