Nissan Juke Rear Brake Pads: Squeal Bar & DIY

Maintaining your vehicle's braking system is paramount for safety on the road. Worn brake pads can compromise stopping power, leading to dangerous situations. Fortunately, replacing the rear disc brake pads on a Nissan Juke, particularly the first generation models (2010-2016), is a manageable task for the keen DIY enthusiast. This comprehensive guide will walk you through the process, paying special attention to the often-overlooked wear indicator, commonly known as the squeal bar, and ensuring you have all the knowledge to complete the job safely and effectively.

Understanding Your Brakes: The Squeal Bar Explained

Before diving into the replacement process, it's crucial to understand what the squeal bar is and why it's so important. The squeal bar is a small metal tab attached to the brake pad backing plate. Its purpose is to create a high-pitched screeching sound when the brake pad material wears down to a critical level. This audible warning serves as an early indicator that your brake pads require immediate attention, preventing metal-on-metal contact that can severely damage your brake rotors.

For the 2014 Nissan Juke, the wear indicator or squeal bar is specifically located at the bottom of the inner brake pad. When you remove your old pads, make a mental note of this positioning as it's essential for correct installation of the new pads.

Essential Tools and Parts for the Job

Having the right tools and compatible parts readily available will make this job much smoother and safer. Here's what you'll need:

Required Tools:

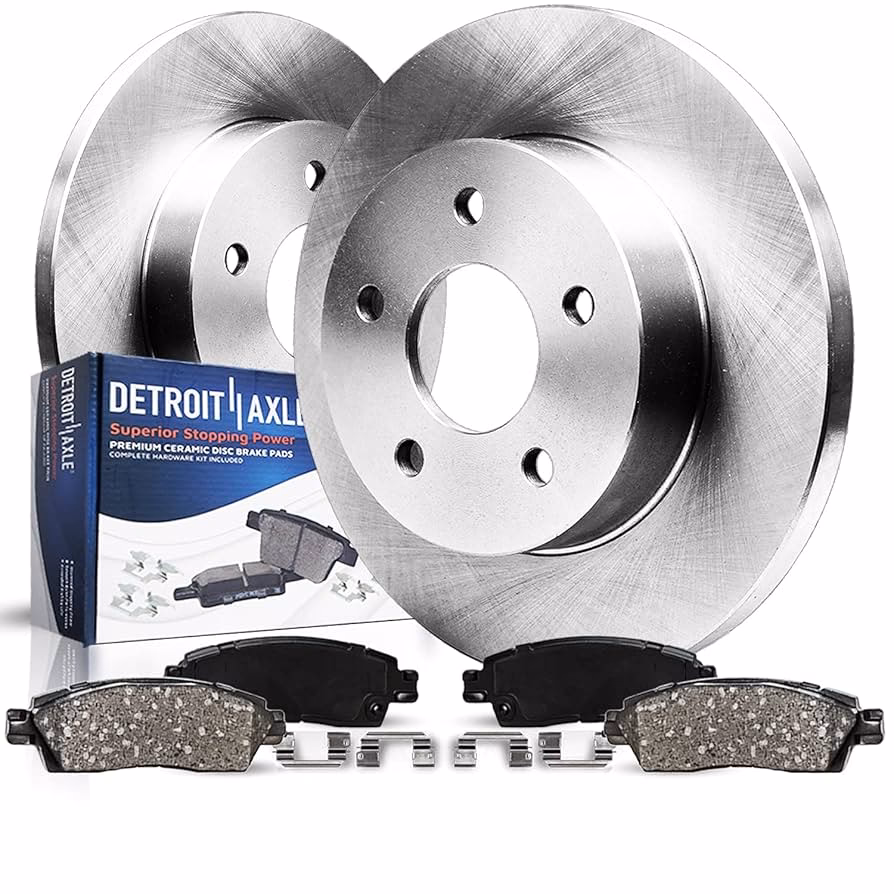

Compatible Rear Brake Pads:

It's always recommended to use high-quality replacement pads from reputable manufacturers. Here are some compatible part numbers for your first-generation Nissan Juke:

Safety First: Preparing Your Nissan Juke

Safety is paramount when working on your vehicle's braking system. Never skip these crucial preparatory steps:

1. Park on a Level Surface: Ensure your SUV is parked on firm, level ground.
2. Disengage Parking Brake: Make sure the emergency/parking brake is not engaged. This is crucial as it will prevent the rear wheels from spinning, which is necessary for some steps.
3. Chock Front Wheels: Place wheel chocks on both sides of the front wheels. This will prevent the vehicle from accidentally moving forward or backward while it's raised.
4. Loosen Lug Nuts: Using your lug nut wrench, slightly loosen the five lug nuts on the rear wheel you intend to work on. Turn them counterclockwise, just enough to break them free while the wheel is still on the ground.
5. Raise and Support the Vehicle: Position your floor jack under the appropriate jacking point at the rear of the vehicle. Slowly raise the vehicle until the tyre is clear of the ground. Immediately place two jack stands securely under the designated support points, usually the frame rails or axle. It's highly recommended to work on one side of the car at a time, keeping three wheels on the ground for enhanced stability and safety.
6. Remove the Wheel: Once the vehicle is securely supported by the jack stands, spin off the five lug nuts completely and place them in a safe, clean spot. Carefully pull off the rear wheel to expose the brake components: the rotor, caliper, and caliper bracket.

Accessing and Removing the Rear Brake Components

With the wheel removed, you now have clear access to the brake assembly:

1. Loosen Caliper Bolts: Locate the two 14mm caliper bolts. These bolts also serve as the slider or "guide" pins. Using your 14mm socket and ratcheting wrench, loosen both the lower and upper caliper bolts. From the outside of the vehicle, you will turn them in a clockwise direction to loosen. If you encounter difficulty with the upper bolt, you can often remove just the lower bolt, then pivot the caliper upwards to gain better access to the upper bolt/pin for removal.
2. Remove Caliper Bolts/Slider Pins: Once loosened, spin out both combination caliper bolts and slider pins completely.
3. Rest or Suspend the Caliper: Carefully lift the caliper off the rotor. Never let it hang by the brake hose, as this can damage the hose internally. Gently rest the caliper on a nearby suspension component, or ideally, suspend it from the coil spring with a bungee cord or strong wire. This keeps the brake hose unstressed.
4. Remove Old Brake Pads: The old brake pads will now be loose within the caliper bracket. First, remove the outer pad, then pull out the inner pad. As you remove the inner pad, specifically note the location of the squeal bar; on the 2014 Juke, it's at the bottom.
5. Remove Anti-Rattle Clips: If your new brake pad set includes replacement brake hardware (often called pad abutment or "anti-rattle" clips), carefully pry out the old clips from the top and bottom of the caliper bracket. These clips help hold the pads in place and reduce noise.

Compressing the Caliper Piston and Preparing for New Pads

New brake pads are thicker than worn ones, so the caliper piston needs to be compressed back into its bore to accommodate them:

1. Open Brake Fluid Reservoir: Move to the engine bay, usually on the right rear side (behind the 12V car battery). Twist off the brake fluid reservoir cap in a counterclockwise direction. Removing the cap allows the brake fluid to travel back through the lines more easily as the piston is compressed, preventing resistance and potential damage to the master cylinder.
2. Compress the Piston: Return to the wheel well. Attach a "C" or "F" clamp to the caliper, using the back of one of the old brake pads against the piston. This old pad helps distribute the pressure evenly across the piston face, preventing damage. Slowly turn the clamp handle in a clockwise direction to push the piston back into the caliper body.
3. Monitor Brake Fluid Level: As you compress the piston, repeatedly check the brake fluid level in the reservoir. It will rise as the fluid is pushed back. Be vigilant to prevent it from overflowing. If it gets too high, you may need to siphon off a small amount of fluid using a clean syringe or turkey baster, but only if absolutely necessary. Never let it overflow onto painted surfaces as brake fluid can damage paint.
4. Replace Reservoir Cap: As soon as the piston is fully compressed, replace the brake fluid reservoir cap. Brake fluid is hygroscopic, meaning it readily absorbs moisture from the air, which can degrade its performance and lead to corrosion in the brake system.

Cleaning, Inspection, and Rotor Considerations

Before installing the new pads, a thorough clean-up and inspection are vital for optimal performance and longevity:

1. Clean Brake Components: Using brake parts cleaner spray, thoroughly clean the brake rotor, caliper bracket, and the brake caliper assembly. Also, clean the lug nut studs.
2. Brake Dust Warning: A crucial safety note: DO NOT use compressed air or blow with your mouth to clean off brake parts. Brake dust can contain harmful, potentially carcinogenic asbestos fibres or other dangerous particulates. Inhaling brake dust can be extremely detrimental to your health. Always use appropriate brake parts cleaner, which is designed to encapsulate and wash away the dust safely.
3. Apply Lubricant: Apply a thin, even layer of brake parts lubricant grease to all areas where there will be metal-to-metal contact. This includes the outer lip of the caliper pistons, the contact points on the caliper bracket where the anti-rattle clips sit, and the ends of the brake pads where they slide into the clips. Crucially, never apply caliper grease to the friction surface of the new pads, or to the brake rotor.
4. Inspect Rotors: Examine your brake rotors for signs of wear such as deep grooves, scoring, or uneven wear patterns. If your Juke previously exhibited shuddering, pulsating, or vibrations during braking, your rotors are likely warped or worn beyond acceptable limits. In such cases, you will need to either have your rotors "turned" (resurfaced by a machine shop) or, ideally, replace them with brand new rotors. If this is the first rear brake job on your vehicle and the rotors appear to be in excellent condition (smooth and flat), you can often achieve excellent results by simply replacing the pads.
5. Rotor Replacement (If Needed): To remove existing rotors, you'll typically need to remove the two larger bolts on the rear of the caliper bracket that attach it to the steering knuckle. Once the bracket is off, the old rotor can often be loosened with a rubber mallet and pulled off. Slide the new rotor onto the hub, ensuring it seats flush.

Installing New Brake Pads and Reassembly

Now, it's time to install your new brake pads and reassemble the system:

1. Install New Anti-Rattle Clips: If your new brake pad set came with new anti-rattle clips, install them into the top and bottom grooves of the caliper bracket. Ensure they snap securely into place.
2. Install New Brake Pads: Carefully slide the new inner and outer brake pads into the caliper bracket. Remember the squeal bar location: it must be at the bottom of the new inner pad, just as it was on the old one. Push the new pads together until they are flush against the rotor.
3. Reinstall Caliper: Carefully lower the caliper over the new brake pads and into the bracket. Line up the bolt holes in the caliper with their corresponding holes in the bracket.
4. Lubricate Slider Pins: Apply a thin layer of brake parts lubricant grease to the smooth, unthreaded parts of the two caliper slider or "guide" pins. This ensures the caliper can move freely, which is essential for even pad wear and proper braking.
5. Insert Caliper Bolts/Slider Pins: Spin in the two combination caliper bolts/slider pins a few turns by hand in the counterclockwise direction. This helps prevent cross-threading.
6. Tighten Caliper Bolts: Using your 14mm socket and ratcheting wrench, tighten the two caliper bolts. Turn them counterclockwise (as seen from the outside of the SUV) until they are just past hand tight, or ideally, to a torque specification of approximately 32 ft-lbs (around 43 Nm). Always double-check that both caliper bolts are securely tight before proceeding.

Brake Fluid Bleeding (Optional but Recommended)

While not always strictly necessary after a pad replacement, bleeding the brake lines can be highly beneficial, especially if you experienced a soft or spongy brake pedal prior to the job, or if you suspect air has entered the system. This process flushes out old, potentially contaminated fluid and replaces it with fresh DOT 3 brake fluid, ensuring optimal pedal feel and braking performance.

• The brake fluid bleeder valve is located underneath a small rubber cap on the back side of the caliper, typically just below the upper caliper bolt.
• Bleeding usually requires an assistant to pump the brake pedal, or a specialised power bleeder tool.

Final Steps and Road Test

You're almost done! Finish up the job with these final steps:

1. Replace the Wheel: Carefully lift the rear wheel back onto the lug nut studs. Spin on the five lug nuts by hand in a clockwise direction. This helps prevent cross-threading, which can damage the studs and hub.
2. Lower the Vehicle: Raise the vehicle slightly with the floor jack to remove the jack stands. Once the jack stands are clear, slowly lower the vehicle until the tyre is on the ground.
3. Final Lug Nut Tightening: With the wheel on the ground, use your lug nut wrench to fully tighten the lug nuts in a star pattern. This ensures even torque distribution. Consult your Juke's owner's manual for the specific lug nut torque specification, but typically it's around 80 ft-lbs (108 Nm).
4. Pump the Brake Pedal: Before starting the engine, get into the driver's seat and slowly pump the brake pedal several times until it feels firm. This reseats the caliper piston against the new pads. Do not start the car until the pedal feels firm.
5. Test Drive: Take your Nissan Juke for a short, cautious test drive in a safe area. Drive slowly and apply the brakes gently several times to "bed in" the new pads. Avoid hard braking initially. Listen for any unusual noises or feelings.

Frequently Asked Questions (FAQs)

What does the brake pad squeal bar sound like?

The squeal bar typically produces a high-pitched, metallic screeching or squealing sound when you apply the brakes. It's designed to be loud and noticeable to alert you that the pads are critically worn and need replacement. It's distinct from a grinding sound, which usually indicates metal-on-metal contact due to completely worn pads.

How often should I check my brake pads?

It's generally recommended to have your brake pads inspected during every oil change or at least every 10,000 to 15,000 miles (approximately 16,000 to 24,000 kilometres), or annually, whichever comes first. If you hear any unusual noises or feel changes in braking performance, inspect them immediately.

Can I use different brake pad brands for front and rear?

While it's generally recommended to use the same brand and type of pads on both axles (front and rear) for consistent braking characteristics, it's not strictly necessary to use the same brand for the front as for the rear. However, always replace pads on an axle (e.g., both rear pads) with the same brand and type to ensure balanced braking performance.

What are the signs of bad brake rotors?

Signs of worn or damaged brake rotors include a pulsating or vibrating feeling through the brake pedal or steering wheel when braking, a grinding noise, or visible deep grooves, cracks, or discolouration on the rotor surface. If your Juke's rotors show any of these symptoms, they should be resurfaced or replaced.

Why is brake fluid important?

Brake fluid is critical because it's the hydraulic medium that transfers the force from your brake pedal to the calipers, causing the pads to squeeze the rotors and slow the vehicle. Over time, brake fluid can absorb moisture (being hygroscopic), which lowers its boiling point and can lead to brake fade. It can also become contaminated, leading to corrosion within the brake system. Regular inspection and replacement of brake fluid according to your manufacturer's recommendations are vital for brake system longevity and safety.
