Nissan Juke Clutch Replacement: Your Guide

The clutch is a vital component in any manual transmission vehicle, acting as the crucial link between your engine and wheels. For Nissan Juke owners, understanding the signs of a failing clutch and the process of its replacement is key to maintaining your vehicle's performance and avoiding costly breakdowns. The Nissan Juke, a trailblazer in the compact SUV market since its 2010 debut, has captured the hearts of many UK drivers with its distinctive styling and practical nature, even earning 'Used Small Car of the Year' in 2023. However, like any car, its clutch will eventually wear out, necessitating a professional replacement.

Why Your Nissan Juke Clutch Is So Important

In a combustion engine vehicle, the clutch's primary role is to disconnect the engine from the gearbox, allowing you to smoothly change gears without grinding them. When you press the clutch pedal, it disengages the power, enabling you to select a different gear ratio. Releasing the pedal then re-engages the power, transferring it to the wheels. A healthy clutch ensures smooth gear changes, efficient power transfer, and a comfortable driving experience. A failing clutch, on the other hand, can lead to jerky movements, difficulty shifting, and even complete loss of drive.

Recognising the Signs of Clutch Wear

Knowing the symptoms of a worn clutch can save you from further damage and unexpected breakdowns. It's crucial to address these signs promptly, as they will only worsen over time. Here are the most common indicators that your Nissan Juke's clutch might need attention:

• Clutch Slipping: This is perhaps the most common symptom. You might notice that when you accelerate, the engine revs increase, but the car doesn't speed up proportionally. It feels like the engine is working hard, but the power isn't fully reaching the wheels. This can be particularly noticeable when accelerating uphill or under heavy load.
• Unusual Noises: Listen for strange sounds when you press or release the clutch pedal. This could include squealing, grinding, or chirping noises. A common sound is a high-pitched whine or squeal when the pedal is pressed, which might indicate a worn release bearing.
• Clutch Chatter or Judder: If your Juke shakes or vibrates excessively when you're engaging the clutch, especially when pulling away from a standstill, this is known as clutch chatter. It can indicate a warped flywheel, worn clutch plate, or problems with the pressure plate.
• Heavy Clutch Pedal: As experienced by the 2011 Nissan Juke owner in our case study, a clutch pedal that feels unusually stiff or heavy to press can be a strong indicator of a failing clutch or pressure plate.
• Difficulty Changing Gears: If you find it hard to select gears, or they feel 'notchy', even when the clutch pedal is fully depressed, it could point to a clutch issue that prevents full disengagement.
• Burning Smell: A distinct burning smell, often described as 'burning toast' or 'burning rubber', indicates clutch material overheating due to excessive slipping.

As soon as you notice any of these symptoms, it's highly advisable to book a car clutch repair or replacement. Ignoring them could lead to more severe damage to your gearbox or flywheel.

How Long Does a Nissan Juke Clutch Last?

The lifespan of a car clutch can vary significantly depending on driving style and conditions. Generally, a clutch can last anywhere between 60,000 and 150,000 miles. Factors that can shorten its life include frequent stop-start city driving, aggressive driving habits (such as riding the clutch or harsh acceleration), towing, and even driver error (e.g., resting your foot on the clutch pedal).

Understanding Nissan Juke Clutch Replacement Costs

The cost of a Nissan Juke clutch replacement can vary widely based on several factors, including the specific model year, engine type, the garage's location, and the type of parts used (e.g., standard or premium). Labour time typically ranges from two to six hours, but this can extend if complications arise, such as a seized bolt or additional components needing replacement like the dual mass flywheel (DMF).

To find the most affordable and reliable clutch garage in your area, it's always recommended to compare quotes from multiple specialists. Many platforms allow you to easily compare prices from a network of garages, ensuring you get a competitive offer. Some services even offer mobile clutch repair, where a specialist comes to your location, adding convenience.

The Intricate Process of Nissan Juke Clutch Replacement: A Detailed Example (2011 1.5 dCI)

Replacing a clutch is a complex job that requires specific tools and expertise. Let's look at the detailed process, using the example of a 2011 Nissan Juke 1.5 dCI, which was booked in due to a very heavy clutch pedal. This level of detail highlights why professional intervention is essential.

Initial Diagnosis and Preparation

Upon initial diagnosis, a heavy clutch pedal often points to issues within the clutch assembly or its hydraulic system. For this specific model, gearbox removal was advised and authorised. Before commencing the repair, the mechanic ensures all necessary workshop equipment is available:

• Vehicle lift (a two-post lift is ideal for accessibility)
• Engine support
• Transmission jack
• Clutch alignment tool
• Locking wheel bolt key (if required for wheel removal)

Gearbox Removal: A Multi-Step Procedure

The gearbox removal is the most time-consuming part of a clutch replacement and requires careful dismantling of various components:

1. The vehicle is positioned on the lift, and the bonnet opened.
2. Components from the engine bay are meticulously removed to gain access to the top of the gearbox. This includes the engine cover, battery and battery carrier, air filter assembly, and air filter ducting.
3. The gear position switch multiplug and gear change cables are disconnected.
4. Upper bell-housing bolts are accessed and removed.
5. The hydraulic clutch pipe is disconnected from the concentric slave cylinder (CSC) connection, and ideally, blanked to prevent fluid loss.
6. The vehicle is raised to access the underside. The engine under-tray is removed, and the gearbox oil drain plug is opened to allow the oil to drain.
7. The vehicle is lowered to waist height. Both front wheels and front hub nuts are removed.
8. The near-side (N/S) wheel arch liner is removed to access and remove the gearbox earth lead and unclip the wiring loom.
9. The front subframe must be removed or lowered to create clearance for gearbox removal. This involves disconnecting anti-roll bar links, bottom ball joints, removing driveshafts, steering rack to subframe bolts (and supporting the steering rack), and the engine to subframe pendulum mount.
10. The starter motor bolts are removed, and the engine is supported.
11. Finally, the four subframe bolts are removed, and the front sub-frame is lowered.
12. From the engine bay, the gearbox mounting is removed. The gearbox is then supported with a transmission jack.
13. Lower bell housing bolts are removed. The engine and gearbox are slightly lowered, and the gearbox is carefully eased off the clutch and away from the engine. Once clear, it's lowered and removed from the vehicle.

Clutch and Dual Mass Flywheel Replacement

With the gearbox out, attention turns to the clutch and flywheel:

1. The nine clutch bolts from the pressure plate are removed, and the entire clutch assembly is taken off.
2. The old clutch is inspected. In the case of the 2011 Juke, the clutch lining was found to be worn close to flush with the lining rivets, explaining the heavy pedal feel as the diaphragm fingers were not operating optimally.
3. As best practice, and with customer authorisation, the dual mass flywheel (DMF) is replaced. A LuK RepSet DMF, which contains all necessary parts, is a common choice.
4. The six DMF retaining bolts are removed, and the old DMF is taken off.
5. The rear of the engine is inspected for any leaks, rectified if necessary, and then thoroughly cleaned with clutch and brake dust cleaner to prevent contamination of the new components.
6. The new DMF is mounted onto the crankshaft. New bolts are inserted and tightened evenly and sequentially to the manufacturer's specified torque. The DMF face is then degreased.

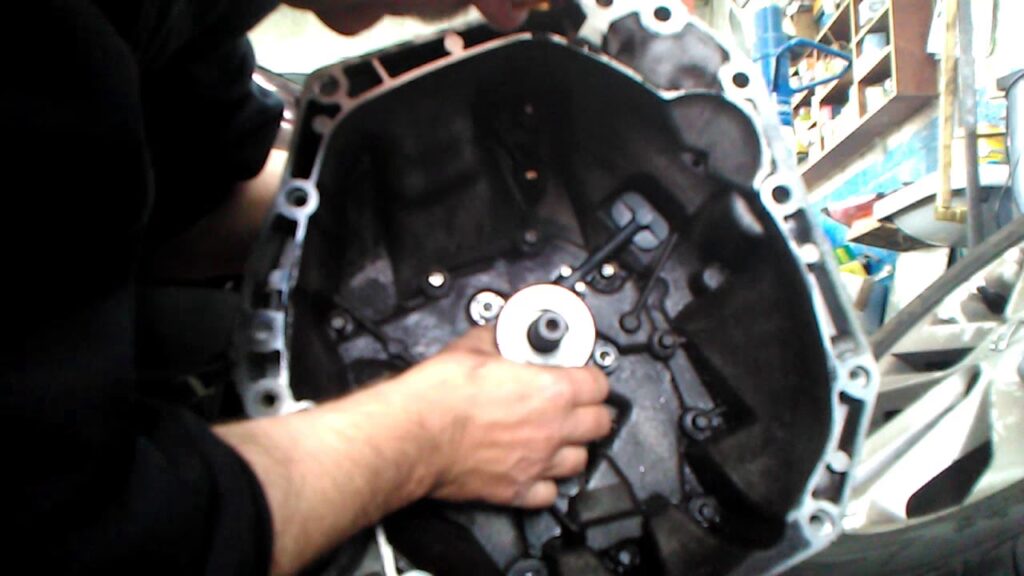

7. Attention shifts to the gearbox and release system. The two CSC retaining bolts are removed, and the old CSC is taken off. It's checked for leaks and any play in the gearbox input shaft. The bellhousing is cleaned.
8. The new CSC is carefully mounted, adhering to service information regarding the clutch pipe grommet. The two CSC retaining bolts are inserted and torqued as required.
9. A light smear of high melting point grease is applied to the splines on the gearbox input shaft. The new clutch plate is then mounted onto the input shaft to confirm it's correct and to evenly distribute the grease. The clutch plate is removed, and any excess grease wiped off.
10. The new clutch is fitted onto the DMF, ensuring the 'gearbox side' is visible. It's then aligned using a clutch alignment tool.
11. The clutch pressure plate surface is degreased. The pressure plate is positioned onto the DMF alignment dowels. The nine clutch bolts are fitted and tightened evenly and sequentially to the manufacturer's specification. Finally, the clutch alignment tool is removed.

Reassembly and Final Checks

The installation process reverses the removal, but with critical steps for optimal performance:

1. Before fitting the gearbox, the engine to gearbox alignment dowels are checked for correct positioning, and all cables are ensured to be clear of the bellhousing area to aid fitment.
2. It's best practice to flush the old clutch fluid out of the hydraulic system and refill with new fluid of the correct specification.
3. The gearbox is placed onto the transmission jack and raised. Careful alignment with the engine is crucial before easing it into position and onto the alignment dowels.
4. A couple of easily accessible bellhousing bolts are inserted and tightened.
5. Using the jack, the gearbox is raised, and the gearbox mounting is installed. The engine support and transmission jack can then be removed.
6. All remaining parts are fitted in the reverse order of removal.
7. When bleeding the clutch, the system on this Juke has a two-position CSC connection. Position one opens the bleed nipple, and pushing the connection against the gearbox casing closes it. In this instance, the connection was eased back to position one, and the hydraulic system was vacuum bled.
8. Remember to refill the gearbox with the correct grade and amount of oil.
9. Finally, all affected electrical consumers are reset, and a full road test is carried out to ensure a quality repair and smooth operation of the new clutch.

Frequently Asked Questions About Nissan Juke Clutch Replacement

How much does a Nissan Juke clutch replacement cost in the UK?

The exact cost varies widely depending on your specific Nissan Juke model, engine type, your location within the UK, and the garage you choose. Costs typically include labour (which can be 2-6 hours) and parts (clutch kit, and potentially a dual mass flywheel). The best way to get an accurate price is to compare quotes from reputable local garages.

How long does a Nissan Juke clutch replacement take?

A standard clutch replacement for a Nissan Juke typically takes between 2 to 6 hours. However, this timeframe can extend if there are complications, such as seized bolts, or if additional components like the dual mass flywheel (DMF) also need replacing.

Can I drive my Nissan Juke with a slipping clutch?

While you might be able to drive a short distance with a mildly slipping clutch, it's highly advised against. Driving with a slipping clutch can quickly lead to further damage to the flywheel, gearbox, or even leave you stranded. It's best to get it inspected and repaired as soon as symptoms appear.

What is a Dual Mass Flywheel (DMF), and why might it need replacing with the clutch?

A Dual Mass Flywheel (DMF) is a component designed to reduce engine vibrations transmitted to the drivetrain, providing a smoother ride. It consists of two masses connected by a spring and damping system. Over time, the internal springs and dampers can wear out, leading to excessive play, vibrations, or noise. When replacing a clutch, it's often recommended to replace the DMF simultaneously, especially if it shows signs of wear or has high mileage, as the labour cost to access it again later would be significant.

Is it better to get a mobile clutch repair or go to a garage?

Both options have their merits. A mobile clutch repair specialist offers the convenience of coming to your home or workplace, which can save you time and the hassle of arranging transport. Going to a traditional garage might offer more extensive facilities for complex diagnostics or larger repairs. Your choice often depends on the severity of the issue, your location, and personal preference.

Conclusion

A healthy clutch is fundamental to the smooth and efficient operation of your Nissan Juke. By being aware of the common signs of wear and tear, and understanding the intricate process of its replacement, you can ensure timely repairs and prolong the life of your beloved vehicle. Don't delay in seeking professional help if you suspect clutch issues; investing in a quality replacement now will save you from more significant problems down the road. Always compare quotes to ensure you receive a fair price and reliable service for this essential repair.
