Yamaha ECU Remapping Explained

Many Yamaha motorcycle owners often wonder about enhancing their bike's performance and responsiveness. One of the most effective ways to achieve this is through ECU (Engine Control Unit) remapping. This process involves optimising the software that governs your engine's functions. But what exactly is involved, and can you remap your Yamaha if it's not explicitly listed? Let's delve into the world of Yamaha ECU remapping and understand how it can transform your riding experience.

What is Yamaha ECU Remapping?

Your motorcycle's ECU is essentially its brain. It receives data from various sensors around the engine – such as throttle position, air temperature, engine speed, and more – and uses this information to control crucial parameters like fuel injection, ignition timing, and throttle response. Manufacturers often apply a 'stock' map that is designed to meet stringent emissions regulations, particularly Euro 4 and subsequent standards. While these maps ensure compliance, they can sometimes lead to a less than optimal riding experience, characterised by snatchy throttles, restricted power delivery, and less-than-ideal fuel economy.

ECU remapping, often referred to as 'flashing' or 'chipping,' involves modifying this stock map. By accessing and altering the ECU's software, technicians can optimise these parameters to better suit the bike's actual operating conditions and the rider's preferences. The primary goals are typically to:

• Improve throttle response: Eliminate snatchiness and provide a smoother, more predictable throttle.
• Increase power and torque: Unlock hidden performance by optimising fuel and ignition maps.
• Enhance fuel economy: Achieve a better balance between performance and efficiency.
• Remove restrictions: Many modern bikes are restricted in certain gears or at specific RPMs to meet emissions or noise regulations.

Custom Remap vs. Base Remap

When considering an ECU remap, you'll often encounter two main options: a custom remap and a base remap. Understanding the differences is key to making the right choice for your Yamaha.

Custom Remap

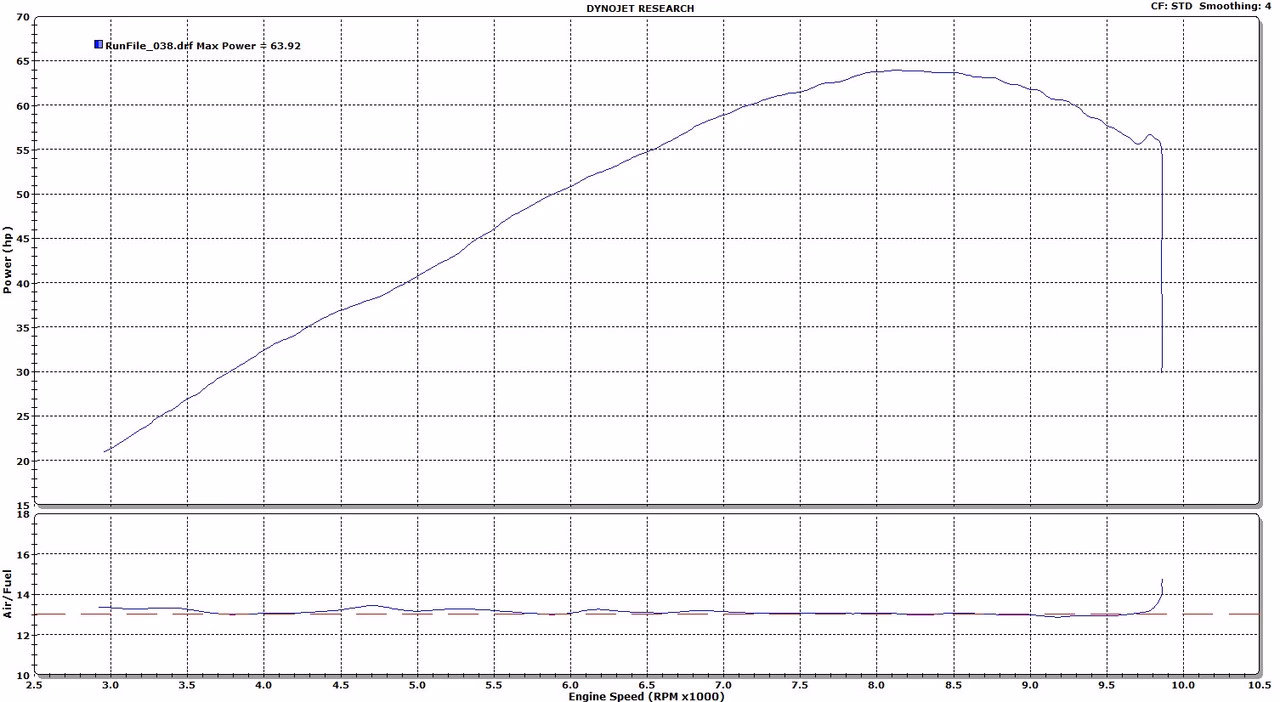

A full custom remap is the most comprehensive approach. This process is typically performed on a state-of-the-art dynamometer (dyno). The bike is strapped to the dyno, and the technician makes real-time adjustments to the ECU map while monitoring the engine's performance. This allows for highly specific tuning, tailoring the fuel and ignition maps to your bike's exact specifications, including any modifications like aftermarket exhausts or air filters.

The benefits of a custom remap are:

• Unleashed Potential: Manufacturers often build in significant room for improvement. A custom remap can 'unleash' this potential, often resulting in noticeable gains in horsepower and torque across the rev range.
• Perfect Fuelling: The fuelling is meticulously adjusted for every RPM and gear, ensuring optimal combustion and preventing lean or rich conditions that can cause poor running.
• Smoother Throttle: A common complaint with modern bikes is a snatchy throttle, especially at low speeds. Custom remapping smooths this out, making the bike much more manageable and enjoyable in urban environments or during technical riding.
• Optimised for Modifications: If your bike has an aftermarket exhaust, the increased airflow can be perfectly matched by the remap, maximising the benefits of the modification.
• Removal of Restrictions: Any factory-imposed restrictions, such as those in the first three gears, can be identified and removed.

This in-depth process typically takes around half a day to complete. The result is a bike that not only performs better but also runs more smoothly and efficiently.

Base Remap

A ride-in, ride-out base remap offers a more accessible entry point into ECU remapping. While the work is carried out in the workshop rather than on a dyno, the core changes made to your ECU are the same as those in a custom remap. The key difference lies in the methodology.

With a base remap, pre-developed maps are used. These maps are created based on extensive testing and experience with specific Yamaha models, often considering factors like the bike's age, engine size, and common modifications like exhaust systems. Your ECU is flashed with a map that has been proven to deliver significant improvements for a bike similar to yours.

The advantages of a base remap include:

• Significant Improvements: You can expect a transformation in your bike's performance, with a smoother throttle, improved fuelling, and a noticeable bump in power.
• Cost-Effective: Generally, base remapping is more affordable than a full custom remap.
• Faster Turnaround: As it doesn't involve extensive dyno tuning, the process is quicker.
• Upgrade Path: If you're initially satisfied with the base remap, you often have the option to upgrade to a full custom remap later if you decide you want to extract every last bit of performance.

While a base remap provides excellent results and addresses common issues like snatchy throttles and factory restrictions, a custom remap offers a higher degree of refinement and optimisation, ensuring every component of the engine is working in perfect harmony at all times.

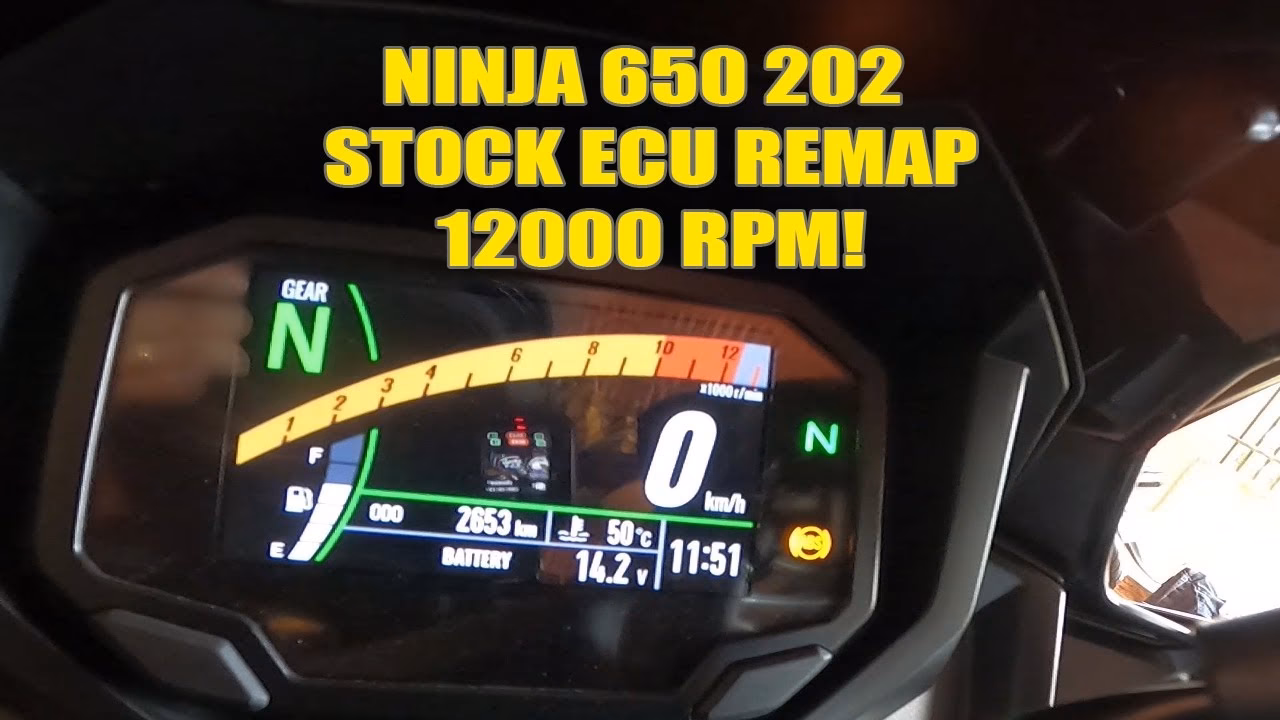

Can I Change My ECU if My Bike is Not on the List?

This is a common question. The list of models provided (MT-01, YZF-R1, YZF-R3, etc.) indicates models for which specific, tested ECU maps are readily available. However, the underlying technology used in Yamaha ECUs is often similar across many models, even if they aren't explicitly listed.

The answer is often yes, but with caveats.

• ECU Type: The primary factor is the type of ECU fitted to your bike. If the ECU can be accessed and reprogrammed using the same tools and software as the listed models, then remapping is likely possible.
• Development Time: If your bike is not on the list, it might mean that a specific 'off-the-shelf' map hasn't been developed for it yet. In such cases, a custom remap on the dyno would be the most viable option. This would involve the technician spending time developing a new map specifically for your motorcycle. This process might be more time-consuming and potentially more expensive due to the development effort involved.
• Consultation is Key: The best approach is always to contact the remapping specialist directly. Provide them with your bike's make, model, year, and any modifications it has. They can then advise on the feasibility of remapping your specific ECU and whether they have the capability to do so.

It's important to note that not all ECUs are easily accessible or programmable. Some manufacturers use more locked-down systems, especially on newer or more performance-oriented models, which can make remapping more challenging or even impossible without specialised equipment.

Benefits of Remapping Your Yamaha

Let's summarise the tangible benefits you can expect from remapping your Yamaha:

Frequently Asked Questions (FAQs)

Q1: Will remapping my Yamaha void my warranty?

A: This is a common concern. While remapping alters the ECU software, reputable tuners often ensure the process is reversible, or they may offer 'dealer-mode' compatible maps. However, manufacturers can potentially detect ECU modifications. It's advisable to discuss this with your remapping specialist and potentially your dealer. Some specialists offer services that are less likely to be detected.

Q2: Is ECU remapping safe for my engine?

A: When performed by experienced professionals using quality equipment, ECU remapping is safe. The goal is to optimise performance within the engine's mechanical limits. Poorly executed remapping, however, could potentially lead to issues. Choosing a reputable tuner is paramount.

Q3: How long does the remapping process take?

A: A full custom remap typically takes around half a day. A base remap is usually quicker, often completed within a few hours while you wait.

Q4: Can I revert to the original map?

A: Yes, in most cases, the original factory map can be re-uploaded to the ECU. It's always a good idea to ensure your tuner provides a backup of your original map.

Q5: My bike has an aftermarket exhaust. Will remapping help?

A: Absolutely. An aftermarket exhaust often allows more air to flow through the engine. Remapping ensures the ECU adjusts the fuel and ignition to take advantage of this, leading to more significant performance gains than with a stock exhaust.

Conclusion

Yamaha ECU remapping offers a compelling way to enhance your motorcycle's performance, responsiveness, and overall riding pleasure. Whether you opt for a comprehensive custom remap on the dyno or a more accessible base remap, the benefits of a smoother throttle, increased power, and optimised fuelling are substantial. While the provided list of models highlights common applications, don't hesitate to inquire about your specific Yamaha if it's not listed. With the right expertise, your Yamaha can be transformed from a factory-restricted machine into a finely tuned performance tool, ready to deliver an exhilarating riding experience.
