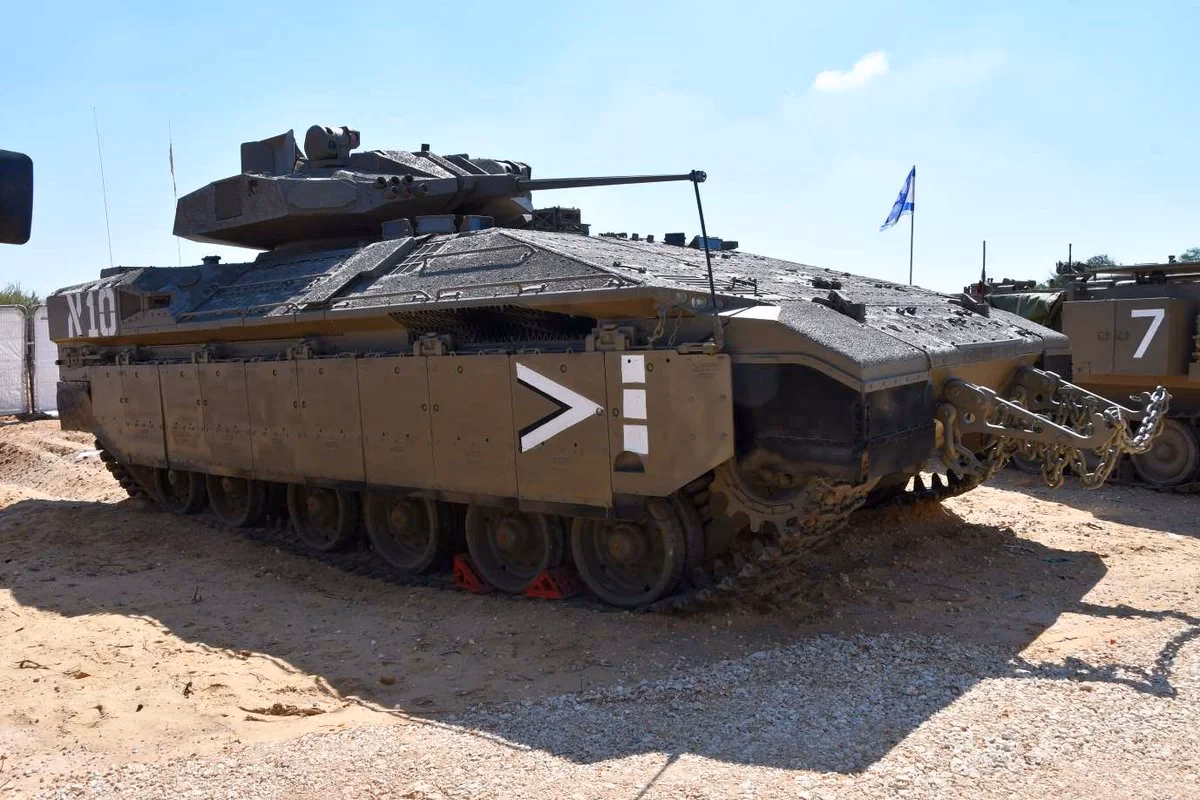

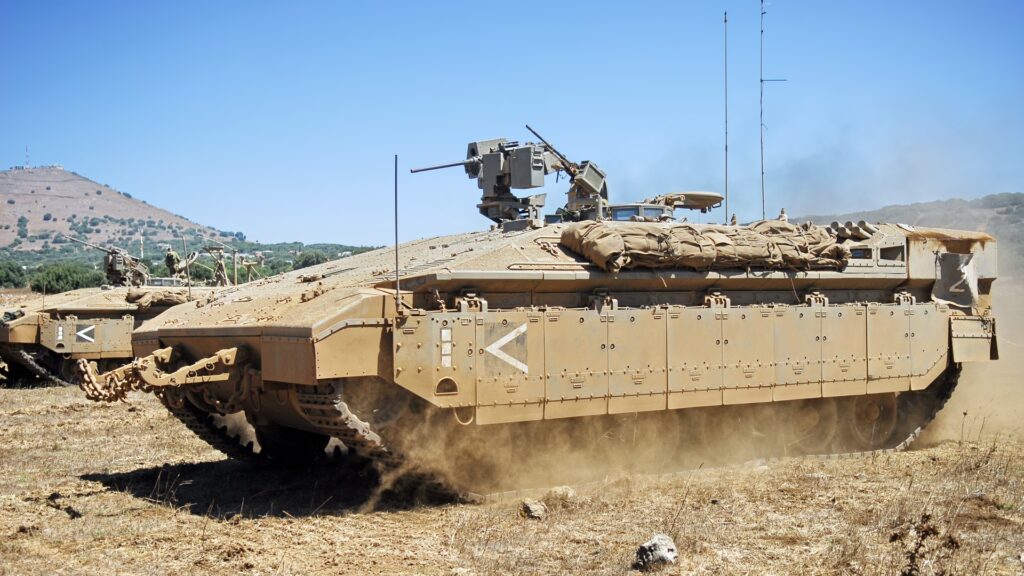

The Namer: Israel's Heavyweight APC

The Namer stands as a testament to modern armoured warfare design, representing a significant leap in protected mobility for infantry forces. Developed by Israel's Ordnance Corps, this heavy armoured personnel carrier (APC) is engineered to provide an exceptional level of protection, mobility, and firepower, mirroring the capabilities of the latest main battle tanks. Its genesis is rooted in the experience gained from previous armoured vehicle conversions, particularly the Merkava main battle tank, which provides its robust and proven chassis.

Origins and Development

The Namer's journey began with a prototype designated 'Namera' (Tiger), which was based on the older Merkava Mk.1 main battle tank chassis. This initial iteration was revealed and underwent trials in 2005, with aspirations for export. However, these plans did not materialise into production orders, leading to a strategic shift towards a more practical and cost-effective approach: building new vehicles rather than converting existing ones. The focus then moved to the chassis of the more advanced Merkava Mk.4 main battle tank. This decision proved pivotal, resulting in the publicly revealed Namer in 2008. The Namer, meaning 'Leopard' in Hebrew, has since become a cornerstone of the Israel Defense Forces' (IDF) modernization efforts, offering infantry unparalleled protection and mobility comparable to that of contemporary main battle tanks.

Chassis and Mobility

At its core, the Namer APC is built upon the formidable running gear of the Merkava Mk.4 main battle tank. While sharing the same fundamental chassis components, the Namer features a distinct hull design optimised for its role as an APC. Early production models were powered by the Continental AVDS-1790-9AR diesel engine, delivering a robust 1,200 horsepower. However, plans were in place to transition to more modern Continental or MTU power units to enhance performance and efficiency. The suspension system is a sophisticated arrangement of six rubber-tired road wheels on each side, with the drive sprocket positioned at the front, an idler at the rear, and four track return rollers. To further protect this vital running gear, the upper sections of the suspension are shielded by spring-loaded armoured skirts. This robust platform allows the Namer to achieve a maximum road speed of 60 km/h and offers a cruising range of up to 500 km, ensuring operational reach and flexibility.

Protection: A Paramount Concern

Protection is arguably the Namer's most defining characteristic. It is engineered to offer the same exceptional level of survivability as the Merkava Mk.4 main battle tank, a benchmark in armoured protection. This is achieved through a combination of advanced technologies, including modular armour and the groundbreaking Trophy active protection system (APS). The integration of the Trophy APS as an integral element signifies a significant advancement in battlefield survivability, providing a defensive shield against anti-tank guided missiles and rocket-propelled grenades. The Israeli company IMI has played a crucial role in developing and producing an advanced armour suite for the Namer, ensuring maximum protection for the front, sides, and roof of the vehicle. Internally, the design prioritises crew and troop safety with an ergonomically designed layout. Seating arrangements are carefully considered to mitigate the effects of blast, with 'floating' seats that are not directly rigged to the floor, further enhancing protection from underbelly explosions.

Armament and Firepower

While primarily an APC, the Namer is not without significant offensive capabilities. The basic variant is typically equipped with a remotely controlled weapon station (RCWS). This station can be armed with a 12.7 mm heavy machine gun, offering substantial firepower against infantry and light vehicles, and can be interchangeably fitted with a 40 mm automatic grenade launcher for versatile engagement. Additionally, a manually operated 7.62 mm machine gun is mounted atop the commander's hatch, providing secondary defence. Early Namer prototypes featured the RAFAEL's Mini-Samson RCWS, integrated with multi-sensor target acquisition systems, enhancing situational awareness and targeting. The turret can be configured with a 12.7 mm M2HB heavy machine gun, a 7.62 mm M246 machine gun, or the aforementioned 40 mm automatic grenade launcher. For added defensive measures, the rear of the hull is equipped with six smoke grenade dischargers, deployed in two banks of three, to create obscuring smoke screens when needed.

Crew and Capacity

The Namer APC is designed with a standard crew of three: a driver, a commander, and a gunner. In addition to its crew, it can accommodate up to nine infantry soldiers in the rear compartment. Alternatively, the rear can be configured to carry two stretchers, enabling its use as a casualty evacuation vehicle. Access to and egress from the troop compartment is facilitated by a rear-mounted hydraulic ramp, designed to allow soldiers to enter and exit the vehicle with a high degree of protection. The driver's compartment is ergonomically designed, drawing parallels with the Merkava tank's layout, and is equipped with large vision blocks and electro-optical driver's viewing devices. These advanced systems ensure effective performance under all visibility conditions, from bright daylight to complete darkness.

Variants and Future Developments

The Namer platform is versatile and has seen the development of specialized variants to meet diverse operational requirements. The Namer IFV (Infantry Fighting Vehicle) variant is fitted with an unmanned turret armed with a more potent 30mm automatic cannon, significantly increasing its direct fire capability. Furthermore, the IDF has developed multi-purpose support versions of the Namer. These can be armed with the Samson weapon station, an unmanned turret housing a 30mm automatic cannon, and can also be equipped to fire Spike anti-tank guided missiles, providing formidable anti-armour capabilities. The current design of the Namer is inherently adaptable to such installations, featuring protected storage for weapons separated from the main fighting compartment and a strengthened roof structure capable of supporting the additional weight and stress of these advanced weapon systems.

Technological Integration and Network Centricity

A key aspect of the Namer's design is its advanced technological integration, making it a fully networked armoured fighting vehicle. This network-centric capability is crucial for modern battlefield operations. Its communication and command systems include the new Battle Management System/Infantry (BMS/I), developed by Elbit Systems. This system is designed to seamlessly support the dismounted 'Integrated Advanced Soldier' (IAS) system, enhancing coordination and communication between the vehicle and its embarked infantry. This level of integration ensures that the Namer acts as a mobile command and control node, sharing real-time battlefield information across various units.

Production and Procurement

The production of the Namer has involved both domestic manufacturing and international collaboration. Initially, the IDF produced the vehicles domestically. However, to expedite production, a significant contract was awarded to General Dynamics Land Systems in October 2010, tasking them with manufacturing and integrating vehicle hulls at their Joint Systems Manufacturing Center in Lima, Ohio. Despite initial budget constraints that led to order cutbacks in 2014, the IDF subsequently increased its orders for parts, anticipating the need for complete systems. This decision was partly influenced by tragic incidents, such as the death of soldiers in a vulnerable M113 APC, underscoring the critical need for the Namer's superior protection. The integration of the Trophy APS, initially delayed due to budget limitations, began in earnest in 2016, with all newly built Namers being fitted with the system. The pace of Namer purchases has been subject to budgetary considerations, with production rates around 30 vehicles per year. However, recent developments, such as the doubling of ordered quantities in 2016, indicate a renewed commitment to fielding this vital asset.

Namer CEV: Engineering Prowess

Beyond its role as an APC and IFV, the Namer platform has been adapted for combat engineering roles. The Namer CEV (Combat Engineering Vehicle), designated 'Namer Engi' (נמ"ר הנדסי), entered service with the IDF Combat Engineering Corps at the end of 2016. This specialized variant is equipped with the Trophy APS and a suite of advanced engineering devices. These include mine rollers, bulldozer blades for obstacle breaching, and anti-mine CARPET rockets. The Namer CEV's deployment in recent conflicts, such as the war in Gaza in 2023, highlights its crucial role in supporting offensive operations by overcoming battlefield obstacles and providing essential engineering support.

Summary of Specifications

Here's a concise overview of the Namer APC's key specifications:

Frequently Asked Questions (FAQ)

Is the Namer a fully networked armoured fighting vehicle?

Yes, the Namer is a fully networked armoured fighting vehicle, integrated with advanced Battle Management Systems to enhance battlefield awareness and command and control capabilities.

What is the primary role of the Namer?

The primary role of the Namer is to serve as a heavily armoured personnel carrier (APC), providing protected transport for infantry into and out of combat zones.

What is the Namer based on?

The Namer is based on the chassis and running gear of the Israeli Merkava Mk.4 main battle tank.

What makes the Namer's protection so advanced?

The Namer's advanced protection comes from its sophisticated modular armour package and the integrated Trophy active protection system, offering protection levels comparable to the Merkava Mk.4 MBT.

Are there different versions of the Namer?

Yes, there are variants such as the Namer IFV (Infantry Fighting Vehicle) with enhanced armament and the Namer CEV (Combat Engineering Vehicle) equipped for specialized engineering tasks.

Who manufactures the Namer?

The Namer is designed and developed by Israel's Ordnance Corps, with manufacturing and integration involving both domestic Israeli industries and international partners like General Dynamics.

What is the significance of the Namer in the IDF's arsenal?

The Namer represents a significant upgrade in the IDF's armoured infantry transport capabilities, providing a level of protection and mobility previously only found in main battle tanks, thereby enhancing the survivability and effectiveness of ground forces.
