It's a common and rather worrying experience for any car owner: your beloved MX5 fails its MOT, specifically due to a brake issue. This is precisely what happened to one concerned owner who found their car failing for a sticking front offside brake, just 12 days after a previous visit for brake problems. This situation naturally raises questions about thoroughness of inspection and the timeline of component failure. Let's delve into the world of MX5 braking systems to shed some light on these issues.
The Sticking Brake Conundrum: Should it Have Been Spotted?
The core of the user's concern lies in the timing of the discovery of the sticking brake. Having taken the car in just 12 days prior with significant brake issues – a lack of pedal resistance and swerving during braking – the subsequent MOT failure for a different, yet related, brake problem feels like a lapse in comprehensive diagnosis. The previous repair involved a rear nearside brake caliper seal failure, which meant that particular wheel had virtually no braking power. While the mechanic replaced the faulty caliper, the question remains: should a thorough inspection at that time have uncovered the potential for other brake issues, such as a sticking caliper elsewhere?
Generally, when a vehicle presents with symptoms of compromised braking, a competent mechanic should conduct a comprehensive brake system inspection. This doesn't just mean identifying and fixing the most obvious fault. It involves checking the condition of all brake components, including pads, discs, calipers, hoses, and the master cylinder. A sticking caliper, even if not immediately apparent, can be a precursor to more serious problems. Factors such as uneven wear on the brake pads or disc, or signs of corrosion on the caliper slider pins, might have been visible during the initial inspection. If these were present, a good mechanic might have flagged them as an area to monitor, even if they weren't the immediate cause of the initial complaint.
However, it's also important to consider the nature of component failure. It is entirely possible for a brake caliper to begin sticking in the relatively short period of 12 days. Wear and tear, corrosion, or even debris ingress can cause moving parts within the caliper assembly to seize. If the initial fault was solely with the rear caliper seal, and the front caliper was functioning within acceptable parameters at that time, then the sticking issue might genuinely have developed since the previous visit. The mechanic's response, to personally inspect the car and provide a cost breakdown, is a reasonable approach, as it allows for a focused diagnosis of the new fault.
Can a Sticking Brake Appear So Suddenly?
The question of whether the sticking brake could have appeared suddenly is a valid one. The answer is yes, it is possible. Brake systems are complex and are subjected to significant stress and environmental factors. Several scenarios can lead to a caliper suddenly seeming to stick:
- Corrosion: Even with a recent repair, if the vehicle is exposed to damp conditions, salt on the roads (especially in winter), or even just sitting for a period, corrosion can begin to affect the caliper's slider pins or the piston. If these parts become corroded, they can lose their free movement, leading to the caliper not retracting fully, thus causing the brake to drag or stick.
- Debris: A small piece of grit or road debris could potentially get lodged in the caliper assembly, particularly around the slider pins or where the pads meet the disc, causing it to bind.
- Heat Cycling: Repeated heating and cooling of the brake components can sometimes exacerbate existing minor issues. If the caliper was already slightly stiff, a few hard braking events or prolonged driving could cause it to bind more severely.
- Handbrake Mechanism (Rear Brakes): As one contributor noted, the handbrake mechanism on some MX5 models can be a little 'flaky'. If the handbrake cable is slightly stretched or the mechanism itself is binding, it can put a constant, low-level pressure on the rear brake pads, leading to them dragging. If this was the case, and the previous repair focused solely on the hydraulic caliper, the handbrake issue might have gone unnoticed. The advice to avoid using the handbrake as a parking brake and opt for using a gear instead is sound, especially for models known to have this quirk.
While it's frustrating to face a new problem so soon after a repair, the sudden onset of a brake sticking issue is not entirely unheard of in the automotive world.
Identifying a Sticking Brake Caliper: What to Look For
Recognising the signs of a sticking brake caliper before it leads to an MOT failure or a dangerous driving situation is crucial. Here's how you might identify one:
Symptoms of a Sticking Caliper:
- Pulling to One Side: If one brake is sticking, it can cause the vehicle to pull noticeably to that side when braking, or even when driving straight.
- Overheating: A sticking caliper means the brake pads are constantly in contact with the disc, even when you're not braking. This generates a lot of friction and heat. After a drive, carefully feel the wheel hub (avoiding the hot brake disc itself!). If one wheel feels significantly hotter than the others, it's a strong indicator of a sticking brake on that wheel.
- Reduced Performance: As experienced by the user, a sticking brake can lead to a spongy brake pedal and reduced braking effectiveness, as the system struggles to apply and release pressure evenly.
- Steering Wheel Vibration: A warped brake disc, often caused by overheating from a sticking caliper, can manifest as a vibration through the steering wheel when braking.
- Unusual Noises: You might hear grinding or squealing noises from the affected wheel, particularly when driving or braking.
- Increased Fuel Consumption: A dragging brake means the engine has to work harder to overcome the resistance, which can lead to slightly higher fuel consumption.
Diagnostic Checks:
If you suspect a sticking caliper, you can perform a few basic checks:
- The Heat Test: As mentioned, after a short, gentle drive, carefully feel the wheels (near the hub). The wheel with the sticking caliper will be noticeably hotter than the others. Be extremely careful not to touch the brake disc or caliper directly, as they can be very hot.

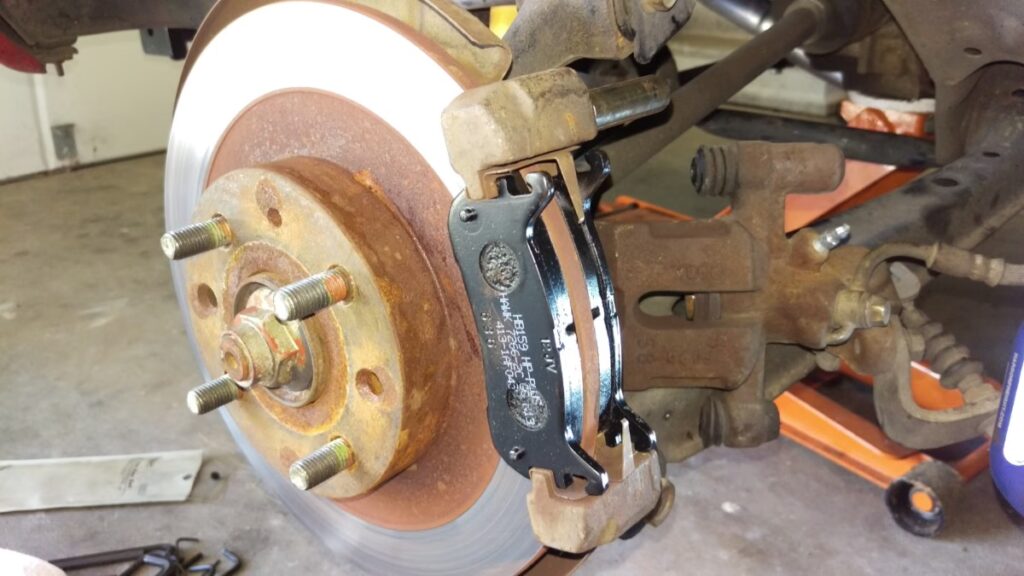

- Visual Inspection: If you're comfortable and have the necessary tools (jack, axle stands), you can lift the car and remove the wheel. Check the brake pads for uneven wear. Look for signs of corrosion on the caliper slider pins. The caliper piston should retract smoothly when pressure is released.
- Brake Efficiency Test (Low Speed): Gently apply the brakes at a very low speed. If the car pulls to one side, or if there's a noticeable difference in the braking feel between the left and right sides, it could indicate a problem.
Common Causes of Sticking Brake Calipers on MX5s
While general automotive principles apply, certain issues are more prevalent on specific models like the MX5:
| Cause | Description | Likelihood on MX5 |
|---|---|---|
| Corroded Slider Pins | The pins that allow the caliper to slide and self-centre can corrode, preventing smooth movement. | High |
| Seized Caliper Piston | The piston within the caliper can seize due to corrosion or dirt ingress, preventing it from retracting. | Medium |
| Damaged Dust Seal | A torn or perished dust seal allows dirt and moisture to enter the caliper, leading to corrosion. | Medium |
| Sticking Handbrake Mechanism (Rear) | As noted, the integrated handbrake mechanism in rear calipers can bind. | Medium (Model Dependent) |
| Warped Brake Disc | Often a consequence of a sticking caliper, rather than a primary cause. | Low (as primary cause) |
The MOT Perspective: What Should Be Checked?
An MOT test is designed to ensure a vehicle is safe and roadworthy. Brake efficiency is a critical component of this. During an MOT, examiners will:
- Check for obvious leaks or damage to brake lines and hoses.
- Inspect brake pads and discs for wear, damage, and proper function.
- Test brake pedal feel and travel.
- Perform a rolling road test (or equivalent deceleration test) to measure the braking force of each wheel.
A sticking caliper would likely be identified during the rolling road test if it significantly impacts braking performance or causes uneven braking. It might also be flagged during a visual inspection if there are clear signs of binding or excessive heat damage. The question of whether a mechanic should have spotted it during the previous repair hinges on whether the signs were present and obvious at that time, and whether a standard brake check protocol would have revealed it.
Frequently Asked Questions (FAQs)
Q1: My MX5 failed its MOT on a sticking brake. Is this a common problem?
A1: While not exclusive to the MX5, sticking calipers can occur on any vehicle due to corrosion and wear. The MX5's design, especially concerning its rear caliper handbrake mechanisms, can sometimes make them susceptible if not properly maintained.
Q2: If my mechanic replaced a faulty caliper, should they have checked the others?
A2: A professional mechanic should ideally perform a more thorough brake inspection when a significant fault is reported. While they might not have foreseen a new fault developing in 12 days, signs of wear or potential issues on other components should ideally be noted.
Q3: How can I tell if my brake caliper is sticking without taking it to a garage?
A3: You can look for symptoms like the car pulling to one side, wheels feeling unusually hot after a drive (be careful!), or strange noises. A simple visual check (if you're comfortable doing so) can reveal pad wear or corrosion on slider pins.
Q4: Can I fit MK2.5 big brakes to my MX5?
A4: This is a modification question outside the scope of this article. However, fitting larger brakes often requires specific kits and compatibility checks to ensure they work correctly with your vehicle's braking system and suspension.
Q5: What's the best way to maintain my MX5's brakes?
A5: Regular visual inspections, checking brake fluid levels, ensuring pads and discs are within wear limits, and occasionally cleaning and lubricating caliper slider pins are all good maintenance practices. Driving the car regularly, including occasional firm braking, can also help keep components free.
In conclusion, while it's frustrating to encounter brake issues shortly after a repair, understanding the potential causes and symptoms of a sticking caliper can empower you to identify problems early and ensure your MX5 remains safe and reliable on the road.
