Understanding the Limited Slip Differential (LSD)

In the world of automotive engineering, a component that often sparks curiosity and is crucial for optimising a vehicle's performance is the limited slip differential, commonly known as an LSD. While many drivers are familiar with the basic function of a differential – to allow the wheels on the same axle to rotate at different speeds when cornering – the role and benefits of an LSD are less universally understood. This article aims to demystify the LSD, explaining what it is, how it works, the different types available, and why it's a sought-after feature for many drivers, particularly those with a penchant for spirited driving or those who frequently encounter challenging road conditions.

The Standard Differential: A Foundation

Before delving into the intricacies of the LSD, it's beneficial to understand the function of a conventional, or 'open', differential. Fitted to most standard vehicles, an open differential's primary purpose is to transmit power from the engine to the drive wheels while allowing them to rotate at different speeds. This is essential during turns; the outer wheel must travel a greater distance than the inner wheel, hence it needs to rotate faster. An open differential achieves this by having a set of gears that can split torque between the two wheels. However, the inherent characteristic of an open differential is that it always sends equal torque to both wheels. This means that if one wheel loses traction – perhaps on a slippery surface or if it's lifted off the ground – the differential will continue to send equal amounts of torque to both. Consequently, the wheel with no traction will spin freely, while the wheel with grip will receive very little power, severely limiting the vehicle's ability to move forward.

Introducing the Limited Slip Differential (LSD)

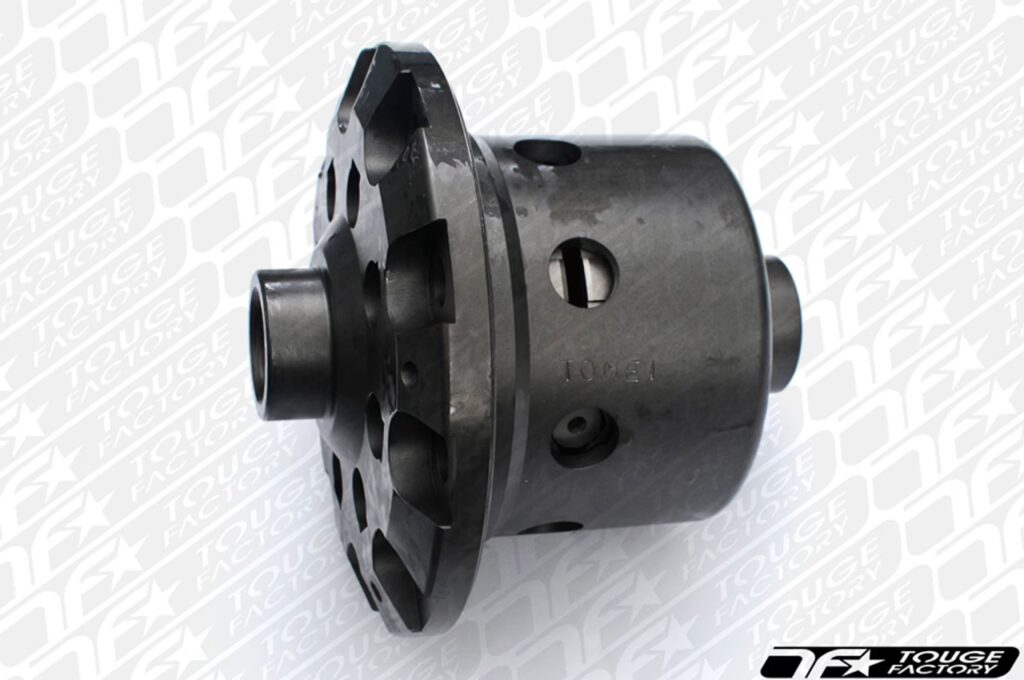

A Limited Slip Differential (LSD) is a type of differential that allows for some variation in speed between the left and right wheels, but it also provides a mechanical linkage that can limit the speed difference under certain conditions. Essentially, an LSD is designed to overcome the primary drawback of an open differential. When one wheel begins to lose traction and spin faster than the other, the LSD intervenes. It actively 'locks' or 'couples' the two output shafts to a certain degree, forcing them to rotate at more similar speeds. This ensures that torque is still directed to the wheel that has grip, rather than being wasted on the spinning wheel. The result is significantly improved traction and acceleration, especially when exiting corners or when driving on surfaces with varying grip levels.

How Does an LSD Work? The Mechanics Explained

The specific mechanisms by which LSDs operate vary depending on the type, but the core principle remains the same: to bias torque towards the wheel with more grip. Here are some of the most common types:

1. Clutch-Type (or Friction Disc) LSD

This is one of the oldest and most common types of LSD. It uses a series of clutch plates, similar to those found in a manual gearbox. These plates are arranged in packs and are compressed by a mechanism that responds to the speed difference between the two output shafts. When a speed difference is detected, the mechanism applies pressure to the clutch packs, creating friction. This friction couples the two shafts, limiting the speed difference and directing torque to the wheel with better traction. The 'limited slip' aspect refers to the fact that it doesn't lock completely, allowing for a controlled amount of slip.

Pros:

• Effective in locking differentials under acceleration.
• Can be tuned for different levels of aggression.
• Generally robust and reliable.

Cons:

• Can exhibit 'chatter' or judder during tight turns at low speeds.
• Requires regular maintenance, including fluid changes, as the clutch plates wear.
• Can be less smooth in operation compared to other types.

2. Viscous Coupling LSD

A viscous LSD consists of a series of alternating perforated plates connected to the left and right output shafts, housed within a sealed casing filled with a special silicone fluid. When the wheels rotate at the same speed, the fluid remains relatively cool and has little effect. However, if one wheel starts to spin faster, the relative motion between the plates generates heat within the silicone fluid. This heat causes the fluid to expand and thicken significantly, effectively creating a viscous coupling that locks the plates together, thus limiting the speed difference and transferring torque to the slower-spinning wheel.

Pros:

• Smooth and progressive engagement.
• Low maintenance requirements.
• Generally transparent in operation for daily driving.

Cons:

• Can overheat and lose effectiveness under prolonged aggressive driving or track use.
• Slower to engage compared to clutch-type LSDs.
• Less 'locking' force than mechanical LSDs.

3. Helical (Torsen) LSD

Torsen (Torque Sensing) differentials are a type of gear-based LSD. They utilise a system of worm gears (helical gears that operate like screws) arranged in a specific way. These gears mesh in such a way that they can transmit torque in a predictable ratio between the two wheels. When one wheel starts to slip, the design of the gears causes them to 'jam' or 'lock' together, biasing torque to the wheel with more grip. Torsen differentials are purely mechanical and do not rely on friction plates or viscous fluids.

Pros:

• Extremely smooth and seamless operation.
• No wear components like clutch plates, leading to high durability.
• No 'chatter' during low-speed turns.
• Always engaged, providing consistent bias.

Cons:

• Can be expensive to manufacture and purchase.
• If one wheel has absolutely zero traction (e.g., completely off the ground), a Torsen diff may not be able to send any torque.
• The amount of 'locking' is predetermined by the gear ratios and cannot be adjusted.

4. Electronic LSD (e-LSD)

Modern vehicles increasingly incorporate electronic control units (ECUs) to manage differential behaviour. An e-LSD typically uses electronically controlled clutches or brake actuation to manage torque distribution. By monitoring wheel speeds, steering angle, throttle position, and other sensor data, the ECU can precisely control the amount of locking force applied by the differential. This allows for highly sophisticated and adaptive torque vectoring, improving both traction and handling dynamics.

Pros:

• Highly precise and adaptive torque control.
• Can be integrated with other vehicle stability systems.
• Offers customisable driving modes.
• Generally very smooth and transparent in operation.

Cons:

• Can be complex and expensive to repair.
• Reliance on electronic sensors and control units, which can fail.
• Performance is dependent on the sophistication of the control software.

Benefits of an LSD

The advantages of fitting an LSD to a vehicle are numerous and directly contribute to a more engaging and capable driving experience:

• Improved Traction: This is the most significant benefit. By ensuring that power is always sent to the wheel with the most grip, an LSD dramatically reduces wheel spin, especially during acceleration out of corners or on uneven surfaces.
• Enhanced Acceleration: Better traction directly translates to more effective power delivery, allowing the vehicle to accelerate more rapidly from a standstill or when exiting bends.
• Better Stability: An LSD can contribute to a more stable feel, particularly under acceleration, as it prevents the tendency of one wheel to spin disproportionately faster than the other.
• Improved Handling: In performance applications, LSDs are crucial for predictable and responsive handling. They help the car rotate more effectively into corners and maintain stability during aggressive driving.
• All-Weather Capability: For drivers in regions with frequent rain, snow, or ice, an LSD can make a substantial difference in the vehicle's ability to maintain forward momentum.

Who Needs an LSD?

While an LSD can benefit almost any vehicle, it's particularly advantageous for:

• Performance Car Enthusiasts: Drivers who enjoy spirited driving, track days, or autocross will find an LSD indispensable for maximising acceleration and cornering grip.
• Drivers in Adverse Conditions: Those who regularly encounter slippery roads due to weather or unpaved surfaces will appreciate the enhanced traction an LSD provides.
• Rear-Wheel Drive (RWD) Vehicles: RWD cars are inherently more prone to traction loss on the driven wheels, making an LSD a highly beneficial upgrade.
• All-Wheel Drive (AWD) Vehicles: Many performance AWD systems utilise LSDs, often in the centre or rear differentials, to distribute torque effectively between axles and wheels.

LSD vs. Other Traction Aids

It's worth noting how an LSD differs from other systems designed to improve traction:

• Traction Control Systems (TCS): TCS typically works by applying the brakes to a spinning wheel or by reducing engine power. While effective, it can sometimes feel intrusive and reduce outright acceleration. An LSD works mechanically to distribute power before it can be lost.
• Electronic Stability Control (ESC): ESC goes further than TCS by using steering angle, yaw rate, and other sensors to detect and correct oversteer or understeer, often by braking individual wheels. An LSD complements ESC by improving the fundamental grip available.

Maintenance Considerations

The maintenance of an LSD depends heavily on its type. Clutch-type LSDs often require specific differential fluids that contain friction modifiers. These fluids may need to be changed more frequently than standard gear oil, typically every 20,000-40,000 miles, depending on driving style. Torsen and viscous LSDs are generally more maintenance-free, often using standard differential oil, but it's always wise to consult the vehicle manufacturer's service schedule.

Frequently Asked Questions (FAQs)

Q1: Will an LSD make my car faster?
An LSD won't directly increase your car's top speed or horsepower, but it will allow you to put that power down more effectively, leading to quicker acceleration and faster lap times on a track, thus making the car feel faster.

Q2: Can I feel an LSD working?
Yes, especially with clutch-type or aggressive Torsen differentials. You might feel a slight 'binding' or 'chatter' during very tight, low-speed turns as the differential limits slip. Smoother types like viscous or some electronic LSDs are often imperceptible during normal driving.

Q3: Is an LSD suitable for daily driving?
Most modern LSDs, particularly viscous and electronic types, are perfectly suited for daily driving and offer a significant improvement in traction without compromising comfort. Some older or more aggressive clutch-type LSDs might be less refined for daily use.

Q4: Can I retrofit an LSD to my car?
Yes, it's often possible to retrofit an LSD to a vehicle that didn't come with one as standard, although the cost and complexity can vary significantly depending on the vehicle and the type of LSD chosen.

Q5: What is a "2-way" LSD?
In the context of clutch-type LSDs, a "2-way" LSD applies locking force during both acceleration (when the engine is driving the wheels) and deceleration (when the wheels are driving the engine, e.g., engine braking). A "1.5-way" LSD applies locking force during acceleration and a reduced amount during deceleration. A "1-way" LSD only applies locking force during acceleration.

Conclusion

The Limited Slip Differential is a sophisticated piece of automotive technology that plays a vital role in enhancing a vehicle's performance, traction, and overall driving dynamics. Whether you're a keen driver pushing the limits on a track or simply seeking more confidence in challenging weather conditions, understanding the different types of LSDs and their benefits can help you appreciate this crucial component and perhaps even consider it for your own vehicle. It's a testament to automotive engineering's continuous drive to improve how we connect with the road.
