Unlock Your MX-5's True Potential: BBR ECU Upgrade

For many Mazda MX-5 owners, the quest for enhanced performance and a more engaging driving experience is a never-ending journey. While the original MX-5 models (NA/NB, 1989-2005) are celebrated for their superb handling and balanced chassis, their factory engine control units (ECUs) were designed for mass production, not for unlocking the full potential of a modified engine. This is where the world of aftermarket ECUs comes into play, offering a gateway to significantly improved performance, control, and ultimately, enjoyment. Leading the charge in the UK is BBR, a name synonymous with MX-5 tuning excellence, who have recently championed a plug-and-play ECU solution that promises to redefine what's possible for these iconic roadsters.

Historically, upgrading an MX-5's engine management system could be a complex affair, often involving intricate wiring and extensive custom tuning. However, advancements in technology have paved the way for more user-friendly, yet incredibly powerful, alternatives. BBR's decision to integrate the Motorsport Electronics ME221 ECU into their offerings marks a pivotal moment for MX-5 enthusiasts, providing a modern, feature-rich solution that boasts the crucial characteristic of retaining OEM-like idle and driveability – a common challenge with less refined aftermarket systems.

Why Your OEM MX-5 ECU Is Holding You Back

The original equipment manufacturer (OEM) ECU in your Mazda MX-5, while perfectly adequate for a stock vehicle, was never intended to cope with significant modifications. These units operate with pre-programmed maps for fuel delivery and ignition timing, designed to meet emission regulations and provide reliable, if unexciting, performance for a standard engine. Once you start introducing modifications such as upgraded air intakes, exhaust systems, or, more significantly, forced induction like turbochargers or superchargers, the OEM ECU quickly reaches its limits.

One of the primary restrictions, especially on earlier models, is the reliance on a Mass Air Flow (MAF) sensor. While effective for measuring incoming air, it can become a bottleneck at higher power levels and can be prone to turbulence or contamination. The OEM ECU's inability to precisely adjust fuel and ignition timing beyond its narrow parameters means that modifications often lead to sub-optimal performance, potential engine stress, or even damage. Furthermore, modern performance features like launch control, advanced variable valve timing (VVT) control for later MK2.5 models, or closed-loop boost control simply aren't present in these older factory units. They represent a fundamental limitation to unlocking the true potential of your MX-5's engine.

Introducing the BBR Motorsport Electronics ME221 ECU: A Game Changer

BBR's adoption of the Motorsport Electronics ME221 ECU as their preferred plug-and-play solution for MX-5 NA/NB models (1989-2005) is a significant development. From December 2015, this advanced engine management system became standard with all BBR turbocharged conversions, a testament to its capabilities and reliability. But what makes the ME221 stand out?

Firstly, its plug-and-play design is a massive advantage. This means it integrates seamlessly with your existing wiring loom, often fitting directly into the original OEM ECU case. This maintains a factory look, which is appealing to many owners who prefer a clean, uncluttered engine bay. More importantly, it simplifies installation significantly, reducing the need for complex wiring modifications.

Beyond its easy integration, the ME221 is packed with features that empower tuners and drivers alike:

• Full VVT Control: For later MK2.5 models equipped with Variable Valve Timing, the ME221 offers comprehensive control, allowing for precise optimisation of valve overlap for maximum power and torque across the entire RPM range.
• MAF Removal: On earlier models, the ME221 allows for the complete removal of the restrictive MAF sensor, transitioning to a more accurate speed-density based fueling strategy. This frees up airflow and simplifies intake plumbing.
• Greater Control of Fuel and Ignition Timing: This is the core function of any advanced ECU. The ME221 provides granular control over fuel injection and ignition spark timing, allowing for custom maps that are perfectly tailored to your engine's specific modifications and desired power output. This precision leads to more power, better fuel economy (when tuned for it), and enhanced engine safety.
• Launch Control: For track day enthusiasts or those who enjoy spirited driving, launch control offers consistent, optimal starts, minimising wheelspin and maximising acceleration off the line.
• Optional Closed-Loop Boost Control: This advanced feature ensures that your turbocharger or supercharger maintains a consistent boost pressure, regardless of environmental conditions or engine load. This leads to smoother power delivery and improved turbocharger response, preventing over-boosting and protecting the engine.

Crucially, BBR emphasises that despite these significant improvements and advanced features, the prices of their NA/NB/MK1/MK2/MK2.5 MX-5 turbocharged conversions have remained unchanged, offering incredible value for money.

Transforming Forced Induction and Naturally Aspirated Performance

For existing BBR turbocharged clients, or indeed anyone with a third-party turbo or supercharger conversion, the ME221 represents a compelling upgrade opportunity. An aftermarket ECU is not just an enhancement for forced induction; it's an absolute necessity. The massive increase in airflow and pressure from a turbo or supercharger demands precise fuel and ignition management that a stock ECU simply cannot provide. The ME221 allows for safe and efficient operation at higher power levels, enabling further performance gains and ensuring engine longevity.

But the benefits aren't limited to forced induction. Even for normally aspirated (NA) modified MX-5s, the ME221 offers substantial advantages. If you've upgraded your intake, exhaust, camshafts, or undertaken any internal engine modifications, a custom tune on an advanced ECU can unlock significant power and torque that the factory ECU simply leaves on the table. It allows for optimisation of throttle response, smoother power delivery, and better fuel efficiency, making your modified NA engine feel far more lively and responsive.

The Art of Custom Mapping: Precision Tuning for Your Driving Style

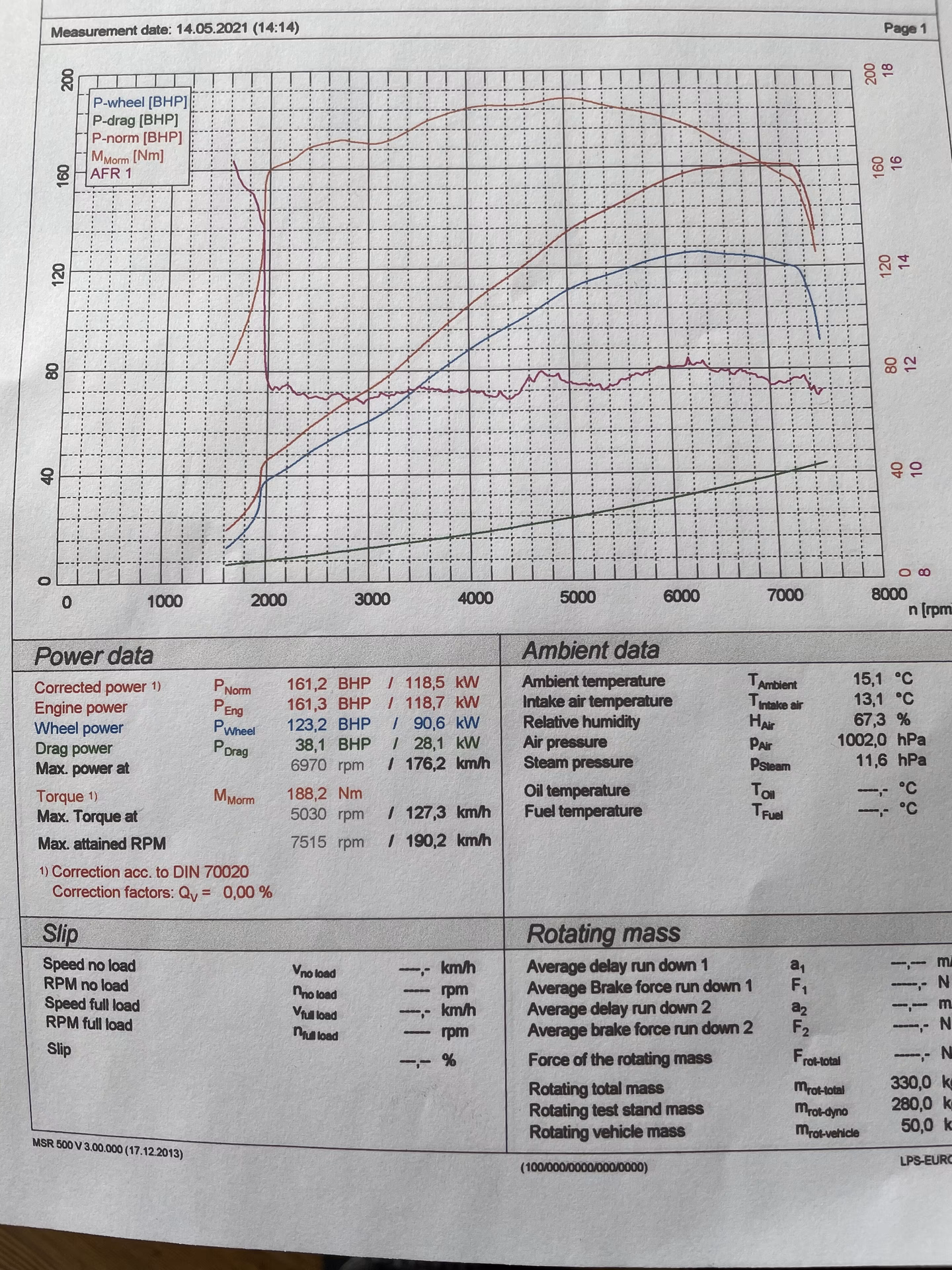

The true power of an aftermarket ECU like the ME221 is unleashed through custom mapping. This process, typically performed on a rolling road (dyno), involves a skilled tuner meticulously adjusting various engine parameters to optimise performance, driveability, and reliability. As one MX-5 community member, eltax91, highlighted, the expertise of tuners like 'Nick' (presumably Nick from BBR, renowned for his tuning prowess) is highly valued.

A common request during a custom tune is the creation of switchable maps. This means the ECU can store multiple tuning calibrations, allowing the driver to select between them based on their immediate needs. For instance, a common setup might involve:

• Map 1: Reliability & Reserved Power: Tuned for everyday driving, focusing on reliability, fuel economy, and smooth power delivery. This map might run slightly richer fuel mixtures and more conservative ignition timing to ensure engine longevity under normal conditions.
• Map 2: Performance & Track Use: This map would be optimised for maximum power and torque, suitable for track days or spirited driving. It might utilise leaner fuel mixtures (within safe limits), more aggressive ignition timing, and potentially integrate features like knock sensor feedback and methanol injection.

The integration of a knock sensor is paramount for both maps, but especially for high-performance ones. A knock sensor detects abnormal combustion (knocking or pinging) which can lead to severe engine damage. A properly configured ECU, like the ME221, can be programmed to automatically pull ignition timing or adjust fuel delivery if knock is detected, acting as a crucial safety net. This allows tuners to push the engine closer to its limits safely, knowing the ECU will intervene if necessary.

Regarding the cost of a tuning session, while specifics can vary, community feedback suggests that for a comprehensive session, including two switchable maps, you might be looking at around £70 per hour for dyno time. A reasonable estimate for two distinct maps could be in the region of three hours. This investment ensures your engine is running optimally, safely, and delivering the performance you desire.

Choosing Your ECU: More Than Just Power

While the ME221 is an excellent solution, the aftermarket ECU market does offer other options, such as the widely popular Megasquirt ECUs mentioned by eltax91. The choice often comes down to specific features, budget, and the tuner's familiarity with the platform. However, BBR's endorsement and integration of the ME221 into their comprehensive turbo packages speak volumes about its capabilities and ease of use, particularly its 'plug-and-play' nature and ability to deliver OEM-like driveability.

OEM ECU vs. BBR ME221 ECU: A Feature Comparison

Frequently Asked Questions About Aftermarket ECUs

What exactly is an ECU and why do I need an aftermarket one?

An Engine Control Unit (ECU) is the 'brain' of your car's engine. It manages everything from fuel injection and ignition timing to idle speed and emissions. You need an aftermarket ECU when you significantly modify your engine (e.g., adding a turbo, supercharger, or aggressive camshafts) because the factory ECU isn't designed to handle the vastly different air, fuel, and timing requirements of a highly modified engine. An aftermarket ECU allows for precise tuning to maximise power, improve efficiency, and ensure engine reliability with these modifications.

Is the ME221 difficult to install?

One of the key advantages of the BBR ME221 solution is its plug-and-play nature. This means it's designed to connect directly to your MX-5's existing wiring harness, often fitting into the original ECU housing. While installation is simpler than with universal ECUs, professional installation and tuning are always recommended to ensure optimal performance and prevent potential damage.

Can I use this ECU with my existing turbo kit from another brand?

Yes, absolutely. BBR is happy to supply, fit, and map the ME221 ECU for third-party turbo or supercharged conversions. Its versatility makes it an excellent choice for upgrading the engine management on any forced induction MX-5, regardless of the turbo kit manufacturer.

Will an aftermarket ECU affect my car's MOT?

In the UK, the MOT test focuses on roadworthiness, safety, and emissions. While a properly tuned aftermarket ECU shouldn't inherently cause an MOT failure, poor tuning or the removal of essential emissions equipment (like catalytic converters) to facilitate certain tunes could lead to issues with the emissions test. It's crucial to ensure your car remains compliant with emissions regulations for road use. Discuss this with your tuner.

How long does a dyno tuning session typically take?

The duration of a dyno tuning session can vary depending on the extent of modifications, the desired number of maps (e.g., street vs. track), and the complexity of the engine. For two switchable maps, as discussed, a session could typically range from 2 to 4 hours. However, it's best to confirm with your chosen tuner as their process may differ.

What are 'switchable maps'?

Switchable maps refer to the ability of an aftermarket ECU to store and switch between different engine calibrations (maps). This allows the driver to select a map optimised for different conditions or driving styles. For example, one map might be conservative for daily driving and fuel economy, while another is aggressive for track use, maximising power output. This versatility makes the car adaptable to various situations.

Conclusion

The BBR Motorsport Electronics ME221 ECU represents a significant leap forward for Mazda MX-5 NA/NB owners seeking to truly unlock their car's potential. Whether you're running a turbocharged beast, a supercharged sensation, or a finely tuned normally aspirated engine, this plug-and-play solution offers unparalleled control, performance, and driveability. With features like full VVT control, MAF removal, launch control, and optional closed-loop boost, combined with BBR's expert mapping, you can expect an MX-5 that performs not just better, but precisely how you want it to. It's an investment that transforms your beloved roadster into a more responsive, powerful, and ultimately, more enjoyable machine to drive on the road or track.
