Mazda MX-5 Fuel Injector Guide

The Mazda MX-5, often affectionately known as the Miata, is a beloved sports car renowned for its engaging driving dynamics and reliability. However, like any vehicle, it can experience issues that affect its performance. One critical component of the engine's fuel system is the fuel injector. These precision-engineered nozzles are responsible for atomising fuel and delivering it into the combustion chamber at the precise moment and in the correct amount. When a fuel injector isn't functioning as it should, it can lead to a cascade of problems that detract from the driving pleasure of your MX-5.

Understanding the role of fuel injectors and recognising the signs of their failure is crucial for any MX-5 owner. This guide will delve into the common symptoms of faulty fuel injectors, explore the underlying causes, provide methods for diagnosis, and offer insights into potential solutions to keep your Miata running at its best.

Symptoms of a Failing Fuel Injector in Your MX-5

A malfunctioning fuel injector can manifest in several ways, often making your MX-5 feel less responsive and less refined. Pay close attention to these tell-tale signs:

• Rough Idle: This is perhaps one of the most common indicators. If your injectors aren't delivering a consistent or properly atomised spray of fuel, the engine's idle speed can become erratic. It might feel as though the engine is struggling to maintain a smooth operation, similar to how a bad spark plug might affect performance. You could notice a sudden drop in RPMs, making it feel like the engine might stall.
• Poor Fuel Economy: The car's engine control module (ECM) constantly works to maintain the optimal air-fuel ratio for efficient combustion. When one or more injectors are not performing correctly, this delicate balance is disrupted, leading to a significant drop in your miles per gallon.
• Misfires and Loss of Power: An incorrect fuel-air mixture caused by faulty injectors will inevitably lead to engine misfires. While these might be more noticeable at lower RPMs, they can also manifest as a general lack of power and sluggish acceleration. Pushing the accelerator might not yield the expected response.
• Difficulty Starting: If your fuel injectors are clogged or damaged, they may not be able to supply the necessary fuel volume to initiate combustion. This can make your MX-5 harder to start, especially in colder conditions or if the problem is severe.
• Engine Stalling: Particularly at idle, a faulty injector can cause the engine to cut out unexpectedly. In more serious cases, it can prevent the engine from running altogether, leaving you stranded.
• Poor Acceleration: Similar to the general loss of power, poor acceleration is a direct consequence of the engine not receiving the correct amount of fuel. The car will feel less sprightly and responsive when you demand more power.
• Unusual Exhaust Smell: An injector that leaks or fails to atomise fuel correctly can lead to unburnt fuel entering the exhaust system. This can result in a strong, noticeable fuel odour emanating from your exhaust, particularly when the engine is idling.
• Dark Smoke or Fuel in Oil: While less common, in severe cases of leaking injectors, you might notice dark grey smoke when starting your engine, or find that your engine oil level is unusually high, with a distinct smell of gasoline. This indicates fuel is bypassing the combustion chamber and entering the crankcase.

Common Causes of Fuel Injector Failure in the MX-5

Several factors can contribute to fuel injectors in your Mazda MX-5 failing to perform their duties:

• Clogged Injectors: Over time, microscopic debris, dirt, or contaminants present in your fuel can accumulate within the injector's nozzle. This buildup can restrict fuel flow, leading to poor atomisation and reduced performance. Think of it like a fine sieve becoming blocked.
• Leaking Injectors: Fuel injectors are designed to open and close rapidly, precisely controlling fuel delivery. If an injector's sealing mechanism fails or it doesn't close completely, it can allow fuel to leak into the combustion chamber when it shouldn't. This wastes fuel and can lead to an overly rich fuel mixture.
• Electrical Issues: The fuel injectors are controlled by electrical signals from the car's Engine Control Module (ECM). Faulty wiring, damaged connectors, or internal electrical faults within the injector itself can disrupt these signals. This can cause the injector to fire incorrectly, not fire at all, or deliver an inconsistent amount of fuel. Checking the wiring harness for any signs of damage is often a straightforward first step in diagnosis.

Diagnosing Faulty Fuel Injectors

Pinpointing a fuel injector issue requires a systematic approach. Here are some common diagnostic methods:

Fuel Pressure Test

Before you start replacing injectors, it's essential to rule out other potential causes of fuel delivery problems, such as a weak fuel pump or a clogged fuel filter. A fuel pressure test is a good starting point.

To perform this test, you'll need a fuel pressure gauge. This gauge typically connects to a Schrader valve on the fuel rail. With the engine running, compare the measured fuel pressure to the manufacturer's specifications. If the fuel pressure is low, it may indicate a problem with the fuel pump or filter, rather than the injectors. If the pressure is within the correct range, it suggests the issue likely lies with the injectors themselves.

Visual Inspection

A thorough visual inspection can sometimes reveal obvious problems. Carefully examine each fuel injector and its surrounding area for any signs of fuel leakage. Pay attention to any unusual odours. If you can safely access the injectors, look for damaged wiring or connectors. Sometimes, simply seeing a cracked O-ring or a visible fuel seep can point you in the right direction.

On-Board Diagnostics (OBD) Scanner

Modern vehicles, including the Mazda MX-5, are equipped with an on-board diagnostic system that can detect and store fault codes. If a fuel injector is malfunctioning, it will often trigger a "Check Engine" light on your dashboard. Connecting an OBD-II scanner to your car's diagnostic port will allow you to retrieve these codes. Codes related to misfires, such as P0300 (random misfire) or specific cylinder misfire codes (e.g., P0301 for cylinder 1), can help you identify which injector might be at fault. Some advanced scanners can even provide live data on injector pulse width and status.

Injector Resistance Test

You can test the electrical integrity of each injector by measuring its resistance. Disconnect the injector's electrical connector and use a multimeter set to measure resistance (Ohms). Compare the readings to the manufacturer's specifications. A reading that is significantly higher or lower than the specified range, or an open circuit (infinite resistance), indicates an electrical fault within the injector.

Injector Flow Testing (Advanced)

For a more definitive diagnosis, professional workshops can perform injector flow testing. This involves removing the injectors and testing them on a specialised machine that measures the volume of fuel each injector delivers over a specific period. This test can reveal injectors that are clogged, leaking, or not spraying fuel evenly, even if their electrical resistance is within spec.

Maintaining Your MX-5's Fuel Injectors

Preventative maintenance can significantly extend the life of your fuel injectors and ensure optimal performance:

• Use Quality Fuel: Always use high-quality fuel from reputable sources. Lower quality fuels may contain more impurities that can clog injectors over time.
• Regular Fuel System Cleaning: Consider using a reputable fuel injector cleaner additive periodically, as recommended by your MX-5's service manual or a trusted mechanic. These additives can help dissolve minor deposits and keep the injectors clean.
• Timely Filter Replacement: Ensure your fuel filter is replaced at the recommended service intervals. A clogged fuel filter can starve the injectors of fuel, putting extra strain on the fuel pump and potentially leading to other issues.

Fuel Injector Upgrades for Your MX-5

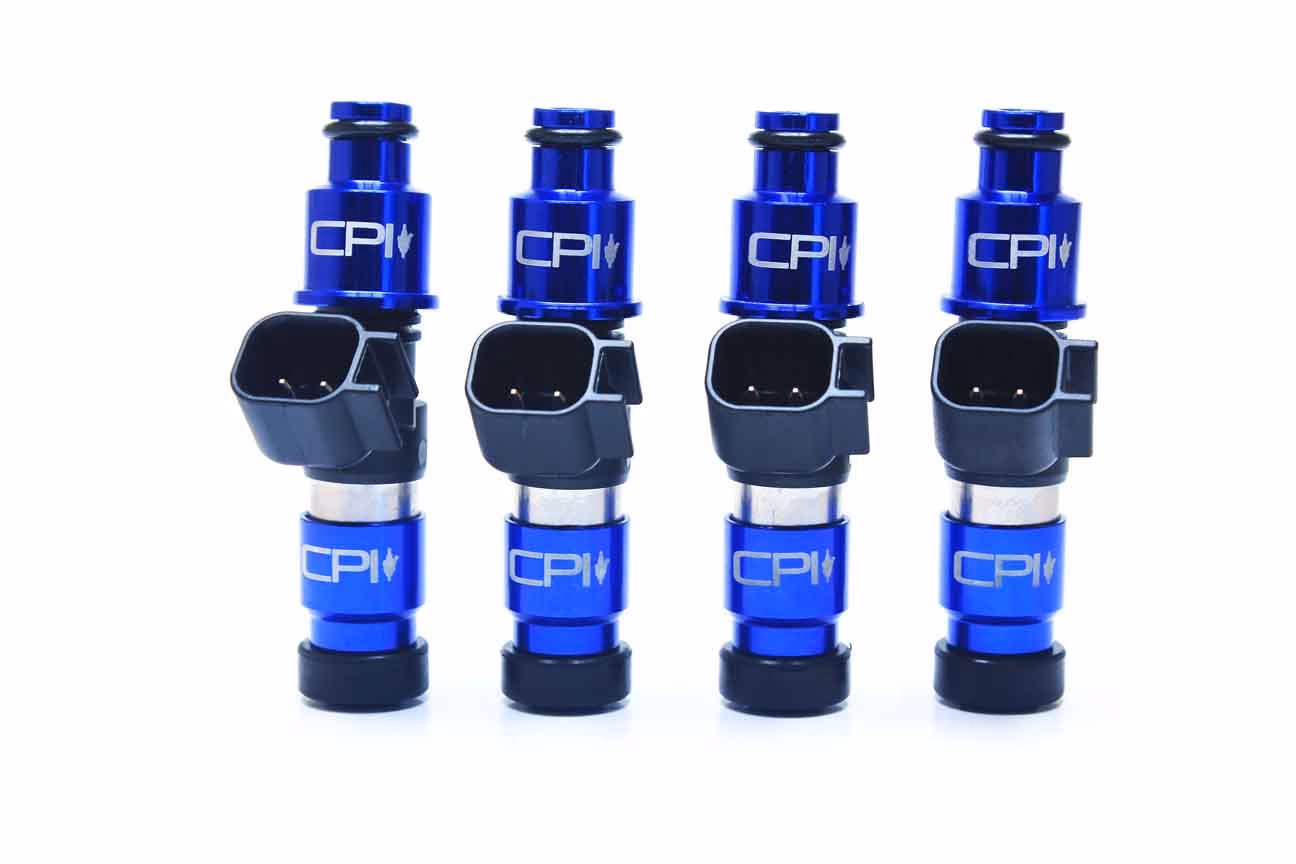

For those looking to enhance their MX-5's performance, upgrading the fuel injectors can be a part of a larger tuning strategy, especially when increasing power through forced induction or significant engine modifications. For example, a popular upgrade for Mk1, Mk2, and Mk2.5 MX-5s involves using genuine Bosch EV14 injectors. These often come in higher flow rates, such as 550cc or 635cc, which are suitable for more powerful setups.

A typical fuel system upgrade kit might include:

• New, higher-flow injectors (e.g., 550cc Bosch EV14)
• Adapters to fit the fuel rail and intake manifold
• New seals and O-rings
• Plug-and-play wiring harness adapters for easy installation
• Fuel rail spacers, if necessary, to accommodate the new injectors

These upgrades offer benefits such as improved idle characteristics and the capacity to deliver more fuel for higher horsepower applications. For instance, 550cc injectors are often rated to support around 270 WHP (Wheel Horsepower) at 3 Bar (43.5 psi) of fuel pressure, while 635cc injectors can support approximately 310 WHP at 4 Bar (58 psi).

It's important to note that any significant modification, including fuel injector upgrades, should be accompanied by proper tuning to ensure the engine operates safely and efficiently.

Common MX-5 Engine Information (Skyactiv-G)

The newer generations of the Mazda MX-5 (ND models) utilise Mazda's advanced Skyactiv-G direct injection petrol engines. These engines are designed for efficiency, smooth revving, and a distinct sound. There are typically two variants:

• 1.5 litre (P5-VP[RS]): Often considered the purer MX-5 experience, ideal for twisty roads.
• 2.0 litre (PE-VP): Offers more torque, making it well-suited for highway driving and higher-speed corners.

These engines feature technologies such as dual overhead camshafts, continuously variable sequential timing (S-VT) on both intake and exhaust cams, and direct fuel injection using multi-hole injectors for optimal fuel distribution. The engines are designed with a focus on precise fuel delivery and combustion control to maximise efficiency and performance while meeting stringent emissions and noise regulations.

The engine's design, including its exhaust manifold (often a 4-2-1 configuration for better knock prevention at high compression ratios) and induction sound enhancer, is carefully engineered to produce a pleasing and sporty exhaust note. Engineers spent considerable effort on exhaust system design, analysing gas temperatures and air density to achieve the desired sound without compromising performance or violating noise regulations.

Frequently Asked Questions

• How does a Mazda MX-5 behave when a fuel injector is going out?
  When a fuel injector starts to fail in your Mazda MX-5, you might notice rough cold starts, an unstable idle when the engine is cold, poor throttle response, and hesitation during acceleration when the engine is cold. Your fuel economy could also decrease, and you might observe black soot build-up around the exhaust tip.
• Will a malfunctioning fuel injector trigger a diagnostic code in a Mazda MX-5?
  Yes, a malfunctioning fuel injector is very likely to trigger a diagnostic trouble code (DTC) in your Mazda MX-5, often resulting in the "Check Engine" light illuminating. Common codes include misfire codes (e.g., P0300 series). Using an OBD-II scanner to read misfire data can help identify the specific cylinder affected, guiding you to the faulty injector.
• What occurs when a single fuel injector fails in a Mazda MX-5?
  If a single fuel injector fails in your Mazda MX-5, the engine will likely misfire in the cylinder associated with that injector, leading to a noticeable drop in performance and smoothness. The engine might vibrate more, especially at idle, and acceleration will feel rougher. If left unaddressed, this imbalance can put undue stress on other engine components and potentially lead to more significant damage.

By understanding these symptoms and diagnostic methods, MX-5 owners can proactively address fuel injector issues, ensuring their beloved roadster continues to provide countless hours of driving enjoyment.
