Encountering a glowing brake warning light on your Mazda MX-5 can be a rather alarming experience. This isn't just a friendly reminder; it's a crucial indicator that something in your car's braking system requires immediate attention. It's important to distinguish this light from the ABS (Anti-lock Braking System) warning light, which signifies a different set of potential issues. The brake warning light specifically points to a problem within the physical braking mechanism itself, making it one of the most vital signals your vehicle can present.
First Steps: The Emergency Brake
Before diving into more complex diagnostics, the very first thing you should check is your emergency brake, often referred to as the parking brake. In many vehicles, including the MX-5, an engaged or improperly released emergency brake will trigger the brake warning light. Ensure the handbrake lever is fully in its 'off' position. Sometimes, a small amount of resistance can remain, preventing the light from extinguishing. Give it a firm pull up and then a decisive push down to make sure it's completely disengaged. If the light disappears after this, you've found your culprit, and a simple manual adjustment has resolved the issue.
When the Emergency Brake Isn't the Cause
If releasing the emergency brake doesn't turn off the warning light, it's time to investigate further. Driving with the brake warning light illuminated is strongly discouraged. The potential consequences of brake failure are severe, ranging from significant vehicle damage to serious personal injury. Therefore, if the issue isn't the emergency brake, it's best to err on the side of caution and avoid driving the vehicle. Consider having it towed to a qualified mechanic.
Common Causes for the Mazda MX-5 Brake Warning Light
The brake warning light typically illuminates when your MX-5's braking system detects a fault, often related to a loss of hydraulic pressure. This can manifest as a noticeable change in the brake pedal feel, commonly described as 'mushy' or soft, which is often linked to low brake fluid levels.
Brake Fluid Level and Leaks
A low brake fluid level is a primary suspect. The brake fluid is the hydraulic medium that transmits the force from your foot on the pedal to the brake pads. If the fluid level is low, it indicates either that the brake pads are significantly worn or, more critically, that there is a leak somewhere in the system.
Checking the Master Cylinder: Locate the brake fluid reservoir, usually found near the brake master cylinder under the bonnet. Check the fluid level against the 'MIN' and 'MAX' markings. If it's low, topping it up might temporarily turn off the light. However, this is not a permanent fix. The fluid had to go somewhere, and the underlying problem, likely a leak, needs to be addressed.
Identifying Leaks: Brake fluid leaks can occur at various points. Rubber brake lines are particularly prone to degradation and cracking over time. Inspect all visible brake lines, from the master cylinder to the wheels, for any signs of wetness or fluid residue. Also, check around the brake calipers and wheel cylinders. Don't forget to look underneath where you usually park your MX-5; puddles of brake fluid are a tell-tale sign of a leak.
Impact of Leaks: A leak not only causes the fluid level to drop but also compromises the integrity of the braking system. If brake fluid leaks onto the brake pads or shoes, it will severely impair their friction coefficient, leading to significantly reduced braking performance.
Pressure Differential Switch
Your MX-5's braking system is ingeniously designed with a dual-circuit hydraulic system. This means that if one circuit develops a leak or fails, the other circuit will still provide braking power to the remaining wheels, offering a vital safety redundancy. The pressure differential switch is responsible for monitoring the pressure within these two circuits. If it detects a difference in pressure between the two, it indicates a problem in one of the circuits and will illuminate the brake warning light.
This switch is typically located within or very near the brake master cylinder. You'll usually see an electrical connector (harness) plugged into it. A malfunctioning or incorrectly sensing differential pressure switch can also trigger the warning light, even if there isn't a significant leak.

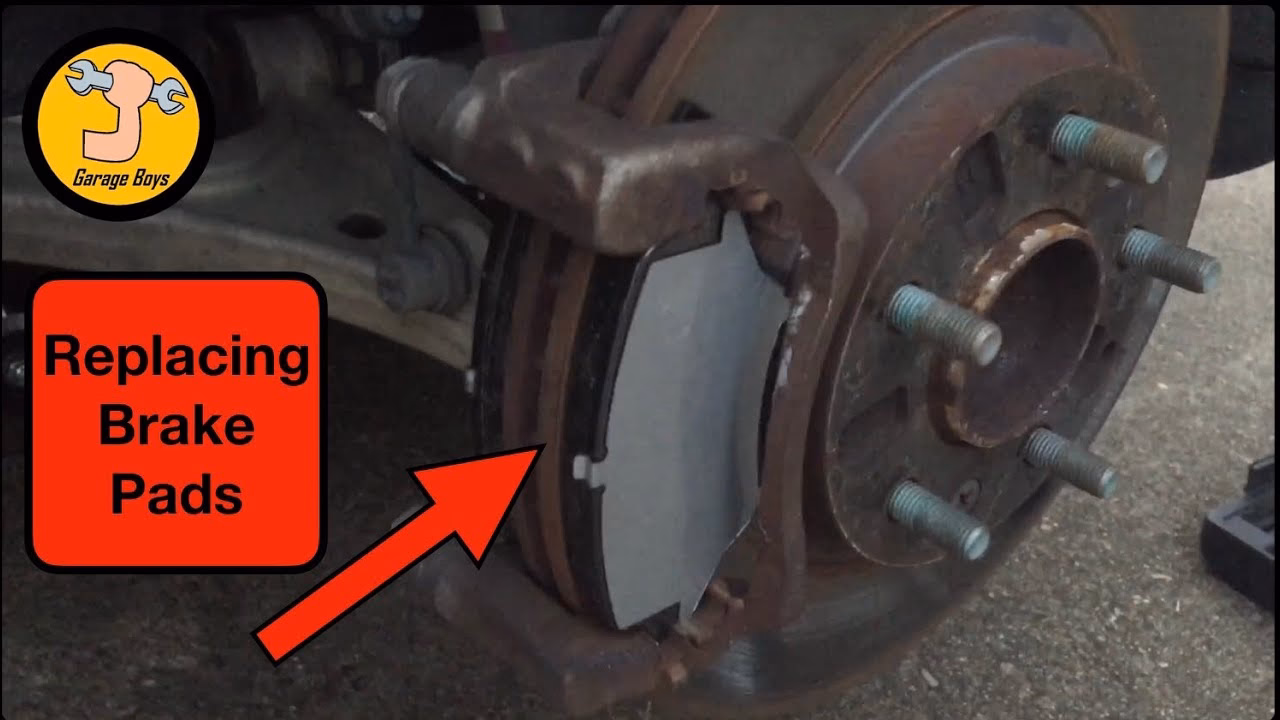

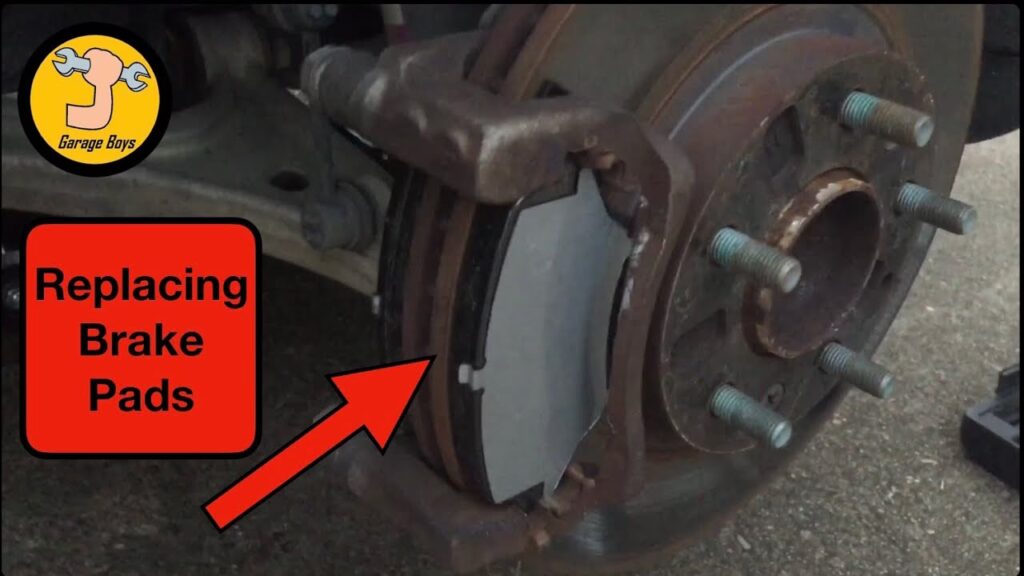

Worn Brake Pads
Modern brake pads often come equipped with integrated wear sensors. These are small metal tabs, often called 'squealers,' designed to make contact with the brake disc when the pad material has worn down to a critical level. When this happens, it usually produces an audible squealing noise as you apply the brakes. However, in some systems, this contact can also trigger the brake warning light on the dashboard. This feature serves as an important alert to replace your brake pads before they wear down to the point where they can no longer provide adequate stopping power.
Faulty Brake Lights (External)
In a surprising number of modern vehicles, including some Mazda MX-5 models, the dashboard brake warning light can be triggered if the actual brake lights on the rear of the car fail. This is a safety feature designed to alert you if your intention to brake isn't being communicated to other road users. Check if both your left and right brake lights are functioning correctly when you press the brake pedal. If one or both are out, replacing the bulb might be the solution. It's worth noting that this doesn't address any underlying hydraulic issues but can be a quick fix for the illuminated warning light if this is the specific cause.
How to Turn Off Your MX-5's Brake System Warning Light
The fundamental way to extinguish the brake warning light is to rectify the underlying issue that caused it to illuminate in the first place. This generally means restoring proper hydraulic pressure to both brake circuits. If the light is on due to low fluid, you need to find and fix the leak and then bleed the brake system. If it's due to worn pads with sensors, replacing the pads will resolve it. If the pressure differential switch is faulty, it will need to be replaced.
Important Safety Note: As reiterated, if your MX-5 exhibits any signs of braking trouble, such as a spongy pedal, reduced stopping power, or fluid leaks, do not attempt to drive it. Arrange for it to be towed to a reputable mechanic. While a mistake in engine repair might leave your car immobile, a mistake in brake repair can have far more catastrophic consequences, directly impacting your ability to stop safely.
Summary Table of Potential Causes
| Symptom | Potential Cause | Action Recommended |
|---|---|---|
| Light on, emergency brake disengaged | Low brake fluid | Check for leaks, top up, bleed brakes, repair leak |
| Spongy brake pedal | Air in brake lines or low fluid | Check fluid level, bleed brakes, inspect for leaks |
| Visible fluid under car or around components | Brake fluid leak (lines, calipers, master cylinder) | Inspect all brake components and lines, repair leak, bleed system |
| Warning light on, no obvious fluid loss or pedal issues | Faulty pressure differential switch or worn pads with sensors | Diagnose switch, check pad thickness and sensor condition |
| Brake lights not working | Burnt-out brake light bulb | Replace bulb |
Frequently Asked Questions
Q1: Can I drive my MX-5 with the brake warning light on?
It is strongly advised not to drive your vehicle if the brake warning light is illuminated, especially if you notice any degradation in braking performance or fluid leaks. The risk of brake failure is too high.
Q2: What's the difference between the brake warning light and the ABS light?
The brake warning light indicates a problem with the primary hydraulic braking system, such as low fluid or leaks. The ABS light indicates a fault within the Anti-lock Braking System, which controls wheel lock-up during heavy braking.
Q3: How much does it cost to fix a brake fluid leak?
The cost can vary significantly depending on the location and severity of the leak. Replacing a cracked brake line or a faulty caliper seal could range from a couple of hundred pounds to several hundred, plus the cost of bleeding and refilling the system. It's best to get a quote from your mechanic.
Q4: Do I need to bleed the brakes after topping up fluid?
If you've simply topped up a slightly low fluid level without any leaks or component replacements, bleeding might not be immediately necessary. However, if the level was very low, indicating a potential air ingress, or if you plan to replace components, bleeding the system is essential to remove air and ensure proper brake function.
Conclusion
Addressing the illuminated brake warning light on your Mazda MX-5 is a critical maintenance task. After confirming the emergency brake is fully disengaged, systematically check for low brake fluid, leaks in the hydraulic lines and components, and consider issues with the pressure differential switch or worn brake pads. Remember, your brakes are your most important safety feature. If you're unsure about diagnosing or repairing these issues, always consult a qualified automotive technician. Your safety, and the safety of others on the road, depends on it.
