Keep Your Mustang's Transmission Leak-Free

Your Ford Mustang, whether it's the V6 or the powerful GT from 2005 to 2014, is a machine built for performance and driving pleasure. At the heart of its smooth operation lies the automatic transmission, a complex marvel relying heavily on its fluid to function correctly. This vital fluid isn't just for lubrication; it cools, enables gear shifts, and facilitates the torque converter's operation. However, the Achilles' heel of any transmission is a leak, which can quickly lead to costly damage and diminish your Mustang's performance. Understanding why these leaks occur and, more importantly, how to prevent them, is crucial for any Mustang owner.

Dirt, debris, and extreme heat are the primary adversaries of transmission fluid, rapidly deteriorating its condition. Once compromised, the fluid loses its ability to protect internal components, leading to wear, overheating, and eventually, transmission failure. A simple, yet incredibly effective, preventative measure is a periodic drain and fill. But before we delve into the 'how-to', let's truly understand the transmission and why keeping it sealed and full of fresh fluid is paramount.

Understanding Your Mustang's Automatic Transmission

When you fire up your Mustang's engine, a pump located behind the torque converter springs to life, circulating transmission fluid throughout the entire system. This fluid, often referred to as automatic transmission fluid (ATF), serves multiple critical roles. Firstly, fluid pressure is meticulously used to engage the various bands and clutches responsible for seamless gear changes. Without adequate pressure, shifts become harsh, delayed, or simply won't happen.

Secondly, the act of changing gears generates significant heat. As the fluid circulates, it actively dissipates this heat, keeping the transmission within its optimal operating temperature range. This cooling function is vital, as excessive heat is the number one enemy of ATF. Moreover, transmission fluid isn't just a simple lubricant; it contains specialised additives and conditioners designed to reduce friction and wear between the intricate clutches and bands, prolonging their lifespan. When temperatures soar to or exceed 300 degrees Fahrenheit (approximately 150 degrees Celsius), the fluid breaks down permanently, losing its protective properties and becoming utterly ineffective. External leaks, by introducing contaminants like dirt and moisture, can significantly accelerate this damaging decomposition process, turning healthy fluid into a thick, abrasive sludge.

Why Do Transmissions Leak? Common Culprits

A transmission leak can be a frustrating sight, leaving tell-tale puddles on your driveway. But what causes these leaks in the first place? Identifying the source is the first step towards prevention and repair. Here are the most common culprits:

• Worn Seals: Over time, rubber seals, such as the input shaft seal, output shaft seal, or main seals, can harden, crack, or simply wear out due to age and heat cycles. This is one of the most frequent causes of fluid loss.
• Damaged Gaskets: The transmission pan gasket is a prime suspect. This gasket provides a seal between the transmission case and the pan. If it becomes brittle, torn, or improperly installed after a service, it will leak. Other gaskets, like those around the valve body, can also fail.
• Cracked Transmission Pan: While less common, the transmission pan can be damaged by road debris, speed bumps, or even improper jacking, leading to cracks and subsequent leaks.
• Loose Pan Bolts: Simple but effective: the bolts holding the transmission pan in place can loosen over time due to vibrations and temperature changes. A quick tightening can sometimes resolve a minor leak here.
• Worn or Damaged Cooler Lines: Automatic transmissions often have lines that run to a cooler (usually integrated into the radiator) to help regulate fluid temperature. These lines, their connections, or the cooler itself can corrode, crack, or loosen, leading to significant leaks.
• Torque Converter Seal: This seal, located where the torque converter connects to the transmission, is under constant stress and can eventually fail, leading to leaks that often appear closer to the front of the vehicle.
• Drain Plug Issues: If the drain plug or its washer is damaged, stripped, or not tightened correctly after a fluid change, it will certainly leak.

Identifying a Transmission Leak: What to Look For

Spotting a leak early can save you a lot of hassle and money. Here's how to identify if your Mustang's transmission is leaking:

• Puddles Under the Car: This is the most obvious sign. Transmission fluid is typically reddish-brown, clear, and has a distinctive, slightly sweet or oily smell. Unlike engine oil, it often feels thinner. If the fluid is dark brown or black and smells burnt, it indicates severely degraded fluid.
• Low Fluid Levels: Regularly checking your transmission fluid dipstick (if your model has one easily accessible – many newer Mustangs require specific procedures) is crucial. A consistently low level without a visible puddle might indicate a very slow leak or fluid being consumed internally, though the latter is rare.
• Shifting Problems: Low fluid levels or contaminated fluid can lead to noticeable transmission issues, such as slipping gears, delayed engagement into drive or reverse, harsh shifts, or even a complete refusal to shift. These symptoms often accompany a leak.
• Burning Smell: A distinct burning smell, particularly after driving, can indicate overheating transmission fluid, often a direct result of low fluid levels caused by a leak.
• Warning Lights: While less common for just a minor leak, severe fluid loss or overheating due to a leak can trigger a 'Check Engine' light or a specific transmission warning light on your dashboard.

The Critical Role of Mercon V Fluid

For your 2005-2014 Ford Mustang's automatic transmission, the specified fluid is Mercon V. This isn't just a recommendation; it's a requirement. Mercon V is a specially formulated fluid designed to meet the precise lubrication, cooling, and friction characteristics demanded by Ford transmissions. Using any other fluid, or mixing different types, can lead to severe operational issues, accelerated wear, and ultimately, transmission failure. The additives in Mercon V are crucial for reducing wear on clutches and bands, preventing foaming, and maintaining viscosity across a wide range of temperatures. Always ensure you are using genuine Mercon V or a fluid explicitly labelled as 'Mercon V compatible' from a reputable brand.

Preventative Maintenance: Your Best Defence Against Leaks

The number one way to keep your Mustang's transmission trouble-free and prevent leaks is through diligent preventative maintenance, primarily focusing on regular fluid changes and routine inspections. A periodic drain and fill is like giving your transmission a new lease on life.

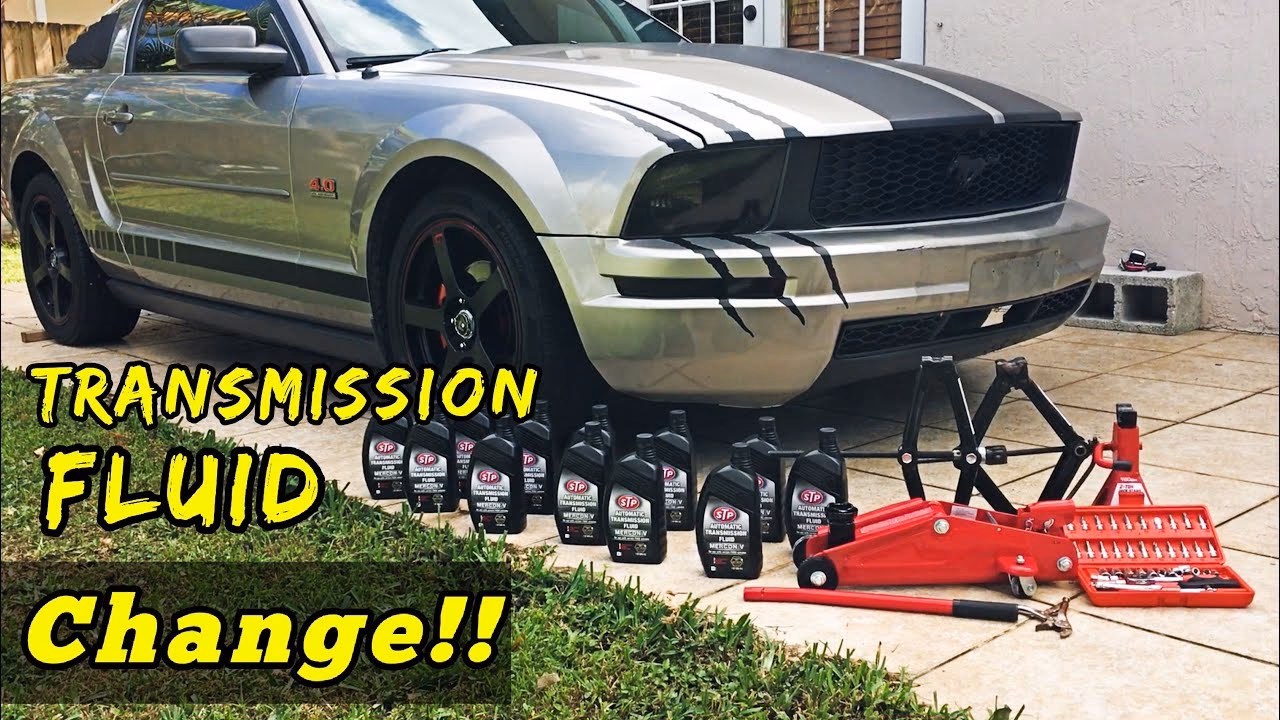

Performing a Transmission Fluid Drain and Fill (2005-2014 Mustang V6 & GT)

This procedure is manageable for the keen DIY enthusiast, but always prioritise safety. Ensure you have all the materials ready before you begin.

Materials Needed:

• 7/8" wrench or socket
• T30 Torx bit
• 1/2" ratchet
• Fluid pump (manual or electric)
• Fluid fill adapter (essential for easy filling)
• 5 quarts of Mercon V transmission fluid (ensure you have enough)
• Jack stands (x2)
• Floor jack
• Rubber gloves
• Safety glasses
• Drain pan (sufficient capacity for 5 quarts)
• Wheel chocks (optional, but highly recommended for extra safety)
• Clean rags

Step 1 – Raise the Front of the Vehicle Safely

For an accurate fluid level reading post-fill, your vehicle ideally needs to be level, or at least on a perfectly flat surface. If you are only raising the front, be aware that the final fluid check should be done with the vehicle level. Begin by engaging the emergency brake firmly. Place wheel chocks behind the rear wheels for added security. Position your floor jack beneath one of the designated jacking points at the front of the vehicle. These points are usually strong chassis components designed to safely support the vehicle's weight. Once your desired working height is achieved, slowly lower the vehicle onto a jack stand, placing it as close to the jacking point as possible. Never rely solely on the floor jack for support. Repeat this procedure for the other front corner. You can place blocks of wood or rubber pads between the jack stands and the vehicle's body to minimise the chance of damage to the undercarriage. Double-check that the vehicle is stable and secure before proceeding underneath.

Step 2 – Drain the Automatic Transmission Fluid (ATF)

Before you begin, ensure your drain pan is clean and has enough capacity to hold approximately 5 quarts (just under 5 litres) of fluid. Position the drain pan directly underneath the transmission pan's drain plug. Using a 7/8" socket or wrench, carefully loosen and remove the drain plug. Be prepared, as the fluid will begin to flow out immediately. The fluid might be hot if you've recently driven the car, so exercise caution. Allow the fluid to drain completely. This can take several minutes. While it's draining, inspect the fluid for any metallic particles or excessive sludge, which could indicate internal transmission wear. Once the flow has slowed to a drip, clean the drain plug and its washer (replace the washer if it looks worn or damaged) and re-install it firmly. Do not overtighten, as this can strip the threads on the pan.

Step 3 – Fill the Transmission with Mercon V

With the drain plug securely re-installed, it's time to refill the transmission. Locate the fill plug on the transmission pan. Remove the small centre Torx bolt (using your T30 Torx bit) from this plug. This is where your fluid fill adapter comes in handy. Screw the fluid fill adapter into the opening. Connect your fluid pump to the adapter's inlet. Begin pumping fresh Mercon V transmission fluid into the transmission. You will typically add four to five quarts (or litres) during a drain and fill, as this procedure only replaces the fluid in the pan, not the entire system (which includes the torque converter and cooler lines). Continue pumping until the fluid begins to drip out of the fill adapter opening. This indicates the transmission pan is full to the correct level for a static fill. Once fluid begins to drip, remove the pump outlet hose and then the fill adapter. Promptly re-install the Torx bolt into the fill plug, ensuring it's snug but not overly tight. It's crucial that this fluid must be Mercon V compatible to prevent damage.

After refilling, start your Mustang's engine and let it run for a few minutes. Cycle the gear selector through all positions (P, R, N, D, 2, 1), pausing briefly in each, to allow the new fluid to circulate throughout the transmission. With the engine still running and the vehicle level, re-check the fluid level using the appropriate procedure for your Mustang model (some newer models have complex checks without a traditional dipstick). Top up as necessary until the fluid is at the correct 'hot' level on the dipstick or indicator. Check for any leaks around the drain and fill plugs.

Routine Inspections

Beyond fluid changes, make it a habit to regularly inspect your Mustang's transmission. Look for any signs of weeping around seals, gaskets, and cooler lines. Check the condition of the transmission pan for any dents or rust. Catching a minor weep early can prevent it from becoming a significant leak and save you from more extensive repairs down the line.

Avoiding Overheating

Since heat is the enemy of transmission fluid, taking steps to prevent overheating is also a form of leak prevention. Ensure your cooling system is in good working order. If you frequently tow with your Mustang (though less common for these models), consider an auxiliary transmission cooler. Avoid aggressive driving habits that put excessive strain on the transmission, especially during hot weather.

Addressing Minor Leaks: What You Can Do

For very minor seeps or 'sweating' of fluid, sometimes a transmission stop-leak additive can provide a temporary solution by conditioning seals. However, these are generally not recommended as a permanent fix and should be used with caution, as they can sometimes swell seals too much or cause other issues. Tightening loose transmission pan bolts can often resolve minor leaks from the pan gasket. Always use a torque wrench to ensure proper tightness without overtightening.

When to Seek Professional Help

While a fluid drain and fill is a DIY-friendly task, some transmission leak issues are beyond the scope of home mechanics. If you encounter a significant, persistent leak, a leak from a difficult-to-access area (like the torque converter seal), or if you experience severe transmission performance issues alongside a leak, it's best to seek professional attention. A qualified mechanic will have the tools and expertise to accurately diagnose the source of the leak, determine if internal damage has occurred, and perform the necessary repairs safely and effectively.

Frequently Asked Questions (FAQs)

How often should I change my Mustang's automatic transmission fluid?

Ford typically recommends changing the Mercon V fluid every 30,000 to 60,000 miles (approximately 48,000 to 96,000 km), depending on driving conditions. If you engage in heavy towing, frequent stop-and-go city driving, or performance driving, more frequent changes (e.g., every 30,000 miles) are advisable.

Can I mix different types of transmission fluid in my Mustang?

Absolutely not. Mixing different types of transmission fluid, or using a non-Mercon V compatible fluid, can lead to severe damage to your Mustang's transmission. Always use Mercon V or a fluid explicitly stating compatibility.

What happens if I ignore a transmission leak?

Ignoring a transmission leak is a recipe for disaster. Low fluid levels cause increased friction, overheating, and accelerated wear on internal components. This can quickly lead to slipping gears, harsh shifts, complete transmission failure, and ultimately, a very expensive repair or replacement.

Is it normal for my transmission to 'sweat' a little fluid?

A very minor 'sweat' or slight dampness around seals might be considered normal on older vehicles, but any visible drip or puddle indicates a leak that should be addressed. Even small leaks can eventually lead to significantly low fluid levels and potential damage.

How much does a professional transmission fluid change cost?

The cost of a professional transmission fluid change can vary, but typically ranges from £150 to £300 in the UK, depending on the garage and whether a simple drain-and-fill or a more extensive fluid flush is performed. While a DIY drain and fill is more economical, professional service ensures proper disposal of old fluid and expert attention.

Your Ford Mustang is a valuable asset, and its automatic transmission is a sophisticated component that deserves proper care. By understanding the critical role of transmission fluid, recognising the signs of a leak, and committing to regular preventative maintenance, especially the periodic drain and fill with the correct Mercon V fluid, you can significantly extend the life of your transmission and keep your Mustang running smoothly for years to come. Don't wait for a small drip to become a major problem; proactive maintenance is always the most cost-effective solution.
